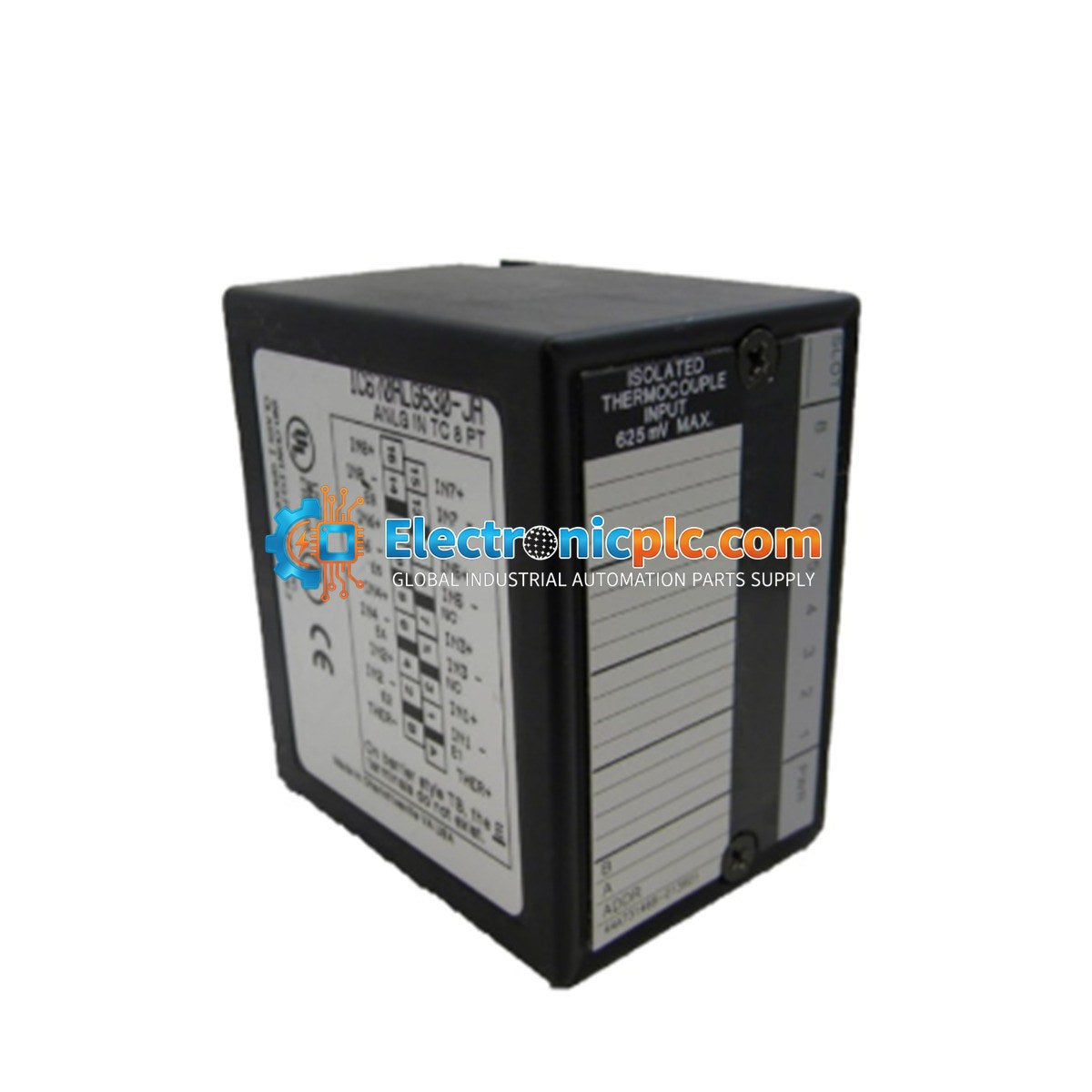

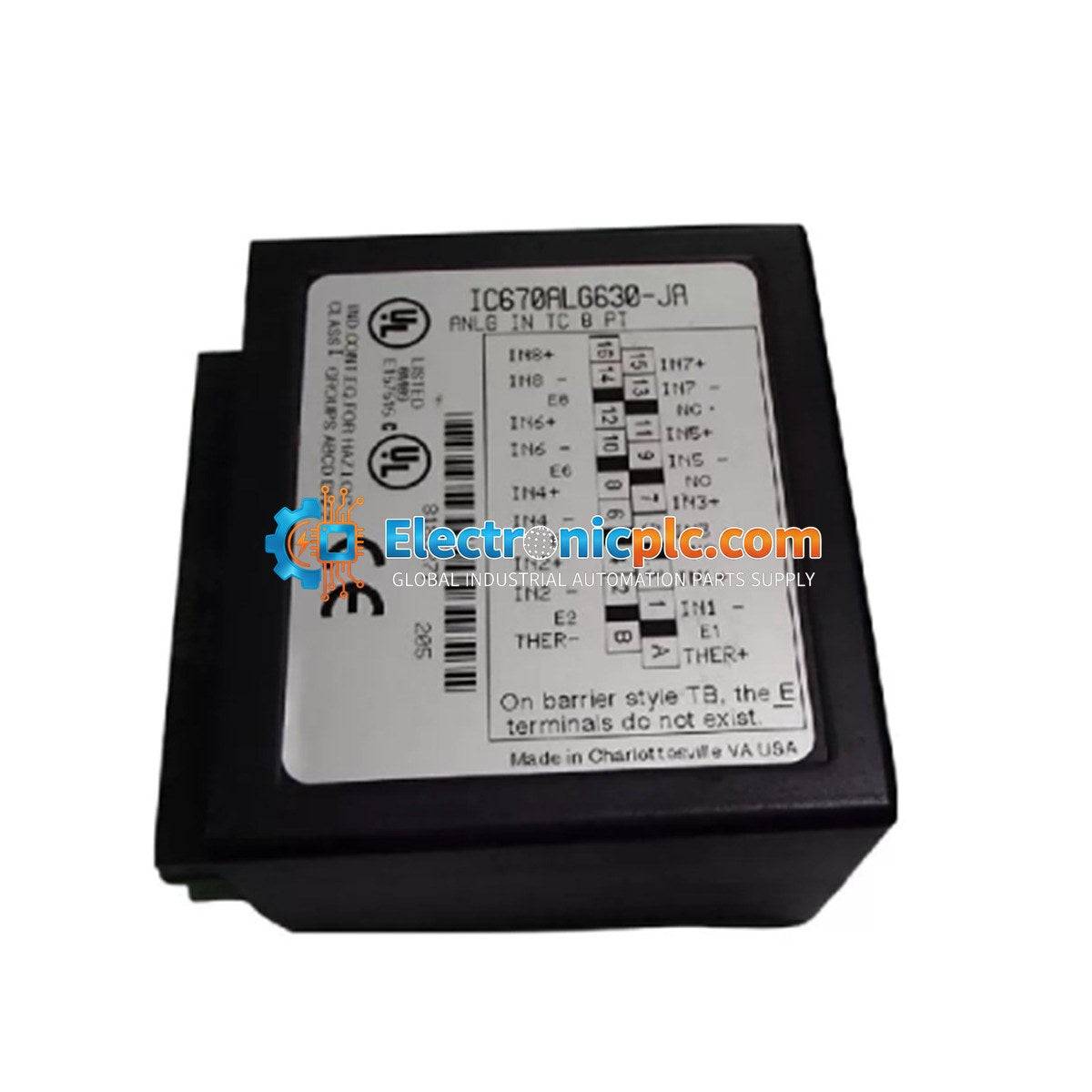

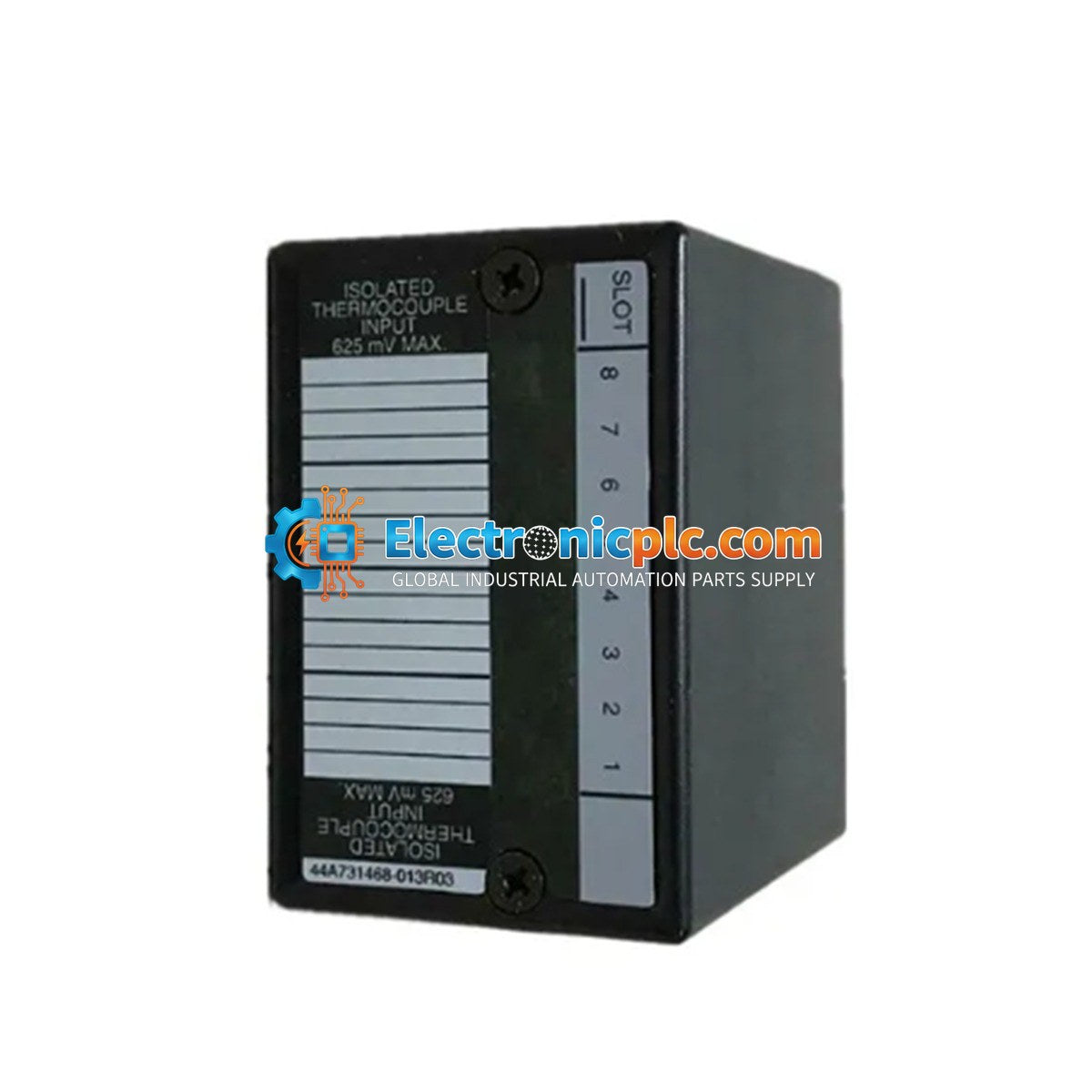

GE Fanuc IC670ALG630-CA Field Control Analog Input Module

GE Fanuc IC670ALG630-CA Field Control Analog Input Module

Description

The GE Fanuc IC670ALG630-CA is an 8-channel Analog Input Module designed for the Field Control series. This module is engineered for high-precision temperature measurement, supporting a wide range of thermocouple...

25 people are viewing this right now

Availability: Low stock: 8 left

SKU: IC670ALG630
Vendor: General Electric
Category: Analog Input Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The GE Fanuc IC670ALG630-CA is an 8-channel Analog Input Module designed for the Field Control series. This module is engineered for high-precision temperature measurement, supporting a wide range of thermocouple types to provide reliable data acquisition in industrial automation environments. It features a 15-bit plus sign converter resolution, ensuring accurate signal processing for critical process control applications.

Features

  • 8-channel high-resolution analog input capability.
  • Supports a comprehensive list of thermocouple types: J, K, T, E, S, R, B, N, G, C, D, and Platinel II.
  • Advanced fault detection including open thermocouple detection, over/under range monitoring, and high/low alarm thresholds.
  • 15-bit plus sign converter resolution for precise signal digitization.
  • Maximum voltage isolation between channels rated at 250 VAC.
  • Power consumption: 195 mA maximum current draw from the BIU power supply.

Applications

This module is typically utilized in distributed I/O systems where thermocouple inputs are required for temperature monitoring and control. It is suitable for process industries, manufacturing plants, and CNC-integrated control systems requiring robust analog signal conditioning.

Technical Specifications

Model IC670ALG630-CA
Number of Channels 8
Converter Resolution 15 bits + sign
Thermocouple Types J, K, T, E, S, R, B, N, G, C, D, Platinel II
Input Spans 19.5mV, 39mV, 78.125mV, 156.25mV, 312.5mV, 625mV
Max Voltage Between Channels 250 VAC
Current Consumption 195 mA (from BIU)

Installation Guidelines

  • Ensure the system power is disconnected before installing or removing the module from the Field Control station.
  • Mount the module securely onto the designated I/O base to ensure proper electrical contact with the backplane.
  • Use shielded twisted-pair cabling for all thermocouple inputs to minimize electromagnetic interference (EMI).
  • Maintain proper grounding practices for the Field Control rack to ensure signal integrity and safety.
  • Handle the module with ESD-safe precautions to prevent damage to internal sensitive components.

FAQ

What thermocouple types are supported by the IC670ALG630-CA?

This module supports a wide variety of thermocouple types, including J, K, T, E, S, R, B, N, G, C, D, and Platinel II.

What is the resolution of this analog input module?

The module features a 15-bit plus sign converter resolution, providing high-fidelity signal conversion for industrial temperature inputs.
