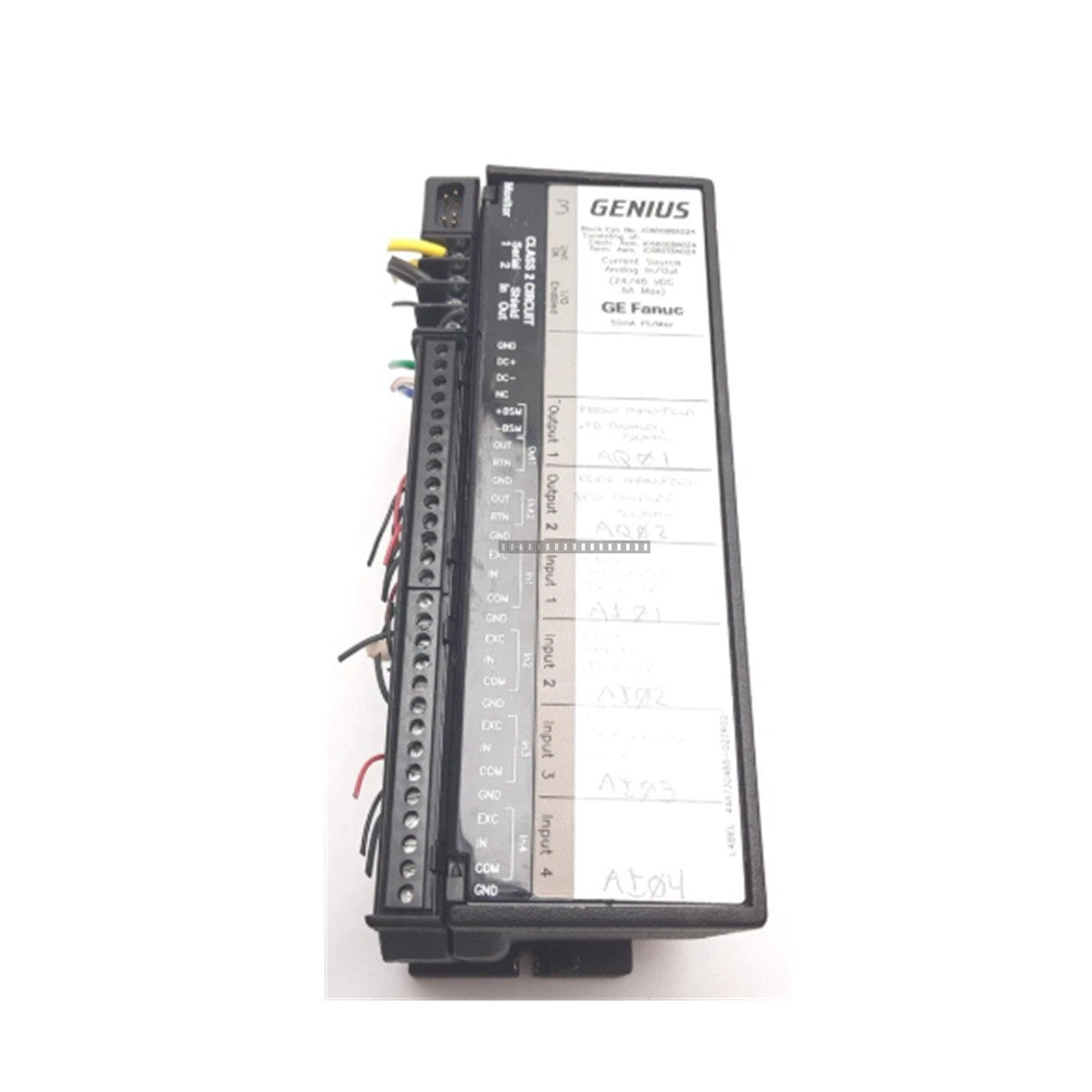

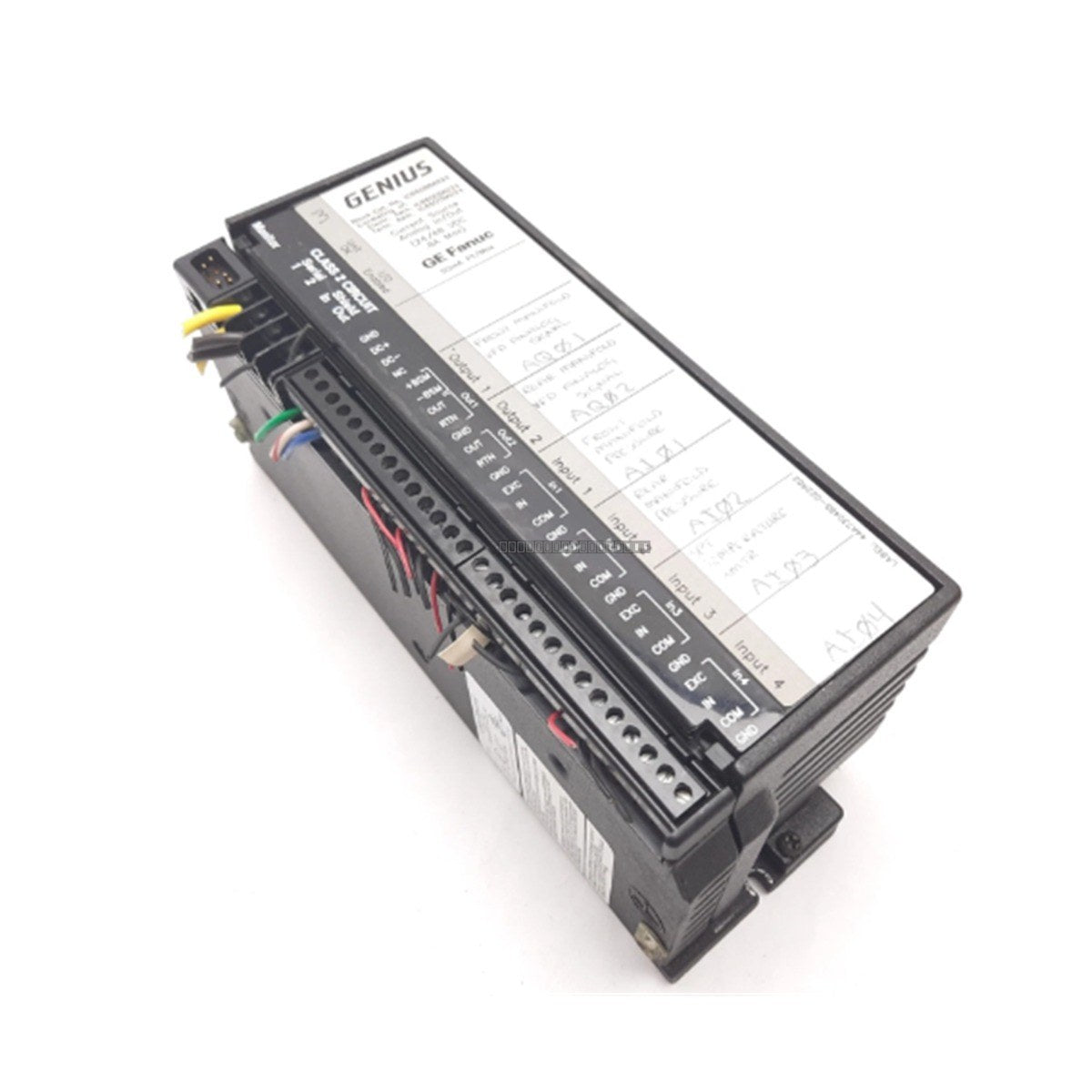

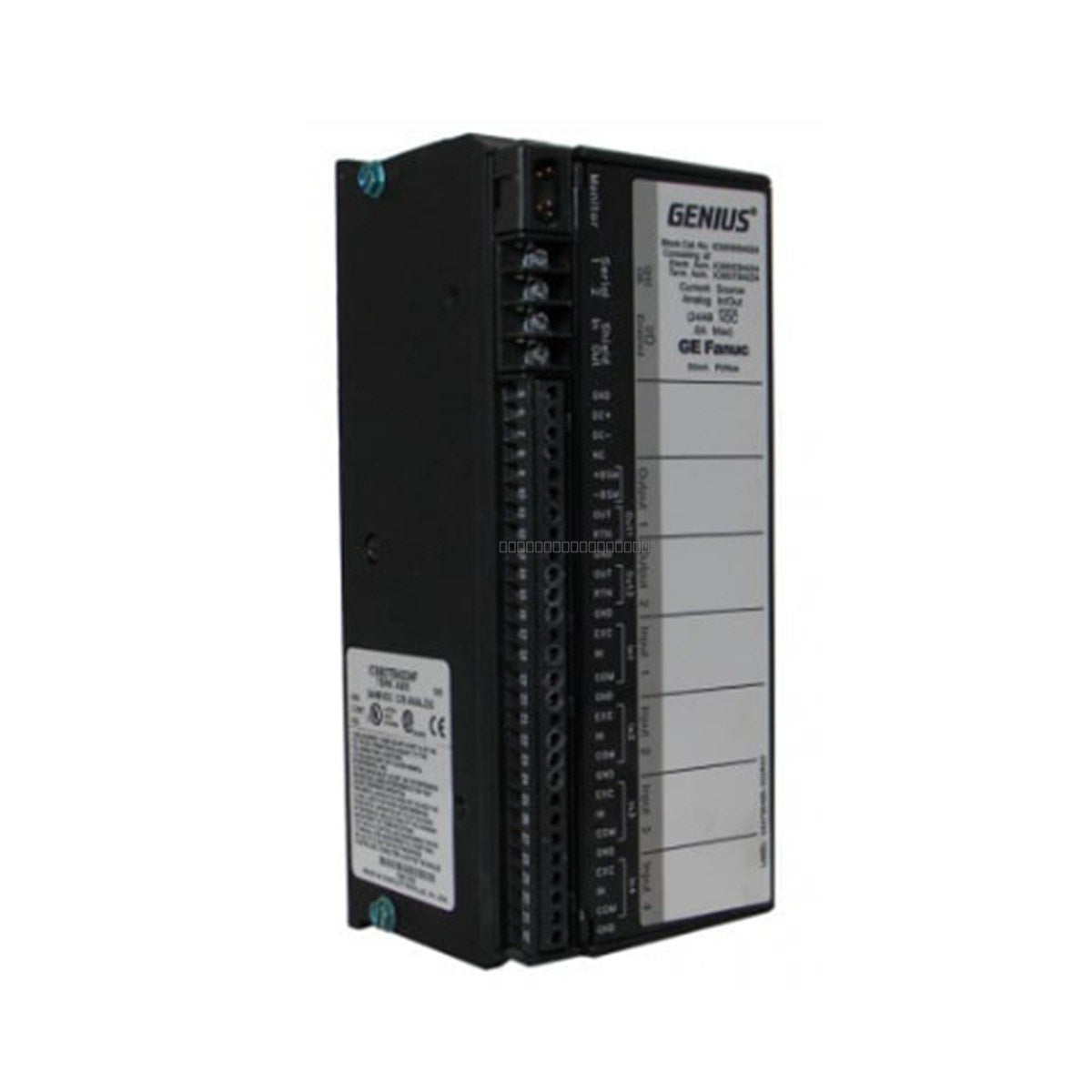

The General Electric IC660BBA024 is a Current Source I/O block from the Genius I/O product series. This module is designed to provide reliable analog signal processing in industrial automation environments, offering a combination of input and output channels with high precision and robust isolation.

Features

• 4 Analog Input channels with 0.1% full-scale accuracy and 1 microamp resolution.
• 2 Analog Output channels with 0.15% full-scale accuracy and 6 microamp resolution.
• Integrated status LEDs for Unit OK and I/O Enabled diagnostics.
• 1500 V RMS isolation between blocks and between groups to ensure signal integrity and protection.
• Designed for 24/48 VDC block power operation.

Applications

This module is typically utilized in distributed I/O architectures within industrial control systems, suitable for process control, monitoring, and instrumentation tasks where current loop signals (4-20mA) are required for sensor and actuator interfacing.

Technical Specifications

Installation Guidelines

• Ensure the system power is disconnected before installing or removing the module from the Genius I/O network.
• Mount the module in a location that allows for adequate ventilation to manage the 12 Watts of heat dissipation.
• Use shielded twisted-pair cabling for analog signals to minimize EMI/RFI interference.
• Verify that the block power supply matches the 24/48 VDC requirement before energizing.
• Ensure proper grounding of the module chassis to the system common ground to maintain isolation integrity.

FAQ

What is the primary function of the IC660BBA024?

The IC660BBA024 is a Genius I/O block that acts as a current source, providing 4 analog inputs and 2 analog outputs for process control applications.

What is the isolation rating for this module?

The module provides 1500 V RMS isolation between blocks and between groups, protecting the internal circuitry from electrical noise and potential ground loops.
