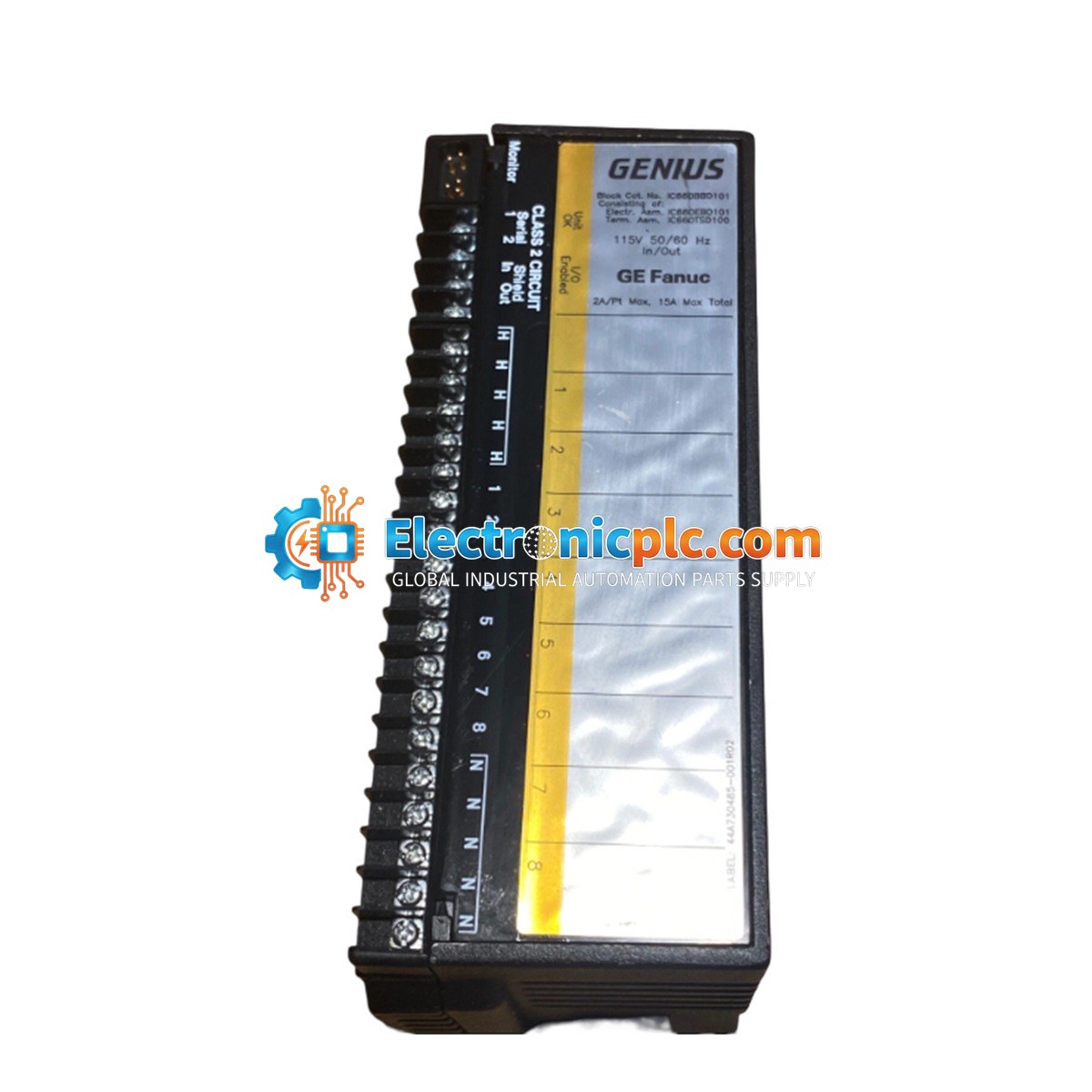

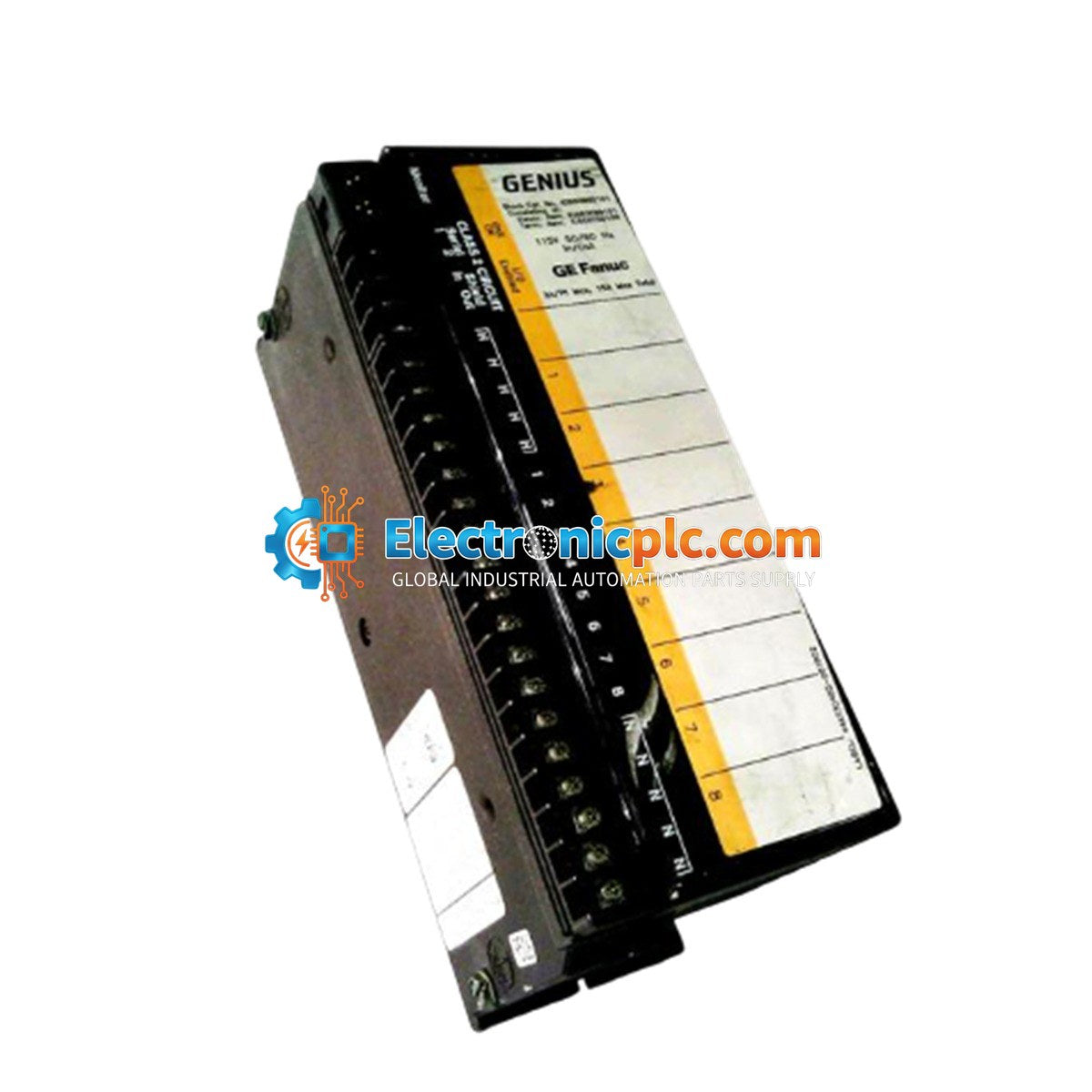

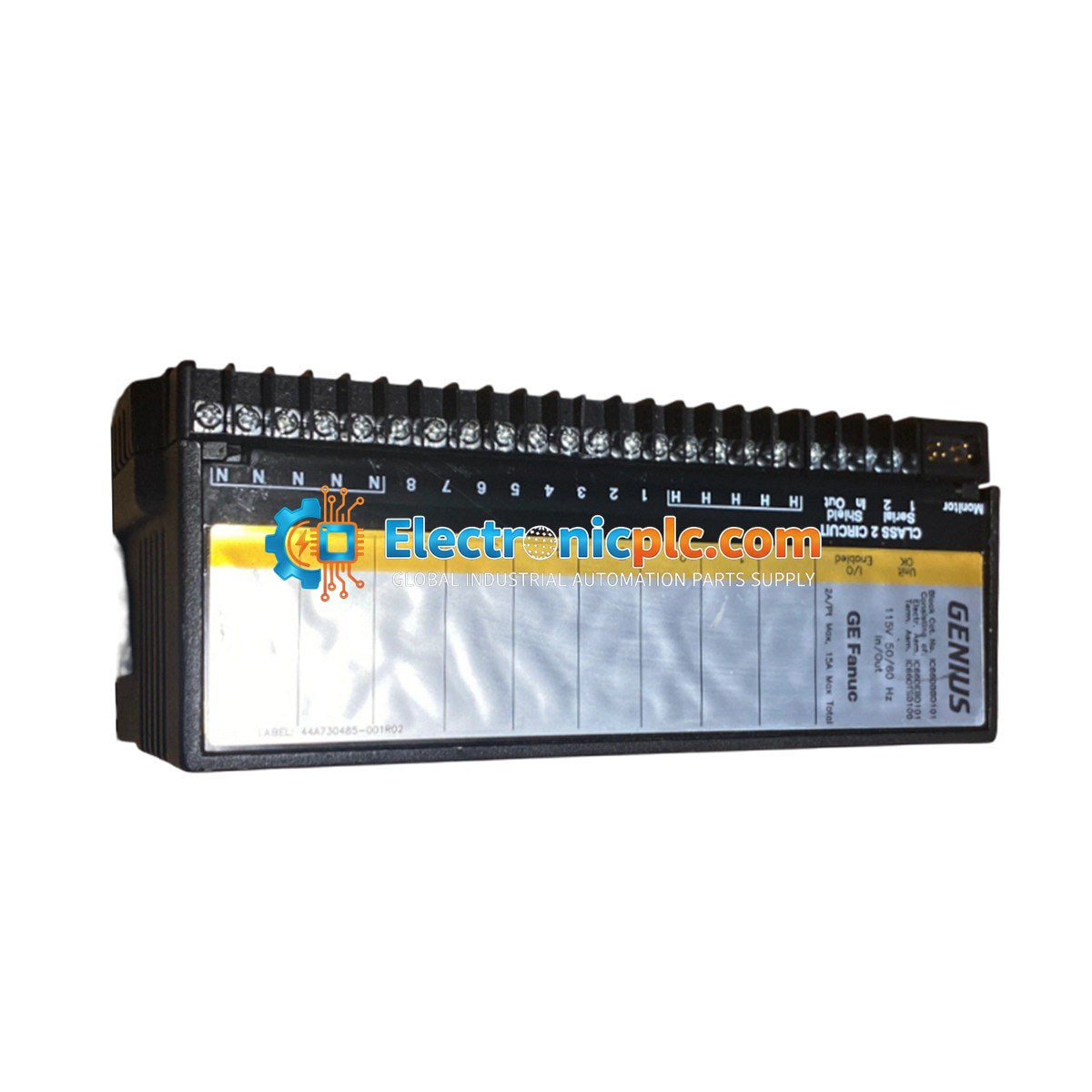

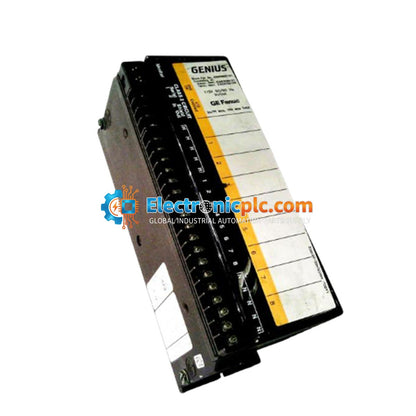

General Electric IC660BBD101 Genius I/O Discrete I/O Block

General Electric IC660BBD101 Genius I/O Discrete I/O Block

Description

The General Electric IC660BBD101 is a Genius I/O discrete I/O block designed for reliable industrial automation control. As part of the GE Genius I/O series, this module provides 8 points...

18 people are viewing this right now

Availability: Low stock: 1 left

SKU: IC660BBD101
Vendor: General Electric
Category: Discrete I/O Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The General Electric IC660BBD101 is a Genius I/O discrete I/O block designed for reliable industrial automation control. As part of the GE Genius I/O series, this module provides 8 points of discrete input/output capability, specifically engineered for 115 VAC applications. It serves as a robust interface between field devices and the main control system, ensuring efficient signal processing in complex industrial environments.

Features

  • 8 discrete I/O points grouped per common.
  • Supports 115 VAC nominal operating voltage (93-132 VAC range).
  • Integrated fuse protection for enhanced circuit safety.
  • Configurable filter time ranging from 10 to 100 mS.
  • Diagnostic LEDs for Unit OK and I/O Enabled status monitoring.
  • 1500V block-to-block isolation for electrical noise immunity.

Technical Specifications

Model IC660BBD101
Series Genius I/O
Voltage Type 115 VAC
Operating Voltage 93-132 VAC
Frequency 47 to 63 Hz
Points per Common 1 group of 8
Input Response Time 2 msec plus configurable filter
Output Response Zero crossing
Isolation 1500V (1 minute)

Installation Guidelines

  • Ensure the control system is powered down before installing or removing the I/O block.
  • Mount the unit in a clean, dry environment with adequate ventilation to prevent overheating.
  • Use shielded cabling for I/O signals to minimize electromagnetic interference (EMI) from high-power equipment.
  • Verify that all field wiring is properly secured and that the common terminals are correctly configured for the application.
  • Follow standard ESD (Electrostatic Discharge) precautions when handling the module to prevent damage to internal circuitry.

FAQ

What is the primary function of the IC660BBD101?

The IC660BBD101 is a discrete I/O block used to interface 115 VAC field devices with a Genius I/O network, allowing for the monitoring and control of 8 distinct circuits.

What is the required operating frequency for this module?

This module is designed to operate within a frequency range of 47 to 63 Hertz.

Does this module provide isolation?

Yes, the IC660BBD101 features 1500V block-to-block isolation, which helps protect the internal electronics from voltage spikes and ground loops in industrial environments.
