Description

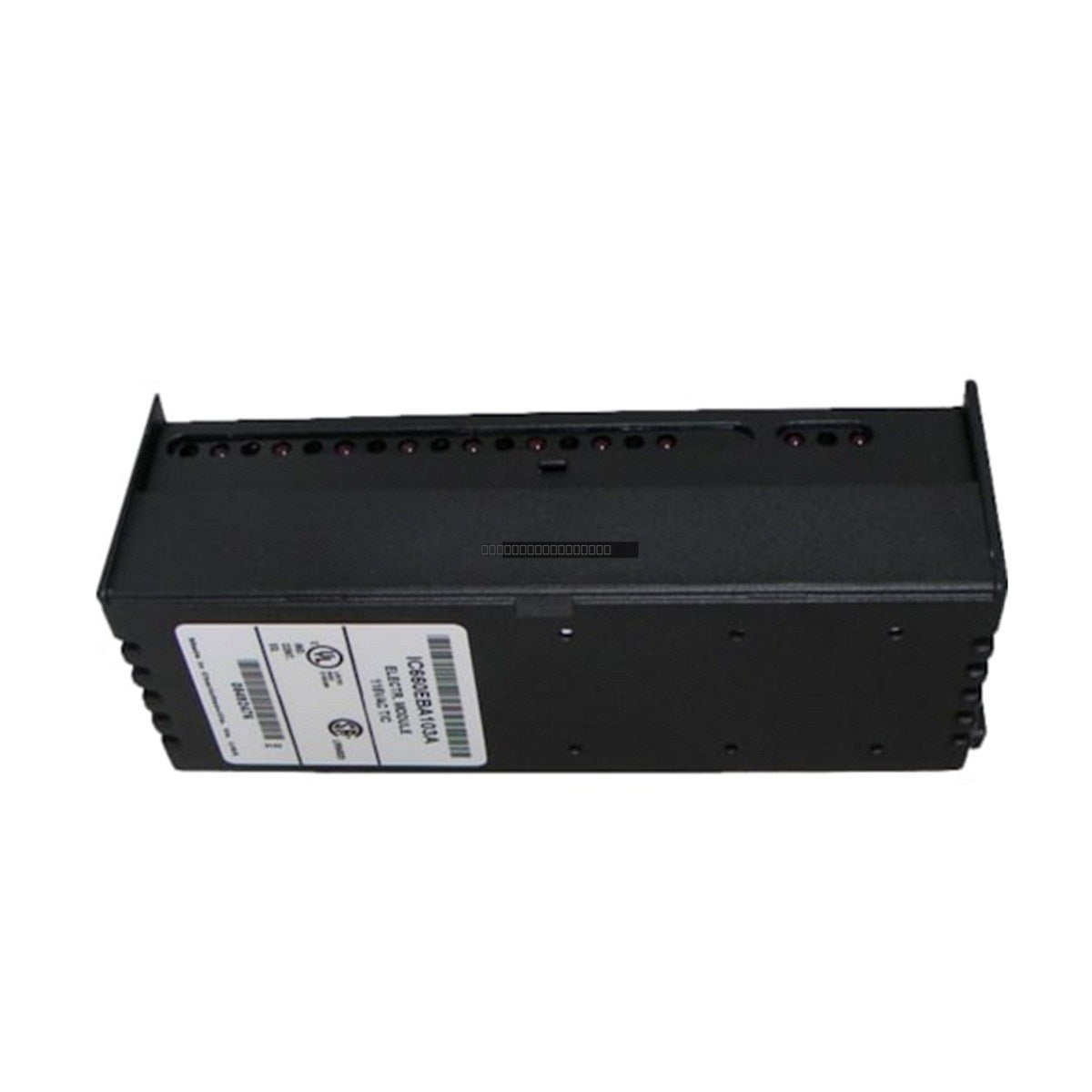

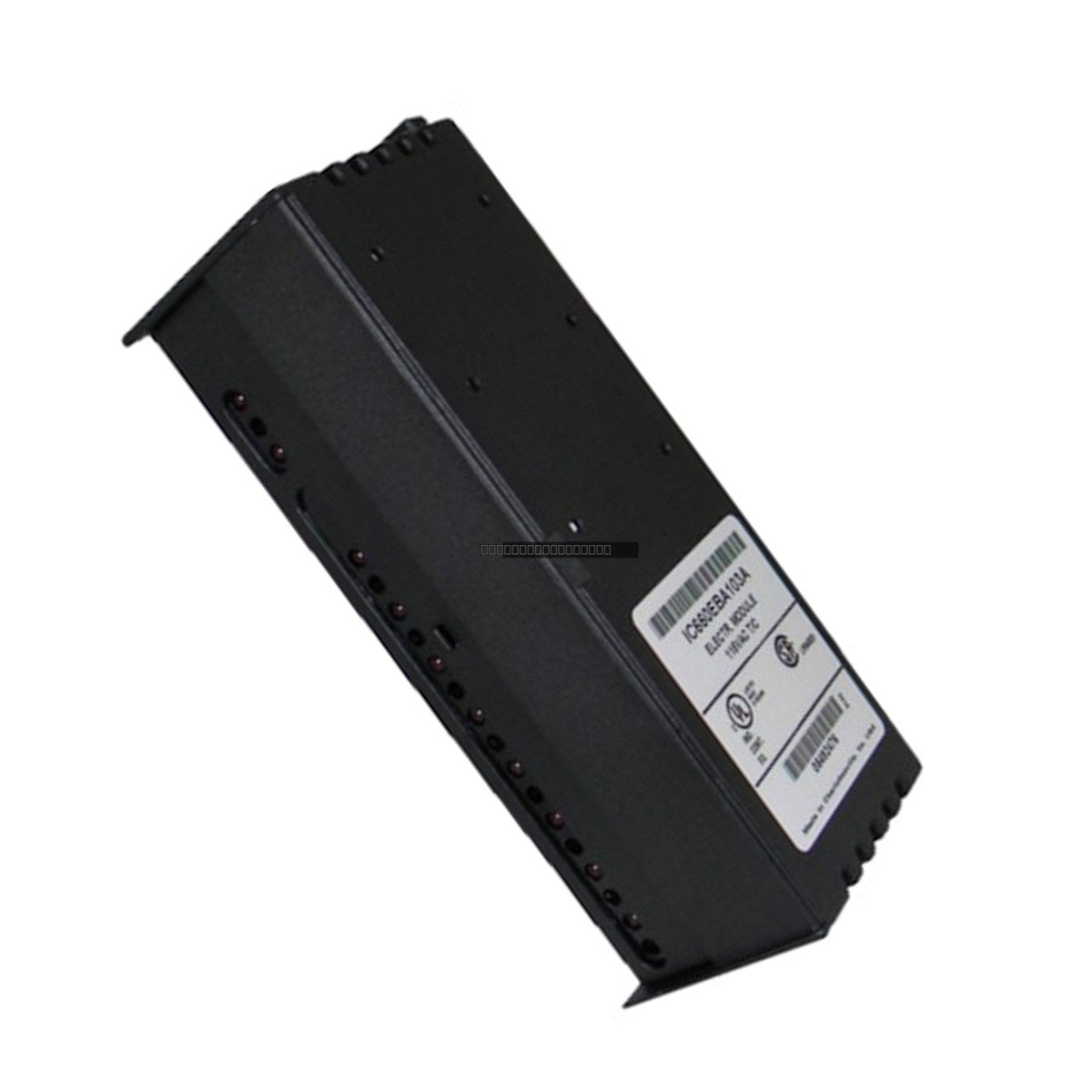

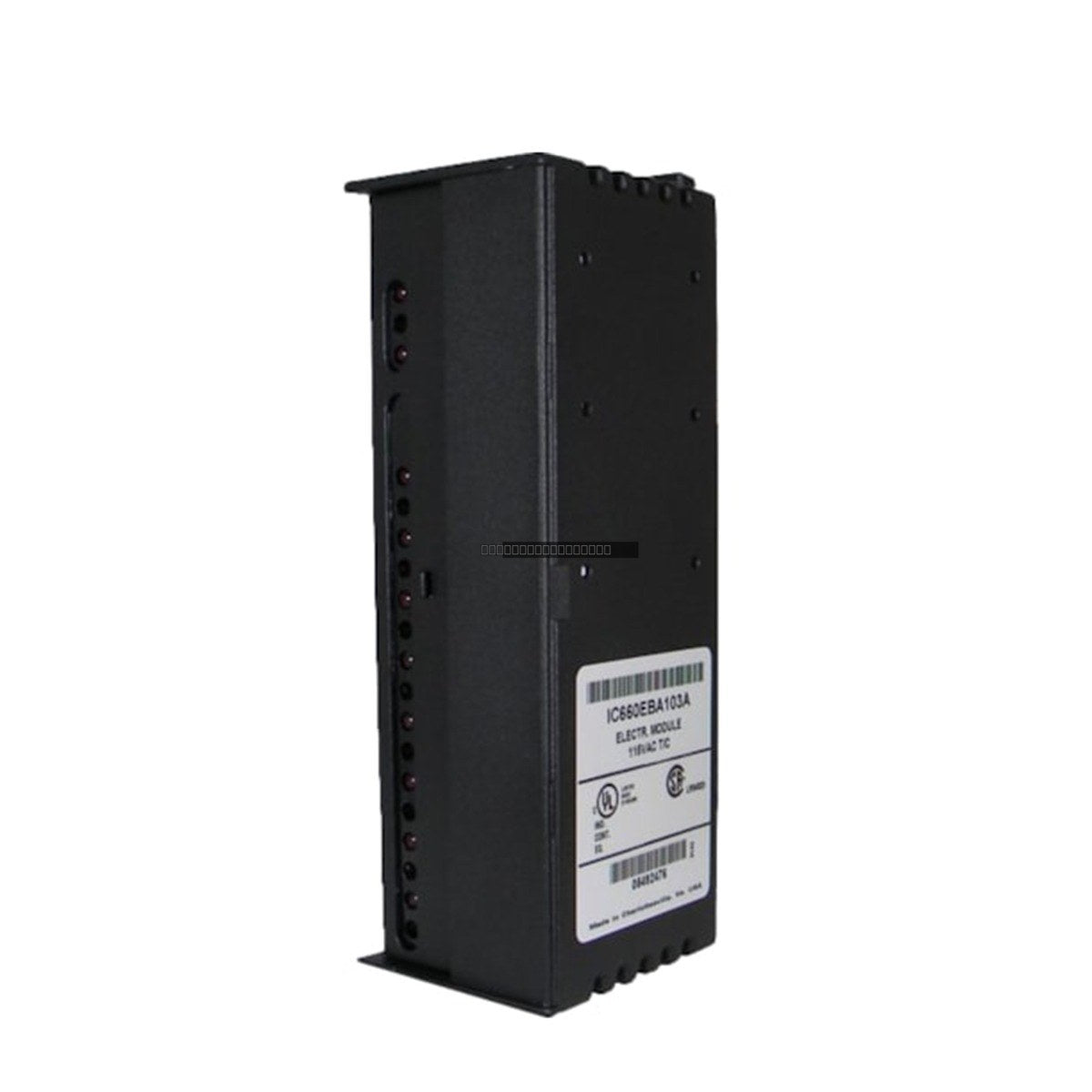

The General Electric IC660EBA103 is an electronic assembly designed for the Genius I/O block system. This module serves as a critical component in distributed I/O architectures, providing reliable signal processing and communication within the Genius I/O network. It is engineered to operate under standard industrial power conditions, supporting both AC and DC input ranges to ensure compatibility with various control environments.

Features

• Designed for integration with Genius I/O block systems.
• Supports nominal operating voltages of 115 VAC or 125 VDC.
• Includes 6 thermocouple-compatible inputs, organized into three isolated groups of two inputs each.
• Integrated status LEDs for Unit OK and I/O Enabled monitoring.
• Robust isolation specifications for enhanced signal integrity and protection.

Technical Specifications

Installation Guidelines

• Ensure the power supply is disconnected before installing or removing the electronic assembly from the I/O block base.
• Verify that the supply voltage matches the specified range (93-132 VAC or 105-145 VDC) to prevent damage.
• Maintain proper grounding practices to minimize electrical noise and ensure effective isolation.
• Ensure adequate ventilation around the I/O block to accommodate the maximum heat dissipation of 9 Watts.
• Handle with care to prevent electrostatic discharge (ESD) damage to the internal circuitry.

FAQ

What is the primary function of the IC660EBA103?
This unit is an electronic assembly for a Genius I/O block, specifically configured to handle thermocouple-compatible inputs in a distributed control system.

Does this module require a specific frequency range for AC operation?
Yes, when operating on AC power, the module is designed for a frequency range of 47-63 Hz.

How are the inputs organized on this module?
The module features 6 thermocouple-compatible inputs, which are divided into three distinct groups, with two inputs per group.
