Description

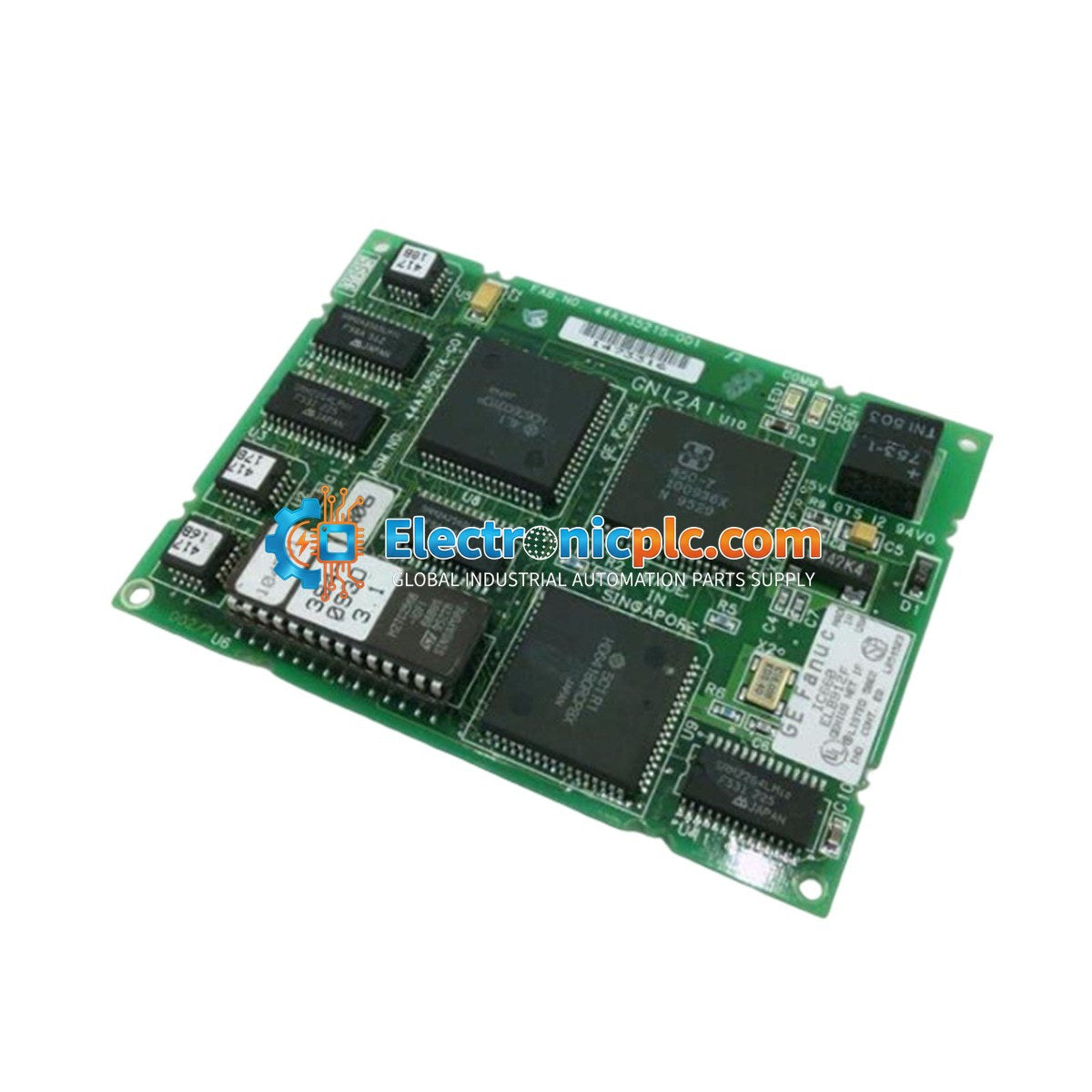

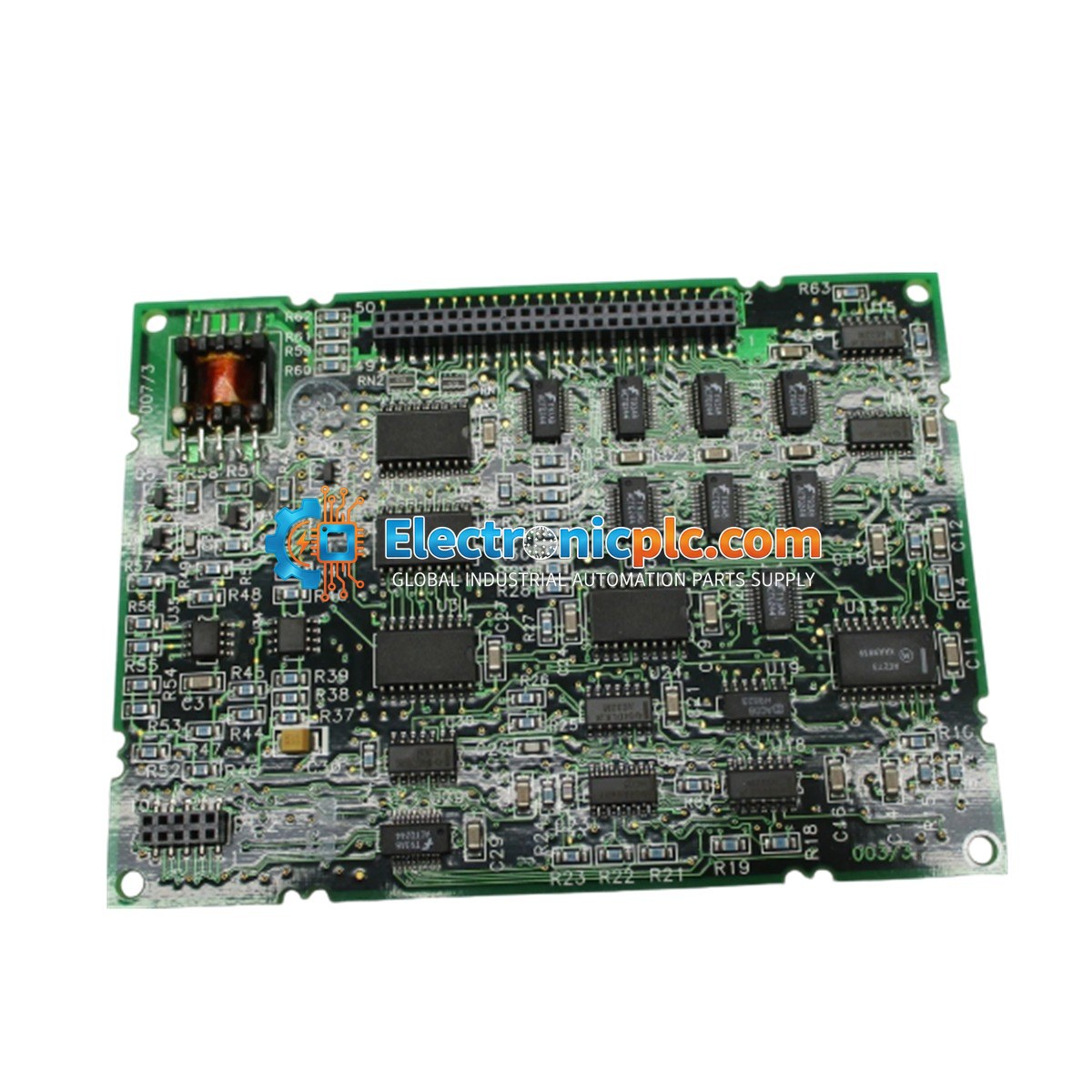

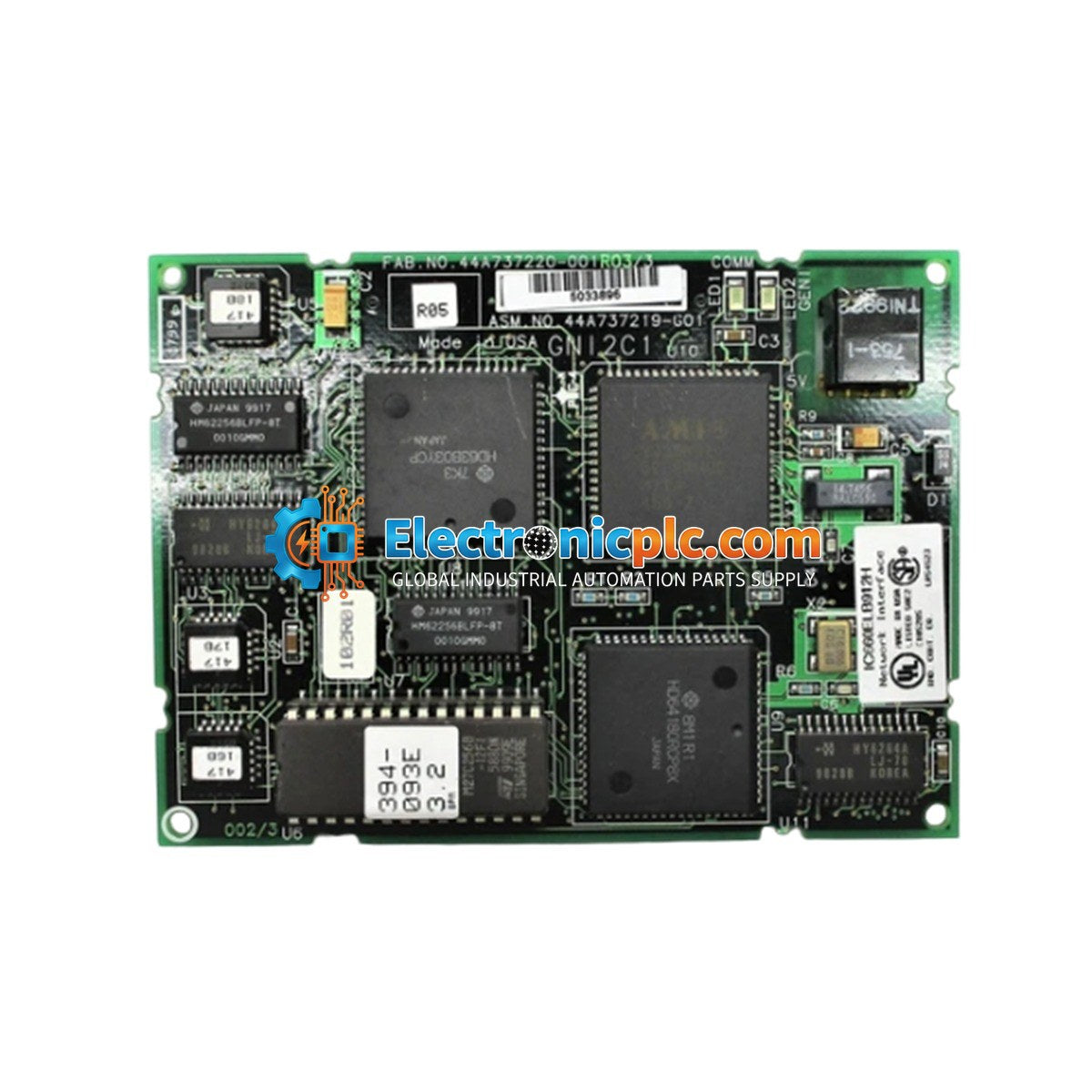

The IC660ELB912 is a specialized MicroGENI network interface daughterboard developed by GE Fanuc for the legacy Genius I/O product line. This electronic module is designed to mount onto a host IBM Personal Computer Interface Module (PCIM), enabling industrial computer platforms to function as high-speed remote I/O controllers. It is widely utilized in critical telemetry applications, including petroleum refining, large-scale mining operations, and centralized power distribution systems. By facilitating continuous background message processing and real-time fault management for up to 30 distributed field devices per node, the card ensures deterministic data paths and reduces system latency.

Features

• Microprocessor-Based Communication: Features an onboard 6303 microprocessor optimized for communication handling and error isolation.
• Memory Management: Utilizes a dual-port RAM architecture, mapping 16 Kbytes of system memory per daughterboard (expandable to 32 Kbytes in dual-slot configurations).
• Status Monitoring: Integrated GENI OK and COMMS OK LED indicators provide immediate visual confirmation of hardware and communication link integrity.
• Configuration: Onboard DIP switch block allows for physical parameter configuration.
• High-Speed Data: Supports multiple baud rates including 38.4K, 76.8K, 153.6K standard, and 153.6K extended.

Applications

This daughterboard is intended for use in industrial control environments requiring integration between PC-based supervisory systems and the Genius I/O bus. Typical applications include distributed control, remote monitoring of field devices, and legacy system maintenance in heavy industrial sectors.

Technical Specifications

Installation Guidelines

• ESD Precautions: Always use a grounded wrist strap when handling the PCB to prevent electrostatic discharge damage to sensitive components.
• Power Down: Ensure the host PCIM carrier and the host computer are fully powered down before inserting or removing the daughterboard.
• Clearance: Maintain a minimum of 1/8 inch spacing between modules to ensure adequate airflow and prevent thermal buildup.
• Seating: Ensure the card is firmly seated into the PCIM carrier connectors; verify that the faceplate is properly aligned with the host chassis.
• Configuration: Set the onboard DIP switches according to the specific network node requirements before final installation.

FAQ

What is the primary function of the IC660ELB912?

The IC660ELB912 acts as a network interface daughterboard that allows an IBM-compatible PC to communicate with and control devices on a Genius I/O network.

Can this module be used standalone?

No, this is a daughterboard that must be installed onto a compatible PCIM carrier card (such as the IC660ELB921 or IC660ELB922) to function.

How many devices can one daughterboard manage?

A single IC660ELB912 daughterboard can support up to 30 Genius bus modules.
