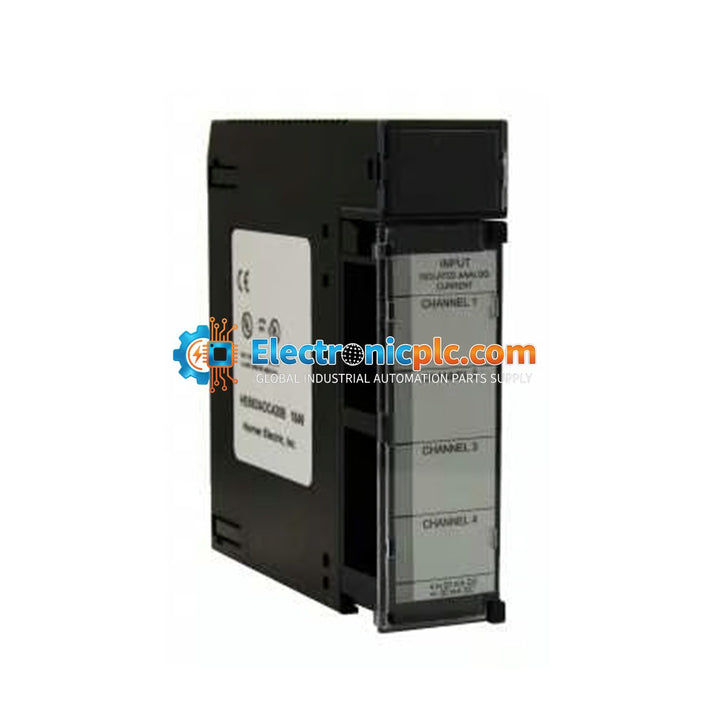

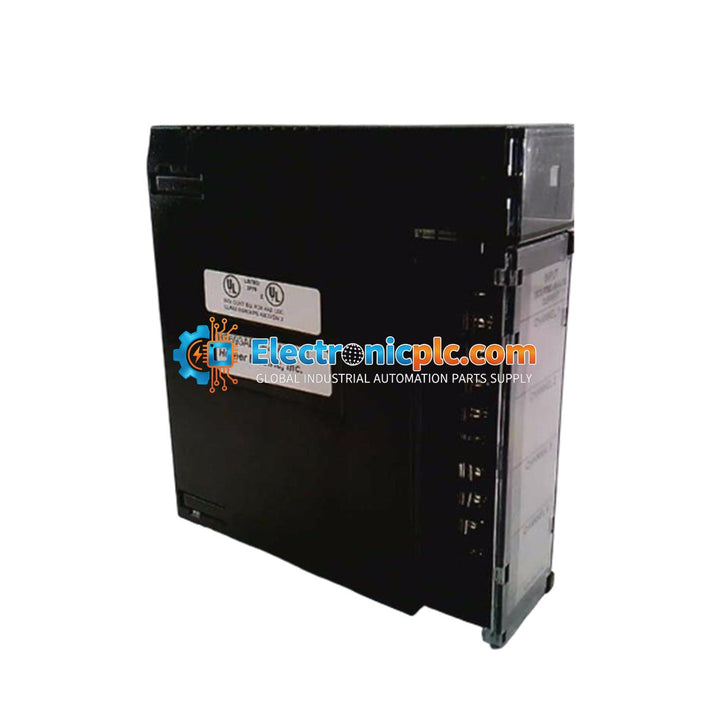

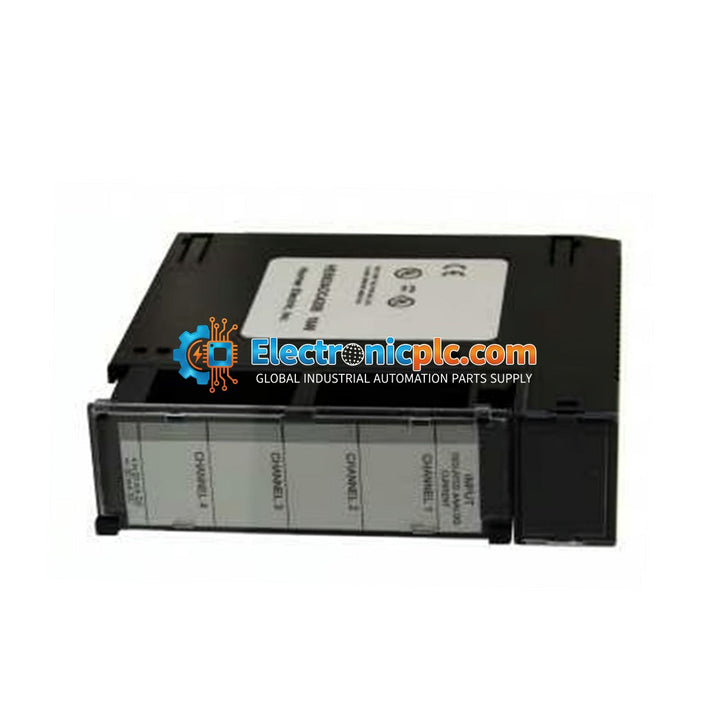

General Electric HE693ADC420 4-Channel Analog Input Module

General Electric HE693ADC420 4-Channel Analog Input Module

Description

The HE693ADC420 is a high-performance, 4-channel isolated analog input module designed for integration with the GE Fanuc Series 90-30 PLC system. Manufactured by Horner Electric, this module provides precise current...

23 people are viewing this right now

Availability: Low stock: 2 left

SKU: HE693ADC420
Vendor: General Electric
Category: Analog Input Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The HE693ADC420 is a high-performance, 4-channel isolated analog input module designed for integration with the GE Fanuc Series 90-30 PLC system. Manufactured by Horner Electric, this module provides precise current signal monitoring with 1500 VAC RMS channel-to-channel and channel-to-ground isolation. It converts incoming current signals into digital values, which are then mapped directly into the %AI table of the PLC CPU, facilitating seamless data acquisition in demanding industrial environments.

Features

  • Four independent analog input channels.
  • Configurable input ranges: 4-20 mA or +/- 20 mA.
  • High-precision 18-bit A/D conversion with 14-bit usable resolution.
  • 1500 VAC RMS isolation for enhanced signal integrity and protection.
  • Programmable setpoint alarms for each channel, configurable via %AQ output registers.
  • Direct digital input (%I) feedback when setpoints are reached or exceeded.

Applications

  • Power generation and substation monitoring.
  • Heavy industrial processes, including steel and aluminum smelting.
  • Automated production lines and construction machinery control.
  • Textile, food processing, and packaging machinery.

Technical Specifications

Model HE693ADC420
Channels 4
Input Range 4-20 mA, +/- 20 mA
Isolation 1500 VAC RMS
Resolution 18-bit (A/D), 14-bit usable
Update Rate 45 channels/second
Power Consumption 7W (140 mA @ 5V), 1.2W (50 mA @ 24V)
Operating Humidity 5% to 95% (non-condensing)

Installation Guidelines

  • Power Down: Always disconnect power from the PLC rack before inserting or removing the module to prevent electrical damage.
  • Mounting: Ensure the module is fully seated in the Series 90-30 backplane slot and secured using the integrated mounting screws.
  • Wiring: Use shielded twisted-pair cabling for analog signals to minimize EMI/RFI interference. Ensure proper grounding of the shield at the source or rack side according to local electrical codes.
  • Environment: Maintain adequate ventilation within the cabinet to ensure the module operates within specified temperature limits.
  • ESD Precautions: Handle the module by its edges or housing; avoid touching the backplane connector pins to prevent electrostatic discharge damage.

FAQs

What is the primary function of the HE693ADC420?

The HE693ADC420 is designed to convert analog current signals into digital data for processing by the GE 90-30 PLC, providing 4 channels of isolated input with programmable alarm setpoints.

How are the alarm setpoints configured?

Alarm setpoints are user-defined and configured within the PLC program using %AQ output registers. When an input exceeds its setpoint, a corresponding %I digital input is energized.

What is the isolation rating of this module?

The HE693ADC420 features 1500 VAC RMS isolation, providing robust protection between channels and between channels and ground.
