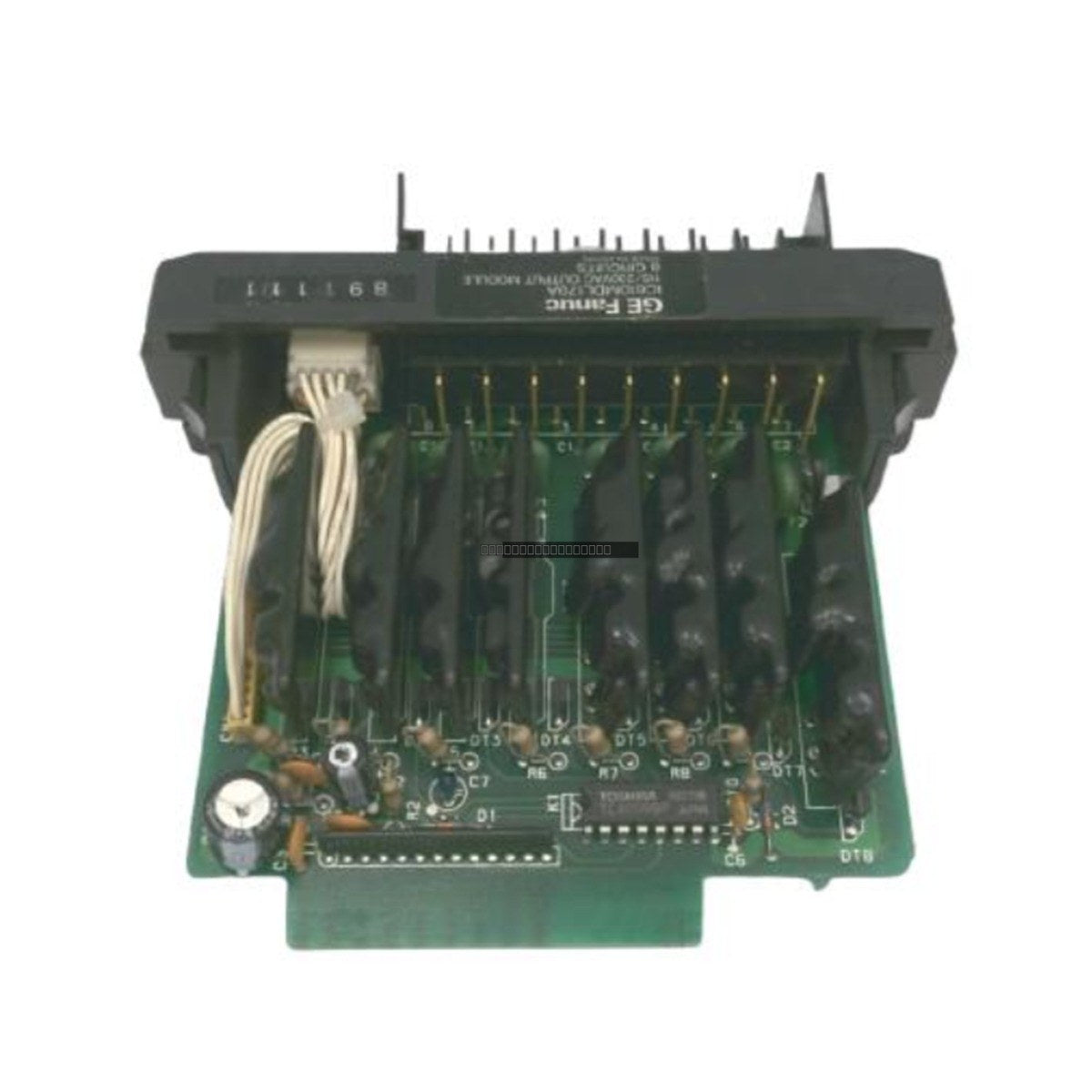

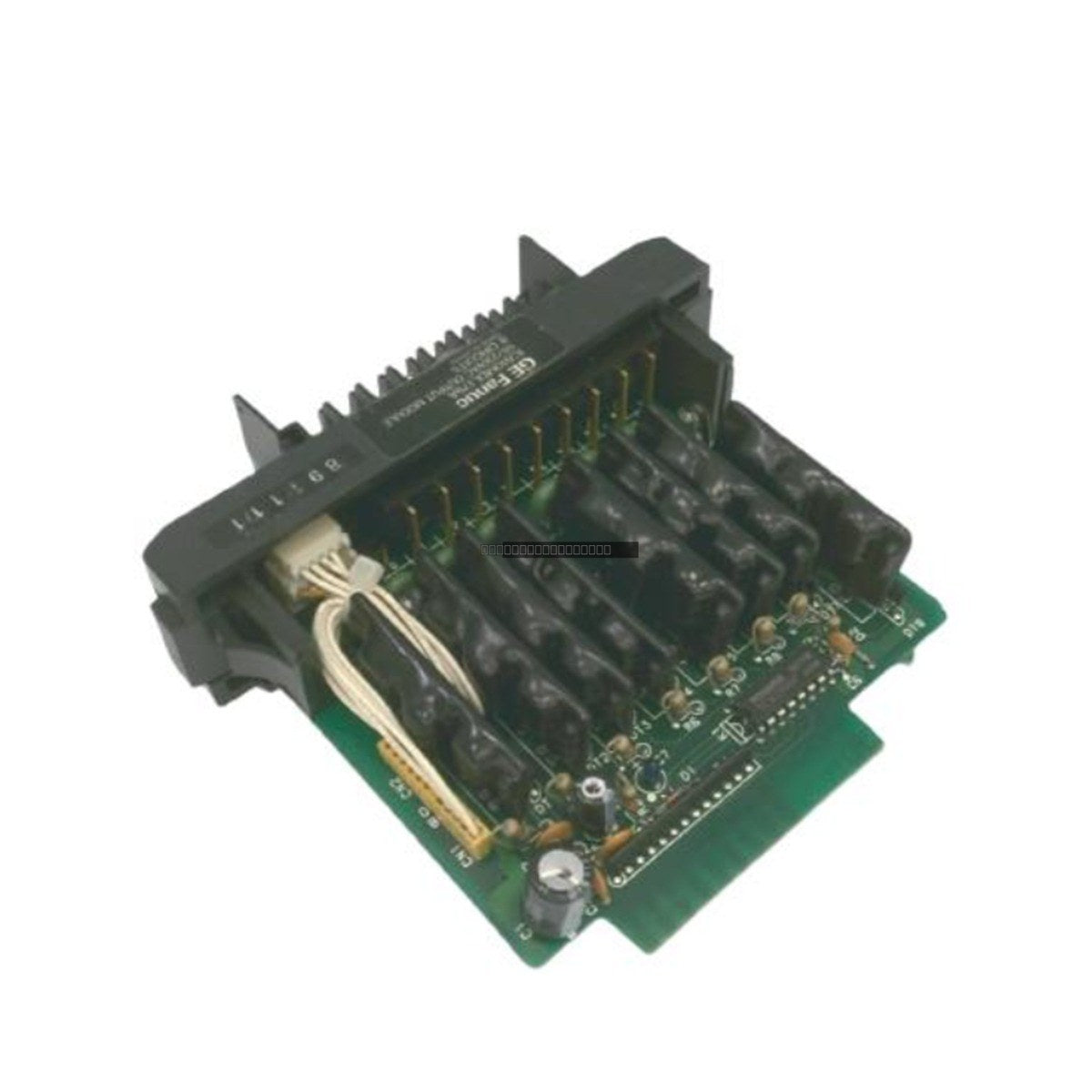

GE Fanuc IC610MDL179 Series One 8-Channel AC Output Module

GE Fanuc IC610MDL179 Series One 8-Channel AC Output Module

Description

The IC610MDL179 is an 8-channel AC output module designed for the GE Fanuc Series One programmable logic controller (PLC) system. This module is engineered to handle a wide operating voltage...

23 people are viewing this right now

Availability: Low stock: 2 left

SKU: IC610MDL179
Vendor: GE FANUC
Category: AC Output Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The IC610MDL179 is an 8-channel AC output module designed for the GE Fanuc Series One programmable logic controller (PLC) system. This module is engineered to handle a wide operating voltage range of 80 to 264 VAC, making it suitable for controlling various industrial loads including solenoids, motor starters, and contactors in both 115 VAC and 230 VAC environments. Its design emphasizes rapid response times and ease of maintenance, featuring a removable terminal block that facilitates efficient field wiring and reduces system downtime.

Features

  • 8-channel AC output configuration for versatile control applications.
  • Wide operating voltage range: 80 to 264 VAC (47 to 63 Hz).
  • High-speed switching performance with a 1 ms response time (OFF to ON).
  • Integrated status indicators for real-time channel monitoring.

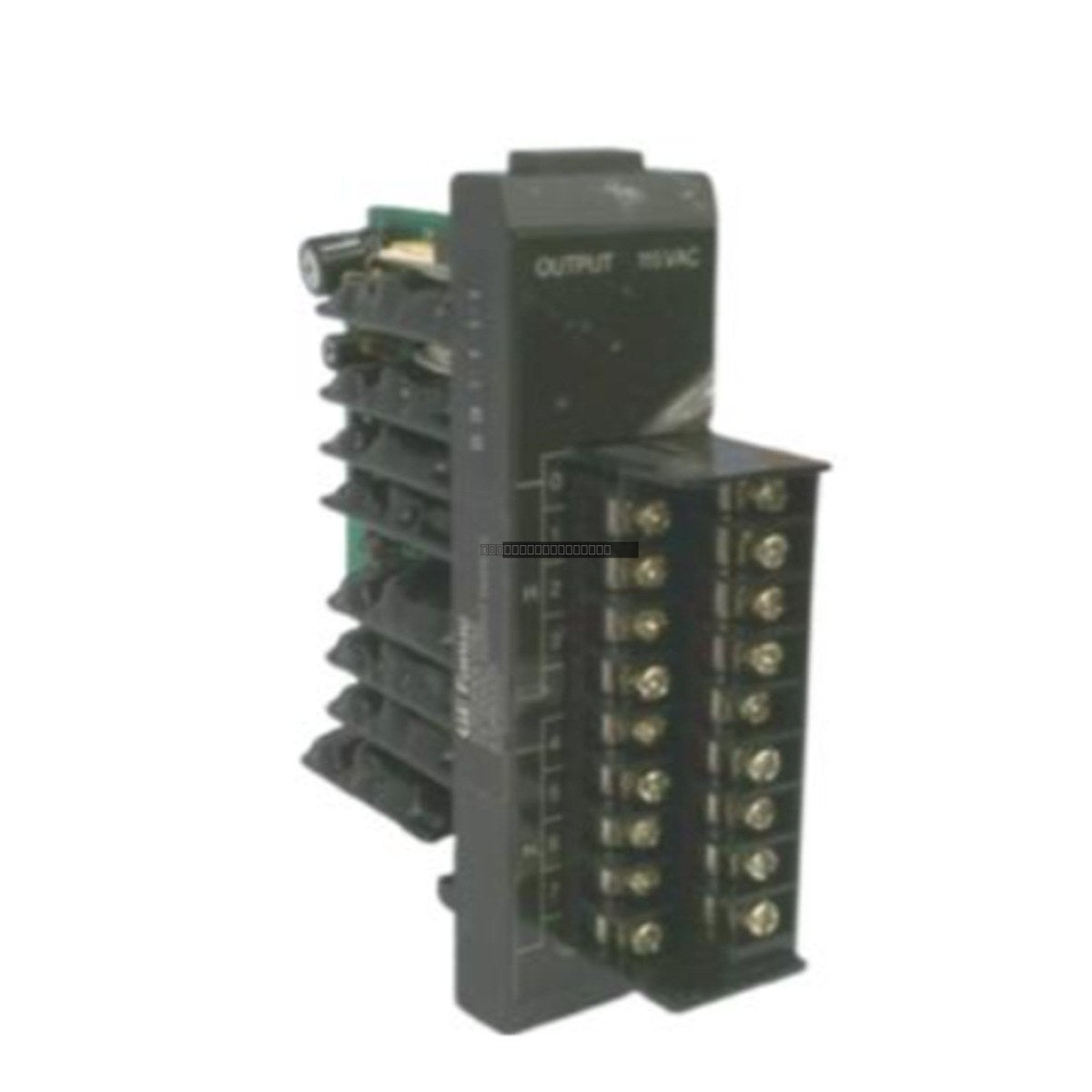

  • Removable terminal block design for simplified installation and maintenance.
  • Robust thermal management with a 1.5 V maximum ON-state voltage drop at full load.

Applications

This module is intended for use in Series One PLC backplane systems to manage machine sequencing, process control, and industrial automation tasks. It is particularly effective for driving AC-powered actuators and control devices where reliable, high-speed switching is required.

Technical Specifications

Model IC610MDL179
Brand GE Fanuc
Product Line Series One
Number of Outputs 8
Operating Voltage 80 to 264 VAC
Frequency 47 to 63 Hz
Max Current per Channel 1 A
ON-State Voltage Drop 1.5 V at 1 A
Response Time (OFF to ON) 1 ms
Response Time (ON to OFF) 9 ms
Min Recommended Load 25 mA
Max Leakage Current 1.2 mA (at 230 VAC, 60 Hz)

Installation Guidelines

  • Ensure the PLC system power is disconnected before installing or removing the module from the backplane.
  • Handle the module using proper ESD (Electrostatic Discharge) safety practices to prevent damage to internal circuitry.
  • Ensure the removable terminal block is securely seated and wiring is properly terminated to prevent intermittent connections.
  • Maintain adequate clearance around the module to ensure proper ventilation and prevent overheating during operation.
  • Route AC output wiring away from low-voltage signal cables to minimize electromagnetic interference (EMI).

FAQ

What is the primary function of the IC610MDL179?
The IC610MDL179 is an AC output module for the GE Fanuc Series One PLC, used to switch AC loads such as contactors and solenoids based on logic signals from the processor.

Does this module require a minimum load?
Yes, a minimum load of 25 mA is recommended to ensure stable switching behavior and to prevent erroneous state detection.

Is the terminal block included?
Yes, the module features a removable terminal block design to simplify field wiring and maintenance procedures.
