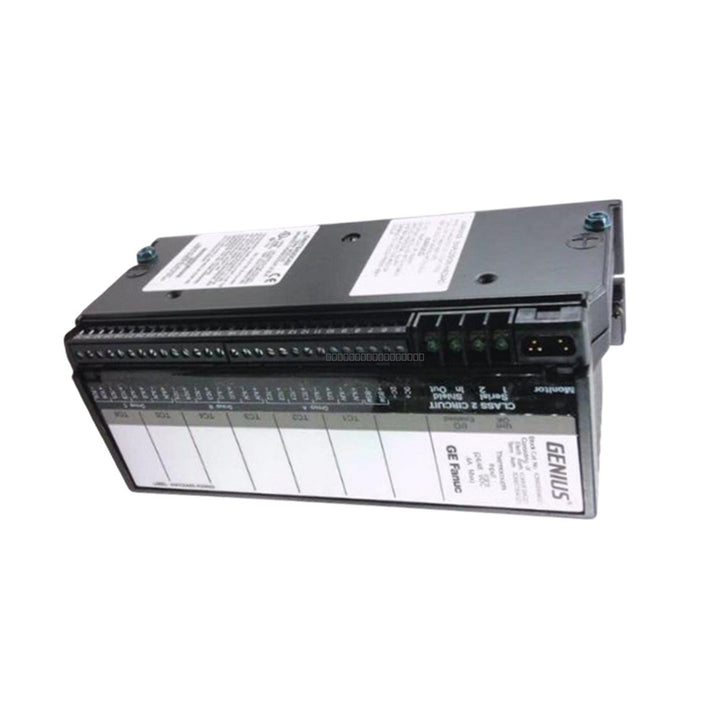

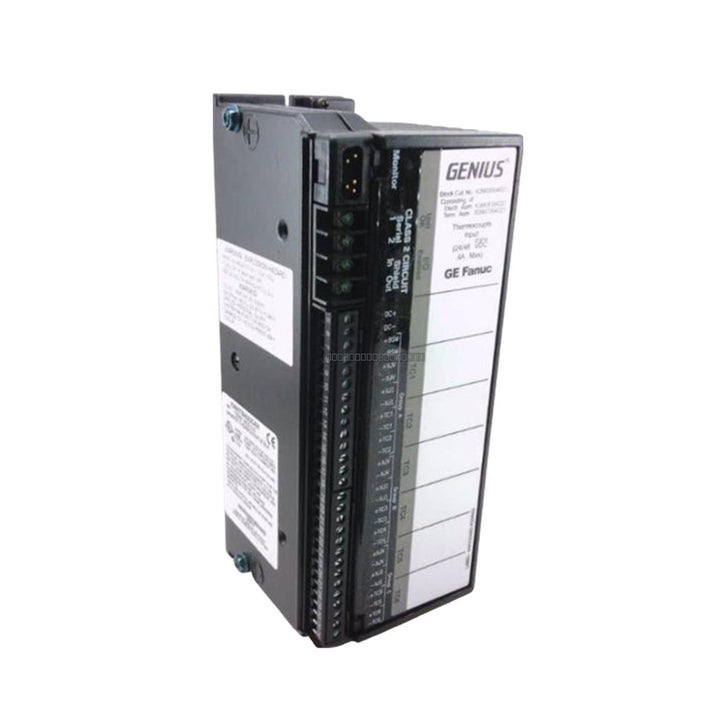

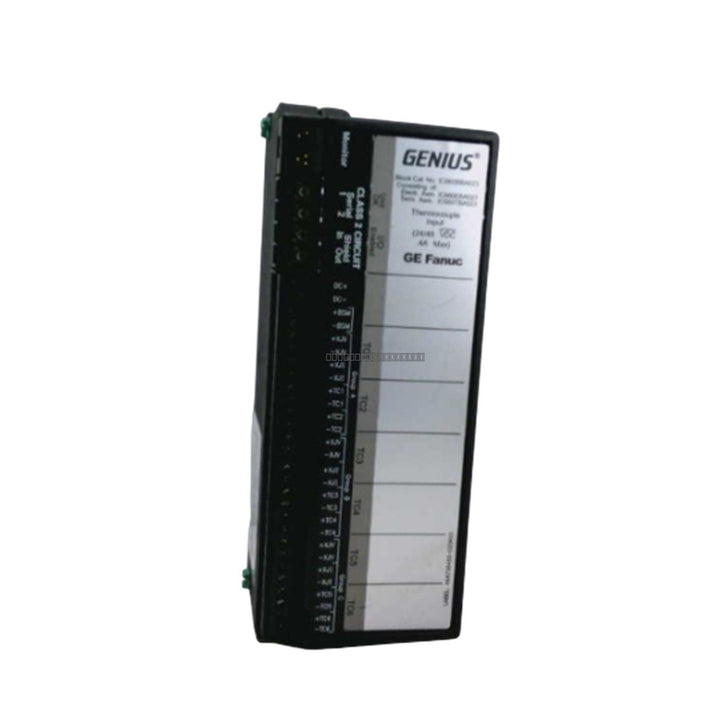

General Electric IC660BBA023 Genius I/O Thermocouple Input Module

General Electric IC660BBA023 Genius I/O Thermocouple Input Module

Description

The General Electric IC660BBA023 is a thermocouple input module from the Genius I/O product series. This block is designed to interface thermocouple sensors directly with a Genius I/O network, providing...

23 people are viewing this right now

Availability: Low stock: 6 left

SKU: IC660BBA023
Vendor: General Electric
Category: Thermocouple Input Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The General Electric IC660BBA023 is a thermocouple input module from the Genius I/O product series. This block is designed to interface thermocouple sensors directly with a Genius I/O network, providing reliable data acquisition for industrial temperature monitoring applications. It supports multiple input channels and is engineered for robust performance in demanding plant environments.

Features

  • Six isolated thermocouple input channels.
  • Compatible with 24/48V DC block power supply.
  • Integrated status LEDs for Unit OK and I/O Enable monitoring.
  • High isolation ratings for signal integrity and protection.
  • Designed for integration within the Genius I/O distributed control architecture.

Technical Specifications

Product Model IC660BBA023
Module Type Thermocouple Input Module
Number of Inputs 6
Block Power 24/48 VDC
Voltage Measurement Range -25 mV to 150 mV
Heat Dissipation 9 Watts
Block to Block Isolation 1500 Volts
Group to Group Isolation 300 Volts
Accuracy 8 Hz
Manufacturer General Electric

Installation Guidelines

  • Ensure the power supply is disconnected before installing or removing the module from the I/O network.
  • Mount the module in a location that allows for adequate ventilation to manage the 9W heat dissipation.
  • Use shielded thermocouple cabling to minimize electromagnetic interference (EMI) in industrial environments.
  • Verify that the block power supply matches the 24/48V DC specification before energizing.
  • Ensure proper grounding of the module chassis to the system common ground to maintain signal integrity.
  • Handle with care to prevent electrostatic discharge (ESD) damage to the internal circuitry.

FAQ

What type of sensors does the IC660BBA023 support?

This module is specifically designed for thermocouple inputs, supporting a voltage measurement range of -25 mV to 150 mV.

What do the status LEDs indicate?

The module features Unit OK and I/O Enable LEDs, providing immediate visual feedback on the operational status and communication health of the block.

Is this module compatible with other Genius I/O blocks?

Yes, the IC660BBA023 is part of the Genius I/O series and is designed to communicate over the standard Genius I/O bus alongside other compatible blocks.
