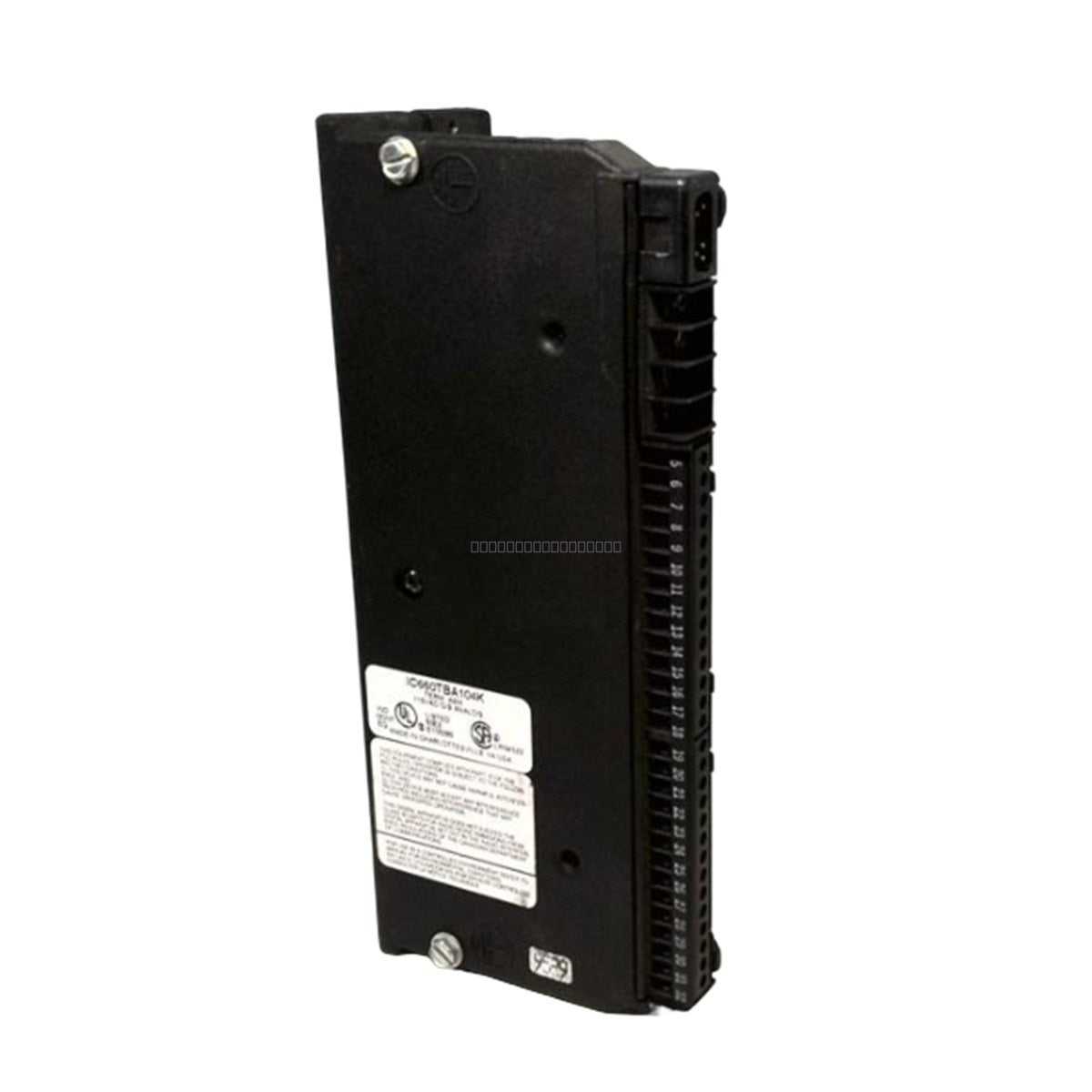

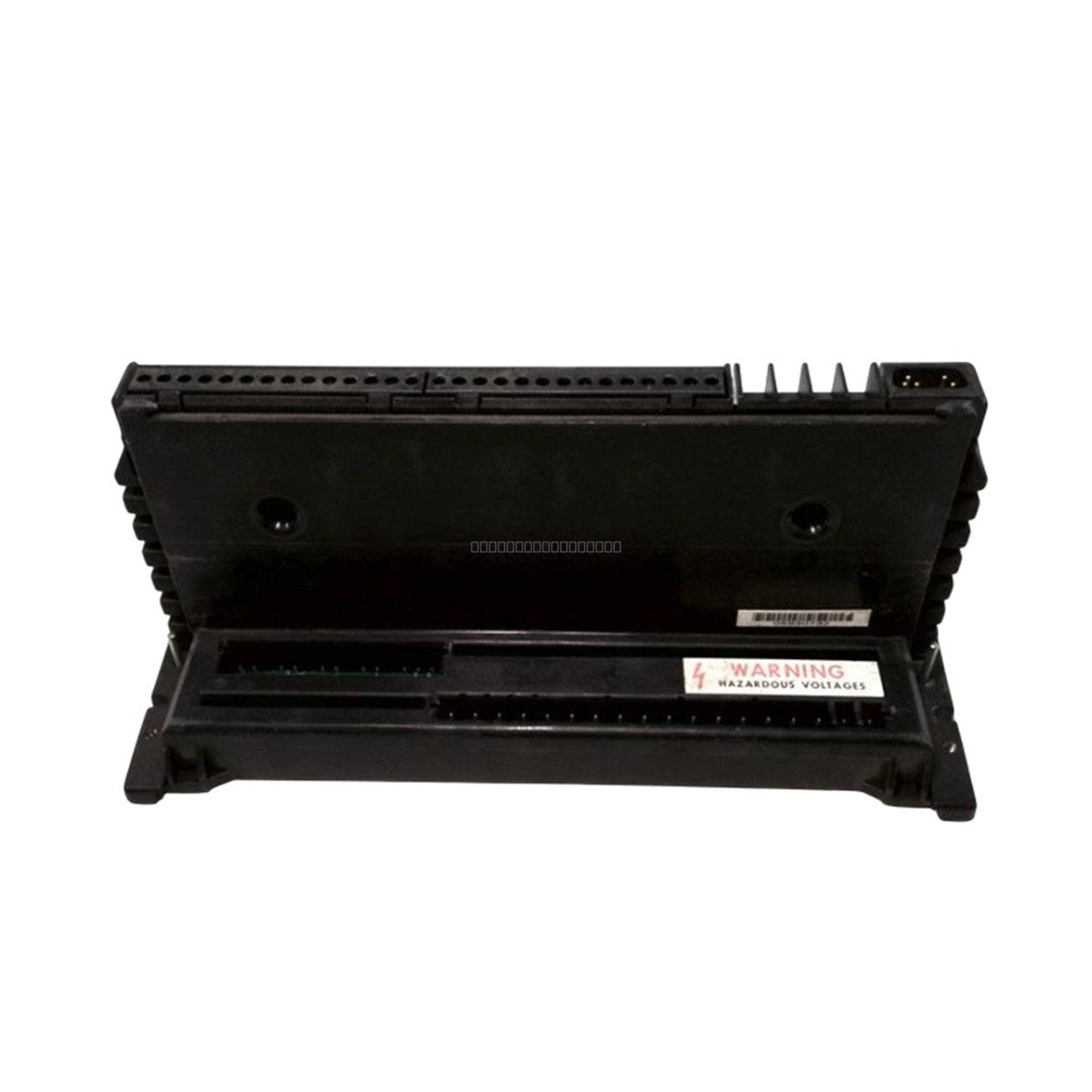

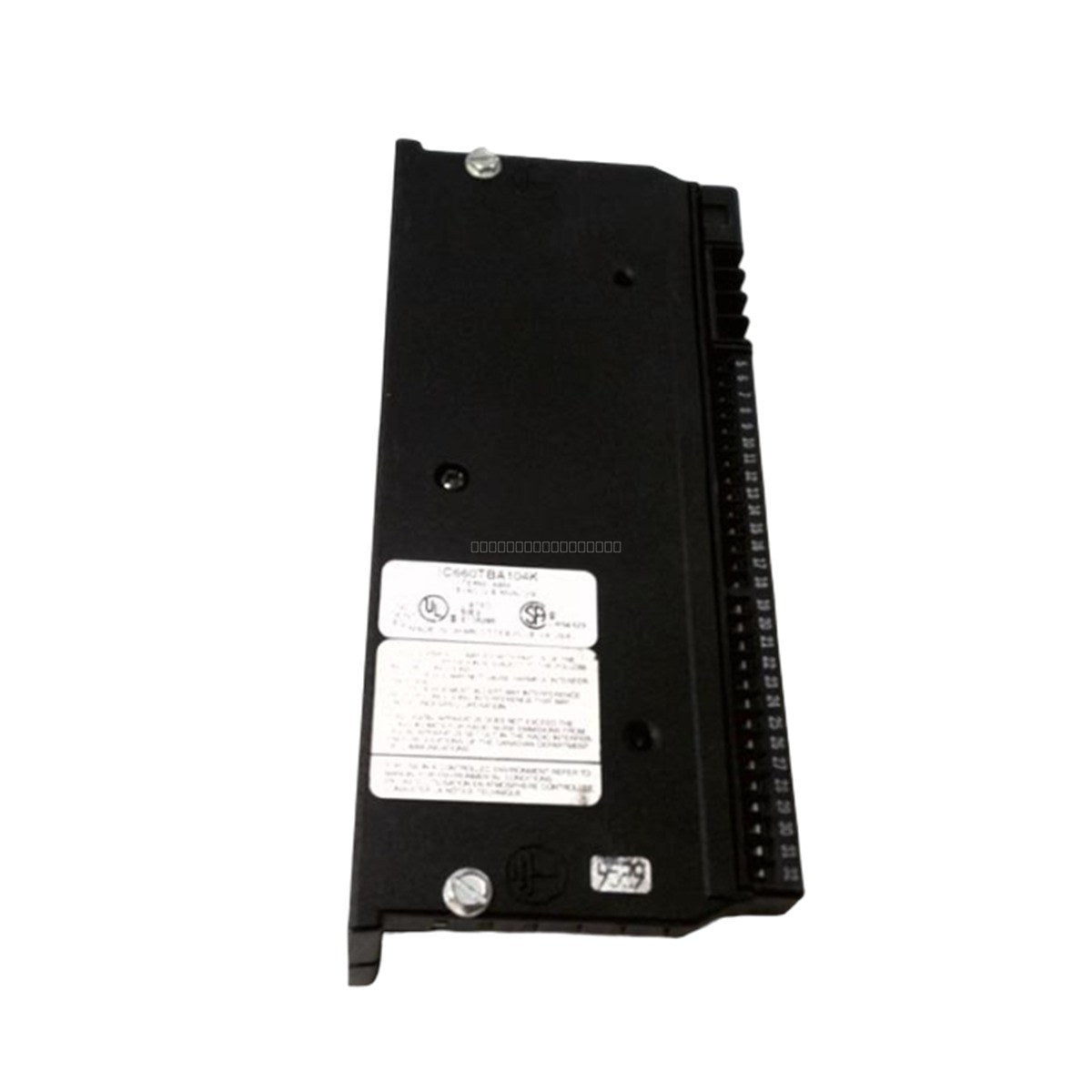

General Electric IC660TBA104 Genius I/O Terminal Assembly

General Electric IC660TBA104 Genius I/O Terminal Assembly

The General Electric IC660TBA104 is a terminal assembly designed for the Genius I/O system. This component provides the necessary physical connection points for field wiring, facilitating the integration of I/O...

28 people are viewing this right now

Availability: Low stock: 9 left

SKU: IC660TBA104
Vendor: General Electric
Category: Terminal Assembly
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

The General Electric IC660TBA104 is a terminal assembly designed for the Genius I/O system. This component provides the necessary physical connection points for field wiring, facilitating the integration of I/O circuits within the Genius distributed control architecture.

Features

  • Designed for integration with Genius I/O blocks.
  • Supports 4 input and 2 output circuits.
  • Rated for 115V AC or 125V DC operation.
  • Provides robust isolation: 1500V block-to-block and 300V group-to-group.
  • Engineered for reliable performance in industrial environments with a maximum heat dissipation of 12 Watts.

Technical Specifications

Product Model IC660TBA104
Voltage Rating 115V AC / 125V DC
Operating Voltage Range 93-132V AC / 105-145V DC
Maximum Current 250mA (AC) / 140mA (DC)
Frequency/Ripple 47-63 Hz / 10% max ripple
Isolation (Block to Block) 1500V (1 minute)
Isolation (Group to Group) 300V
Power Supply Dropout 1 cycle (AC) / 10ms (DC)
Weight 0.5 kg

Installation Guidelines

  • Ensure all power is disconnected from the Genius I/O block before installing or removing the terminal assembly.
  • Verify that the terminal assembly is securely seated to ensure proper electrical contact with the I/O block.
  • Route field wiring away from high-voltage power lines and sources of electromagnetic interference (EMI) to maintain signal integrity.
  • Use appropriate wire gauges as specified by local electrical codes and ensure all terminal screws are tightened to the recommended torque.
  • Maintain adequate ventilation around the I/O block to prevent exceeding the maximum heat dissipation limits.

FAQ

What is the primary function of the IC660TBA104?

The IC660TBA104 serves as a terminal assembly for Genius I/O blocks, providing the physical interface for connecting field devices to the control system.

Is this terminal assembly compatible with both AC and DC voltages?

Yes, the unit is rated for 115V AC and 125V DC applications, with specific operating ranges defined for each.
