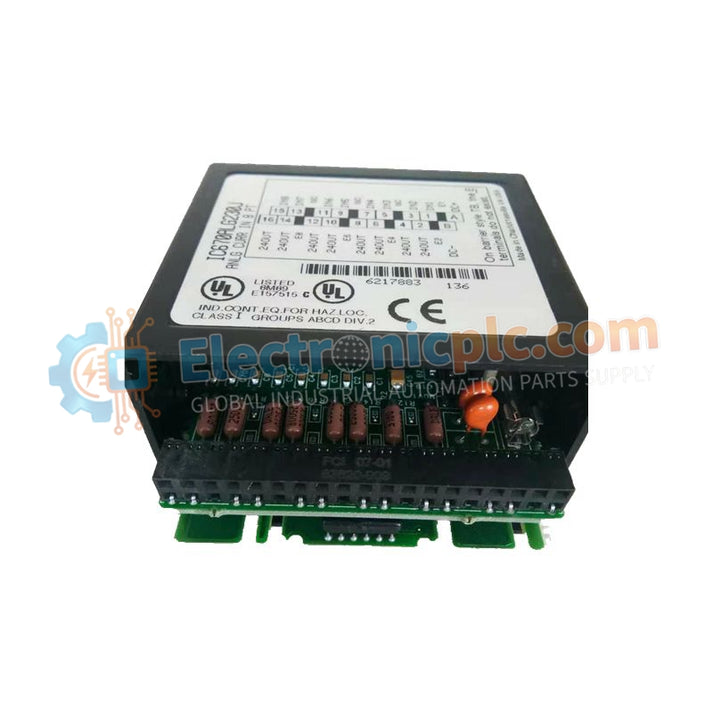

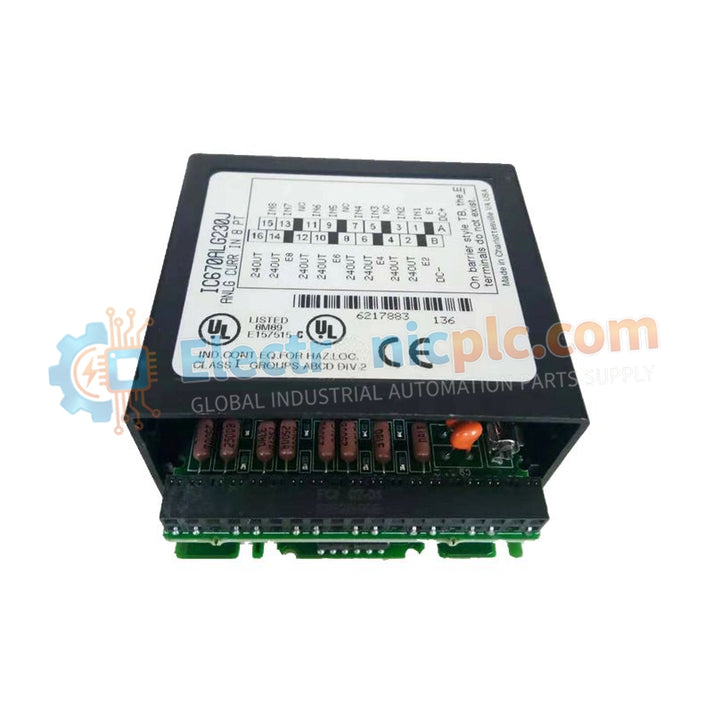

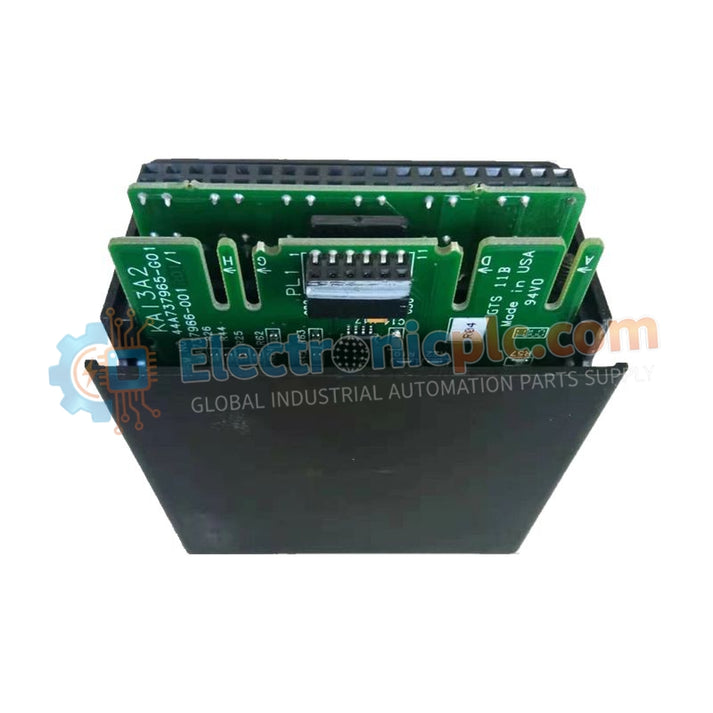

GE Fanuc IC670ALG230 Field Control Analog Input Module

GE Fanuc IC670ALG230 Field Control Analog Input Module

Product Description

The IC670ALG230 is a high-performance analog input module from the GE Fanuc Field Control series. It provides eight single-ended channels for current input, optimized for 0–20 mA or 4–20 mA...

22 people are viewing this right now

Availability: Low stock: 10 left

SKU: IC670ALG230
Vendor: GE Fanuc
Category: Field Control Analog Input Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Product Description

The IC670ALG230 is a high-performance analog input module from the GE Fanuc Field Control series. It provides eight single-ended channels for current input, optimized for 0–20 mA or 4–20 mA signals.

Featuring a 12-bit high-speed ADC, the IC670ALG230 delivers rapid conversion (60 μs per channel) with minimal non-linearity (±0.025%). Galvanic isolation protects logic-side electronics from field-side surges, making it ideal for precision process monitoring in demanding industrial environments.

Detailed Technical Specifications

Parameter Specification
Product Number IC670ALG230
I/O Architecture Field Control (BIU / Expansion Rack compatible)
Input Channels 8 single-ended
Input Range 0–20 mA (configurable for 4–20 mA)
ADC Resolution 12-bit (≈5 μA per bit)
Conversion Rate 60 μs per channel (1 MHz system clock)
Operating Temperature 0°C to 60°C (32°F to 140°F)
Relative Humidity Up to 95% non-condensing

Application Scenarios

The IC670ALG230 is ideal for distributed control systems requiring precise, high-speed analog monitoring of field devices such as:

  • Temperature transmitters

  • Pressure sensors

  • Flow meters

  • High-frequency process loops in chemical or manufacturing plants

Its fast ADC conversion allows real-time data acquisition and accurate process control.

Frequently Asked Questions

How does this module handle wire breaks?
It includes built-in diagnostics optimized to detect open-wire conditions in 4–20 mA loops, triggering immediate fail-safe alerts to protect process integrity.

Can this module measure voltage directly?
The module is primarily optimized for current inputs. Voltage measurement may require external shunts or a different IC670 variant designed for voltage ranges.
