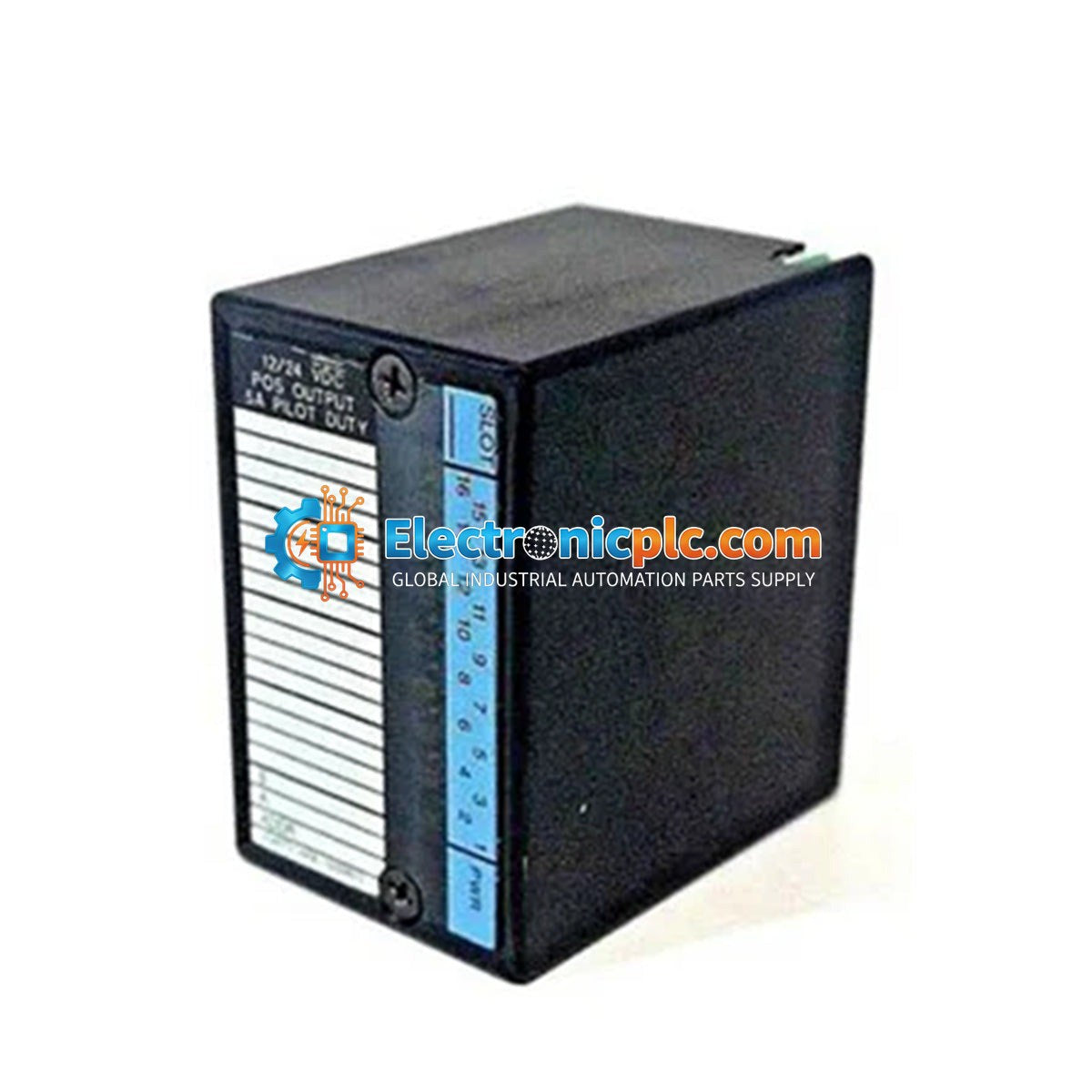

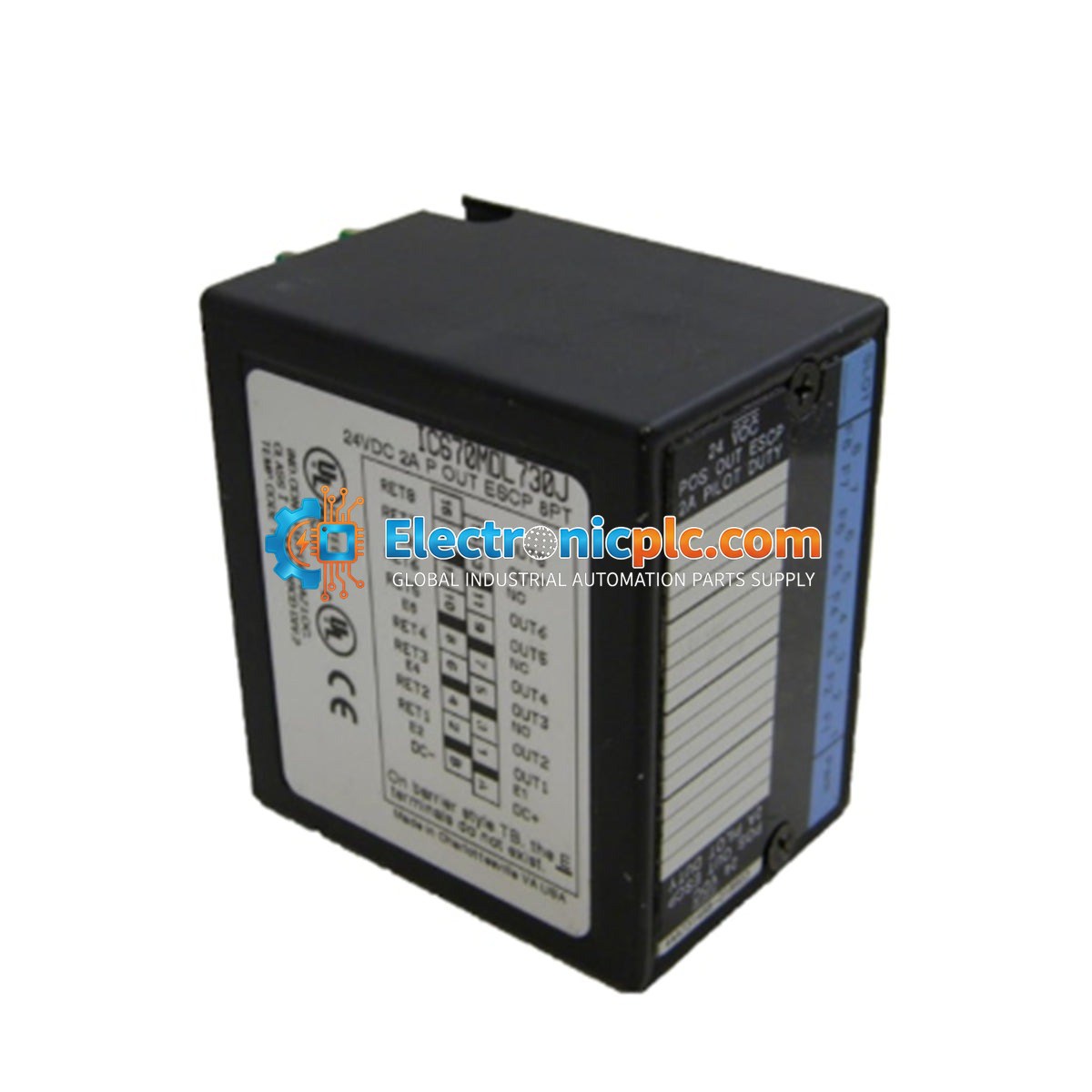

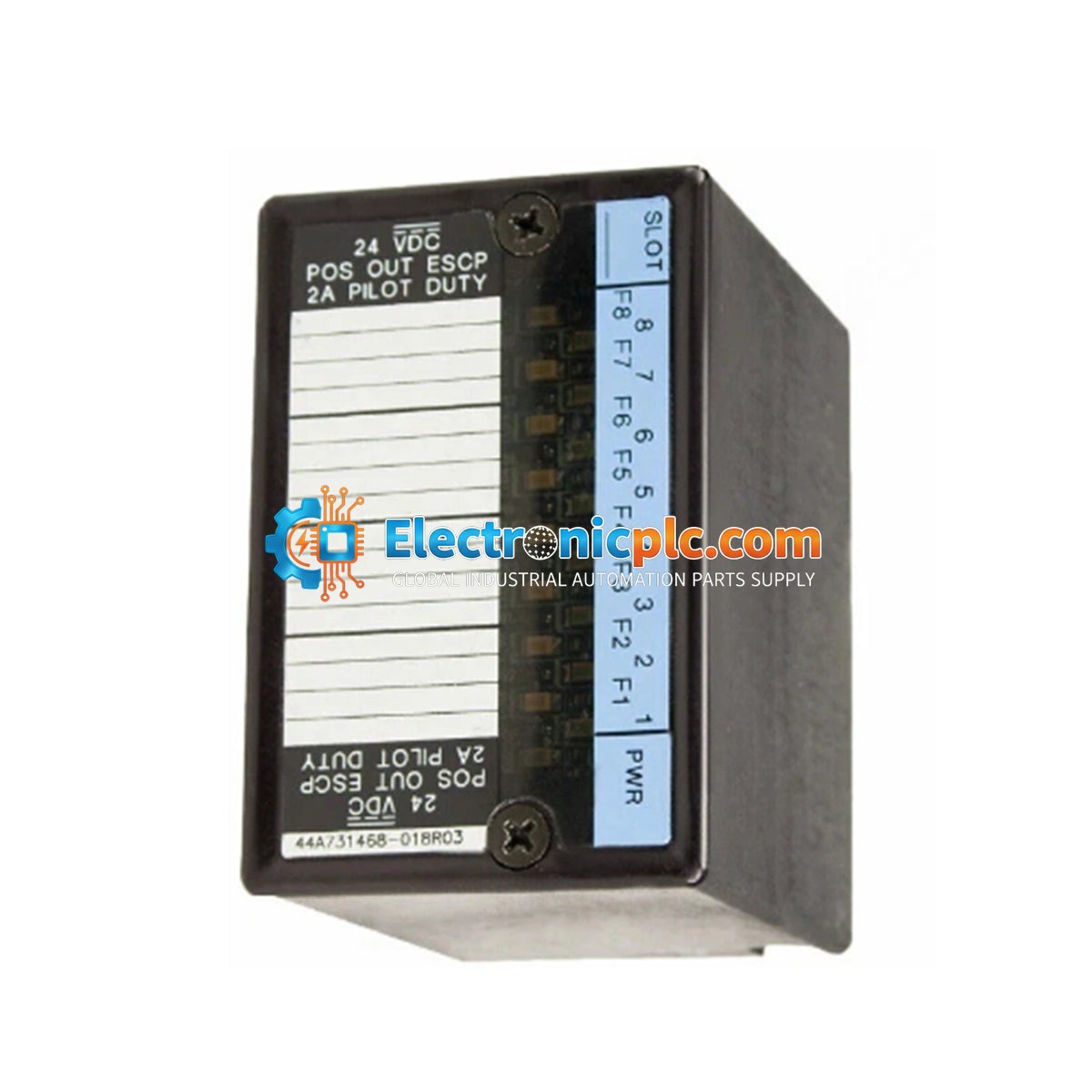

General Electric IC670MDL730 Field Control Discrete Output Module

General Electric IC670MDL730 Field Control Discrete Output Module

Description

The GE Fanuc IC670MDL730 is a high-performance discrete output module designed for the Field Control series. This module provides 8 discrete output channels, facilitating reliable control of field devices within...

29 people are viewing this right now

Availability: Low stock: 7 left

SKU: IC670MDL730
Vendor: General Electric
Category: Discrete Output Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The GE Fanuc IC670MDL730 is a high-performance discrete output module designed for the Field Control series. This module provides 8 discrete output channels, facilitating reliable control of field devices within industrial automation systems. It is engineered to operate within a nominal 24V DC environment, ensuring compatibility with standard industrial control architectures.

Features

  • 8 discrete output channels for versatile control applications.
  • Designed for the Field Control I/O system architecture.
  • Supports a wide operating voltage range of 17.5V DC to 29.5V DC.
  • Integrated LED status indicators for simplified troubleshooting and diagnostics.
  • Robust short-circuit protection capable of handling 20 Amps for 100 microseconds.

Technical Specifications

Model IC670MDL730
Manufacturer General Electric (GE Fanuc)
Series Field Control
Number of Outputs 8
Output Voltage Range 17.5-29.5 Volts DC
Nominal Voltage 24 Volts DC
Current Consumption 125 mA
Isolation None (Group to Group)
Short Circuit Response 20 Amps for 100 microseconds

Installation Guidelines

  • Ensure the power supply is disconnected before installing or removing the module from the Field Control station.
  • Mount the module securely onto the designated I/O base to ensure proper electrical connection to the backplane.
  • Verify that the field wiring is correctly terminated according to the module's pinout configuration.
  • Maintain proper clearance around the module to allow for adequate airflow and heat dissipation.
  • Follow standard ESD (Electrostatic Discharge) precautions when handling the module to prevent damage to internal circuitry.
  • Route signal cables away from high-voltage power lines to minimize electromagnetic interference (EMI).

FAQ

What is the primary function of the IC670MDL730?

The IC670MDL730 is a discrete output module used to interface a controller with field-level devices, providing 8 channels of DC output control.

What is the nominal operating voltage for this module?

The module is designed for a nominal 24V DC input, with an operational range between 17.5V and 29.5V DC.

Does this module provide isolation between output groups?

No, the IC670MDL730 does not feature group-to-group isolation.
