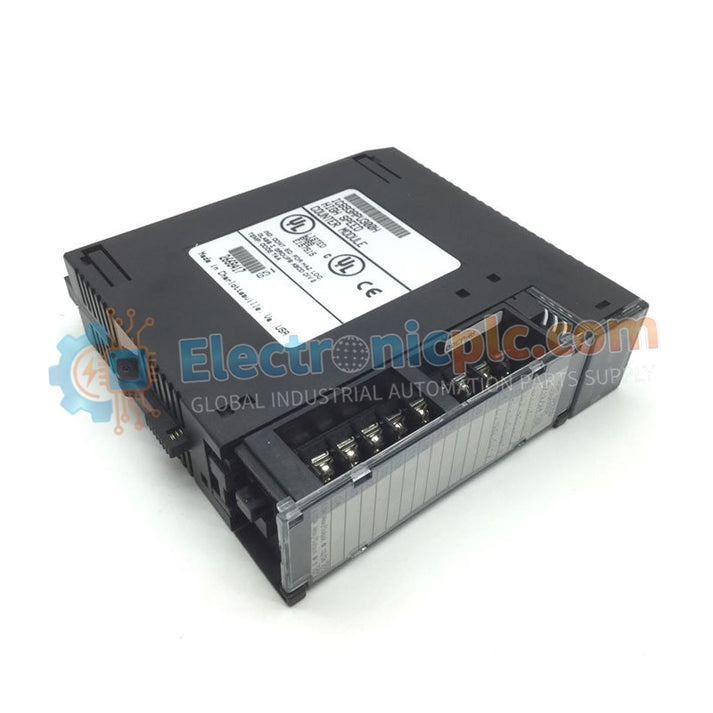

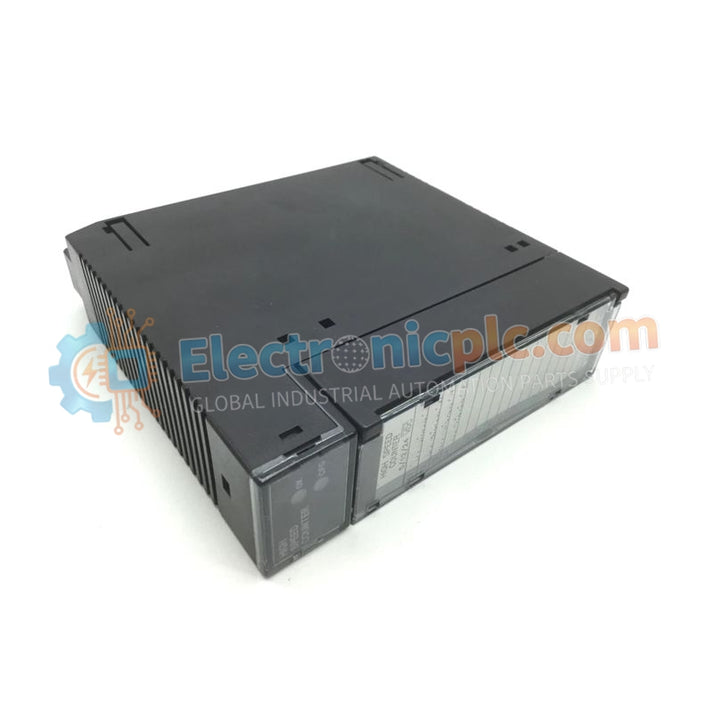

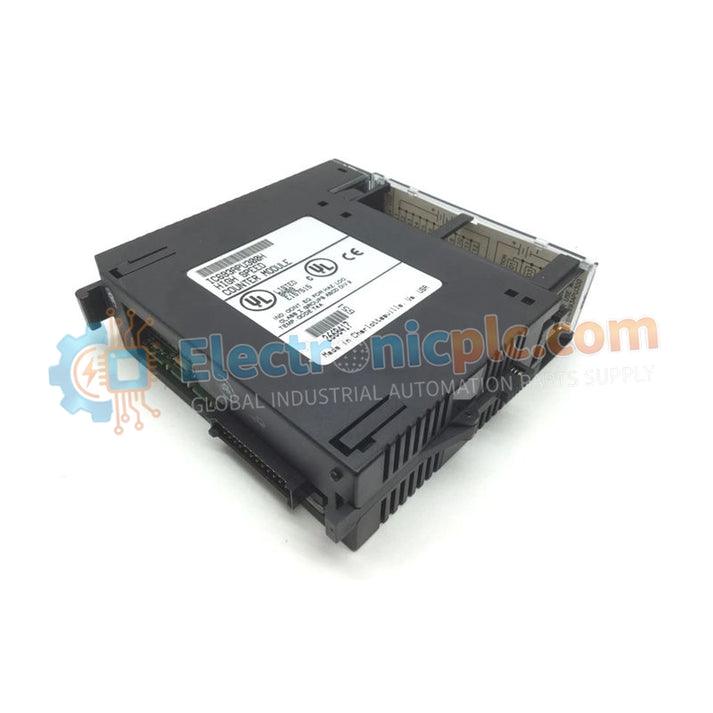

GE Fanuc IC693APU300 Series 90-30 High-Speed Counter Module

GE Fanuc IC693APU300 Series 90-30 High-Speed Counter Module

Product Description

The IC693APU300 is a high-speed counter (HSC) module designed for the Series 90-30 PLC ecosystem (originally GE Fanuc). It provides a high-performance interface between rapid pulse-generating field devices and the...

16 people are viewing this right now

Availability: Low stock: 10 left

SKU: DS200TCPSG1ARE
Vendor: GE Fanuc
Category: High-Speed Counter Modules
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Product Description

The IC693APU300 is a high-speed counter (HSC) module designed for the Series 90-30 PLC ecosystem (originally GE Fanuc). It provides a high-performance interface between rapid pulse-generating field devices and the PLC processor, ensuring precise real-time tracking of position, velocity, and totalization events.

This module converts raw pulse inputs into actionable digital data, allowing high-speed mechanical or flow events to be captured without loss, even beyond the capabilities of standard I/O scan cycles.

Technical Specifications

Parameter Specification
Model Number IC693APU300
Module Type High-Speed Counter (HSC)
Maximum Counting Rate 200 kHz
Input Channels 12 positive logic inputs
Operating Temperature 0°C to 60°C (32°F to 140°F)
Weight 0.40 kg

Industrial Application Scenarios

The IC693APU300 is commonly used in applications requiring high-speed pulse acquisition, including:

  • Motion Control: Tracking motor shaft position and travel using optical encoders

  • Flow Metering: Signal processing from turbine or positive displacement flowmeters for accurate totalization

  • Material Handling: Counting items on high-speed conveyors for sorting or inventory

  • Rotational Monitoring: Capturing turbine speeds or other critical rotational velocities with magnetic pickups

Frequently Asked Questions

Can this module be used in a Remote I/O rack?
Yes. It is compatible with both local and expansion baseplates within the Series 90-30 architecture that support option modules.

Does it support both 5V and 24V encoders?
Yes. The IC693APU300 accepts 5 V TTL encoder signals as well as 10–30 V industrial proximity sensors and encoders, eliminating the need for external level-shifting hardware.
