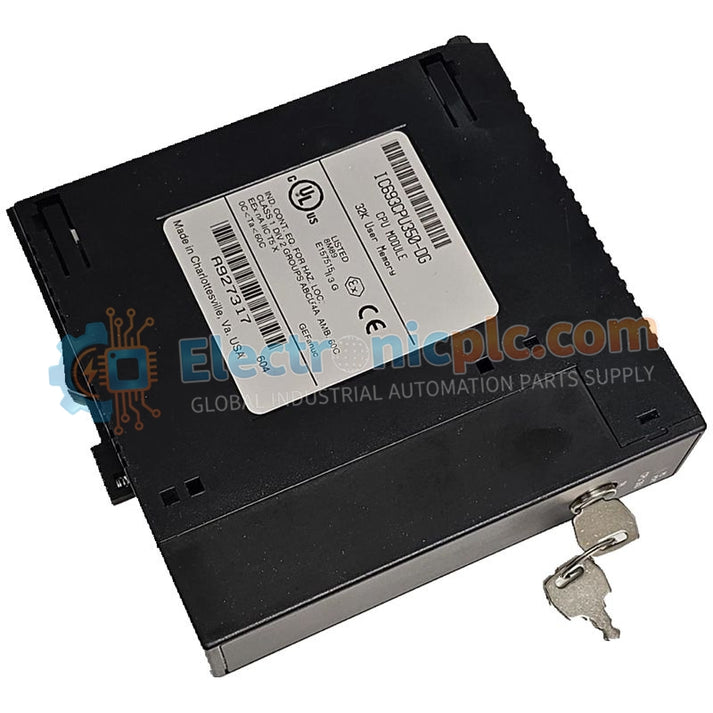

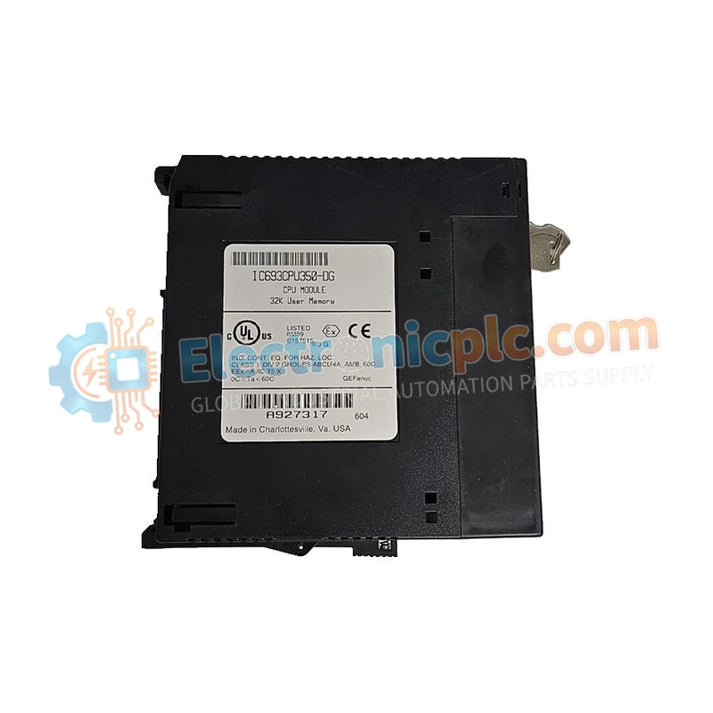

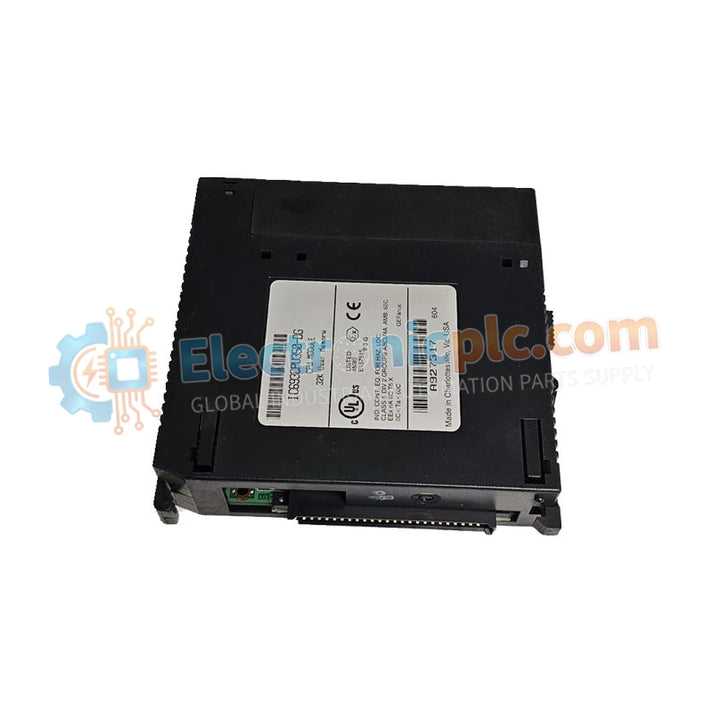

GE Fanuc IC693CPU350 PLC Central Processing Unit

GE Fanuc IC693CPU350 PLC Central Processing Unit

Product Overview

The IC693CPU350 (Part Number IC693CPU350) is a high-performance, single-slot Central Processing Unit designed for the GE Fanuc Series 90-30 PLC family. Powered by an 80386EX processor operating at...

21 people are viewing this right now

Availability: Low stock: 10 left

SKU: IC693CPU350
Vendor: GE Fanuc
Category: PLC Central Processing Unit
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Product Overview

The IC693CPU350 (Part Number IC693CPU350) is a high-performance, single-slot Central Processing Unit designed for the GE Fanuc Series 90-30 PLC family. Powered by an 80386EX processor operating at 25 MHz, this module delivers rapid execution speeds for complex logic and data handling. It is engineered to manage up to 8 total baseplates (including the local CPU baseplate and up to 7 expansion or remote racks), making it a versatile choice for medium-to-large scale industrial automation architectures.

Hardware and Performance Specifications

Specification Details
Processor Architecture 80386EX, 25 MHz clock speed
User Memory Capacity 48K Bytes for application logic and register data
Power Consumption 670 mA at +5 VDC (from the baseplate power supply)
Discrete I/O Capacity 2,048 Input points (%I) and 2,048 Output points (%Q)
Internal Logic Bits 256 Temporary Coils (%T)
Timers and Counters Support for over 2,000 instances
Register Operations Full support for Shift Registers and complex math functions
System Scaling Supports 1 CPU baseplate + 7 expansion/remote baseplates
Physical Weight 0.4 kg

Integration and Functional Capabilities

As a single-slot module, the IC693CPU350 maximizes rack space within the Series 90-30 system. It provides consistent performance for time-critical applications through its dedicated 80386EX chip, ensuring reliable scan times even with a full 48K program load. The unit is fully compatible with existing Series 90-30 I/O modules and power supplies, allowing for straightforward upgrades from lower-tier CPUs without requiring significant hardware re-engineering.

FAQ

What is the maximum number of I/O points supported by the IC693CPU350?

The IC693CPU350 supports up to 2,048 discrete inputs and 2,048 discrete outputs, providing ample capacity for extensive field device integration.

Does this CPU require a specific slot in the baseplate?

Yes, the IC693CPU350 must be installed in Slot 1 of a Series 90-30 CPU-capable baseplate to interface correctly with the system bus and power supply.
