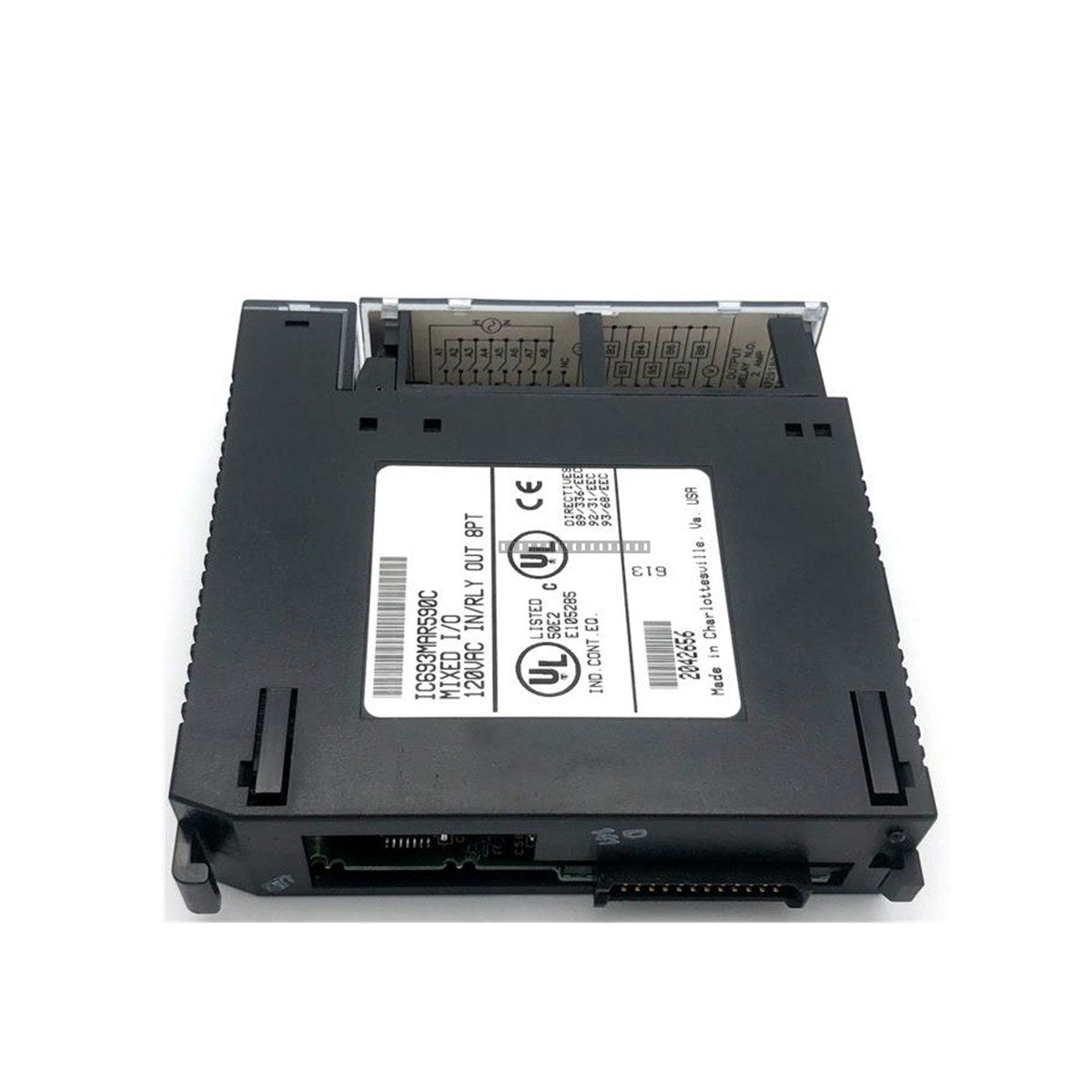

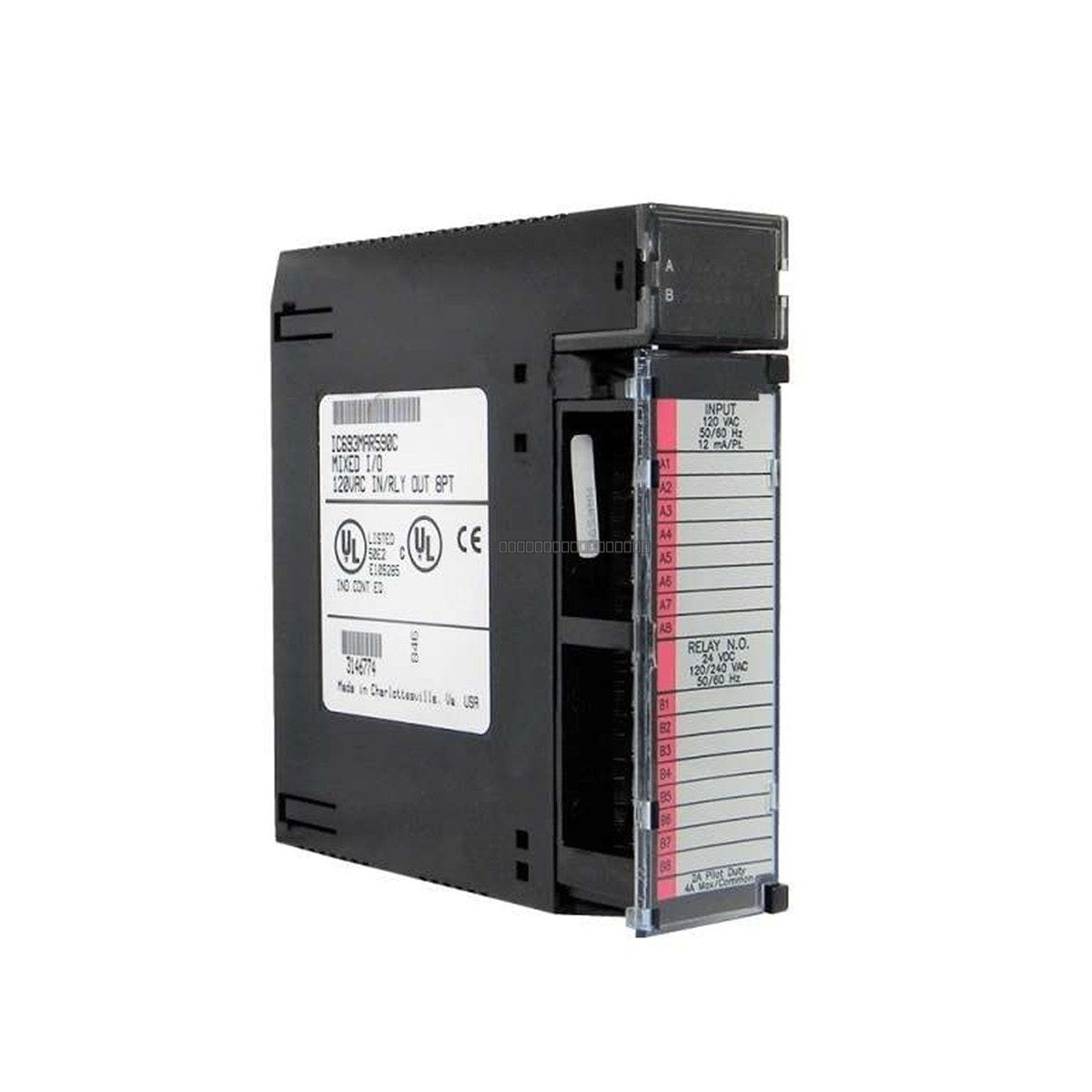

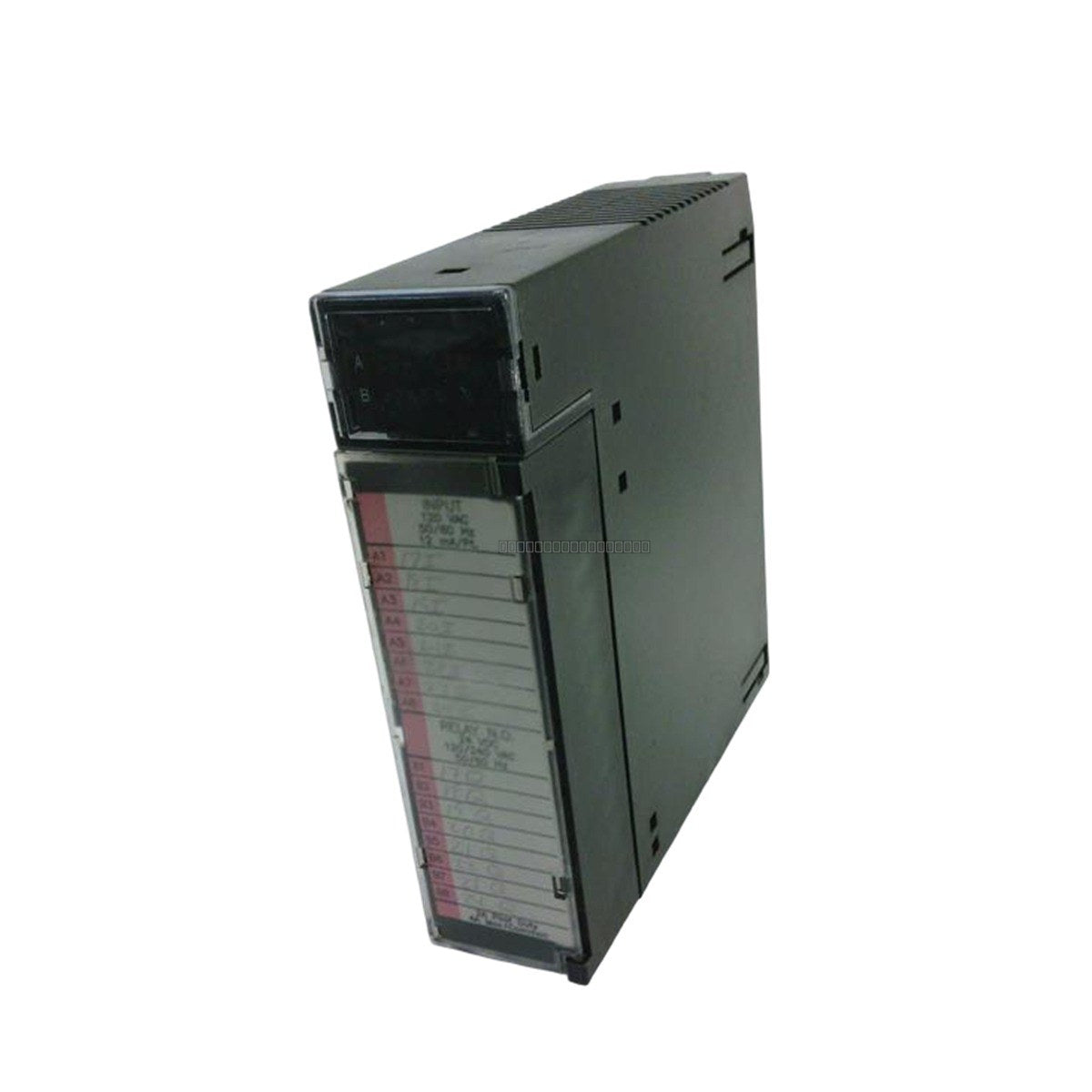

GE Fanuc IC693MAR590 Series 90-30 Mixed I/O Module

GE Fanuc IC693MAR590 Series 90-30 Mixed I/O Module

Description

The IC693MAR590 is a combination input/output module designed for the GE Fanuc Series 90-30 PLC platform. This module integrates 8 AC input channels and 8 relay output channels into a...

24 people are viewing this right now

Availability: Low stock: 2 left

SKU: IC693MAR590
Vendor: GE FANUC
Category: Mixed I/O Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The IC693MAR590 is a combination input/output module designed for the GE Fanuc Series 90-30 PLC platform. This module integrates 8 AC input channels and 8 relay output channels into a single compact assembly. It is engineered for demanding automated environments, including power generation, mining, and oil and gas processing, where it facilitates the control of field devices such as motor contactors, valves, and control switches. The module provides 1500 V RMS electrical isolation between field circuits and internal logic to minimize noise interference and enhance system reliability.

Features

  • 8 AC input channels with optical isolation.
  • 8 mechanical relay output channels for versatile load switching.
  • 1500 V RMS isolation between field and logic circuits.
  • Supports a wide range of AC input voltages (0 to 132 VAC).
  • Compatible with both DC and AC field loads on the relay outputs.

Applications

This module is suitable for discrete control applications in industrial automation systems, specifically where mixed signal types are required in a single rack slot. It is commonly used for interfacing with high-current field devices that require physical contact isolation.

Technical Specifications

Parameter Specification
Input Channels 8
Output Channels 8 (Relay)
Rated Input Voltage 0 to 132 VAC
ON-State Input Voltage 74 to 132 VAC
OFF-State Input Voltage 0 to 20 VAC
ON-State Input Current 6 mA
Rated Output Voltage 5 to 30 VDC / 5 to 250 VAC
Max Load Current 2 Amps
Max Inrush Current 5 Amps
Isolation (Field to Logic) 1500 V RMS
Power Consumption 80 mA @ 5 VDC, 70 mA @ 24 VDC
Operating Temperature 0 to 60 deg C

Installation Guidelines

  • Ensure the PLC rack is powered down before inserting or removing the module to prevent electrical damage.
  • Verify that the module is fully seated in the backplane connector and secured with the integrated locking mechanism.
  • Use appropriate shielded cabling for field inputs to reduce EMI/RFI noise in high-interference environments.
  • Ensure that the relay output load does not exceed the maximum current rating (2A) or inrush current limits (5A) to prevent contact degradation.
  • Maintain adequate airflow within the cabinet to ensure the module operates within the 0 to 60 deg C temperature range.

FAQ

What is the primary function of the IC693MAR590?
It is a mixed I/O module that provides 8 AC inputs and 8 relay outputs for the Series 90-30 PLC system, allowing for both monitoring and control of field devices.

Does this module require external power for the relay outputs?
Yes, the module requires 24 VDC to drive the internal relay coils, in addition to the 5 VDC required for the backplane logic.
