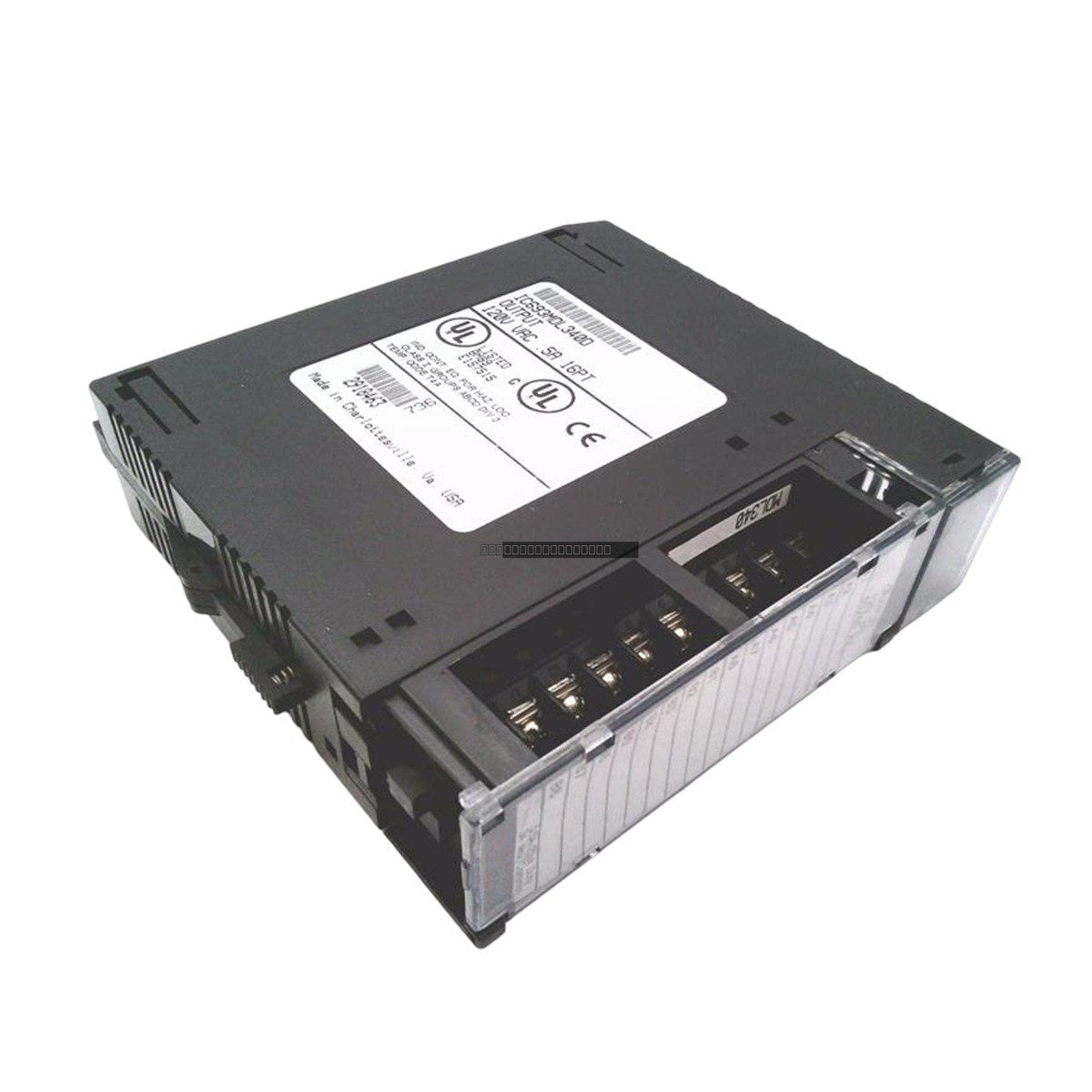

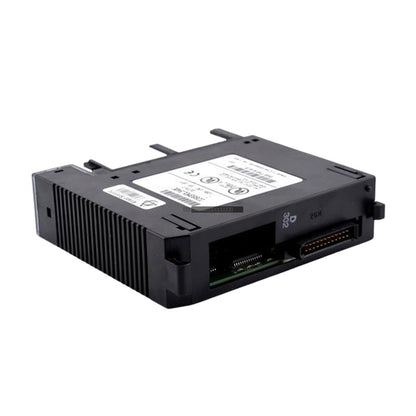

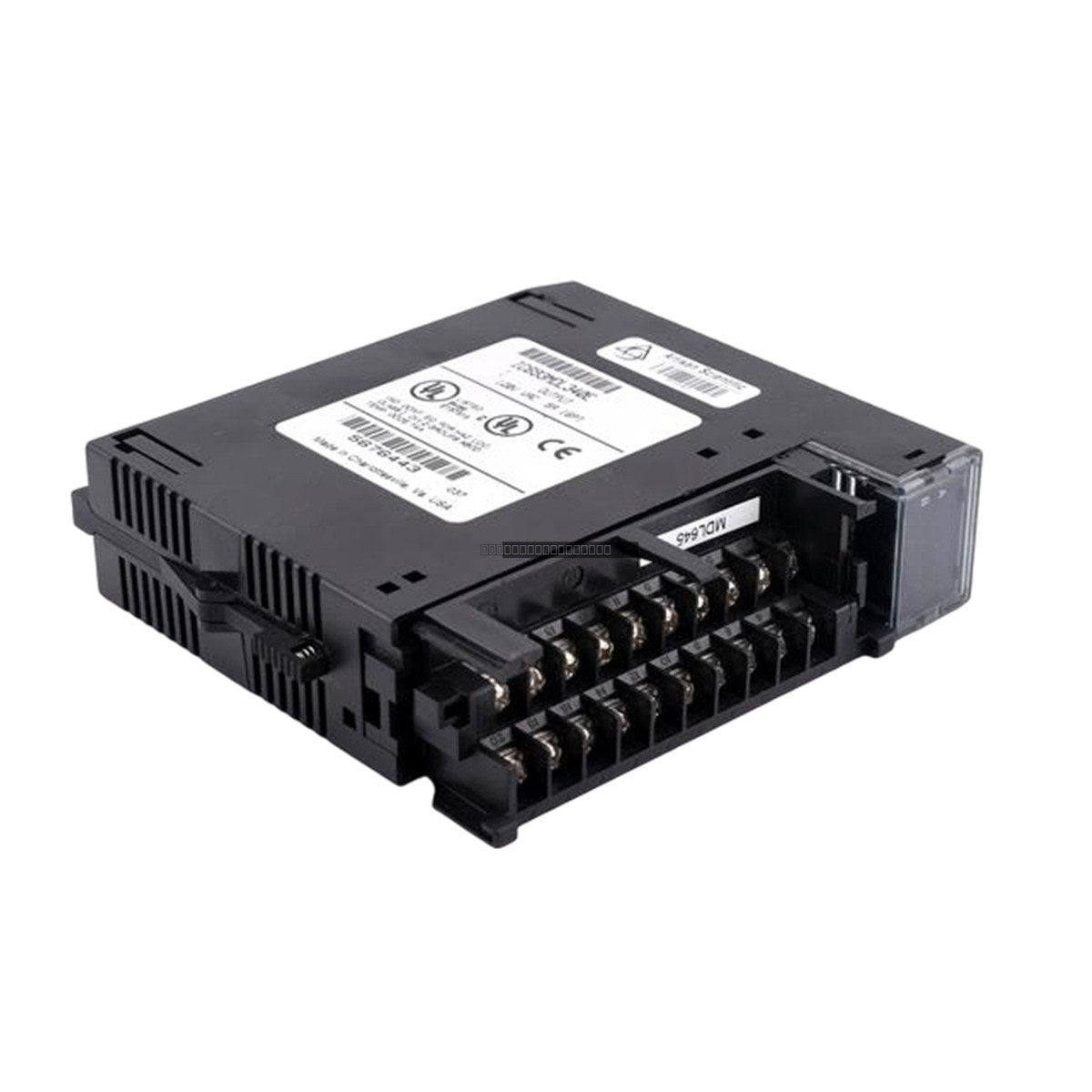

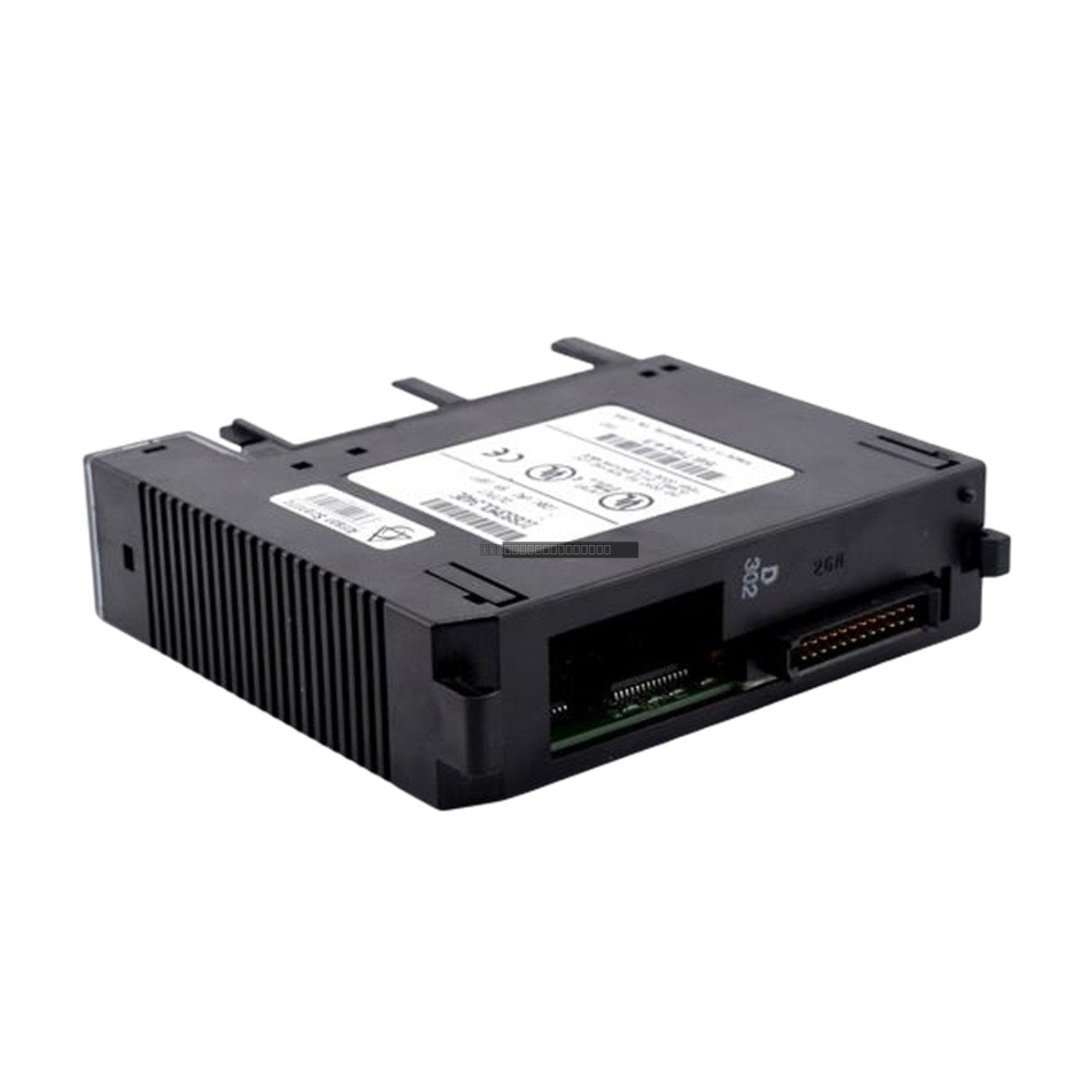

GE Fanuc IC693MDL340 Series 90-30 16-Point 120V AC Output Module

GE Fanuc IC693MDL340 Series 90-30 16-Point 120V AC Output Module

Description

The IC693MDL340 is a 16-point discrete output module designed for the GE Fanuc Series 90-30 Programmable Logic Controller (PLC) system. This module provides sixteen isolated output points arranged in two...

29 people are viewing this right now

Availability: Low stock: 1 left

SKU: IC693MDL340
Vendor: General Electric
Category: Discrete Output Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The IC693MDL340 is a 16-point discrete output module designed for the GE Fanuc Series 90-30 Programmable Logic Controller (PLC) system. This module provides sixteen isolated output points arranged in two groups of eight, facilitating the control of 120V AC field devices. It is engineered to interface directly with the Series 90-30 backplane, providing reliable switching for industrial automation applications.

Features

  • Sixteen (16) discrete output channels organized into two groups of eight.
  • Rated for 120V AC operation with an output signal range of 85-132V AC.
  • Maximum output current of 0.5A per point.
  • Robust isolation: 1500V between field and logic sides, and 500V between groups.
  • Supports a frequency range of 50 to 60 Hz.
  • Inrush current capacity of 20A for one cycle.

Technical Specifications

Model IC693MDL340
Manufacturer General Electric (GE Fanuc)
Series Series 90-30
Output Type Discrete AC Output
Channels 16 (2 groups of 8)
Voltage Rating 120V AC
Current per Point 0.5A
Minimum Load Current 50mA
Leakage Current 2mA max at 120V AC
Isolation 1500V (Field to Logic) / 500V (Group to Group)
Lifecycle Status Discontinued / Obsolete

Installation Guidelines

  • Ensure power is disconnected from the PLC rack before installing or removing the module to prevent electrical shock or damage to the backplane.
  • Verify that the module is fully seated in the designated slot and that the locking tabs are engaged.
  • Use appropriate wire gauges for field connections; ensure all terminal screws are tightened to the recommended torque to prevent loose connections.
  • Maintain proper clearance for ventilation to prevent overheating, as the module requires adequate airflow for cooling.
  • Route high-voltage AC field wiring away from low-voltage logic or communication cables to minimize electromagnetic interference (EMI).
  • Handle the module using ESD-safe practices to prevent damage to sensitive internal circuitry.

FAQ

Is the IC693MDL340 still in production? No, this module is classified as discontinued/obsolete by the manufacturer. We provide high-quality refurbished or surplus units to support legacy systems.

What is the isolation rating of this module? The module provides 1500V isolation between the field and logic sides, and 500V isolation between the two output groups.

Can this module be used with other Series 90-30 components? Yes, it is fully compatible with the GE Fanuc Series 90-30 PLC backplane and CPU modules.
