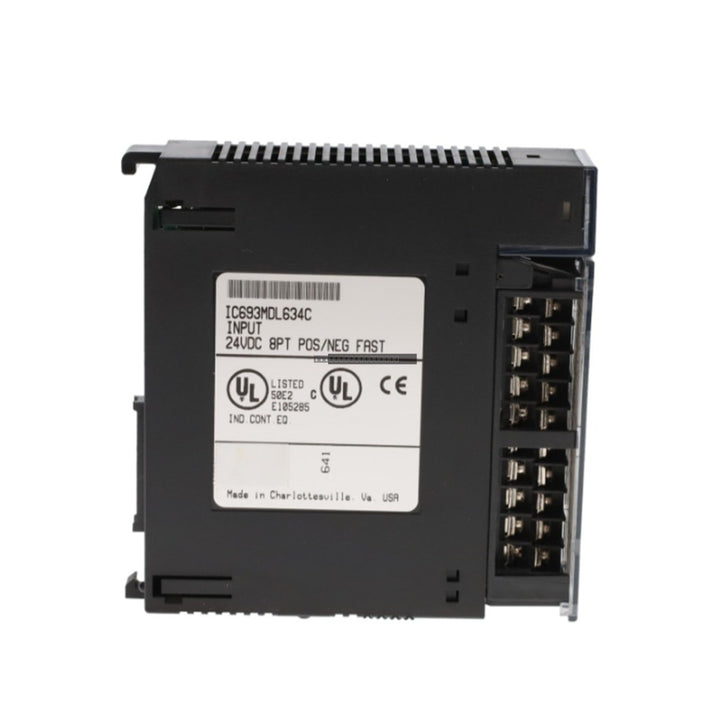

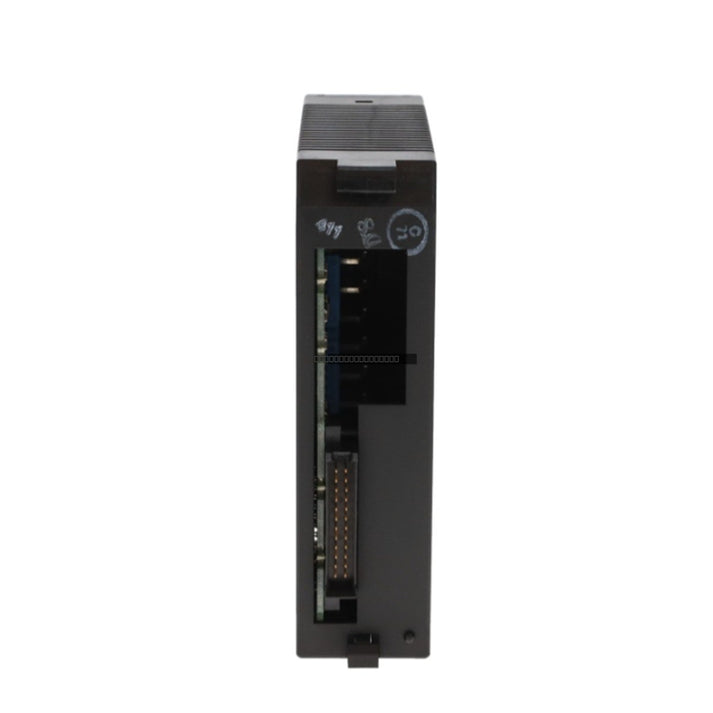

GE Fanuc IC693MDL634 Series 90-30 24 VDC Discrete Input Module

GE Fanuc IC693MDL634 Series 90-30 24 VDC Discrete Input Module

Description

The IC693MDL634 is a high-performance 24 VDC discrete input module engineered for the GE Fanuc Series 90-30 PLC platform. This module is designed to interface with various field devices, including...

19 people are viewing this right now

Availability: Low stock: 3 left

SKU: IC693MDL634
Vendor: GE FANUC
Category: Discrete Input Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The IC693MDL634 is a high-performance 24 VDC discrete input module engineered for the GE Fanuc Series 90-30 PLC platform. This module is designed to interface with various field devices, including limit switches, proximity sensors, and pushbuttons, facilitating reliable signal acquisition for machine control and process automation. It features eight independent input points configured as a single group, offering support for both positive and negative logic to accommodate diverse wiring requirements. With 1500 V isolation between the field and logic sides, the module provides effective protection against transient electrical noise, ensuring consistent signal integrity in demanding industrial environments.

Features

  • Eight discrete input channels organized into a single group.
  • Compatible with both positive and negative logic configurations.

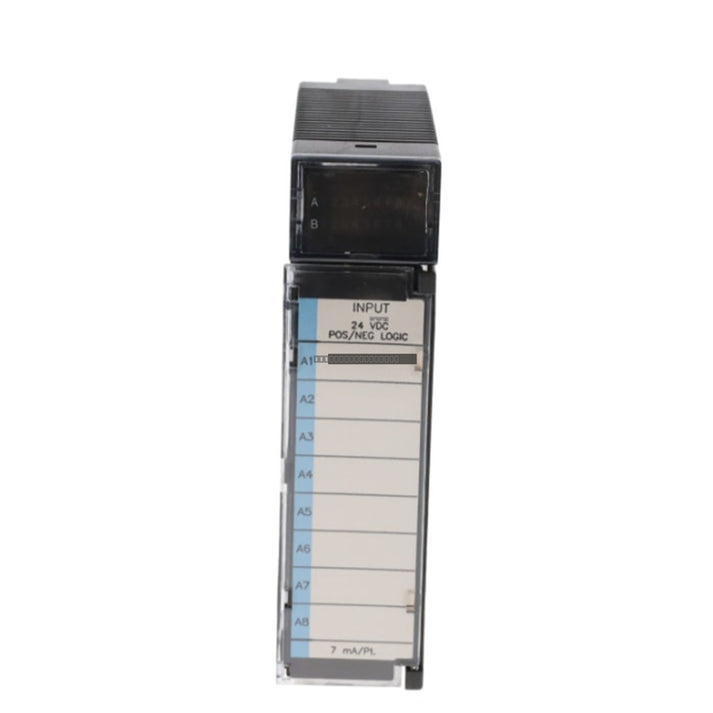

  • Integrated front-panel LED indicators for real-time status monitoring of each input point.
  • 1500 V isolation between field-side and logic-side circuitry.
  • Flexible input voltage range of 0 to 30 VDC.
  • Hinged door design with blue color-coding for easy identification of low-voltage modules.

Technical Specifications

Model IC693MDL634
Product Line Series 90-30
Number of Inputs 8
Input Voltage Range 0 to 30 VDC
On-State Voltage 11.5 to 30 VDC
Off-State Voltage 0 to 5 VDC
On-State Current 3.2 mA (min)
Off-State Current 1.1 mA (max)
Isolation 1500 V (Field to Logic)
Operating Temperature 0 to 60 degC

Installation Guidelines

  • Ensure the PLC rack power is disconnected before installing or removing the module to prevent electrical damage.
  • Align the module carefully with the backplane connector and slide it into the designated slot until fully seated.
  • Secure the module using the integrated mounting screws to ensure proper grounding and mechanical stability.
  • Use shielded cabling for field inputs to minimize electromagnetic interference (EMI) in high-noise environments.
  • Verify that the field power supply matches the module's voltage requirements before energizing the system.
  • Ensure adequate ventilation around the PLC rack to maintain operating temperatures within the 0 to 60 degC range.

FAQ

What is the primary function of the IC693MDL634?

This module is a discrete input interface that converts 24 VDC field signals into logic-level signals for processing by the Series 90-30 CPU.

Does this module support both positive and negative logic?

Yes, the IC693MDL634 is designed to support both positive and negative logic configurations, providing flexibility for various sensor types.

How can I verify the status of the inputs?

The module features eight LED indicators on the front panel, which provide visual confirmation of the ON or OFF state for each individual input channel.
