GE Fanuc IC694MDL240 PACSystems RX3i 16-Point Discrete Input Module

GE Fanuc IC694MDL240 PACSystems RX3i 16-Point Discrete Input Module

Description

The GE Fanuc IC694MDL240 is a 16-point discrete input module designed for the PACSystems RX3i control platform. This module provides 16 input channels, organized into a single group, and is...

17 people are viewing this right now

Availability: Low stock: 7 left

SKU: IC694MDL240
Vendor: General Electric
Category: Discrete Input Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

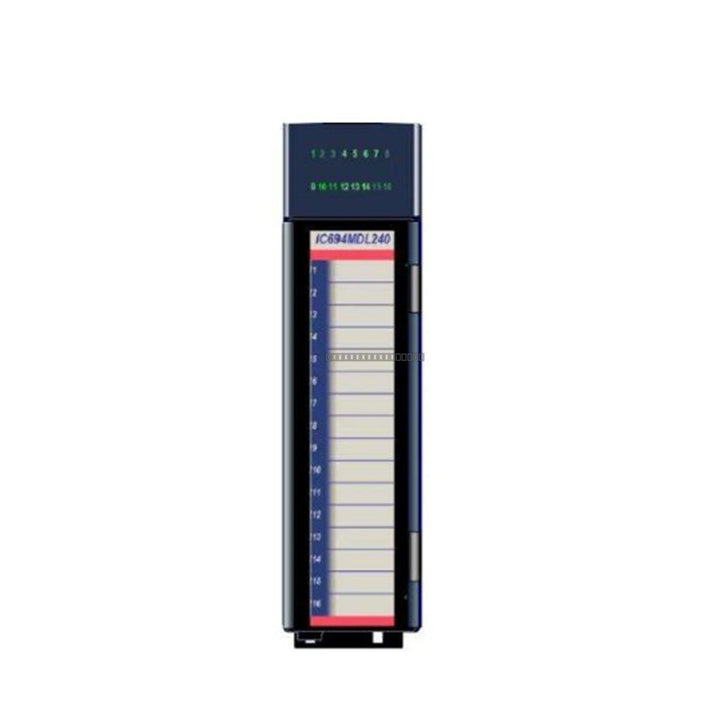

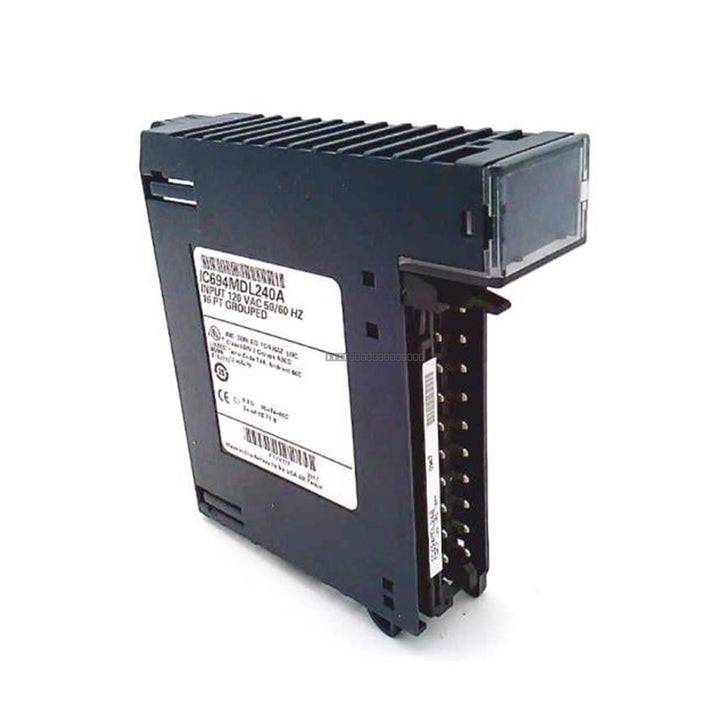

The GE Fanuc IC694MDL240 is a 16-point discrete input module designed for the PACSystems RX3i control platform. This module provides 16 input channels, organized into a single group, and is engineered to interface with 120 VAC signals. It is widely utilized in industrial automation applications requiring reliable monitoring of AC field devices.

Features

  • 16 discrete input channels grouped together.
  • Designed for 120 VAC nominal input voltage.
  • Optical isolation provided for channel-to-backplane protection.
  • Compatible with the PACSystems RX3i rack-based architecture.
  • Status indicators for real-time monitoring of input states.

Technical Specifications

Product Model IC694MDL240
Input Points 16
Input Voltage Range 0 to 132 VAC
On-State Voltage 74 to 132 VAC
Off-State Voltage 0 to 20 VAC
Input Current 12 mA per channel
On-State Current 6 mA minimum
Off-State Current 2.2 mA maximum
Input Frequency 47 to 63 Hz
Response Time (On) 30 ms (typical)
Response Time (Off) 45 ms (maximum)
Isolation 250 VAC continuous; 1500 VAC for 1 minute
Operating Temperature 0 to 60 degC

Installation Guidelines

  • Ensure the PACSystems RX3i rack power is disconnected before installing or removing the module.
  • The module should be seated firmly into the designated rack slot to ensure proper backplane connection.
  • Use appropriate shielded cabling for field inputs to minimize electromagnetic interference (EMI).
  • Maintain proper ventilation within the control cabinet to ensure the module operates within its specified temperature range (0-60 degC).
  • Ensure all field wiring is correctly terminated to the terminal block, adhering to local electrical codes.

FAQ

What is the primary function of the IC694MDL240?
This is a discrete input module used to detect the presence or absence of 120 VAC signals from field devices and report that status to the PACSystems RX3i controller.

Is this module compatible with other GE series?
The IC694MDL240 is specifically designed for the PACSystems RX3i series. Please consult your system documentation for cross-platform compatibility.

What is the isolation rating of this module?
The module provides optical isolation rated at 250 VAC continuous and 1500 VAC for 1 minute between the field side and the backplane.
