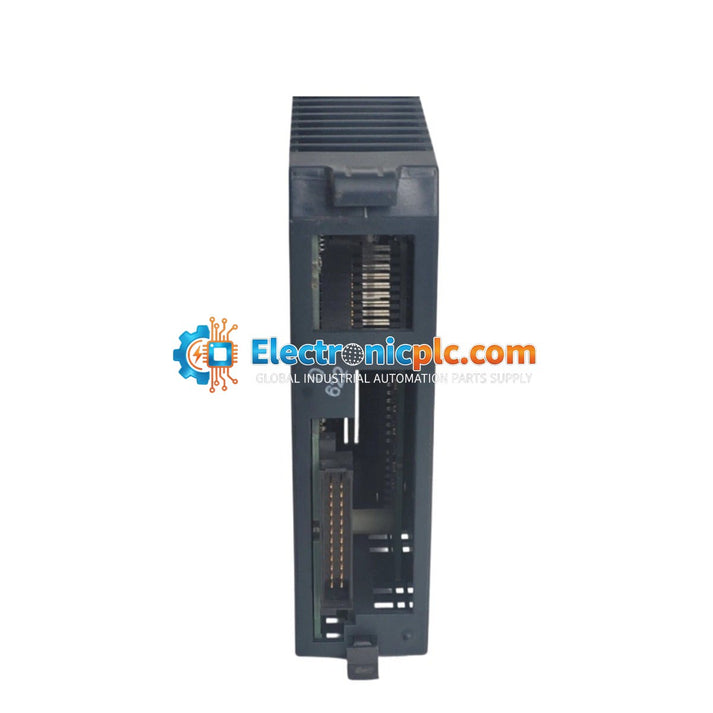

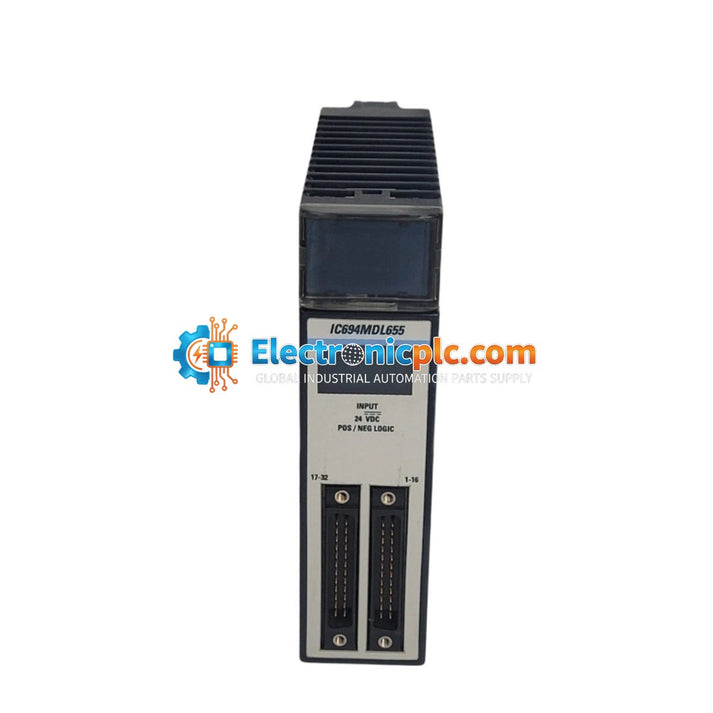

General Electric IC694MDL655 PACSystems RX3i 32-Point Discrete Input Module

General Electric IC694MDL655 PACSystems RX3i 32-Point Discrete Input Module

Description

The General Electric IC694MDL655 is a high-density discrete input module designed for the PACSystems RX3i control platform. This module provides 32 points of discrete input, organized into four isolated groups...

23 people are viewing this right now

Availability: Low stock: 5 left

SKU: IC694MDL655
Vendor: General Electric
Category: Discrete Input Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The General Electric IC694MDL655 is a high-density discrete input module designed for the PACSystems RX3i control platform. This module provides 32 points of discrete input, organized into four isolated groups of eight inputs each. It is engineered to interface with a wide range of field devices, supporting both positive and negative logic configurations to ensure flexibility in industrial control applications.

Features

  • 32 discrete input channels organized into 4 groups of 8.
  • Supports both positive and negative logic input types.
  • Wide input voltage range compatibility (0-30 VDC nominal, up to 60 VDC).
  • Fast response time of 2 ms (maximum) for both On and Off transitions.
  • Integrated LED status indicators for each channel to facilitate rapid diagnostics.
  • Optical isolation between field side and backplane to protect control circuitry.

Technical Specifications

Parameter Specification
Model IC694MDL655
Input Channels 32
Input Groups 4 (8 points per group)
Input Voltage Range 0-30 VDC (Rated up to 60 VDC)
On-State Voltage 11.5 - 30 VDC
Off-State Voltage 0 - 5 VDC
Input Current 7.0 mA per channel at rated voltage
Response Time 2 ms (maximum)
Backplane Current Draw 195 mA (max) from +5V bus
Isolation 250 VAC
Connector Type 2 x 24-pin male connectors

Installation Guidelines

  • Ensure the PACSystems RX3i rack power is disconnected before installing or removing the module.
  • The module must be seated firmly into the RX3i backplane slot and secured using the integrated locking mechanism.
  • Use shielded cabling for field inputs to minimize EMI interference, especially in high-noise industrial environments.
  • Maintain proper cable routing to prevent signal degradation and ensure compliance with maximum cable length specifications (30 meters).
  • Handle the module using ESD-safe practices to prevent damage to sensitive internal electronic components.

FAQ

What is the primary function of the IC694MDL655?

The IC694MDL655 is a high-density discrete input module used to monitor the status of 32 field devices and communicate that state to the PACSystems RX3i PLC controller.

Can this module be used with both PNP and NPN sensors?

Yes, the module supports both positive and negative logic, allowing it to interface with a variety of standard industrial sensors and switches.

What is the maximum cable length for inputs?

The recommended maximum cable length for field inputs connected to this module is 30 meters to ensure signal integrity and proper response times.
