Description

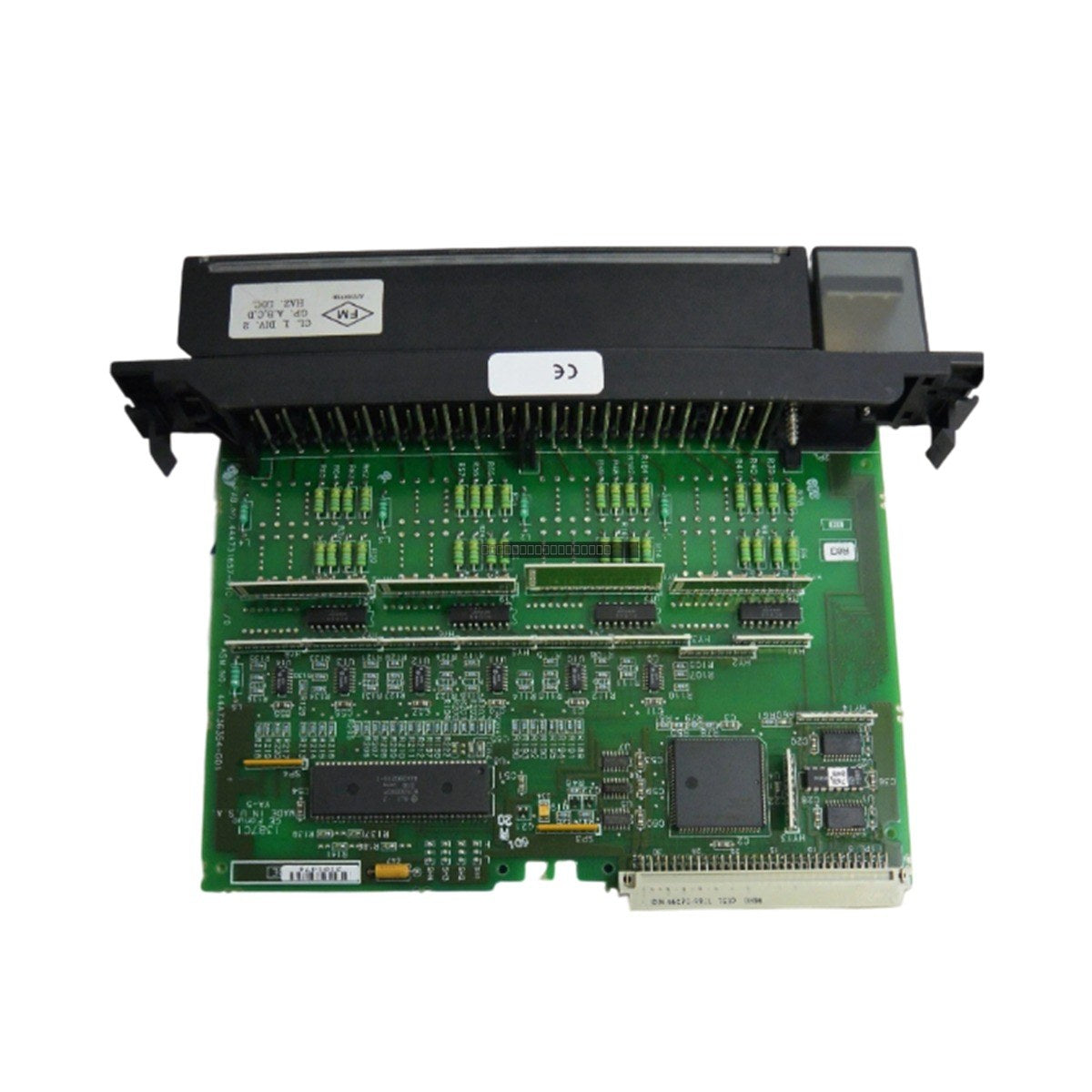

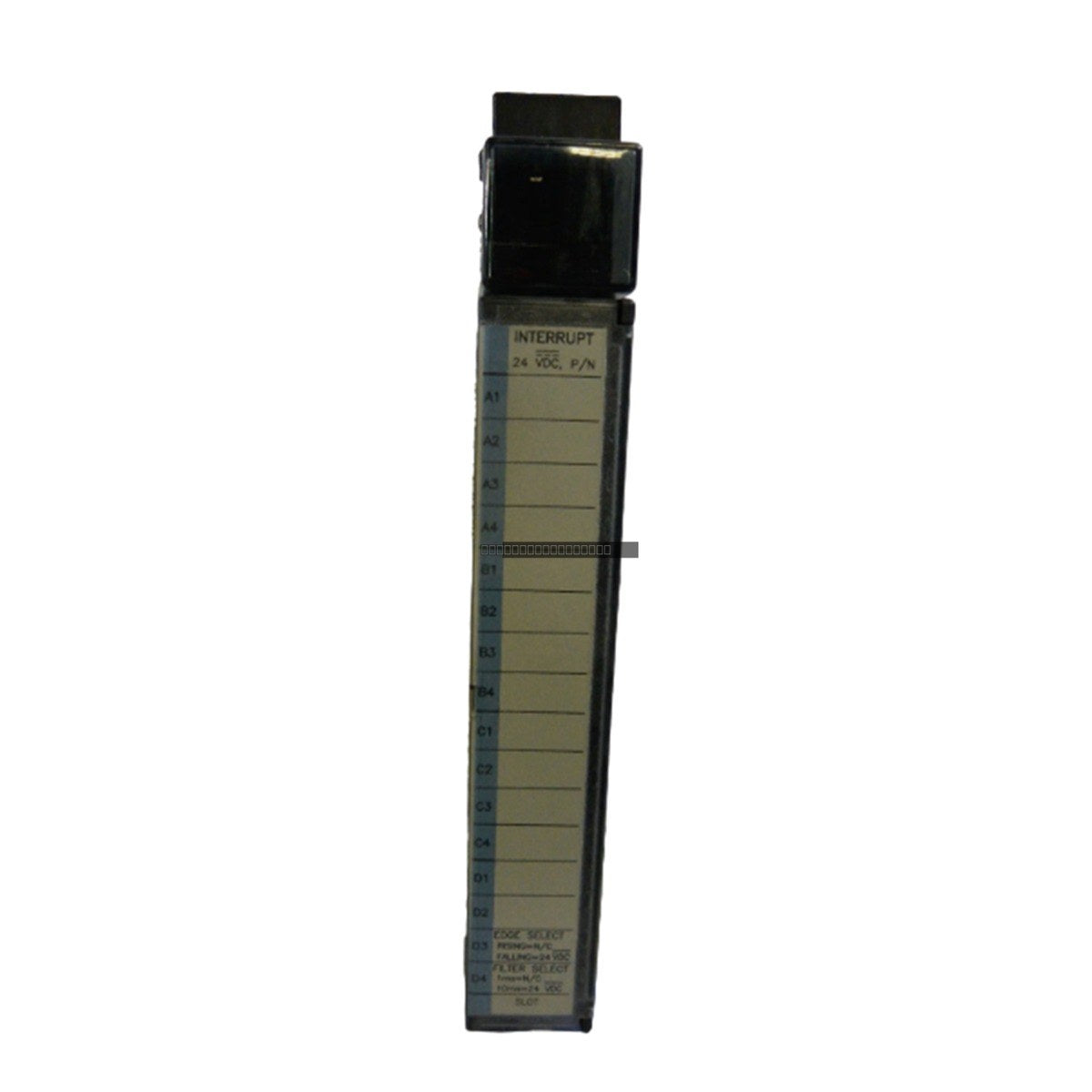

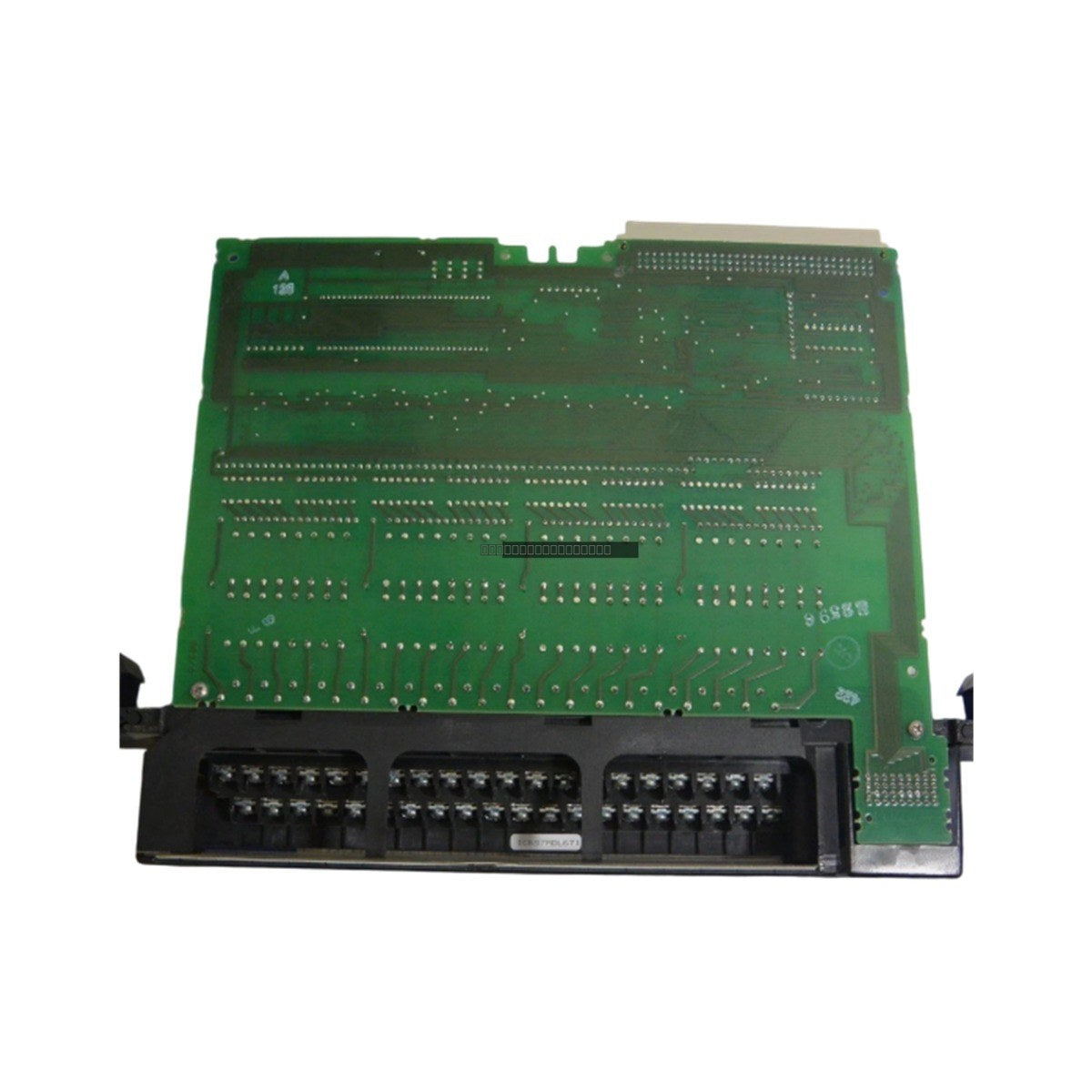

The GE Fanuc IC697MDL671 is a high-density 16-point DC input module designed for integration within the Series 90-70 PLC platform. This module serves as a reliable interface for 24 VDC field devices, enabling precise signal sensing in complex industrial automation systems, including power generation, chemical processing, and manufacturing facilities. By incorporating robust galvanic isolation, the module protects the PLC processor from voltage transients and ground loops, ensuring high signal integrity and reducing the risk of false triggering in electrically noisy environments.

Features

• 16 discrete input points for high-density signal monitoring.
• Optimized for 24 VDC field device compatibility.
• Integrated 1500 V isolation between field-side inputs and the logic backplane.
• Supports both positive and negative polarity input configurations.
• Energy-efficient operation with low backplane power consumption.
• Designed for standard rack-based deployment in Series 90-70 systems.

Applications

This module is suitable for a wide range of industrial control applications where discrete 24 VDC sensing is required. It is commonly utilized in large-scale process control systems, automated assembly lines, and critical infrastructure monitoring where system stability and signal accuracy are paramount.

Technical Specifications

Installation Guidelines

• Ensure the PLC rack power is disconnected before installing or removing the module.
• Verify that the module is fully seated in the backplane slot to ensure reliable electrical contact.
• Use shielded cabling for field inputs to minimize electromagnetic interference (EMI) in high-noise environments.
• Maintain proper grounding practices for the PLC rack to ensure the effectiveness of the module's isolation.
• Ensure adequate ventilation within the cabinet to maintain the operating temperature within the 0 to 60 degC range.
• Handle the module using standard ESD (Electrostatic Discharge) precautions.

FAQ

What is the primary function of the IC697MDL671?
The IC697MDL671 is a discrete input module used to interface 24 VDC field signals with a GE Fanuc Series 90-70 PLC system.

Does this module support both positive and negative logic?
Yes, the module is designed to handle both positive and negative voltage polarities within the specified OFF-state and ON-state thresholds.

What is the isolation rating of this module?
The module provides 1500 V of isolation between the field inputs and the logic-side backplane to protect the CPU from electrical transients.
