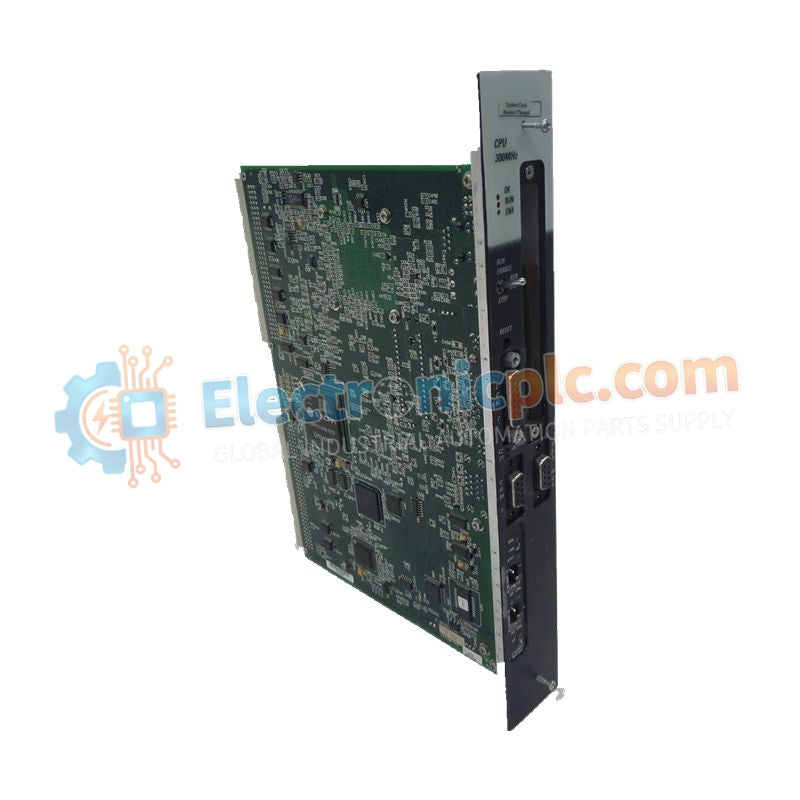

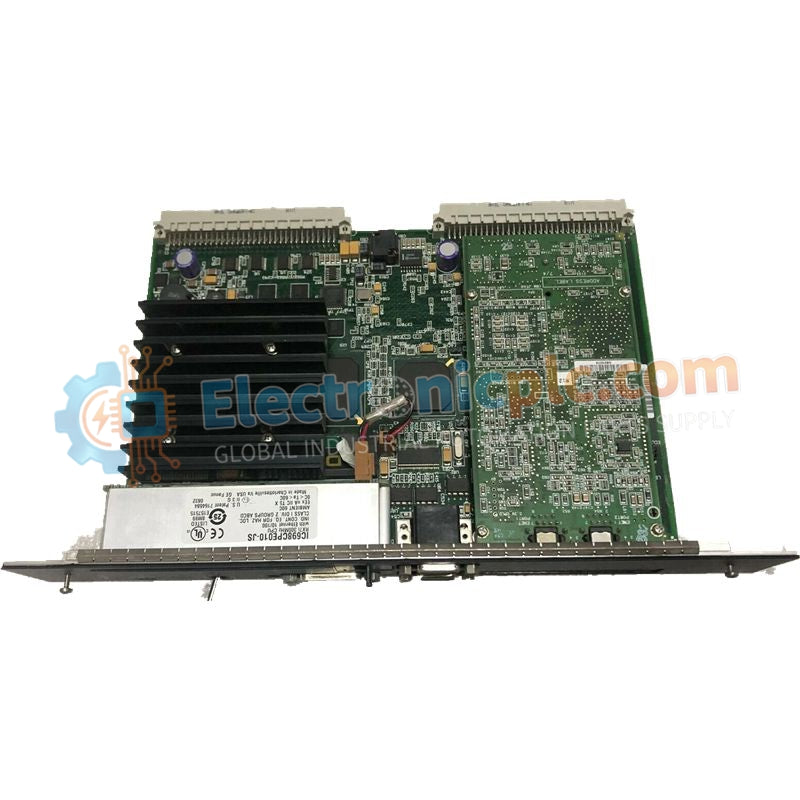

GE Fanuc IC698CPE010 Central Processing Unit

GE Fanuc IC698CPE010 Central Processing Unit

Product Overview

The IC698CPE010 (Part Number IC698CPE010) is a high-performance VME-based Central Processing Unit designed for the PACSystems RX7i platform. Integrated with a 300MHz Celeron microprocessor, this CPU provides the...

29 people are viewing this right now

Availability: Low stock: 10 left

SKU: IC698CPE010
Vendor: GE Fanuc
Category: Central Processing Unit
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Product Overview

The IC698CPE010 (Part Number IC698CPE010) is a high-performance VME-based Central Processing Unit designed for the PACSystems RX7i platform. Integrated with a 300MHz Celeron microprocessor, this CPU provides the robust computational power required for complex, high-speed industrial applications. The IC698CPE010 excels in data-intensive environments, offering significant memory capacity and built-in Ethernet connectivity to support modern industrial internet (IIoT) requirements, including web-based monitoring and FTP services.

Hardware and Performance Specifications

Specification Details
Processor 300MHz Intel Celeron Microprocessor
User Program Memory 10 Mbytes battery-backed RAM; 10 Mbytes non-volatile Flash
Logic Execution Speed 0.195ms per 1,000 Boolean contacts/coils (Typical)
Power Requirements 3.2 Amps nominal from the 5V bus
Real-Time Clock Accuracy Maximum drift of 9 seconds per day
Communication Interfaces Dual 10/100 Mbps Ethernet (RJ45 10 BaseT)
Network Services Supports up to 16 concurrent Web Server and FTP connections
Operating Temperature 0°C to 50°C
Physical Weight 0.63 kg

Advanced Networking and Storage

The IC698CPE010 is engineered for the VME64 standard, ensuring high-speed backplane communication and compatibility with a wide range of specialized VME modules. Its dual-storage architecture—utilizing both battery-backed RAM for active execution and non-volatile Flash for permanent program retention—ensures system integrity during power cycles. Furthermore, the integrated Ethernet port facilitates seamless integration into plant-wide networks, allowing engineers to perform remote diagnostics and data monitoring through standard web browsers without additional middleware.

FAQ

How does the fan tray affect the operation of the IC698CPE010?

The addition of a fan tray increases the maximum allowable operating temperature from 50°C to 60°C, providing a necessary thermal safety margin in densely packed or poorly ventilated control cabinets.

What happens to my program if the battery fails?

While the RAM requires the battery for retention during power-off states, the IC698CPE010 features 10MB of non-volatile Flash memory. Users should configure the system to back up critical logic to Flash to prevent data loss in the event of a total battery discharge.
