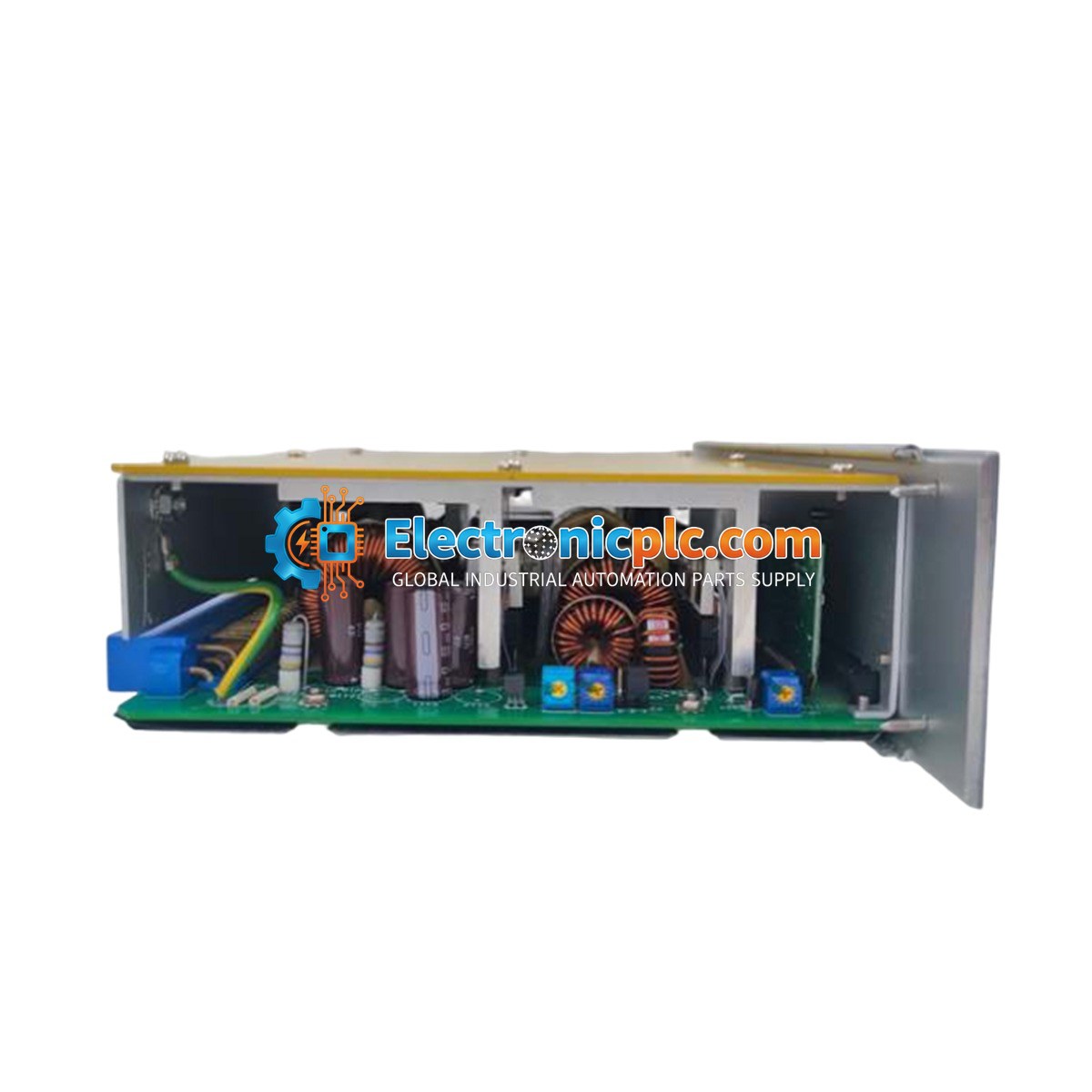

GE Fanuc IC698PSD300 Rx7i PACSystem 300W DC Power Supply

GE Fanuc IC698PSD300 Rx7i PACSystem 300W DC Power Supply

Description

The IC698PSD300 is a high-capacity 300 Watt DC power supply module designed for the GE Fanuc Rx7i PACSystem architecture. This module provides reliable power conversion for high-density controller racks, accepting...

25 people are viewing this right now

Availability: Low stock: 8 left

SKU: IC698PSD300
Vendor: GE FANUC
Category: Power Supply Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The IC698PSD300 is a high-capacity 300 Watt DC power supply module designed for the GE Fanuc Rx7i PACSystem architecture. This module provides reliable power conversion for high-density controller racks, accepting a 24 VDC nominal input and delivering stable output power to support complex processor and I/O configurations. It is engineered for demanding industrial environments, including power generation, mining, and petrochemical processing, where electrical stability and system uptime are critical.

Features

  • High Capacity Output: Delivers 300 Watts of total power, including a 50 Amp output on the 5 VDC rail.
  • Robust Protection: Integrated circuitry for overvoltage, overcurrent, and overtemperature protection to safeguard system components.
  • Diagnostic Indicators: Front-panel dual-color LEDs (Output OK and Fault) for immediate visual status monitoring.
  • Electrical Isolation: Rated for 1500 VAC for 1 minute to prevent ground loops and protect against electrical transients.
  • Ride-Through Capability: Minimum 15 ms ride-through time to maintain operation during brief input power fluctuations.

Applications

The IC698PSD300 is specifically designed for use within the GE Fanuc Rx7i PACSystem series. It is suitable for VME64-based industrial racks requiring high-current logic power for large-scale automation, distributed control systems, and high-density I/O applications.

Technical Specifications

Model IC698PSD300
Input Voltage (Nominal) 24 VDC
Input Voltage Range 18 to 30 VDC
Total Output Power 300 Watts
5 VDC Output Rail 50 Amps
12 VDC Output Rail 10 Amps
Max Input Power 550 Watts
Ride-Through Time 15 ms (minimum)
Isolation Rating 1500 VAC
Operating Temperature 0 to 60 deg C

Installation Guidelines

  • Power Down: Ensure all power is removed from the rack before inserting or removing the power supply module.
  • ESD Handling: Follow standard electrostatic discharge (ESD) prevention protocols when handling the module to avoid damaging sensitive internal circuitry.
  • Ventilation: Ensure adequate airflow around the rack to maintain operating temperatures within the specified 0 to 60 deg C range.
  • Grounding: Verify that the rack backplane and power supply are properly grounded to the system earth to ensure electrical safety and noise immunity.
  • Inrush Current: Account for the 100 Amp maximum cold start inrush current when sizing upstream circuit protection and power distribution components.

FAQ

What is the primary function of the IC698PSD300?

The IC698PSD300 is a power supply module that converts 24 VDC input power into the regulated 5 VDC and 12 VDC levels required by the GE Fanuc Rx7i PACSystem rack components.

Can this module be used in non-Rx7i systems?

No, this module is specifically engineered for the Rx7i PACSystem architecture and is designed to fit into its specific VME64-based rack backplane.

What do the LED indicators on the front panel signify?

The green LED indicates that the output power is within normal operating parameters, while the red LED indicates a fault condition, such as an overvoltage or overtemperature event.
