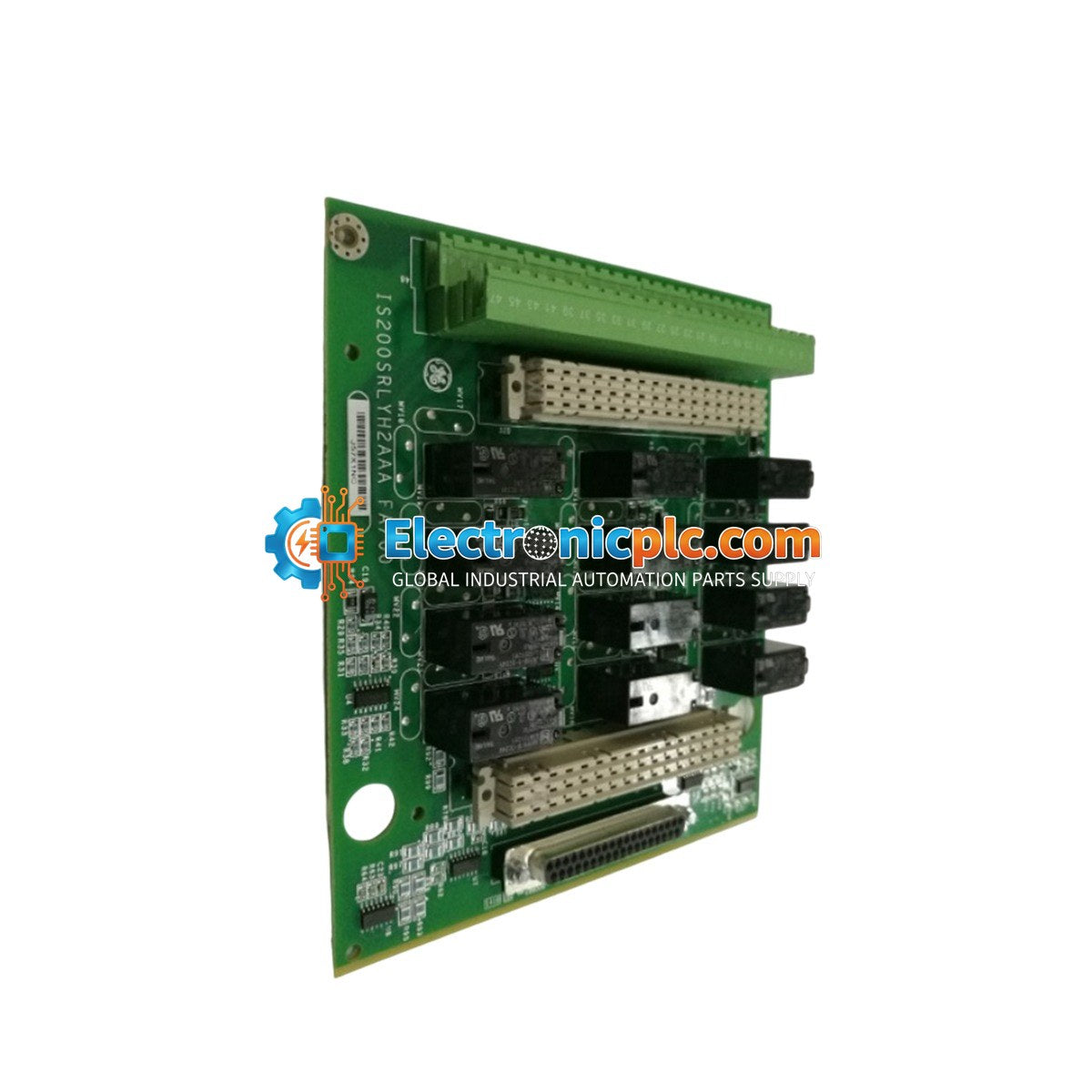

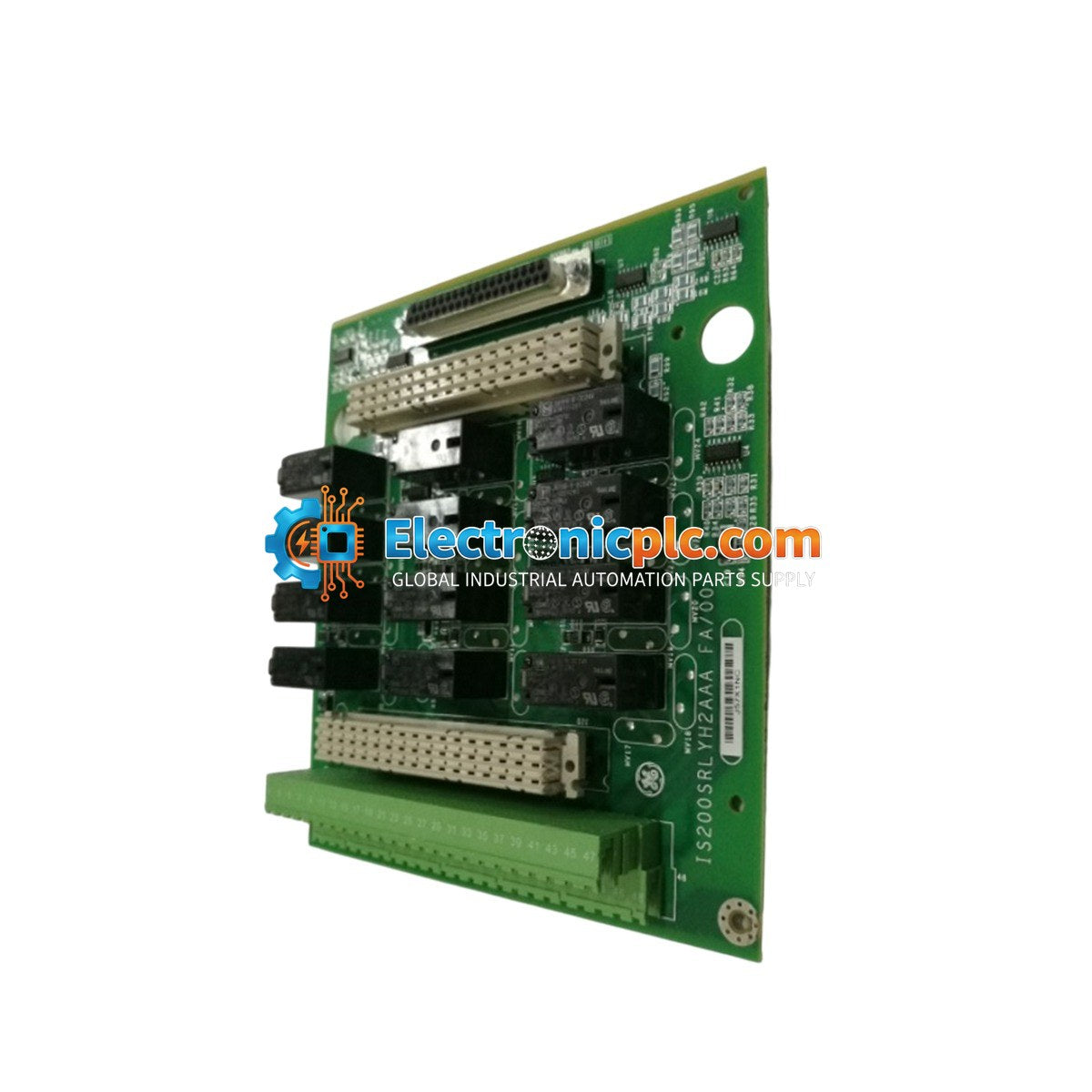

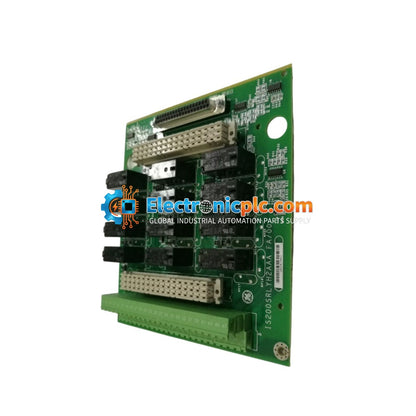

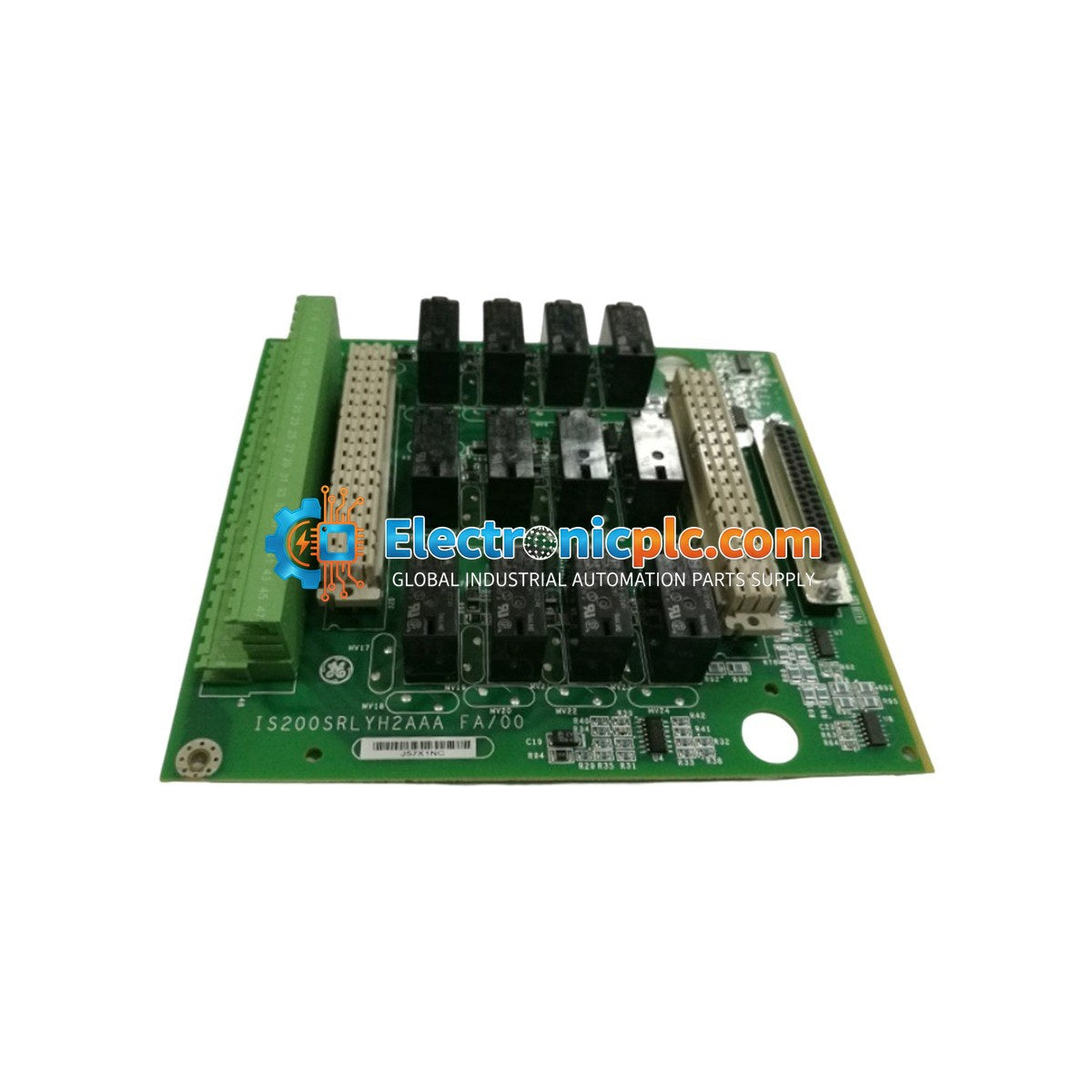

GE Fanuc IS200SRLYH2A Mark VIe Simplex Relay Output Terminal Board

GE Fanuc IS200SRLYH2A Mark VIe Simplex Relay Output Terminal Board

Description

The IS200SRLYH2A is a Simplex Relay Output Terminal Board designed for the GE Mark VIe control system. This terminal board serves as a critical interface between the control logic and...

26 people are viewing this right now

Availability: Low stock: 2 left

SKU: IS200SRLYH2A
Vendor: GE FANUC
Category: Relay Output Terminal Board
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The IS200SRLYH2A is a Simplex Relay Output Terminal Board designed for the GE Mark VIe control system. This terminal board serves as a critical interface between the control logic and field-level devices, providing 12 independent Form C relay output circuits. It is engineered for high-reliability switching in distributed turbine control systems and heavy industrial drive applications, ensuring precise command execution and system availability.

Features

  • 12 Form C Relay Channels: Provides 12 independent, isolated relay output circuits for versatile field device control.
  • I/O Pack Compatibility: Supports direct mounting of PDOA or YDOA I/O packs, including double-stacking configurations to maximize cabinet density.
  • Feedback Verification: Each relay circuit includes an isolated contact pair to provide position feedback to the I/O pack, enabling closed-loop state monitoring.
  • Robust Construction: Features a sheet metal carrier and integrated plastic insulator for secure, reliable cabinet mounting.
  • High-Density Wiring: Equipped with 48 customer terminal points to support complex field wiring requirements.

Applications

This terminal board is primarily utilized within GE Mark VIe control architectures for power generation and industrial automation. It is commonly deployed in systems requiring reliable, isolated switching for actuators, solenoids, and alarm signaling in turbine control environments.

Technical Specifications

Model IS200SRLYH2A
Brand GE Fanuc
Series Mark VIe
Module Type Simplex Relay Output Terminal Board
Relay Channels 12 Form C Circuits
Terminal Points 48
Max Load Voltage 125 VDC
Operating Temperature -30 to 65 degC
Weight 0.85 kg

Installation Guidelines

  • Power Down: Always ensure the control system is powered down before installing or removing the terminal board or associated I/O packs.
  • Mounting: Secure the board using the provided sheet metal carrier. Ensure the plastic insulator is correctly positioned to prevent short circuits against the cabinet backplane.
  • I/O Pack Seating: When installing PDOA or YDOA packs, ensure they are fully seated into the H2A header. The mechanical connector force is designed to maintain integrity without additional fasteners.
  • Wiring: Utilize the 48 terminal points according to the specific system wiring diagram. Ensure all field wiring is properly shielded and routed away from high-EMI sources to maintain signal integrity.
  • ESD Handling: Handle the module using standard electrostatic discharge (ESD) prevention practices to avoid damage to internal SMT components.

FAQ

What I/O packs are compatible with the IS200SRLYH2A?

This terminal board is designed to interface with PDOA or YDOA I/O packs within the Mark VIe system.

Does this board support redundant configurations?

No, the IS200SRLYH2A is a Simplex terminal board, meaning it is designed for single-path, non-redundant relay output applications.

What is the maximum voltage rating for the relay outputs?

The board is rated for a maximum load of 125 VDC.
