• General Electric IC694TBB032
  • General Electric IC694TBB032
  • General Electric IC694TBB032
1 3

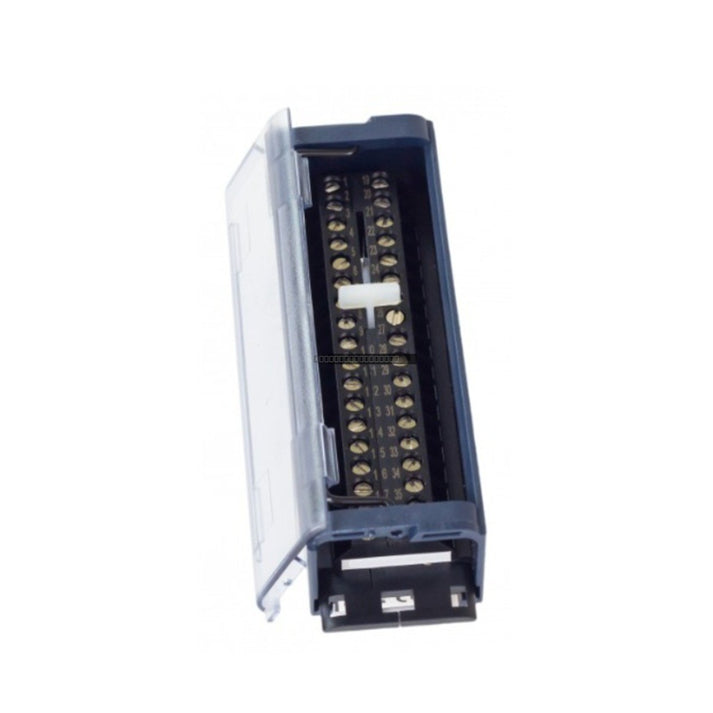

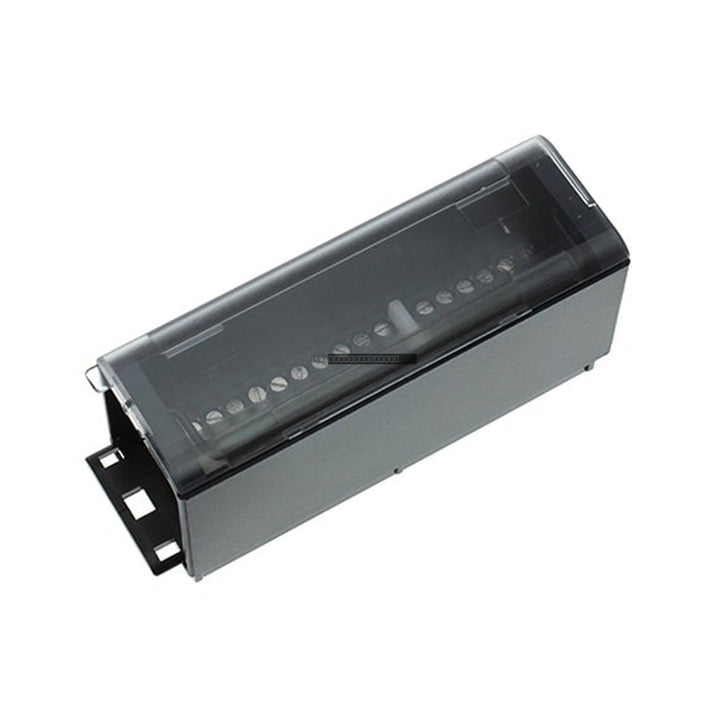

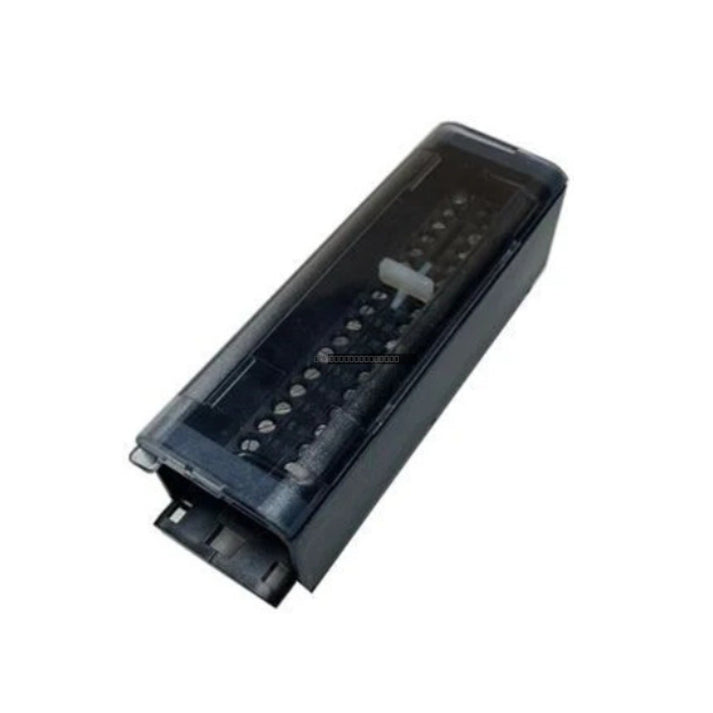

General Electric IC694TBB032 36-Connection Box-Style Terminal Block

General Electric IC694TBB032 36-Connection Box-Style Terminal Block

The General Electric IC694TBB032 is a high-density, box-style terminal block designed for seamless integration with GE PACSystems RX3i and Series 90-30 PLC modules. It provides 36 screw-type connection points, facilitating...

21 people are viewing this right now

Availability: Low stock: 5 left

SKU: IC694TBB032
Vendor: General Electric
Category: Terminal Block
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

The General Electric IC694TBB032 is a high-density, box-style terminal block designed for seamless integration with GE PACSystems RX3i and Series 90-30 PLC modules. It provides 36 screw-type connection points, facilitating reliable field wiring for high-density I/O applications in industrial automation environments.

Features

  • 36-point screw terminal configuration for high-density I/O modules.
  • Standard-depth outer cover design, consistent with the profile of most RX3i and Series 90-30 modules.
  • Compatible with both PACSystems RX3i and Series 90-30 PLC product lines.
  • Robust box-style construction for secure wire retention.

Applications

  • Automotive assembly line robotic controls.
  • Oil and gas refinery process control systems.
  • Water and wastewater treatment facility automation.
  • Power generation control and monitoring systems.
  • General factory floor manufacturing control systems.

Technical Specifications

Model IC694TBB032
Terminal Count 36
Terminal Type Screw type
Wire Gauge Supported #14-26 AWG (solid or stranded)
Tightening Torque 7 lb-in (0.79 N-m)
Wire Strip Length 0.310 inches (7.87 mm)
Product Line PACSystems RX3i / Series 90-30

Installation Guidelines

  • Ensure all power is removed from the PLC rack before installing or removing the terminal block to prevent electrical shock or equipment damage.
  • Align the terminal block carefully with the module connector before pressing firmly into place.
  • Use appropriate wire stripping tools to ensure the conductor is exposed to the specified 0.310-inch length.
  • Tighten screw terminals to the recommended 7 lb-in torque to ensure a reliable electrical connection and prevent terminal damage.
  • For applications requiring thicker insulation (e.g., AC I/O modules), consider the extended-depth IC694TBB132 model.
  • Maintain proper cable management to avoid mechanical stress on the terminal block connections.

FAQ

What is the primary function of the IC694TBB032?

The IC694TBB032 is a 36-pin terminal block used to provide a physical interface for field wiring to high-density I/O modules within the GE PACSystems RX3i and Series 90-30 PLC families.

How does the IC694TBB032 differ from the IC694TBB132?

Both models are functionally identical in terms of pinout and capacity. The IC694TBB132 features an extended outer cover that is approximately 1/2 inch (13mm) deeper, designed to accommodate thicker wire insulation often found in AC I/O applications.

Can I use this with spring-style modules?

While this block is the box-style (screw) version, it is generally compatible with the same modules that accept the spring-style (IC694TBS032) block, as the pinout and module interface are identical.
