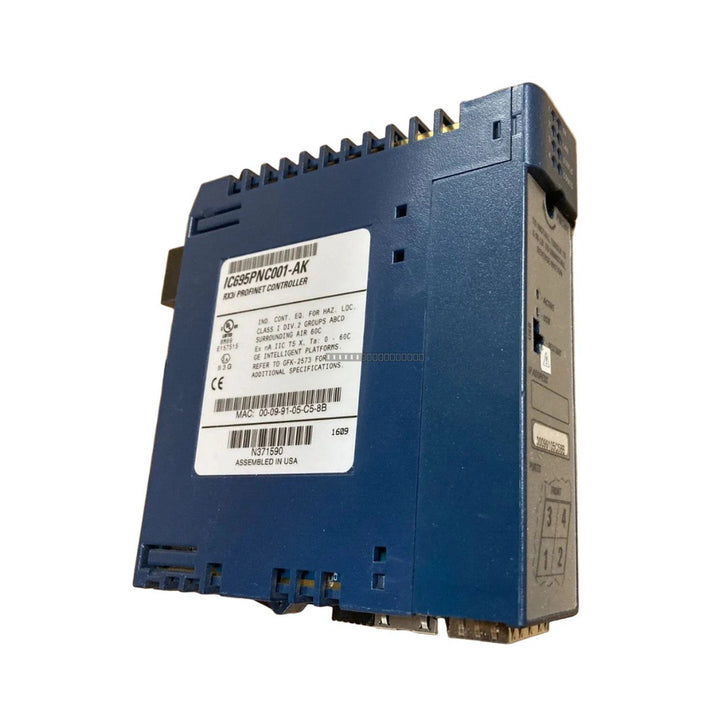

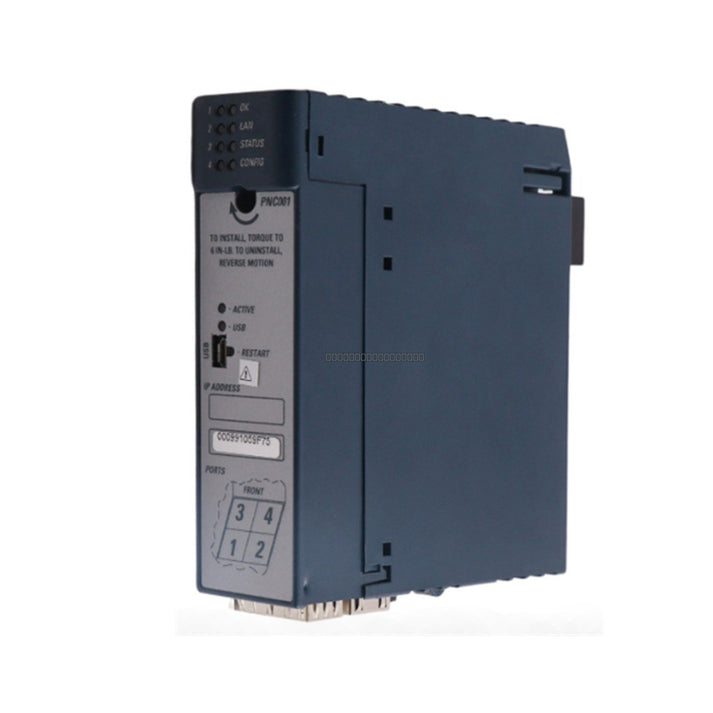

GE Fanuc IC695PNC001 PACSystems RX3i PROFINET Controller Module

GE Fanuc IC695PNC001 PACSystems RX3i PROFINET Controller Module

Description

The GE Fanuc IC695PNC001 is a high-performance PROFINET Controller module designed for the PACSystems RX3i control platform. This module enables seamless communication between the RX3i controller and various PROFINET I/O...

26 people are viewing this right now

Availability: Low stock: 1 left

SKU: IC695PNC001
Vendor: General Electric
Category: PROFINET Controller Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The GE Fanuc IC695PNC001 is a high-performance PROFINET Controller module designed for the PACSystems RX3i control platform. This module enables seamless communication between the RX3i controller and various PROFINET I/O devices, supporting advanced industrial automation networking. It is engineered for integration into the RX3i universal backplane, providing robust connectivity and diagnostic capabilities for complex control systems.

Features

  • Supports PROFINET Version 2.2 General Class A protocol.
  • Equipped with two RJ-45 ports and two SFP cages for flexible network media connectivity.
  • Includes a dedicated Micro USB port for system diagnostics and initial configuration.
  • Provides 128 Kbytes of combined input/output memory per PROFINET controller.
  • Supports up to 64 IO-Devices per network.
  • Occupies a single slot in the main rack of the PACSystems RX3i system.

Technical Specifications

Product Model IC695PNC001
Product Type PROFINET Controller Module
Series PACSystems RX3i
Internal Power (3.3 V DC) 0.5 A
Internal Power (5 V DC) 1.5 A
Communication Ports 2x RJ-45, 2x SFP Cage, 1x Micro USB
Protocol Support PROFINET V2.2 General Class A
Max IO-Devices 64 per Controller
Backplane Support Universal Backplane only

Installation Guidelines

  • Ensure the PACSystems RX3i system is powered down before inserting or removing the module.
  • The IC695PNC001 must be installed in the main rack of the RX3i system.
  • Use shielded Ethernet cabling for PROFINET connections to minimize EMI interference in industrial environments.
  • Ensure proper grounding of the RX3i rack assembly to maintain signal integrity and safety.
  • Handle the module using ESD-safe practices to prevent damage to internal electronic components.
  • Verify that the CPU firmware is compatible with the PROFINET controller module requirements before commissioning.

FAQ

What is the primary function of the IC695PNC001?

The IC695PNC001 serves as a PROFINET Controller for the GE PACSystems RX3i platform, allowing the PLC to communicate with and manage PROFINET I/O devices across an industrial network.

Can this module be used in an expansion rack?

No, the IC695PNC001 is designed for use in the main rack of the PACSystems RX3i system only.

What is the purpose of the Micro USB port on this module?

The Micro USB port is intended strictly for system diagnostics and initial system setup tasks.
