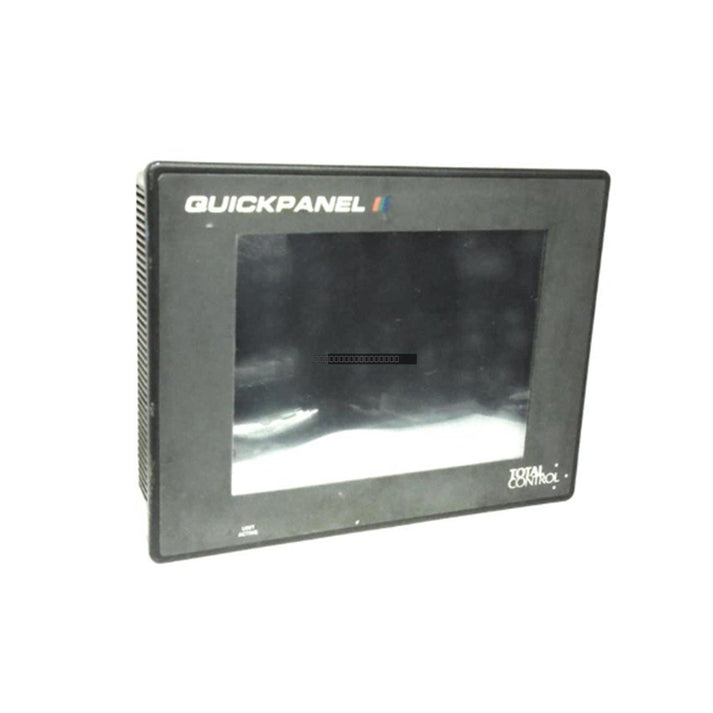

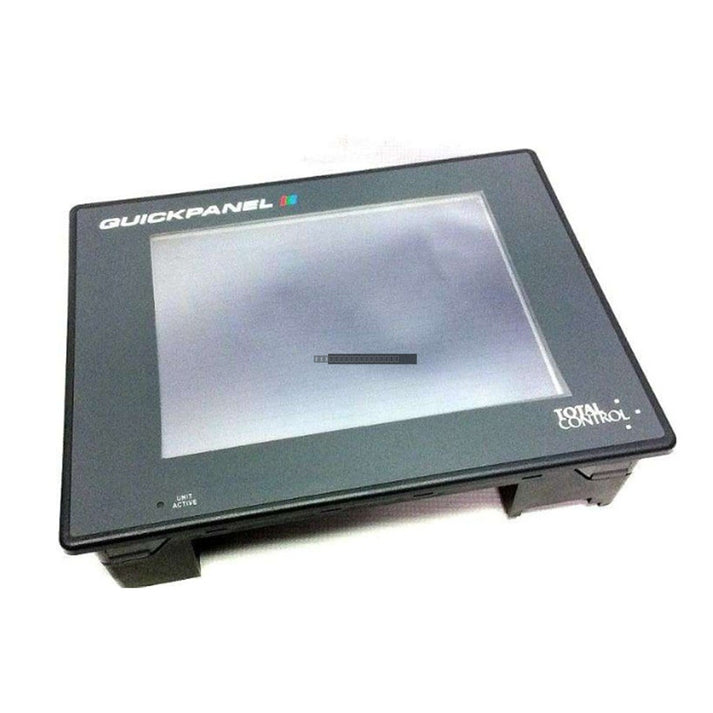

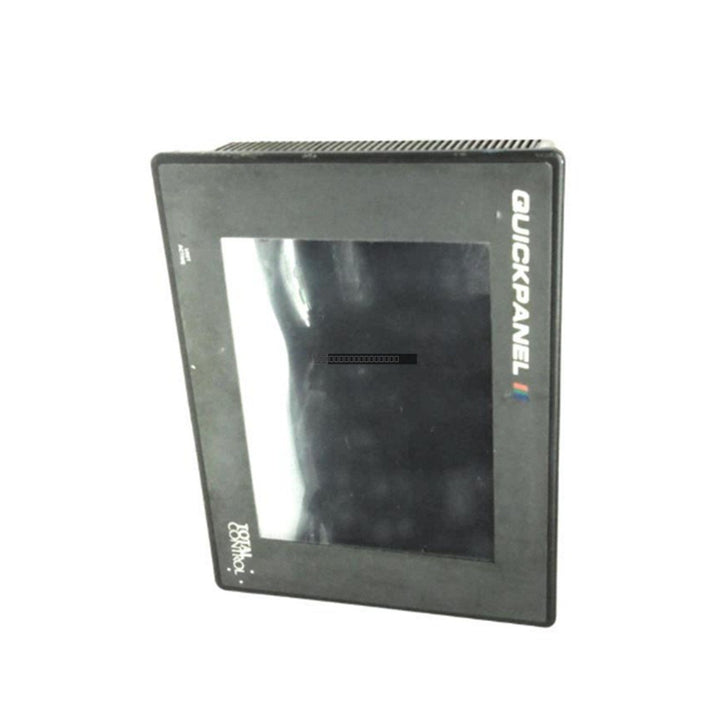

GE Fanuc QPI2D100S2P QuickPanel 10.4-inch HMI Touch Screen Interface

GE Fanuc QPI2D100S2P QuickPanel 10.4-inch HMI Touch Screen Interface

Description

The GE Fanuc QPI2D100S2P is a 10.4-inch Human-Machine Interface (HMI) module belonging to the QuickPanel series. Designed for robust industrial process monitoring, this unit provides operators with a clear, reliable...

24 people are viewing this right now

Availability: Low stock: 8 left

SKU: QPI2D100S2P
Vendor: GE FANUC
Category: HMI Touch Screen
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The GE Fanuc QPI2D100S2P is a 10.4-inch Human-Machine Interface (HMI) module belonging to the QuickPanel series. Designed for robust industrial process monitoring, this unit provides operators with a clear, reliable interface for visualizing machine status, managing alarms, and adjusting control parameters. The QPI2D100S2P is built to withstand demanding factory floor conditions, facilitating efficient diagnostics and reducing system downtime through its intuitive touch-based interaction.

Features

  • 10.4-inch color STN LCD display with 640 x 480 pixel resolution.
  • Analog resistive touch screen interface with a 32 x 24 touch matrix for precise input.
  • Fanless design utilizing natural air convection for cooling, reducing maintenance requirements.
  • Integrated serial ports and a dedicated download port for flexible PLC network connectivity.
  • Rugged enclosure rated for NEMA 4X/12 and IP65, providing protection against dust and water ingress.
  • Compatible with QuickDesigner Version 3.7 software for advanced graphical interface configuration.

Applications

This HMI module is suitable for a wide range of industrial automation tasks, including chemical processing, food and beverage packaging, and manufacturing assembly line control. It serves as a centralized point for localized diagnostics and real-time process oversight.

Technical Specifications

Model QPI2D100S2P
Display Size 10.4 inch
Display Type STN Color LCD
Resolution 640 x 480 pixels
Input Voltage 24 VDC
Operating Temperature 0 to 40 degC
Storage Temperature -10 to 40 degC
Ingress Protection IP65, NEMA 4X/12
Cooling Natural convection

Installation Guidelines

  • Ensure the panel cutout is prepared according to manufacturer specifications to maintain the IP65/NEMA 4X seal.
  • Use appropriate mounting gaskets and hardware to secure the unit against the enclosure surface.
  • Verify that the 24 VDC power supply is stable and properly grounded before connection.
  • Route communication cables away from high-voltage lines or sources of electromagnetic interference (EMI) to prevent signal degradation.
  • Maintain adequate clearance around the unit to allow for natural air convection cooling.
  • Power down the unit before performing any wiring or maintenance tasks.

FAQ

What software is required to configure the QPI2D100S2P?
This module is designed for use with QuickDesigner Version 3.7 software.

Is this unit fan-cooled?
No, the QPI2D100S2P utilizes natural air convection cooling, which eliminates the need for internal fans and reduces mechanical maintenance.

What is the ingress protection rating of this HMI?
The unit meets IP65 and NEMA 4X/12 standards, making it suitable for environments where protection against dust and low-pressure water jets is required.
