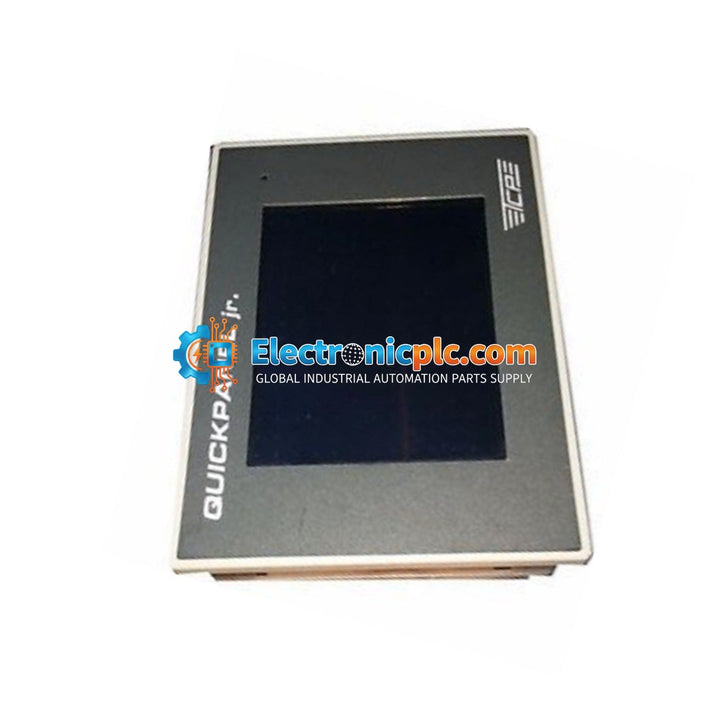

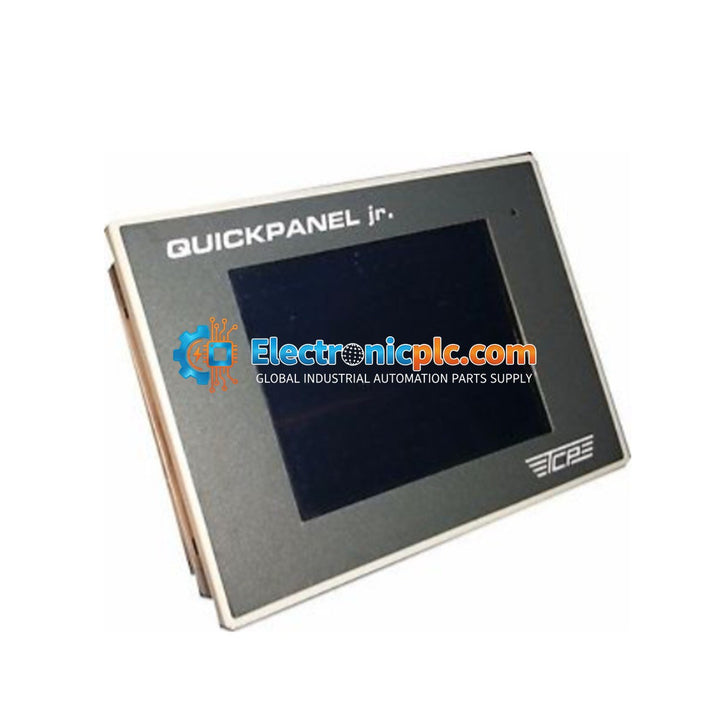

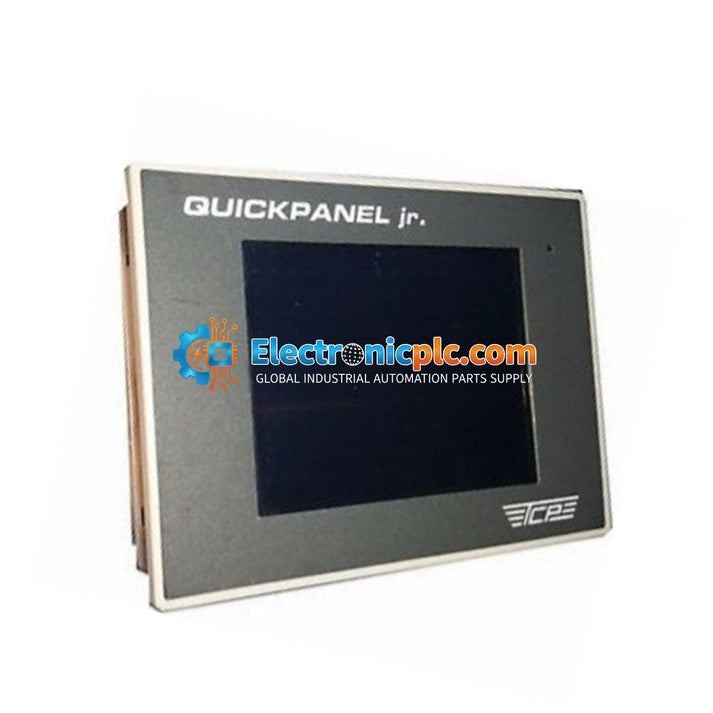

GE Fanuc QPJ-2D101-S2P QuickPanel Jr. HMI Terminal

GE Fanuc QPJ-2D101-S2P QuickPanel Jr. HMI Terminal

Description

The GE Fanuc QPJ-2D101-S2P is a compact Human Machine Interface (HMI) terminal from the QuickPanel Jr. series. Engineered to replace traditional hard-wired push-button and indicator light configurations, this unit...

29 people are viewing this right now

Availability: Low stock: 4 left

SKU: QPJ-2D101-S2P
Vendor: GE FANUC
Category: HMI Terminal
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The GE Fanuc QPJ-2D101-S2P is a compact Human Machine Interface (HMI) terminal from the QuickPanel Jr. series. Engineered to replace traditional hard-wired push-button and indicator light configurations, this unit provides a centralized interface for monitoring and controlling industrial processes. Its 4.7-inch color STN display is designed for high-visibility feedback in space-constrained environments, such as discrete manufacturing and machine control stations, helping to reduce system response times and minimize downtime associated with legacy interface failures.

Features

  • Compact Display: 4.7-inch color STN LCD with 320 x 240 pixel resolution for clear graphical representation of machine status.
  • Memory: Integrated 256 KB memory for local storage of application screens and process data.
  • Robust Enclosure: Rated NEMA Type 4X/12 and IP65, ensuring protection against dust, water, and environmental contaminants in harsh industrial settings.
  • Universal Connectivity: Supports multi-protocol communication with a wide range of major PLCs and industrial network architectures.
  • Software Compatibility: Fully compatible with QuickDesigner version 3.7 for efficient programming and configuration.

Applications

The QPJ-2D101-S2P is ideal for machine-level control, operator interface stations, and discrete manufacturing applications where space is limited but high-reliability visualization is required.

Technical Specifications

Parameter Specification
Model QPJ-2D101-S2P
Brand GE Fanuc
Series QuickPanel Jr.
Display Size 4.7 inch
Display Technology STN Color
Resolution 320 x 240 pixels
Input Voltage 24 VDC
Memory Capacity 256 KB
Enclosure Rating NEMA 4X/12, IP65
Software QuickDesigner Version 3.7

Installation Guidelines

  • Mounting: Ensure the panel cutout is prepared according to manufacturer specifications to maintain the NEMA/IP seal.
  • Power Supply: Connect to a stable 24 VDC power source. Verify polarity before applying power to avoid internal damage.
  • Grounding: Use a dedicated ground connection to minimize electrical noise and protect against EMI/RFI interference.
  • Environment: Install in a location free from excessive vibration, extreme temperatures, and direct exposure to corrosive chemicals.
  • Handling: Use standard ESD precautions during installation to prevent damage to internal circuitry.

FAQ

Is this unit compatible with modern PLC systems?

Yes, the QPJ-2D101-S2P supports multi-protocol communication, allowing it to interface with a wide range of major PLC brands and industrial network architectures.

What software is required to program this HMI?

This unit is designed for use with QuickDesigner version 3.7.
