Description

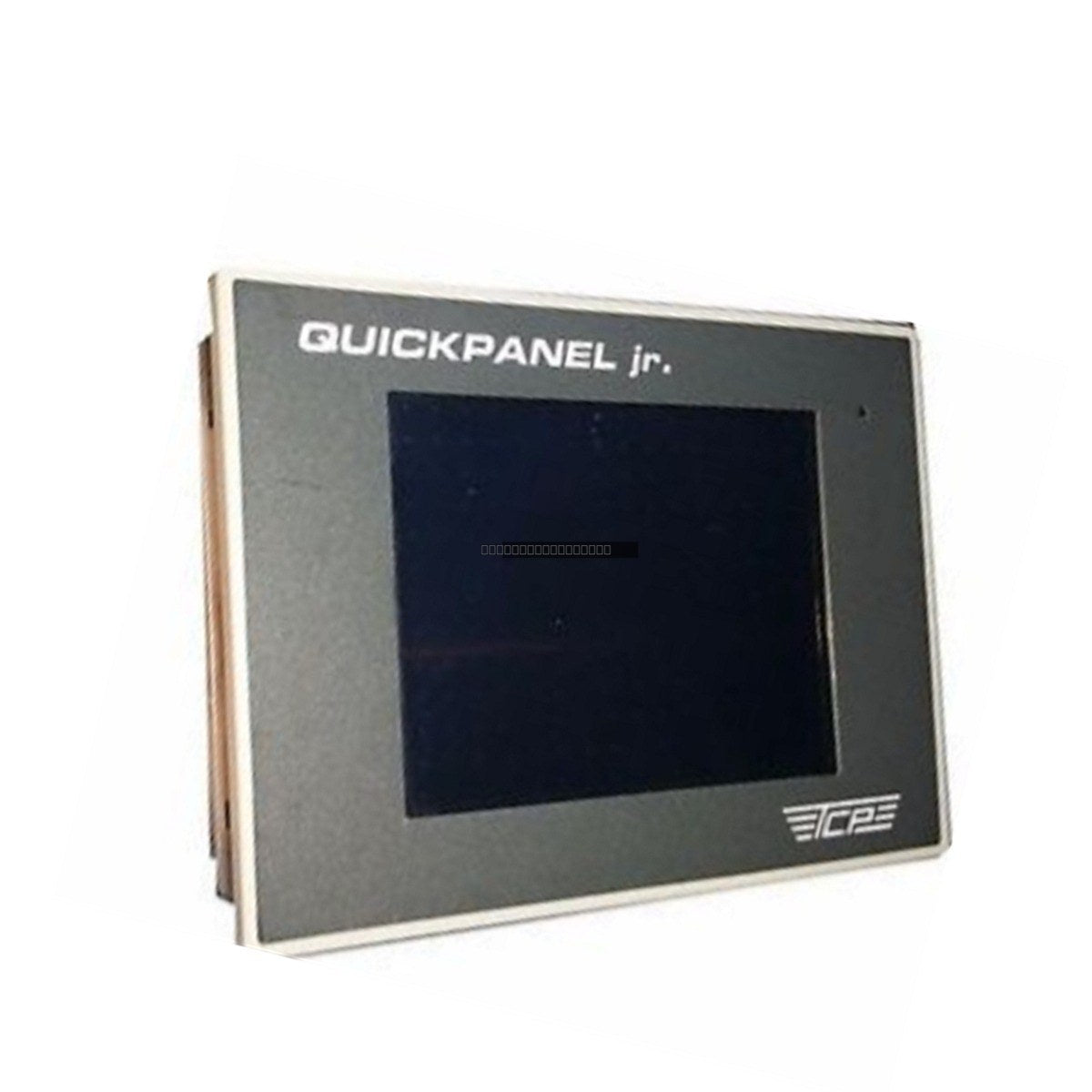

The GE Fanuc QPJ2D101L2P is a compact operator interface terminal belonging to the QuickPanel Junior series. Designed for localized machine monitoring and control, this unit features a 4.7-inch monochrome LCD touchscreen with a 320 x 240 pixel resolution. It serves as a robust alternative to traditional hardwired control panels, allowing operators to manage telemetry data and machine status through a consolidated digital interface. This unit is widely utilized in industrial environments such as packaging lines, material handling, and water treatment systems to streamline operator interaction and reduce the maintenance requirements associated with mechanical pushbuttons and indicators.

Features

• 4.7-inch monochrome LCD display providing clear visual feedback for process variables.
• Analog resistive touchscreen for reliable operator input in industrial settings.
• 256 KB of non-volatile Flash EPROM memory for secure storage of graphical configurations and driver profiles.
• Compatible with QuickDesigner Version 3.7 or later for screen development and system configuration.
• NEMA 4X/12 and IP65 rated front panel, ensuring protection against dust and water ingress in harsh environments.
• Supports integration with various industrial communication protocols, including Modbus, Profibus, and DeviceNet, via compatible add-on modules.

Applications

This operator interface is engineered for distributed control applications where space is at a premium. It is frequently deployed in:

• Automated packaging and assembly machinery.
• Wastewater treatment process skids.
• Material handling and conveyor control systems.
• Localized telemetry and status monitoring for PLC-based architectures.

Technical Specifications

Installation Guidelines

• Ensure the panel cutout is prepared according to manufacturer specifications to maintain the NEMA/IP seal integrity.
• Use a 24 VDC power supply that meets the power requirements of the unit; verify polarity before connection to prevent damage.
• Ground the unit properly to the control cabinet chassis to mitigate electromagnetic interference (EMI).
• Avoid installing the terminal in areas subject to extreme vibration or direct exposure to high-heat sources.
• Handle the touchscreen surface with care to avoid scratches or punctures; use only compatible styluses or clean fingers for operation.
• Power down the system before performing any wiring changes or maintenance on the terminal.

FAQ

What software is required to program this terminal? The QPJ2D101L2P requires QuickDesigner Version 3.7 or later for creating and compiling screen configurations.

Can this unit communicate with non-GE PLCs? Yes, the QuickPanel Junior series is designed to interface with various industrial protocols, including Allen-Bradley, Modicon, and Profibus, provided the appropriate communication drivers or modules are utilized.

What is the primary memory type for this device? It uses 256 KB of non-volatile Flash EPROM, which ensures that your configuration and data are retained even during a power loss.
