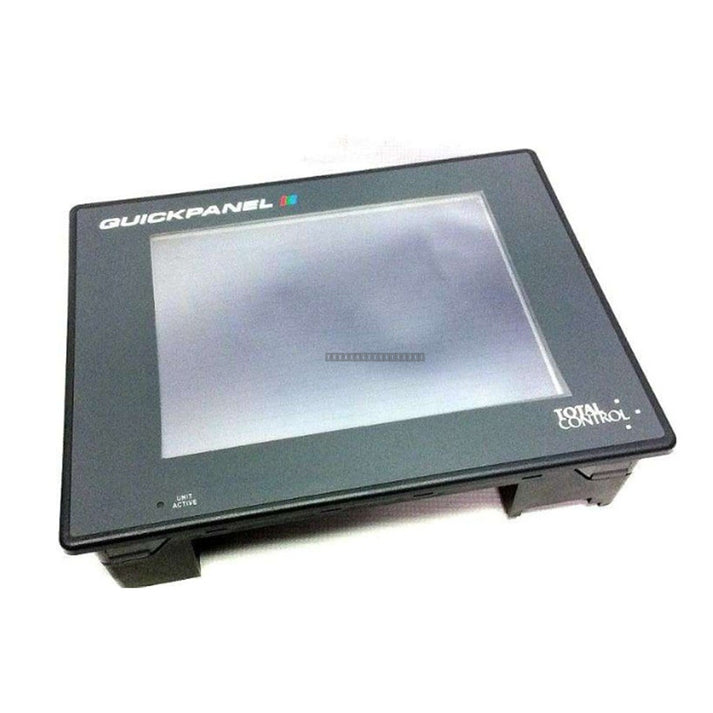

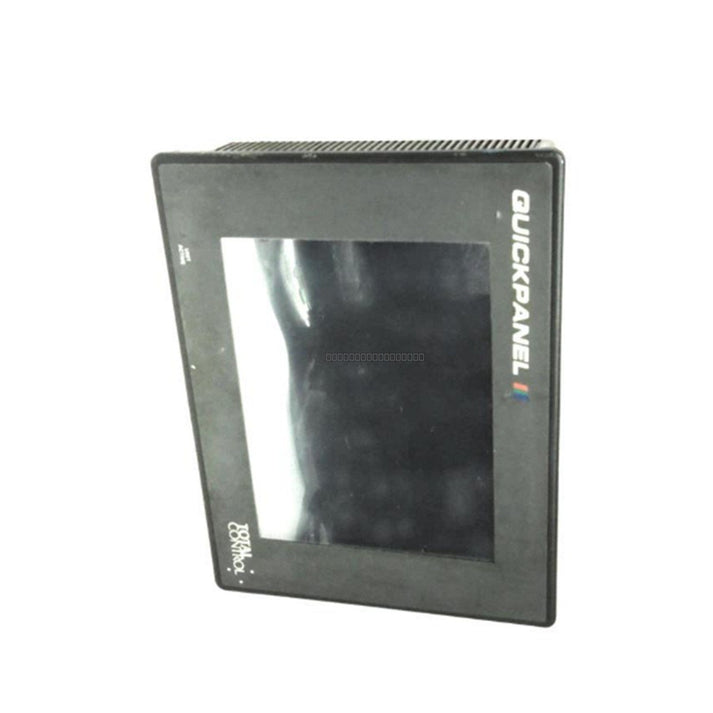

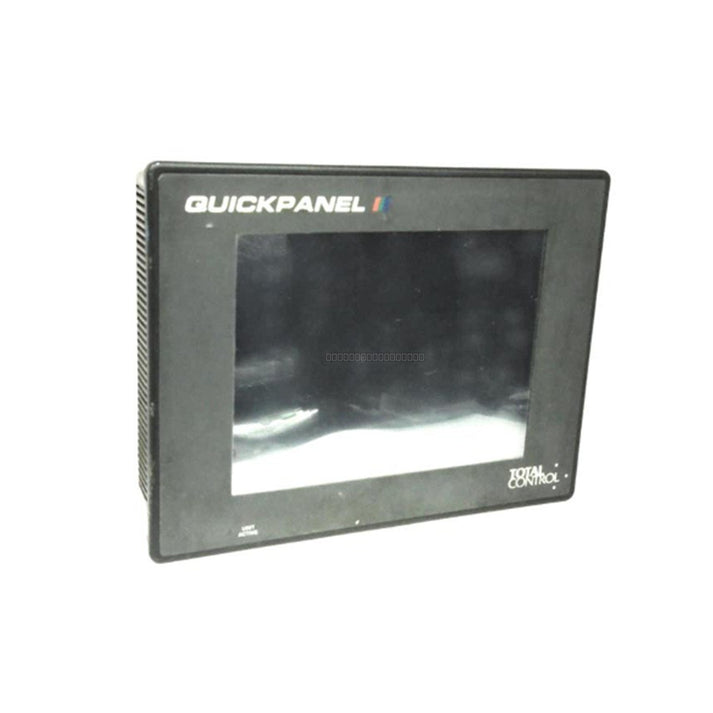

GE Fanuc QPI21100S2P QuickPanel HMI Operator Interface

GE Fanuc QPI21100S2P QuickPanel HMI Operator Interface

Description

The GE Fanuc QPI21100S2P is a 10.4-inch QuickPanel human-machine interface (HMI) designed for industrial process monitoring and control. This operator terminal utilizes a Super Twisted Nematic (STN) color LCD matrix...

26 people are viewing this right now

Availability: Low stock: 6 left

SKU: QPI21100S2P
Vendor: GE FANUC
Category: HMI Operator Interface
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The GE Fanuc QPI21100S2P is a 10.4-inch QuickPanel human-machine interface (HMI) designed for industrial process monitoring and control. This operator terminal utilizes a Super Twisted Nematic (STN) color LCD matrix to provide clear visualization of process data. It is engineered for demanding environments, including power generation, oil refining, and mining, where reliable local graphics processing and robust enclosure protection are required to maintain system uptime.

Features

  • 10.4-inch STN color LCD display with 640 x 480 pixel resolution.
  • NEMA Type 4X/12 and IP65 rated enclosure for protection against dust, moisture, and corrosive environments.
  • Designed for integration with QuickDesigner Version 3.7 runtime firmware.
  • Optimized thermal management for consistent performance in standard industrial settings.
  • High-reliability backlight system for extended operational life.

Applications

This HMI unit is suitable for use as a central control panel in various industrial sectors, including:

  • Oil and gas refining facilities.
  • Power generation and distribution plants.
  • Mining and aggregate processing operations.
  • General manufacturing and automated assembly lines.

Technical Specifications

Model QPI21100S2P
Display Size 10.4 inches
Display Type STN Color LCD
Resolution 640 x 480 Pixels
Viewing Area 6.32 in H x 8.48 in W
Input Voltage 120 VAC
NEMA Rating Type 4X / 12 IP65
Operating Temperature 0 to 45 deg C (32 to 122 deg F)
Storage Temperature -10 to 60 deg C (-14 to 140 deg F)
Weight 3.0 kg (6.6 lbs)

Installation Guidelines

  • Ensure the panel cutout dimensions are verified prior to mounting to maintain the integrity of the NEMA 4X/12 seal.
  • Verify that the power supply is 120 VAC and properly grounded before connection.
  • Maintain adequate clearance around the unit to ensure proper ventilation and prevent overheating.
  • Use appropriate ESD precautions when handling the unit to prevent damage to internal circuitry.
  • Ensure the unit is disconnected from power before performing any maintenance or cable routing.

FAQ

What software is required for this HMI?
The QPI21100S2P is designed to operate with QuickDesigner Version 3.7 runtime firmware.

Is this unit suitable for outdoor use?
The unit features a NEMA 4X/12 IP65 rating, which provides protection against dust and water ingress, but it is primarily intended for indoor industrial environments within the specified temperature range of 0 to 45 deg C.
