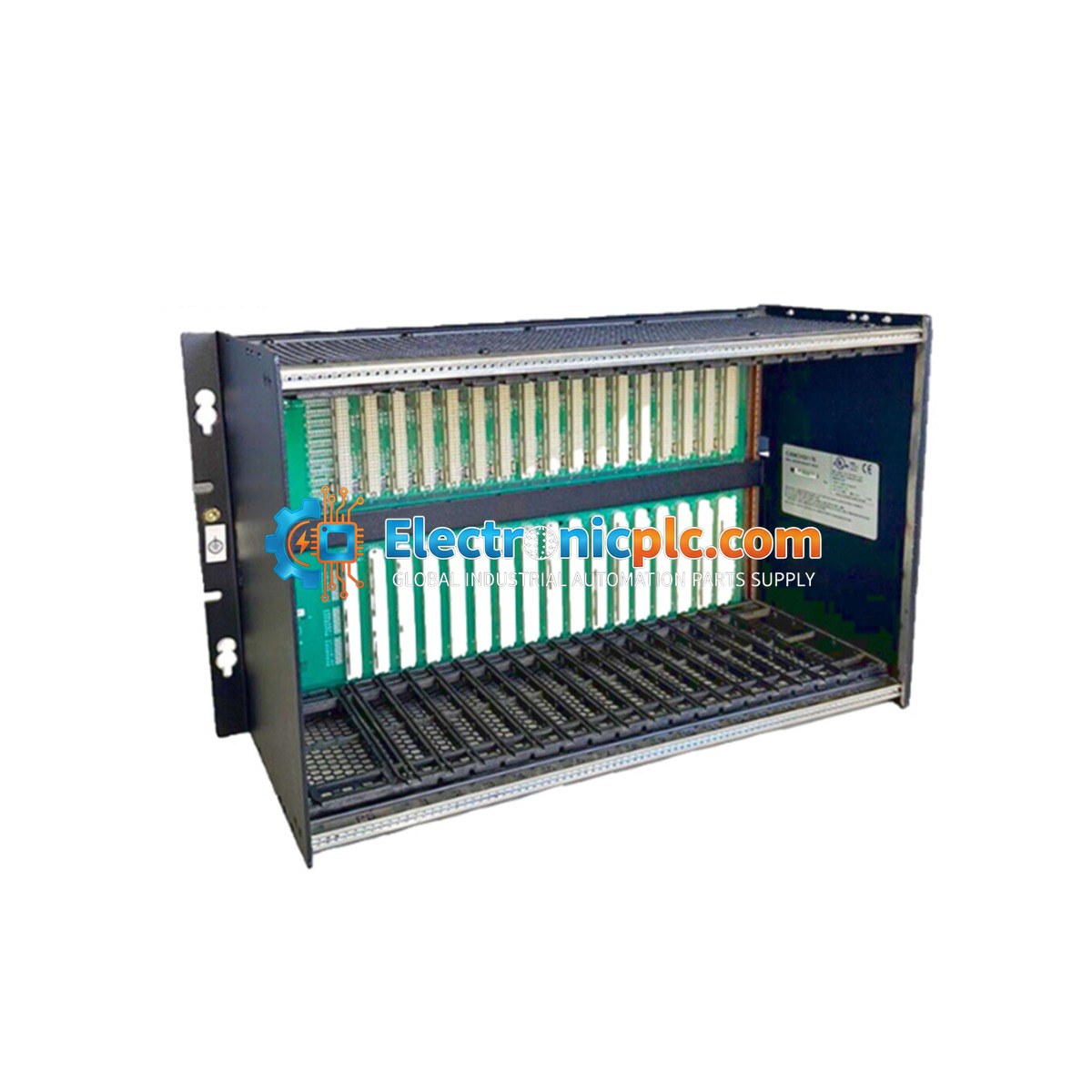

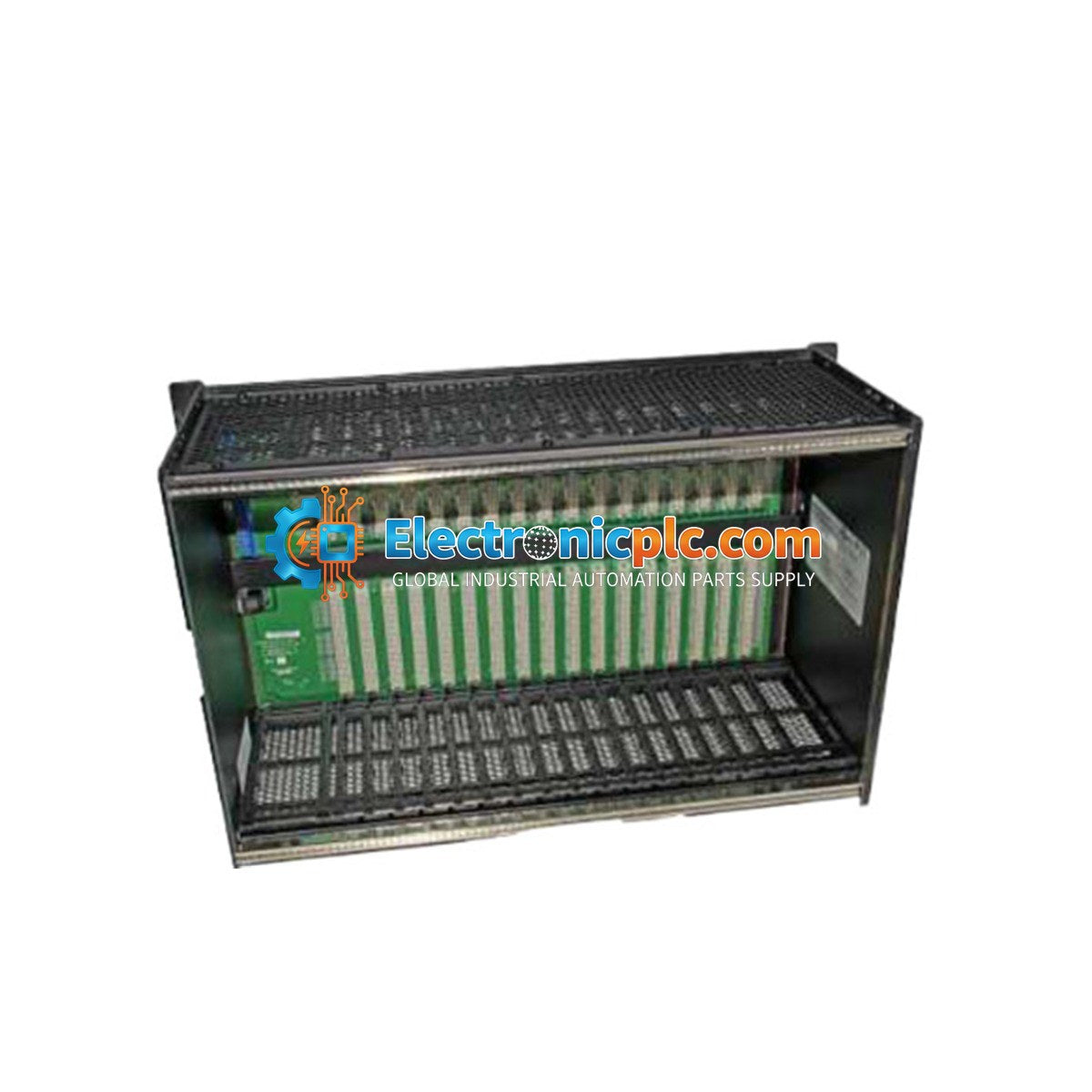

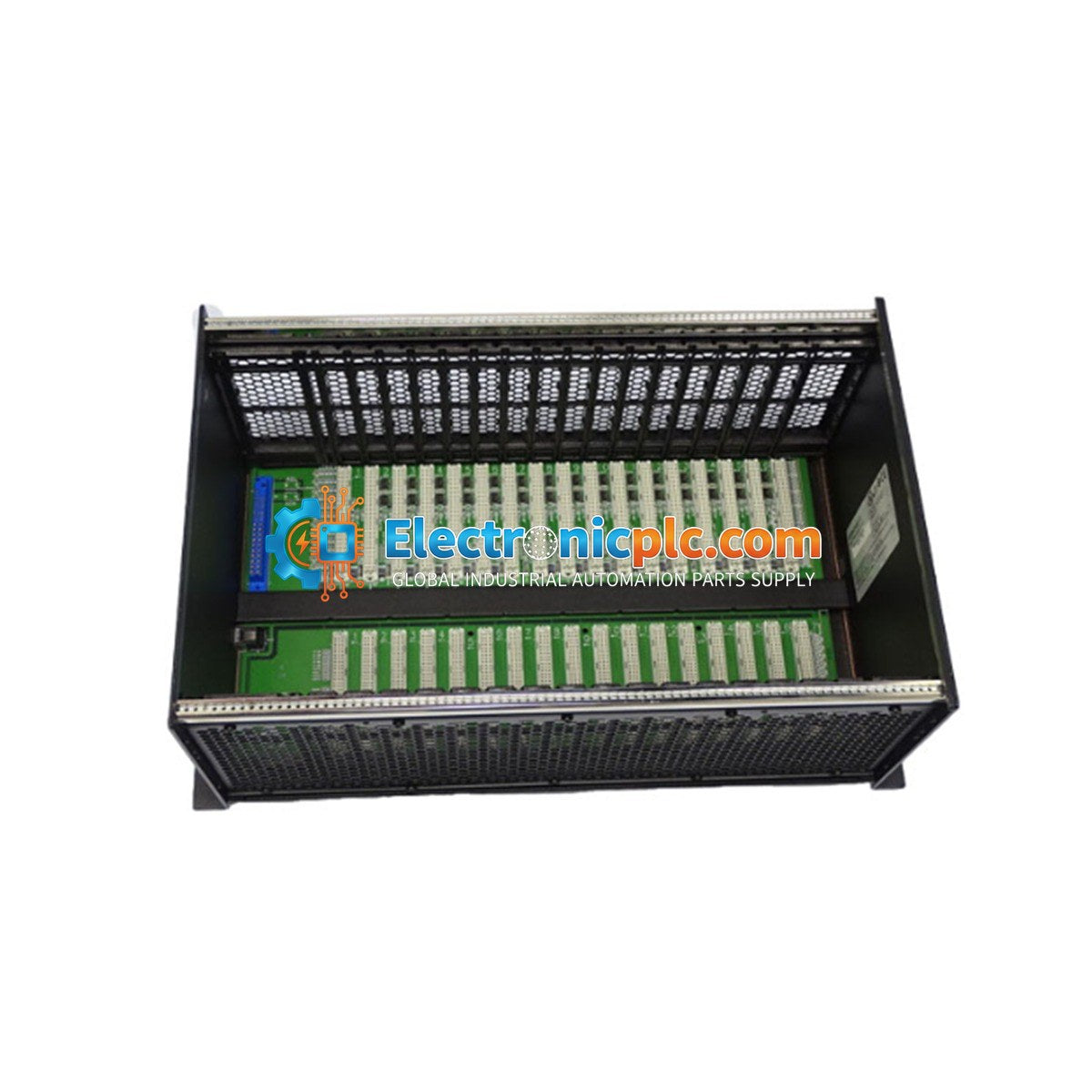

General Electric IC698CHS017 PACSystems RX7i 17-Slot Rear-Mount Rack

General Electric IC698CHS017 PACSystems RX7i 17-Slot Rear-Mount Rack

Description

The General Electric IC698CHS017 is a 17-slot I/O rack designed for the PACSystems RX7i platform. This rear-mounted rack provides a robust backplane architecture that supports high-performance RX7i CPUs, VME64 modules,...

15 people are viewing this right now

Availability: Low stock: 7 left

SKU: IC698CHS017
Vendor: General Electric
Category: PLC I/O Rack
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The General Electric IC698CHS017 is a 17-slot I/O rack designed for the PACSystems RX7i platform. This rear-mounted rack provides a robust backplane architecture that supports high-performance RX7i CPUs, VME64 modules, and legacy Series 90-70 I/O modules. Engineered for demanding industrial environments, the rack features an open-style design that facilitates high-current configurations and efficient module integration.

Features

  • 17-slot capacity for RX7i, VME, and Series 90-70 modules.
  • VME64 backplane architecture for high-speed data transfer.
  • Automatic slot sensing eliminates the need for manual jumpers or DIP switches for I/O addressing.
  • Automatic daisy-chaining of interrupt signals.
  • Supports plug-in RX7i AC power supplies (up to 350W).
  • Rear-mount design for standard enclosure integration.

Applications

  • Automotive assembly lines and robotic control systems.
  • Steel and heavy metallurgy processing plants.
  • Oil and gas refinery pipeline management.
  • Power and energy substation automation.
  • Water and wastewater treatment facility control networks.

Technical Specifications

Model IC698CHS017
Slots 17
Mounting Rear Wall Mount
Backplane VME64
Power Supply Compatibility RX7i Plug-in (up to 350W)
Current Rating 60A at 5V DC; 4.0A at 12V DC
Operating Voltage 5 to 12V DC
Tariff Code 8537101190

Installation Guidelines

  • Grounding: Connect the side-mounted #8-32 ground studs to a reliable earth ground using AWG #12 (3.33 mm²) wire.
  • Power Supply Grounding: Connect the power supply GND terminal to the rack ground terminal using AWG #12 wire with a ring terminal and star washer.
  • EMI Shielding: Ensure all modules are firmly seated. The faceplate EMI gaskets must form a continuous shield across the rack.
  • Environment: The open-style design requires installation in an enclosure rated IP54 or higher to protect against factory floor contaminants.
  • Slot 0 Requirement: The leftmost slot (Slot 0) is reserved for the RX7i Power Supply.

FAQs

What is the IC698CHS017?

The GE IC698CHS017 is a 17-slot, standard rear-mount rack designed for the GE Fanuc RX7i PACSystems platform.

How many slots does the IC698CHS017 have?

It has 17 slots. It can accommodate 15 single-width modules or up to 8 double-width modules.

What must be installed in Slot 0?

The leftmost slot, Slot 0, must be occupied by an RX7i Power Supply.

What power supply does IC698CHS017 require?

This rack supports plug-in RX7i power supplies with a maximum power of 350 watts.

Are jumpers required for module addressing?

No. The rack provides automatic slot sensing for I/O modules and automatic daisy-chaining of interrupt signals, eliminating the need for blank slot jumpers.
