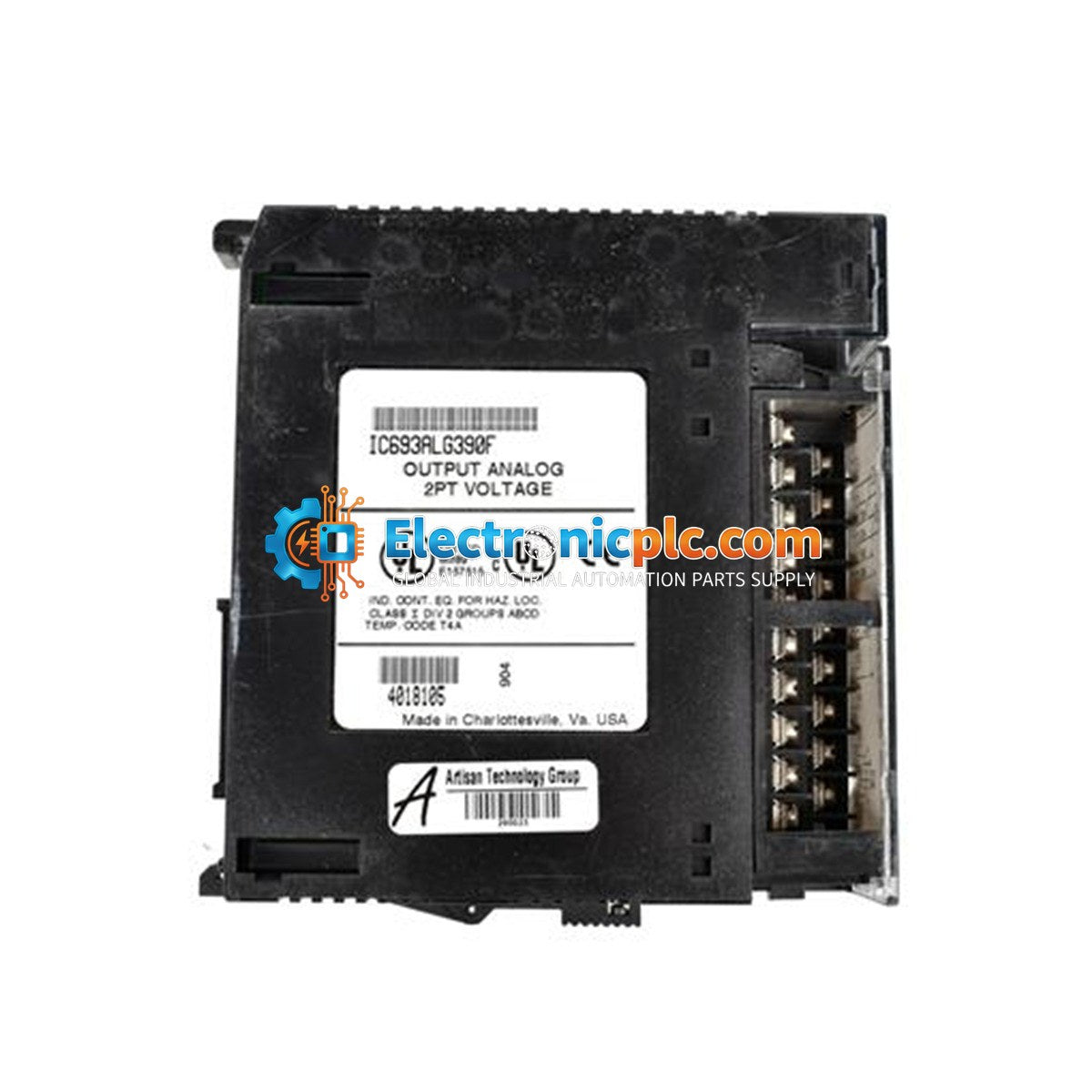

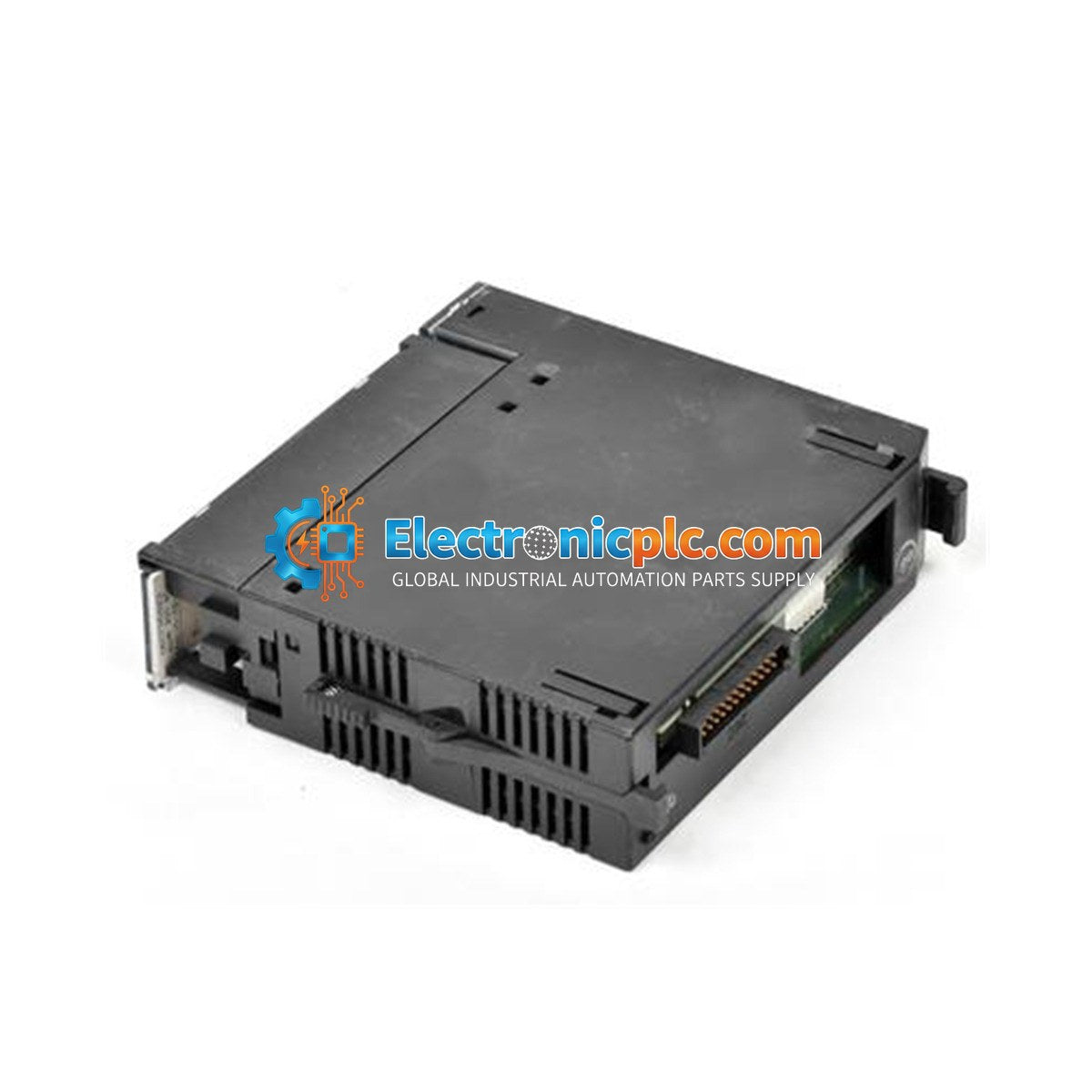

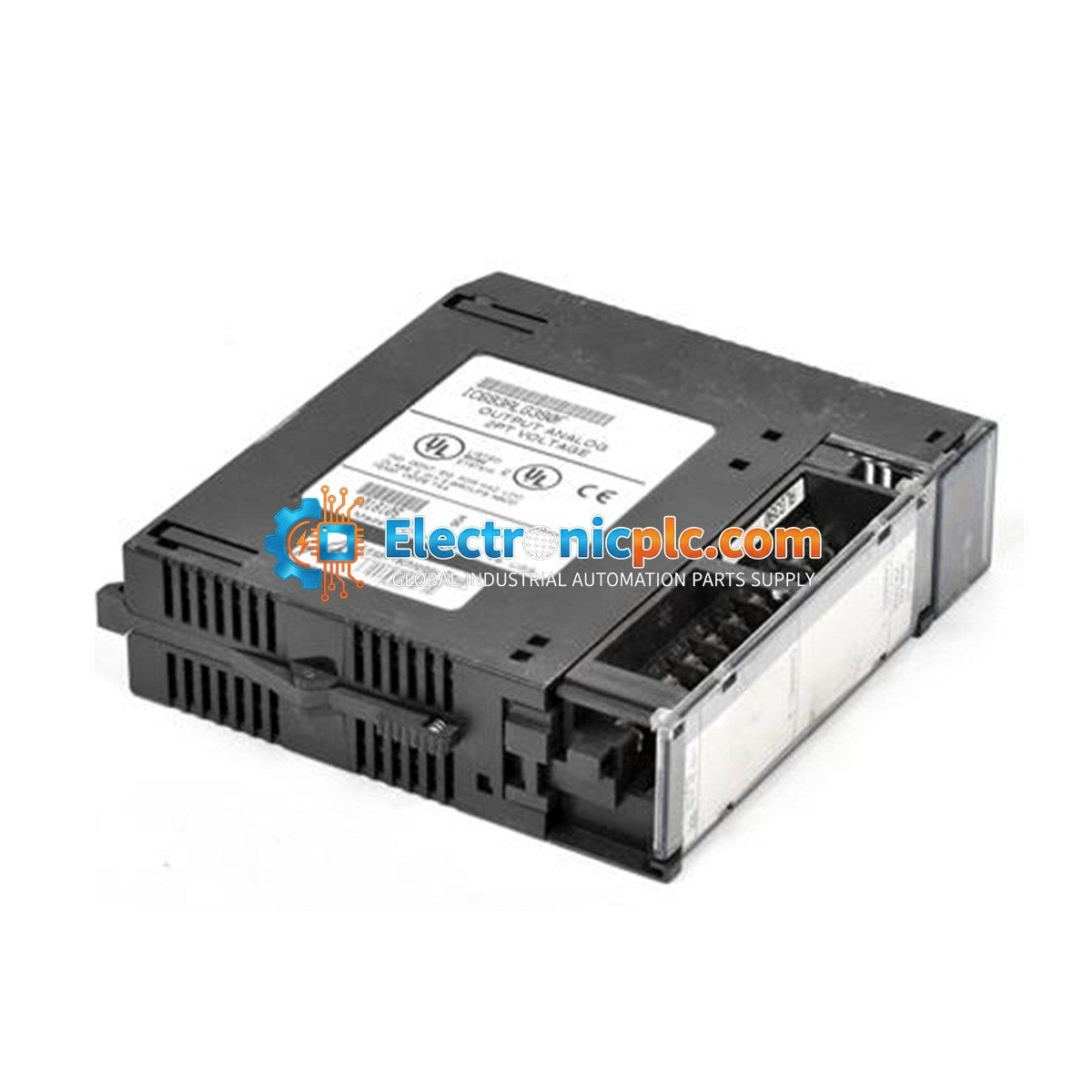

General Electric IC693ALG390 90-30 Series Analog Output Module

General Electric IC693ALG390 90-30 Series Analog Output Module

Description

The IC693ALG390 is a high-performance analog output module designed for the General Electric Series 90-30 Programmable Logic Controller (PLC) system. This module provides two independent output channels capable of delivering...

17 people are viewing this right now

Availability: Low stock: 4 left

SKU: IC693ALG390
Vendor: General Electric
Category: Analog Output Module
