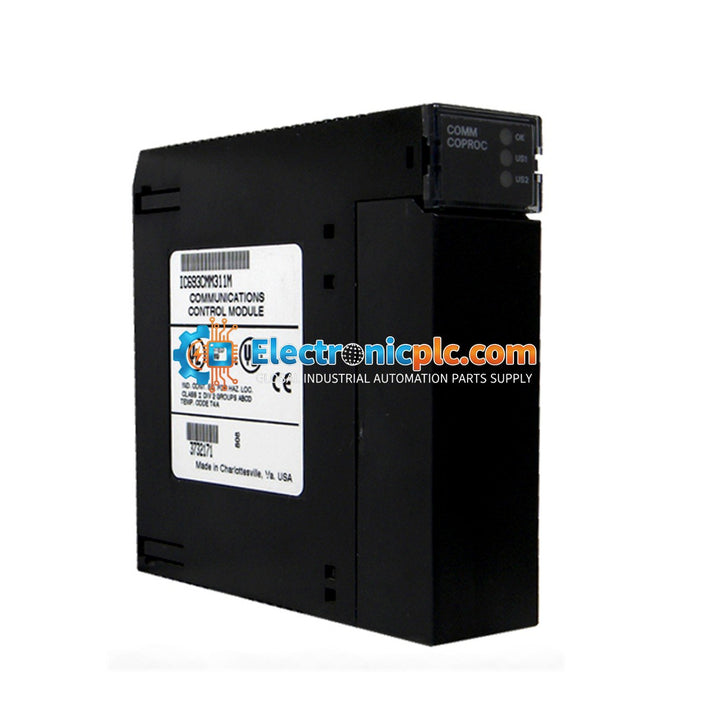

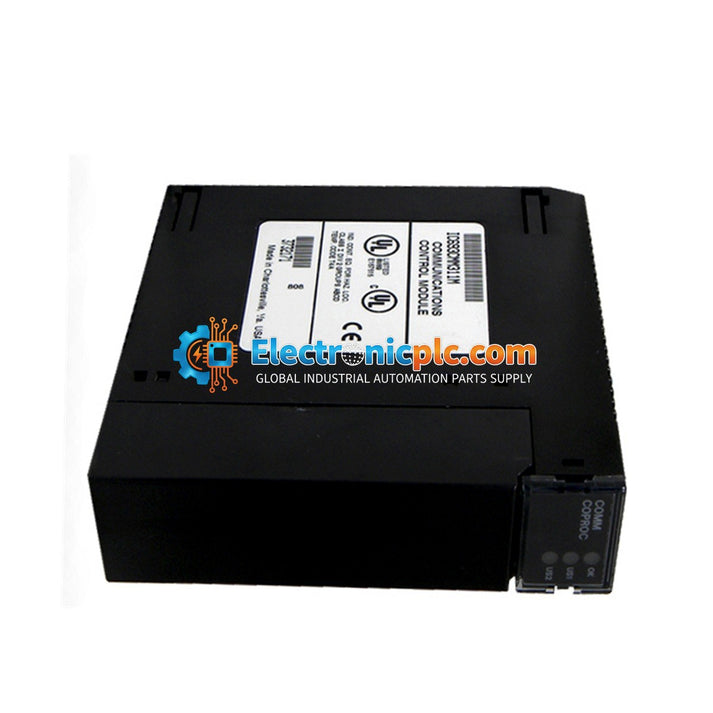

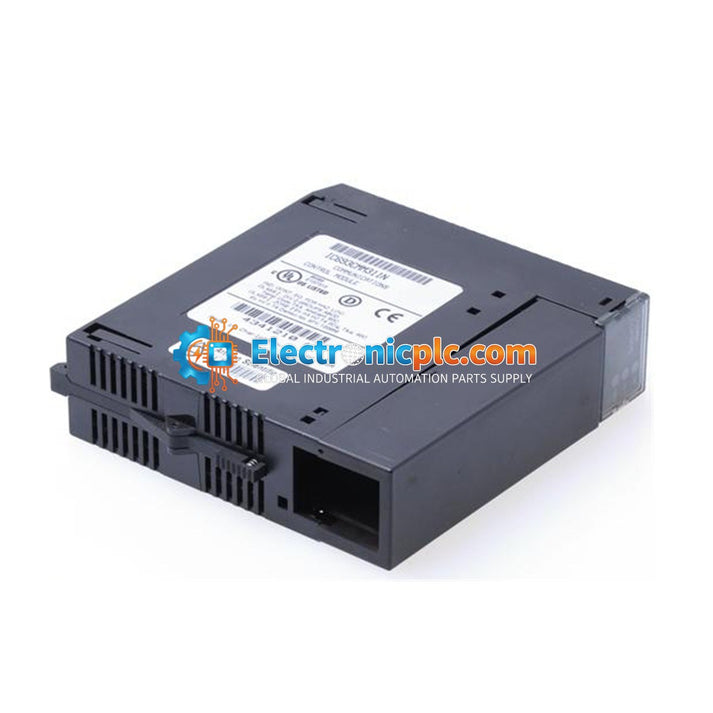

GE Fanuc IC693CMM311 Series 90-30 Communication Coprocessor Module

GE Fanuc IC693CMM311 Series 90-30 Communication Coprocessor Module

Description

The GE Fanuc IC693CMM311 is a Communication Coprocessor Module (CMM) designed for the Series 90-30 Programmable Logic Controller (PLC) system. This module provides enhanced communication capabilities, allowing the PLC to...

29 people are viewing this right now

Availability: Low stock: 2 left

SKU: IC693CMM311
Vendor: General Electric
Category: Communication Coprocessor Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The GE Fanuc IC693CMM311 is a Communication Coprocessor Module (CMM) designed for the Series 90-30 Programmable Logic Controller (PLC) system. This module provides enhanced communication capabilities, allowing the PLC to interface with external devices such as operator interfaces, computers, and other controllers. It offloads communication tasks from the main CPU, ensuring efficient processing and data exchange within the industrial control network.

Features

  • Supports multiple communication protocols including CCM, RTU, and SNP.
  • Equipped with two communication ports using 25-pin D-shell female connectors.
  • Port 1 supports RS-232 applications; Port 2 supports both RS-232 and RS-485 applications.
  • Integrated status LED indicators for Module OK, Port 1, and Port 2 activity.
  • Designed for installation exclusively on the Series 90-30 CPU baseplate.
  • Allows up to four CMM modules per baseplate depending on system configuration.

Applications

This module is widely used in industrial automation environments requiring serial data communication, such as factory floor data acquisition, integration with HMI panels, and serial link connectivity between GE Fanuc PLC systems and third-party equipment.

Technical Specifications

Product Model IC693CMM311
Manufacturer General Electric (GE Fanuc)
Series Series 90-30
Backplane Current Draw 400 mA at 5VDC
Mounting CPU Baseplate
Port Connectors 25-pin D-shell (Female)
Supported Protocols CCM, RTU, SNP
RS-485 Support Port 2 only

Installation Guidelines

  • Ensure the PLC system power is disconnected before installing or removing the module from the baseplate.
  • The IC693CMM311 must be installed into a slot on the CPU baseplate. Ensure the module is fully seated to maintain proper backplane contact.
  • Use shielded communication cables to minimize electromagnetic interference (EMI) in industrial environments.
  • Observe proper ESD (Electrostatic Discharge) handling procedures when touching the module circuitry.
  • Verify that the total current draw of all modules on the baseplate does not exceed the power supply capacity.

FAQ

What protocols does the IC693CMM311 support?

The module supports CCM (Computer Communication Method), RTU (Remote Terminal Unit), and SNP (Series 90 Protocol) for serial communication.

Can I install this module in any slot on the Series 90-30 rack?

No, the IC693CMM311 is specifically designed to be mounted on the CPU baseplate of the Series 90-30 system.

Does Port 1 support RS-485?

No, RS-485 communication is supported only on Port 2 of this module. Port 1 is limited to RS-232 applications.
