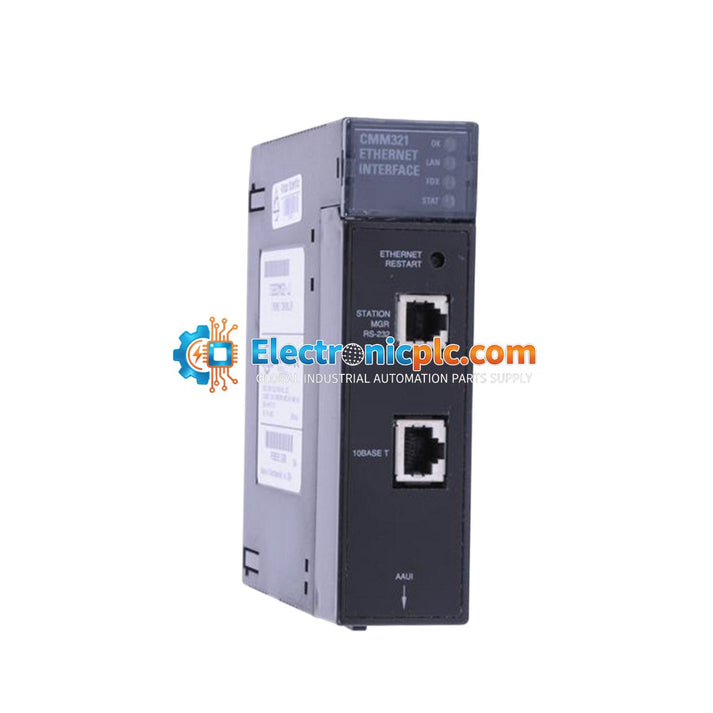

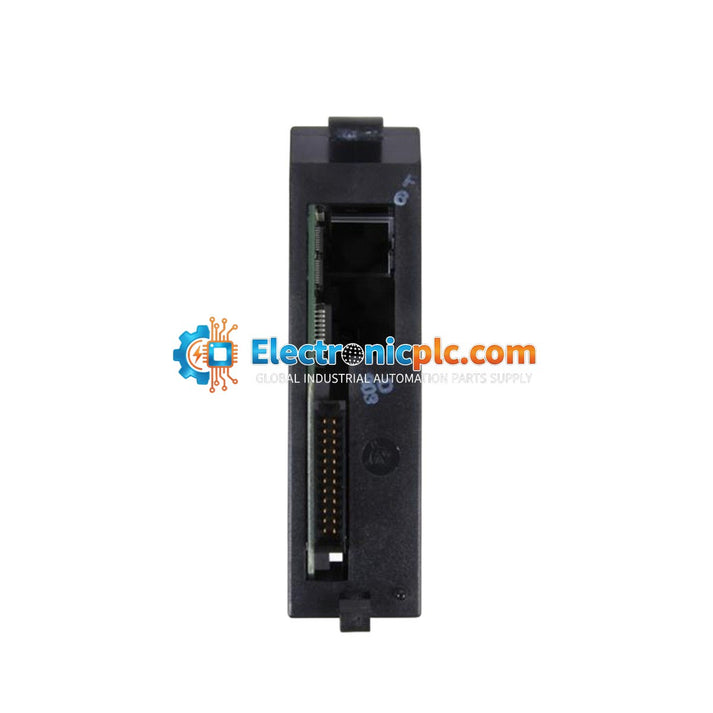

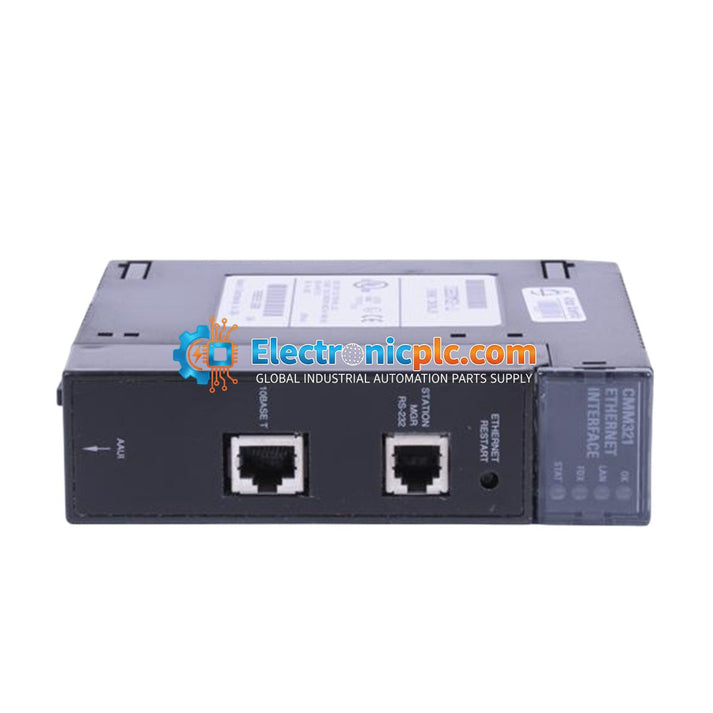

General Electric IC693CMM321 Series 90-30 Ethernet Interface Module

General Electric IC693CMM321 Series 90-30 Ethernet Interface Module

Description

The IC693CMM321 is a Communications Coprocessor Module (CCM) designed for the General Electric Series 90-30 Programmable Logic Controller (PLC) platform. This module enables the PLC to interface directly with Ethernet...

21 people are viewing this right now

Availability: Low stock: 7 left

SKU: IC693CMM321
Vendor: General Electric
Category: Ethernet Interface Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The IC693CMM321 is a Communications Coprocessor Module (CCM) designed for the General Electric Series 90-30 Programmable Logic Controller (PLC) platform. This module enables the PLC to interface directly with Ethernet TCP/IP networks, facilitating communication with host computers, other PLCs, Human Machine Interfaces (HMI), SCADA systems, and Distributed Control Systems (DCS). It serves as a critical bridge for implementing distributed I/O and remote station management.

Features

  • Supports up to 16 concurrent server connections for robust network communication.
  • Includes one RS-232 RJ-11 Station Manager port.
  • Includes one RS-485 15-pin D-type Software Loader port.
  • Equipped with an AAUI port for network connectivity (requires external transceiver).
  • Integrated LED status indicators for OK, LAN, SER, and STAT monitoring.

Applications

  • Automotive: Assembly robotics and paint shop control systems.
  • Energy and Power: Power plant, substation, and grid management.
  • Oil and Gas: Refinery ESD, safety systems, and pipeline monitoring.
  • Pharmaceutical and Chemical: Batch processing and recipe management.
  • Transportation: Signaling systems and baggage handling infrastructure.

Technical Specifications

Product Model IC693CMM321
Manufacturer General Electric
Platform Series 90-30 PLC
Max Server Connections 16
Compatible CPUs Version 6.50+ (Full); Versions 5.03-6.04 (Limited to 1 SRTP connection)
Weight 0.3 kg
Lifecycle Status Discontinued/Obsolete

Installation Guidelines

  • The module can be installed in any slot of a Series 90-30 baseplate, with the exception of Slot 1, which is reserved for the CPU.
  • A maximum of two IC693CMM321 modules may be installed per system.
  • Ensure the PLC rack is powered down before inserting or removing the module to prevent electrical damage.
  • Use appropriate shielded cabling for serial and Ethernet connections to minimize EMI interference.
  • Configure the module using Logicmaster 90-30 (v6.01+), Control (v2.01+), or VersaPro (v1.0+) software to assign the IP address and subnet mask.

FAQ

What is the IC693CMM321?

It is a communications coprocessor module that provides full communication access to Ethernet LAN networks for the GE Series 90-30 PLC system.

How many modules can be used in a single rack?

Up to two IC693CMM321 modules can be installed in a single Series 90-30 baseplate.

Does the module support redundant media?

No, the IC693CMM321 does not support redundant Ethernet topology.

What if the LAN light is not blinking?

This indicates no physical network connection. Check the 10BaseT port connection or the external transceiver connected to the AAUI port.
