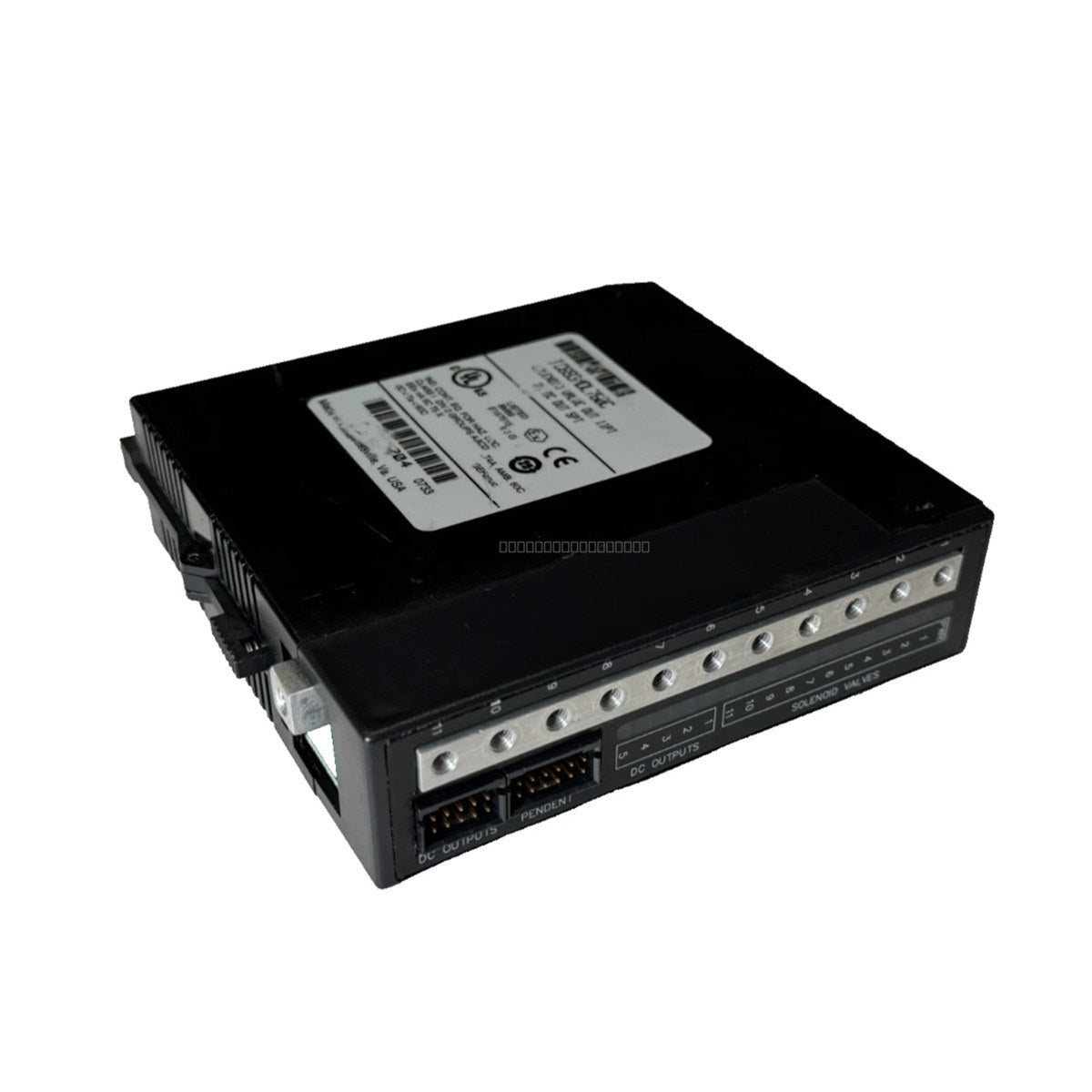

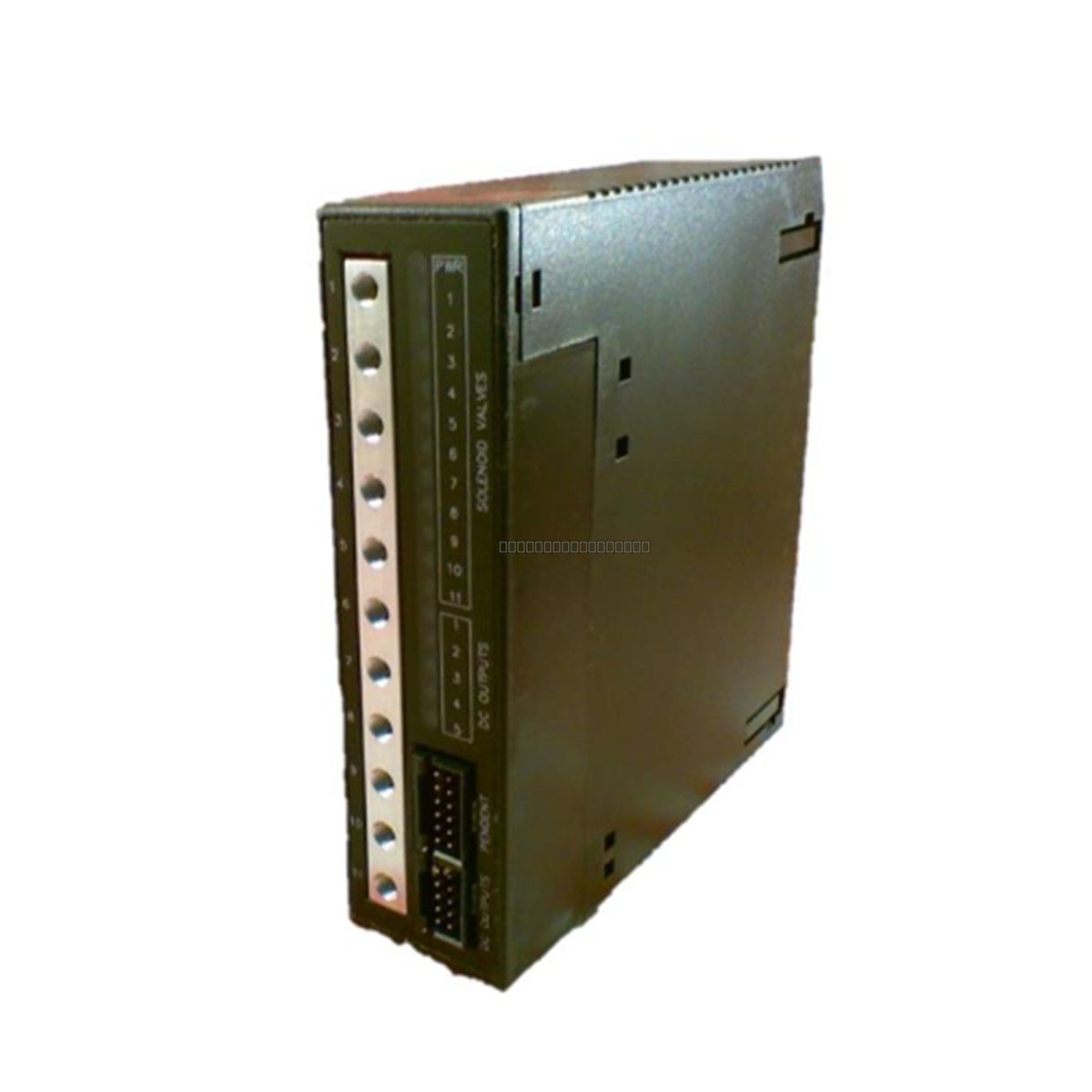

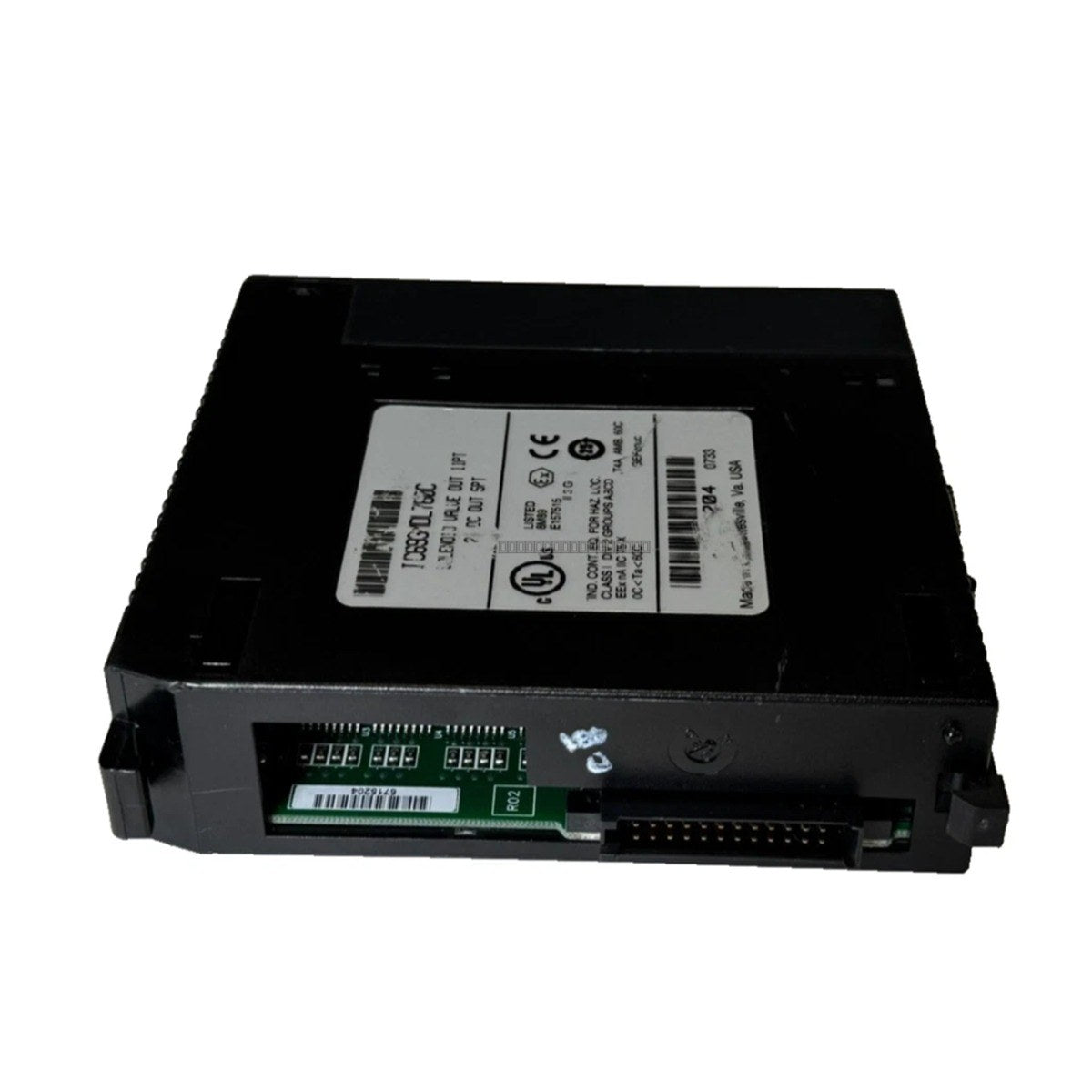

General Electric IC693MDL760 90-30 Series Solenoid Valve Output Module

General Electric IC693MDL760 90-30 Series Solenoid Valve Output Module

The General Electric IC693MDL760 is a specialized hybrid pneumatic and discrete output module designed for the Series 90-30 Programmable Logic Controller (PLC) platform. This module integrates both pneumatic control and...

24 people are viewing this right now

Availability: Low stock: 5 left

SKU: IC693MDL760
Vendor: General Electric
Category: PLC I/O Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

The General Electric IC693MDL760 is a specialized hybrid pneumatic and discrete output module designed for the Series 90-30 Programmable Logic Controller (PLC) platform. This module integrates both pneumatic control and electrical signaling, providing 11 pneumatic outputs and five 24 VDC sourcing outputs in a single rack-mounted unit.

Features

  • 11 pneumatic outputs with internal 3-way solenoid-actuated valves
  • 5 discrete 24 VDC sourcing outputs
  • Integrated output fittings on the front panel
  • Supports external pressure sources up to 100 PSI
  • Positive logic configuration

Technical Specifications

Model IC693MDL760
Pneumatic Outputs 11
DC Outputs 5 (24 VDC sourcing)
Supply Pressure 100 PSI max
External Solenoid Power 21.6-26.4 VDC (24 VDC nominal)
Response Time 12ms max (ON/OFF)
Load Current (DC) 0.5A per point, 2.0A total
Solenoid Inrush Current 33 mA/valve @ 24 VDC
Solenoid Holding Current 13 mA/valve @ 24 VDC

Applications

  • Pneumatic actuator control in automated assembly lines
  • Integration of air-logic and electrical control within a single PLC rack
  • Packaging and material handling systems
  • Water and waste management valve control

Installation Guidelines

  • Ensure the PLC baseplate power is disconnected before installing or removing the module.
  • The module can be installed in any I/O slot of a Series 90-30 baseplate.
  • Connect the user-supplied pressure source to the fitting located on the bottom of the module.
  • Connect an external 24 VDC power supply to the DC output connector on the front panel to energize the solenoids.
  • Use appropriate pneumatic tubing (1/16" or 1/8" barb adapters provided) and ensure all connections are secure to prevent pressure leaks.
  • Maintain proper grounding practices for the PLC rack to minimize electrical noise interference.

FAQ

What is the primary function of the IC693MDL760?

The IC693MDL760 is a hybrid module that allows the Series 90-30 PLC to directly control pneumatic valves via internal 3-way solenoids while simultaneously providing five discrete 24 VDC outputs for electrical signaling.

Is an external power supply required?

Yes, an external 24 VDC power source must be connected to the front panel connector to provide the necessary power for the internal solenoids and the DC output points.

How are the pneumatic outputs vented?

When an output is turned OFF, the internal valve vents the output port to the atmosphere within the module, allowing for the release of pressure from the connected pneumatic device.
