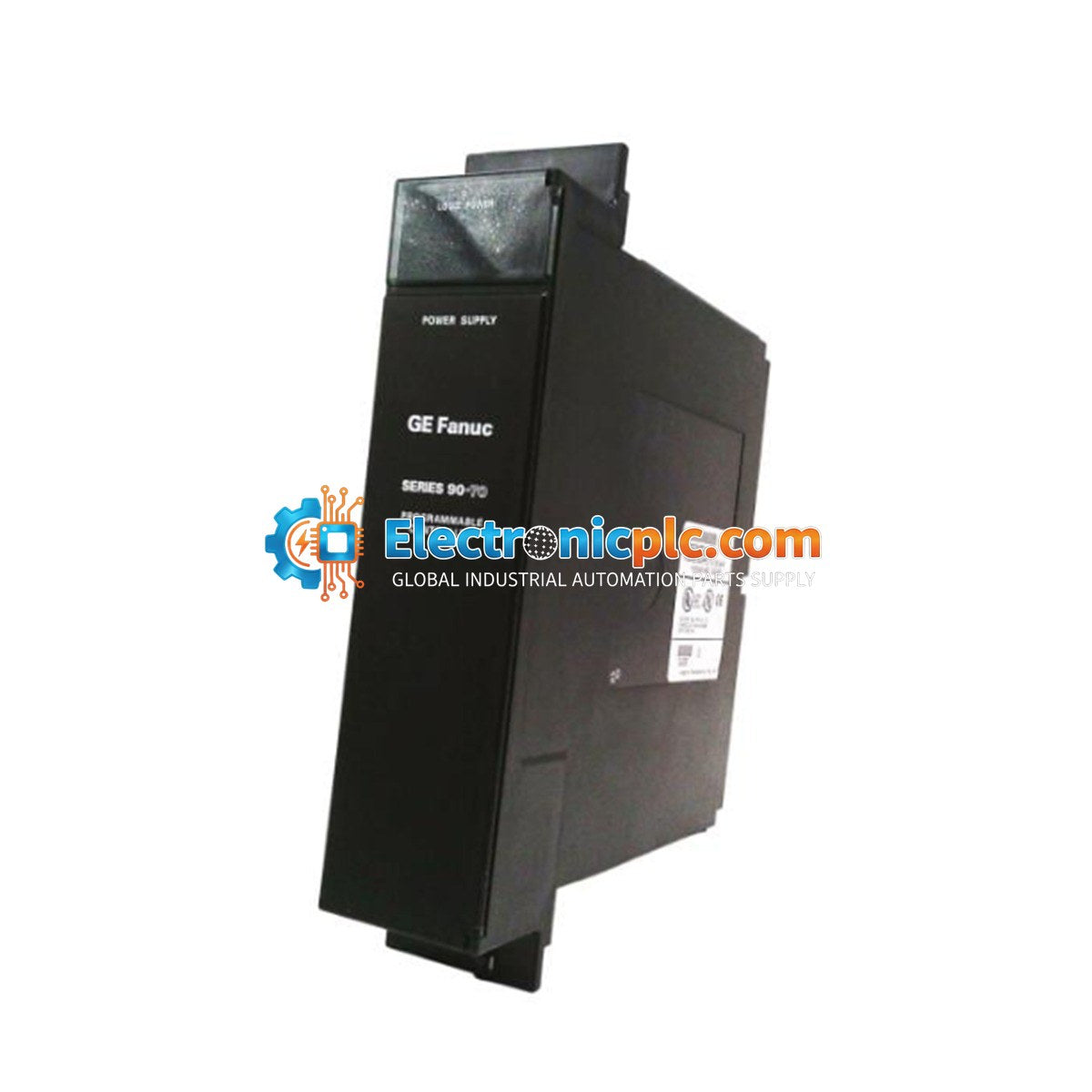

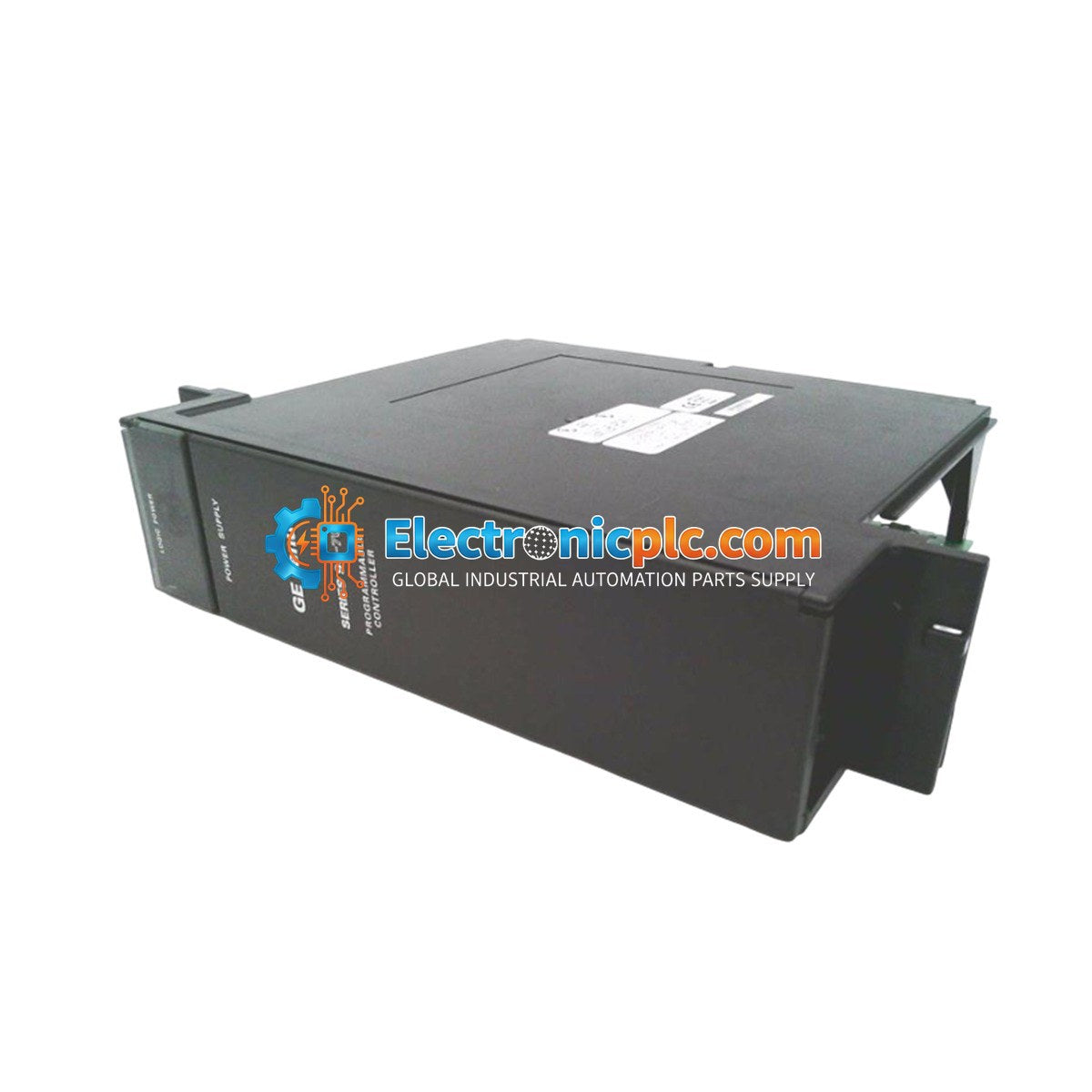

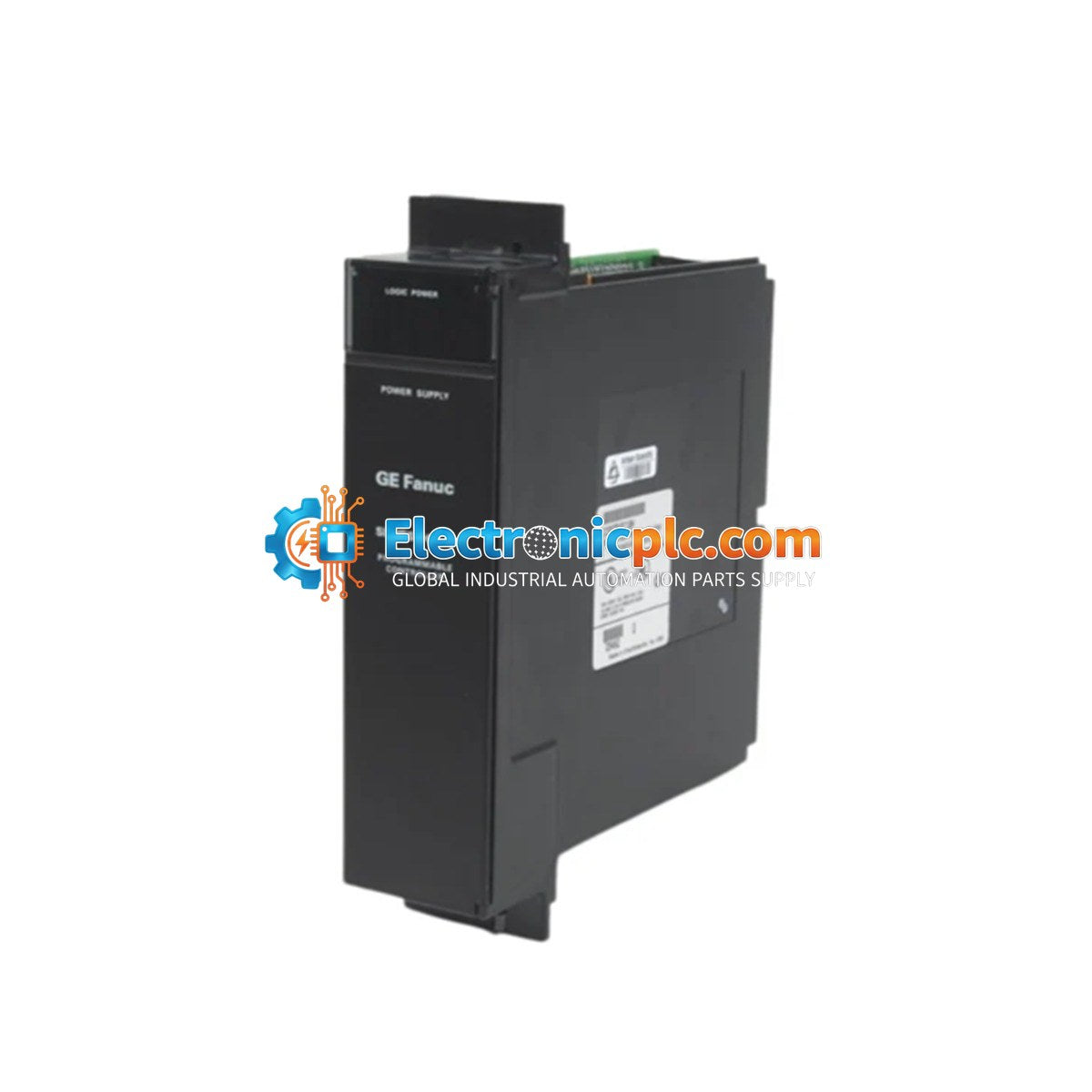

General Electric IC697PWR710 Series 90-70 PLC Power Supply Module

General Electric IC697PWR710 Series 90-70 PLC Power Supply Module

Description

The IC697PWR710 is a high-performance power supply module designed for the General Electric Series 90-70 programmable logic controller (PLC) platform. This rack-mountable unit provides regulated +5 VDC power and essential...

20 people are viewing this right now

Availability: Low stock: 3 left

SKU: IC697PWR710
Vendor: General Electric
Category: PLC Power Supply Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The IC697PWR710 is a high-performance power supply module designed for the General Electric Series 90-70 programmable logic controller (PLC) platform. This rack-mountable unit provides regulated +5 VDC power and essential logic-level sequencing signals to the system backplane. Engineered for versatility, it supports a wide range of input voltages, including 120/240 VAC or 125 VDC, making it suitable for diverse industrial environments. The module features active power factor correction and integrated protection against overcurrent and overvoltage conditions to ensure system stability.

Features

  • Operates on 120/240 VAC (90-264 VAC range) or 125 VDC (100-150 VDC range).
  • Delivers up to 56 watts of output power with a nominal 5.1 VDC output.
  • Supports up to 11 amps of current on the 5V bus.
  • Active power factor correction (PF > 0.95) for efficient energy usage.
  • Capable of powering two racks simultaneously, provided the total load is within the 56W rating.
  • Integrated electronic short-circuit and overcurrent protection.
  • Slide-in rack mount design for installation in the leftmost slot of a Series 90-70 rack.

Applications

  • Process manufacturing (chemical, pharmaceutical, and batch processing).
  • Turbine control and monitoring systems.
  • Automated material handling and conveyor systems.
  • High-precision metalworking and industrial assembly equipment.
  • Electrical distribution and utility monitoring.

Technical Specifications

Parameter Specification
Model IC697PWR710
Input Voltage (AC) 90 to 264 VAC, 47 to 63 Hz
Input Voltage (DC) 100 to 150 VDC
Output Power 56 Watts (max)
Output Voltage 4.90 to 5.25 VDC (5.1 VDC nominal)
Output Current Up to 11 Amps
Ride Through Time 21 ms minimum
Power Factor > 0.95
Overvoltage Limit 6.2 Volts

Installation Guidelines

  • The module must be installed in the leftmost slot of the Series 90-70 rack, which is dedicated to the power supply.
  • Ensure the system power is disconnected before inserting or removing the module from the backplane.
  • Use copper AWG #16 (1.3mm2) wire rated for 75 degC for power input connections (L1 and N).
  • The ground terminal must be connected to the rack GND terminal and earth using copper AWG #12 (3.3mm2) wire rated for 75 degC to ensure proper grounding.
  • Verify that all wiring is secure and that the same wire type/size is used for terminals.
  • Maintain adequate ventilation around the rack to prevent overheating.

FAQ

What is the IC697PWR710?

The IC697PWR710 is a 56-Watt power supply module for the GE Series 90-70 PLC system, providing 5V DC power and sequencing signals to the rack.

Can this power supply support two racks?

Yes, a single IC697PWR710 can power two racks, provided the total power consumption of all modules in both racks does not exceed the 56-watt output capacity.

What protection features are included?

The module includes electronic short-circuit protection on the 5V bus and overvoltage protection with a 6.2V limit.
