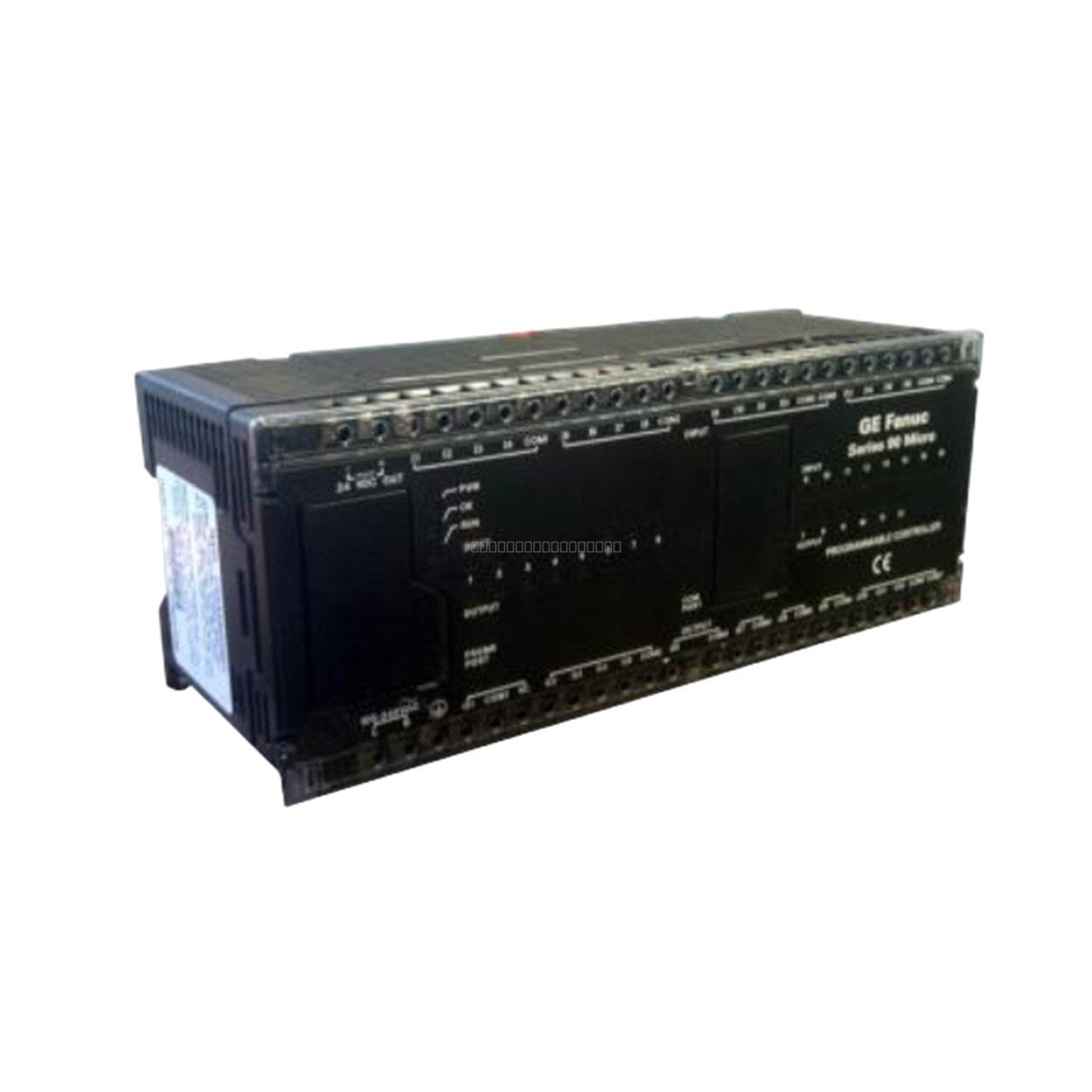

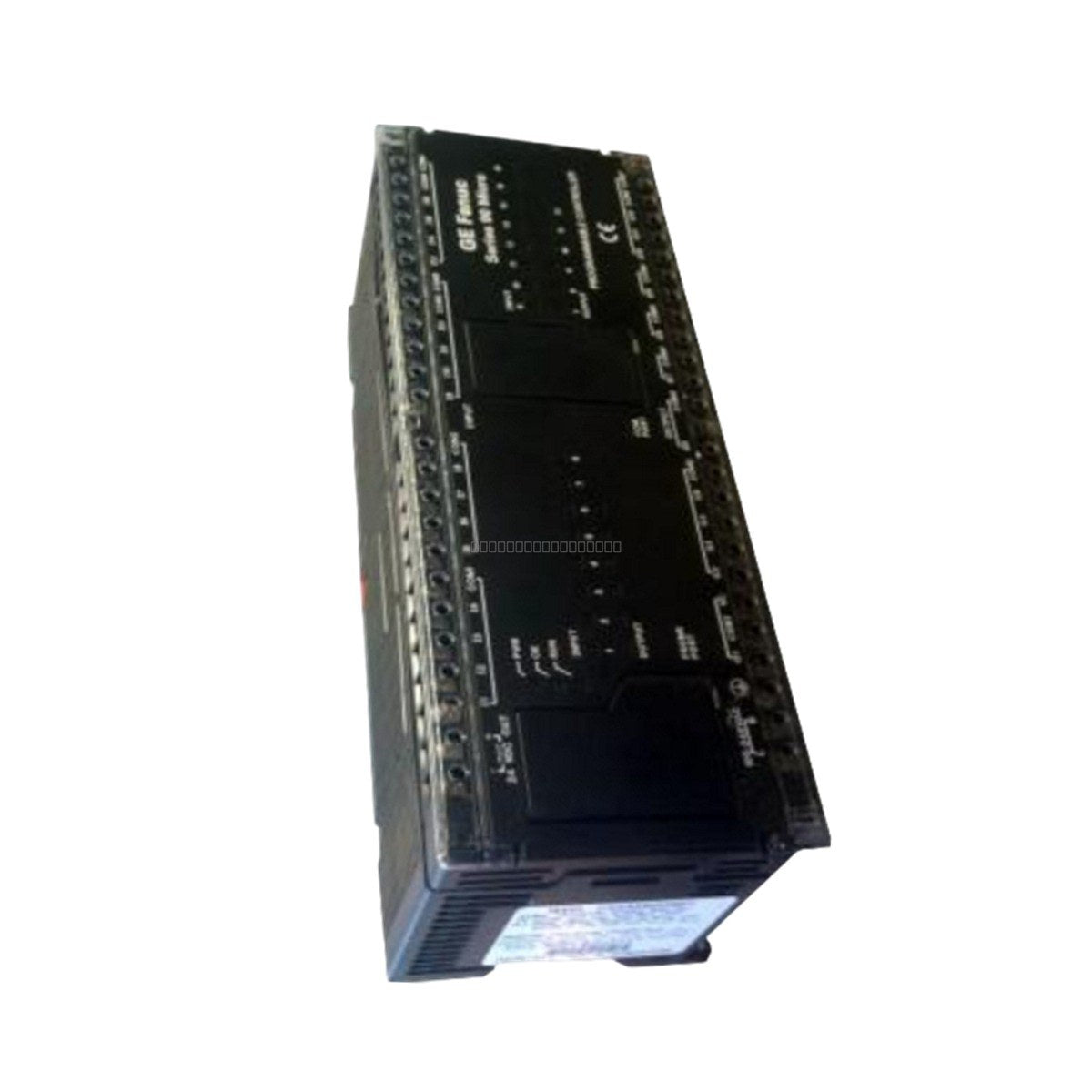

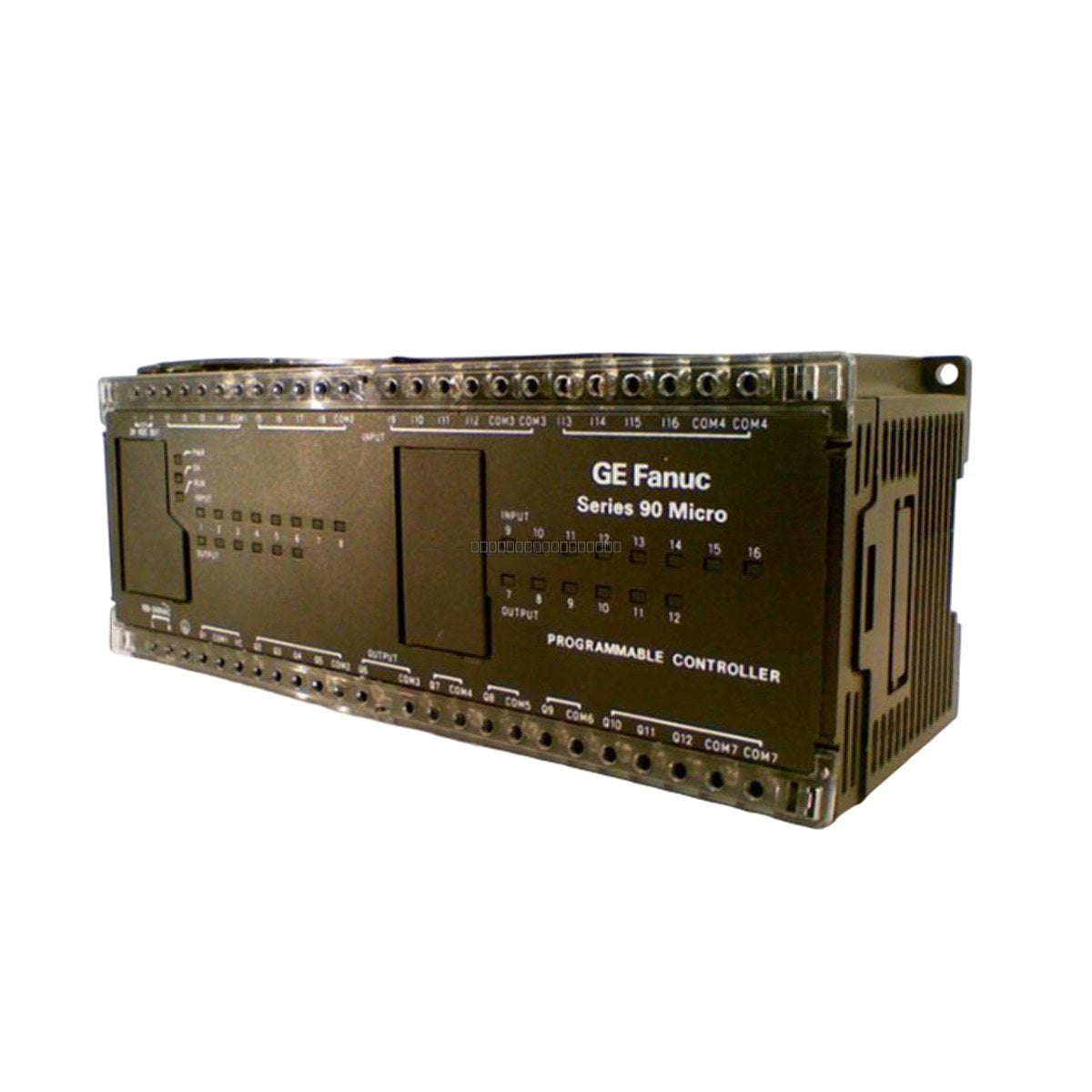

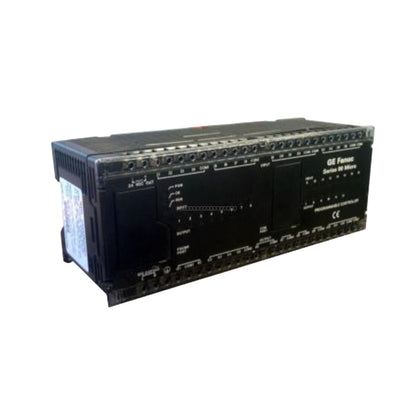

GE Fanuc IC693UDR005 Series 90 Micro Programmable Controller

GE Fanuc IC693UDR005 Series 90 Micro Programmable Controller

Description

The IC693UDR005 is a compact programmable controller within the GE Fanuc Series 90 Micro product line, specifically engineered for low I/O count industrial applications. This controller is designed for software...

29 people are viewing this right now

Availability: Low stock: 3 left

SKU: IC693UDR005
Vendor: GE FANUC
Category: Programmable Controller
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The IC693UDR005 is a compact programmable controller within the GE Fanuc Series 90 Micro product line, specifically engineered for low I/O count industrial applications. This controller is designed for software configuration and high-precision execution in environments such as small-scale assembly machines, packaging lines, and process control stations. Featuring a dual-microprocessor architecture—utilizing the 80188 for primary execution and the H8 for diagnostic and I/O scanning—the device ensures reliable, deterministic performance. By providing a cost-effective platform for localized automation, this unit helps engineers streamline control logic and improve system responsiveness.

Hardware Architecture

The IC693UDR005 relies on a sophisticated internal architecture to manage task prioritization and execution. The 80188 microprocessor handles memory management and application logic, while the integrated Instruction Sequencer Coprocessor (ISCP) maintains the integrity of the end process. The controller supports multiple operating modes, including standard program sweep, Stop with I/O Disabled, Stop with I/O Enabled, and Constant Sweep mode, allowing users to tailor execution based on specific safety and performance requirements.

Features

  • Dual-microprocessor architecture for separation of application logic and I/O scanning.
  • Supports multiple operating modes: Standard Sweep, Constant Sweep, and Stop modes.
  • Integrated 23-point I/O configuration for compact automation tasks.
  • Robust black plastic housing designed for industrial environments.
  • Compatible with Series 90-30 PLC ecosystem integration.

Applications

This controller is suitable for small-scale industrial automation tasks, including:

  • Small-scale assembly machine control.
  • Packaging line automation.
  • Localized process control stations.
  • Distributed node control within larger PLC networks.

Technical Specifications

Model IC693UDR005
Series Series 90 Micro
Total I/O Points 23
Input Specifications 16 Points, 24 VDC, 8 mA max (Pos/Neg)
Power Supply 100 to 240 VAC
Microprocessors 80188 (Application), H8 (Diagnostics/IO)
Operating Modes Sweep, Stop (I/O Enabled/Disabled), Constant Sweep
Casing Material Black Hard Plastic

Installation Guidelines

  • Ensure the controller is mounted in a clean, dry environment with adequate ventilation to prevent overheating.
  • Always disconnect power before installing or removing wiring to prevent electrical damage or injury.
  • Use shielded cables for I/O signals to minimize electromagnetic interference (EMI) in industrial settings.
  • Ensure proper grounding of the controller chassis to a common earth ground point.
  • Verify input voltage compatibility (100-240 VAC) before applying power to the unit.

FAQ

What is the primary function of the dual-microprocessor architecture?
The 80188 microprocessor manages the application logic and memory, while the H8 processor is dedicated to diagnostic routines and I/O scanning, ensuring deterministic performance.

Can this unit be used in a larger PLC system?
Yes, the IC693UDR005 is designed to function as a versatile node within the broader Series 90-30 PLC ecosystem.
