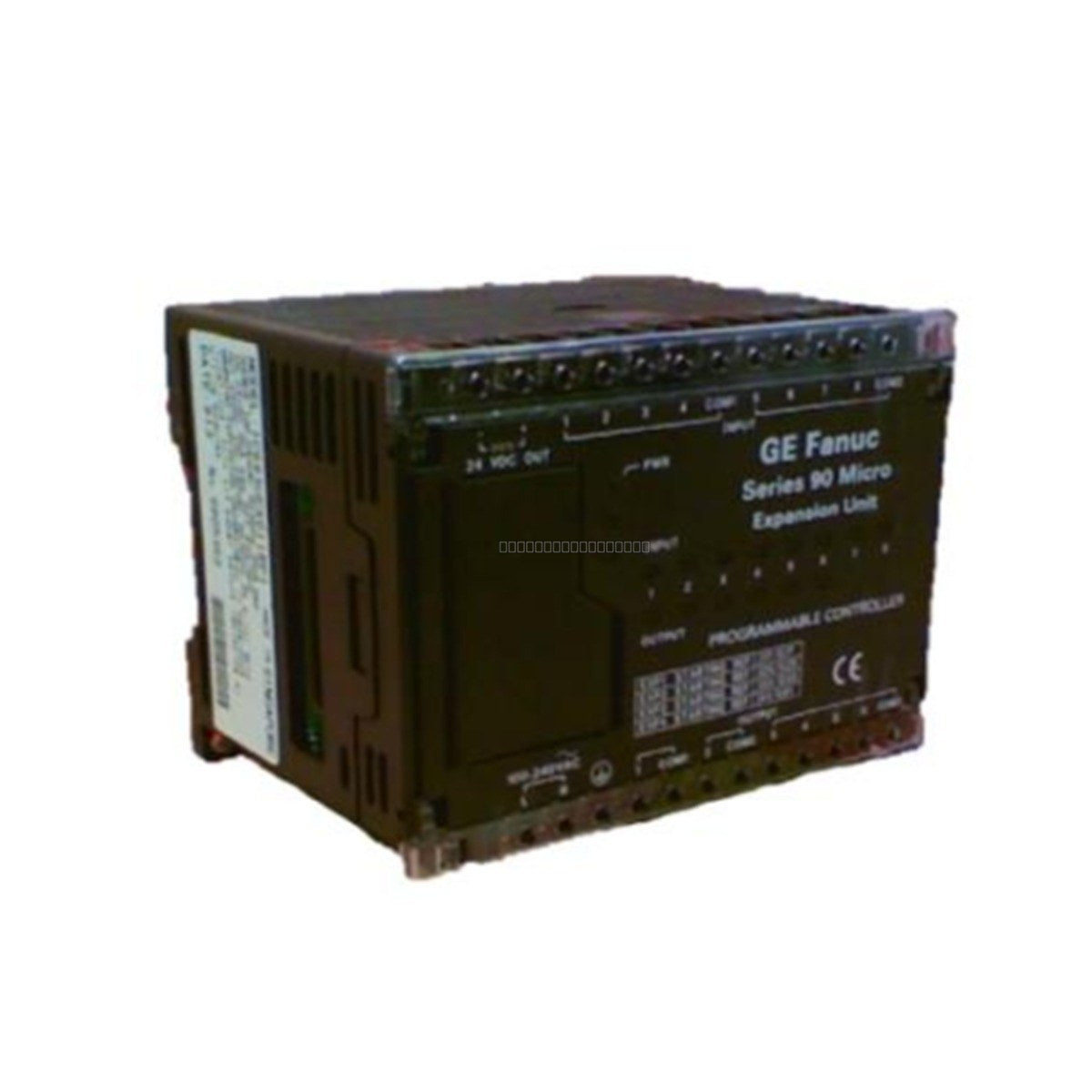

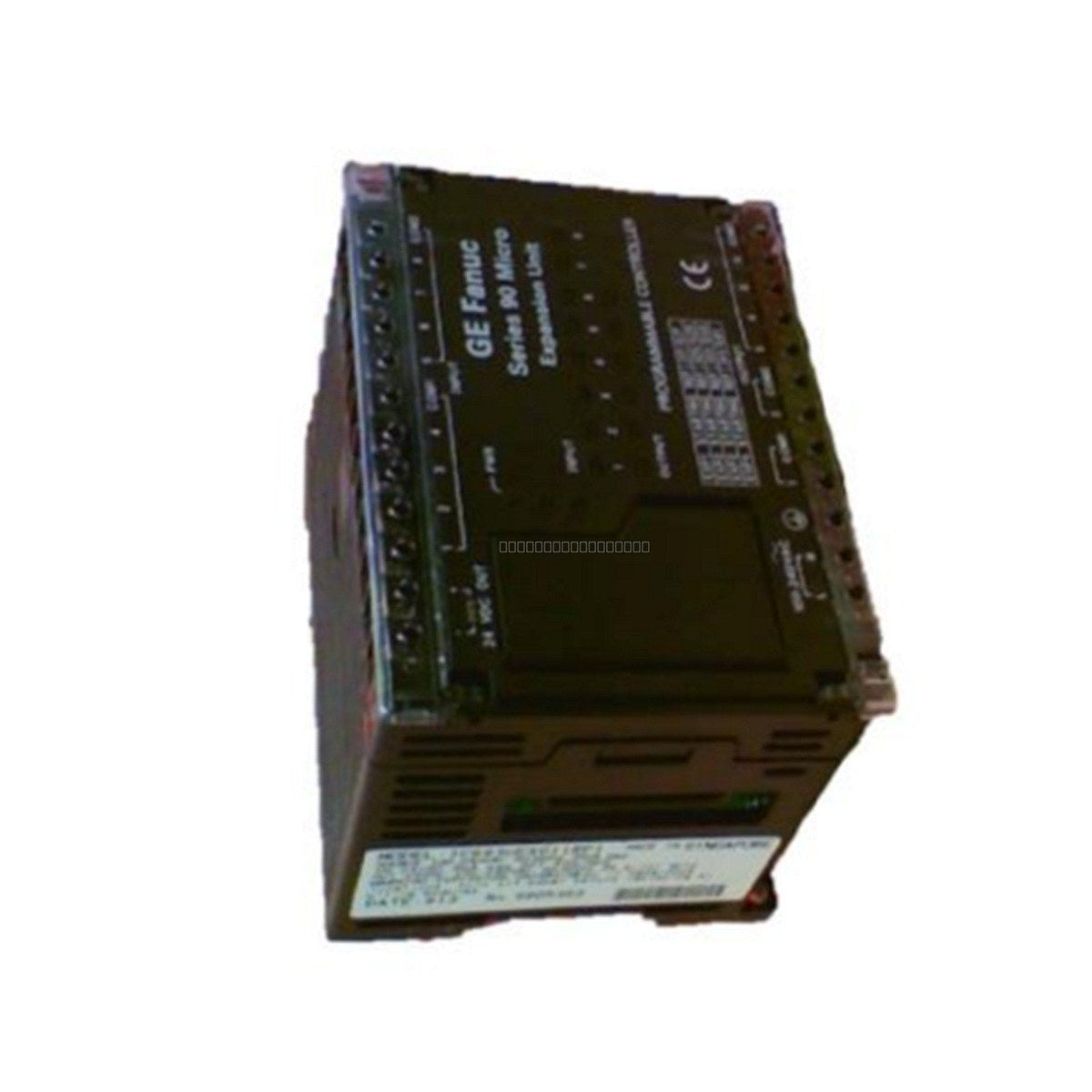

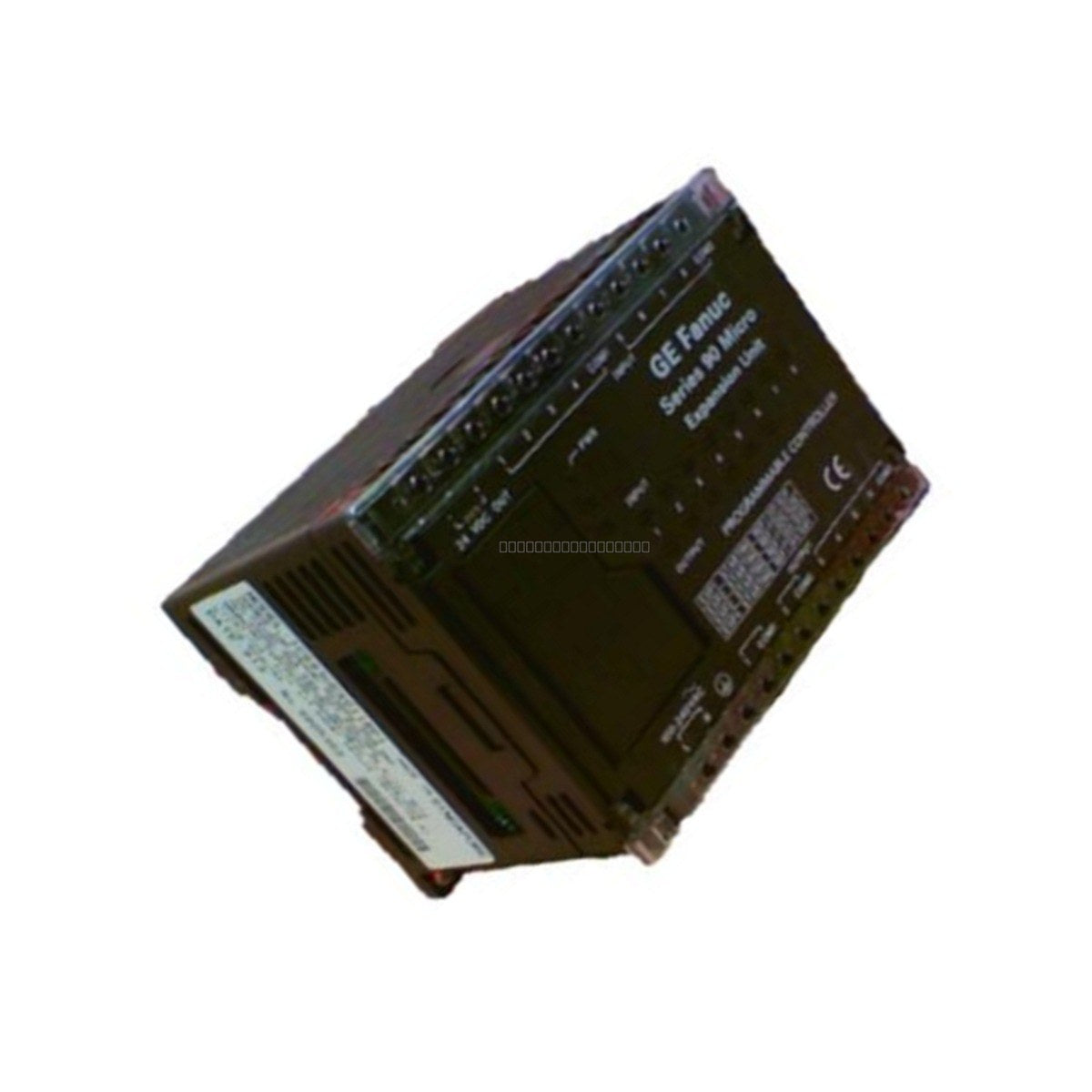

GE Fanuc IC693UEX122 Series 90 Micro I/O Expansion Module

GE Fanuc IC693UEX122 Series 90 Micro I/O Expansion Module

The IC693UEX122 is an integrated I/O expansion unit designed for the GE Fanuc Series 90 Micro programmable logic controller (PLC) product line. This module expands the capabilities of base 23-point...

27 people are viewing this right now

Availability: Low stock: 7 left

SKU: IC693UEX122
Vendor: GE FANUC
Category: I/O Expansion Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

The IC693UEX122 is an integrated I/O expansion unit designed for the GE Fanuc Series 90 Micro programmable logic controller (PLC) product line. This module expands the capabilities of base 23-point and 28-point micro controllers by adding 14 localized input/output points to the process architecture. Featuring an embedded processing core and independent power infrastructure, the unit offloads communication tasks from the main CPU, reducing rack bottlenecks and improving signal execution speeds in distributed control environments.

Features

  • Provides 14 additional I/O points (8 DC inputs and 6 DC outputs).
  • Integrated high-speed I/O counter for precision signal acquisition.
  • Supports daisy-chain configuration for up to four expansion units per base PLC.
  • Firmware-level password protection to restrict unauthorized logic access.
  • Compatible with Logicmaster 90-3/90-20 software and legacy hand-held programmers.

Applications

This expansion module is suitable for discrete manufacturing lines, municipal pumping stations, and automated packaging systems where additional I/O density is required without replacing the primary controller.

Technical Specifications

Model IC693UEX122
Brand GE Fanuc
Product Line Series 90 Micro
Total I/O 14
Discrete Inputs 8 DC
Discrete Outputs 6 DC
Power Requirements 12/24 VDC
Operating Temperature 0 to 60 deg C
Scalability Up to 4 units in series

Installation Guidelines

  • Ensure the system is powered down before connecting or disconnecting expansion modules.
  • Follow the strict directional wiring topology: the output connector of the upstream unit must interface with the input port of the subsequent unit.
  • Warning: Incorrect reverse connection under live power will cause permanent damage to the internal DC input circuitry.
  • Ensure adequate ventilation around the unit to maintain operating temperatures within the 0 to 60 deg C range.
  • Use shielded cabling for I/O signals to minimize EMI interference in industrial environments.

FAQ

Can I connect more than four of these modules to a single base unit?

No, the Series 90 Micro architecture supports a maximum of four expansion units connected in series to a single base PLC.

Is this module compatible with modern Windows-based programming software?

The IC693UEX122 is designed for use with Logicmaster 90-3/90-20 platforms and legacy hand-held programmers. Consult your specific software version documentation for compatibility with modern operating systems.
