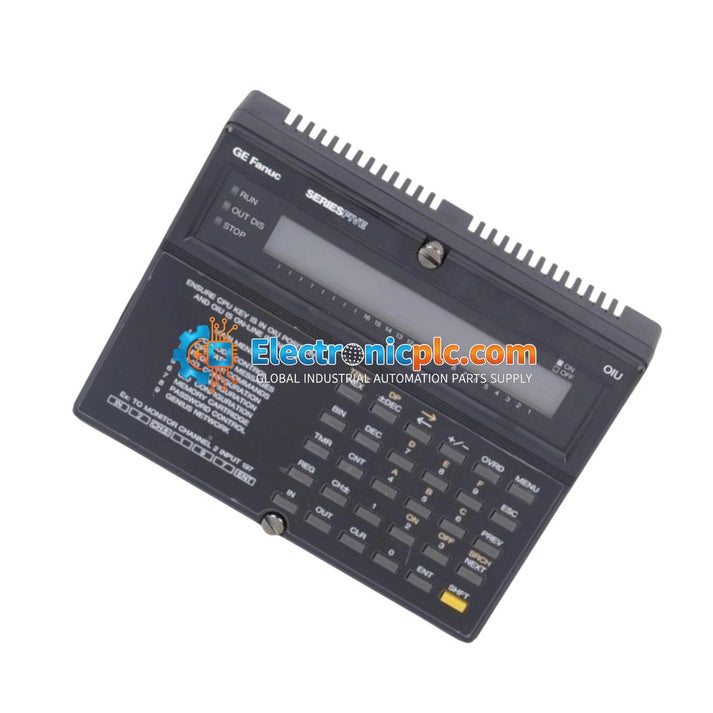

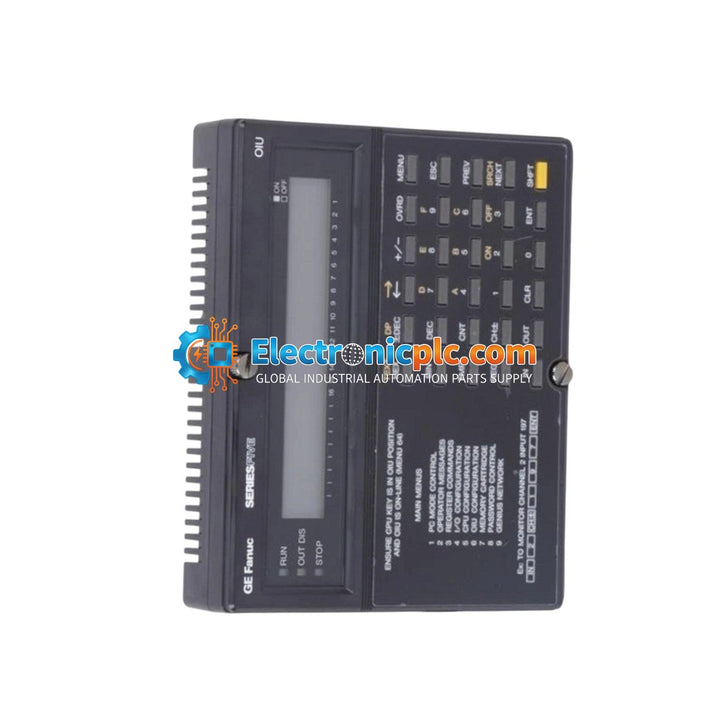

General Electric IC655PER500 Series Five Operator Interface Unit

General Electric IC655PER500 Series Five Operator Interface Unit

Description

The General Electric IC655PER500 is a robust Operator Interface Unit (OIU) designed for the GE Series Five Programmable Logic Controller (PLC) system. This unit provides operators with a direct interface...

24 people are viewing this right now

Availability: Low stock: 1 left

SKU: IC655PER500
Vendor: General Electric
Category: Operator Interface Unit
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The General Electric IC655PER500 is a robust Operator Interface Unit (OIU) designed for the GE Series Five Programmable Logic Controller (PLC) system. This unit provides operators with a direct interface for monitoring system performance, modifying register data, and managing logic program deployment. Featuring a 10-inch monochrome LCD touchscreen with a 640 x 480 VGA resolution, the IC655PER500 offers clear visual feedback for industrial control environments.

Features

  • 10-inch monochrome LCD touchscreen display
  • Integrated front panel keypad with dedicated yellow Shift key for advanced function access
  • Diagnostic LED indicators (RUN, OUT, DIS, STOP) for real-time operational status monitoring
  • Direct connectivity to the CCM port of the GE Series Five PLC CPU
  • Integrated memory card slot and EPROM programmer for logic program storage and transfer
  • RS-232 communication port for programming and peripheral device compatibility
  • Efficient power consumption at 400 mA

Applications

  • Food and Beverage: Monitoring automated bottling and packaging lines
  • Automotive Manufacturing: Coordinating assembly line conveyors and robotic arm sequences
  • Material Handling: Managing sorters and palletizers requiring constant operator oversight
  • Chemical and Water Treatment: Monitoring temperature and flow parameters in safety-critical processes
  • Transportation: Signaling systems and baggage handling infrastructure

Technical Specifications

Model IC655PER500
Display Type 10-inch monochrome LCD touchscreen
Resolution 640 x 480 pixels (VGA)
Power Supply 24 VDC
Power Consumption 400 mA
Operating Temperature 0 degC to 50 degC (32 degF to 122 degF)
Storage Temperature -20 degC to 70 degC (-4 degF to 158 degF)
Communication RS-232 / CCM Port

Installation Guidelines

  • Ensure the PLC system is powered down before connecting or disconnecting the OIU communication cables.
  • The unit is designed for mounting within standard 19-inch industrial racks or control panels.
  • Ensure adequate ventilation around the unit to maintain operating temperatures within the 0-50 degC range.
  • Use shielded communication cables for the RS-232/CCM connection to minimize EMI interference in high-noise industrial environments.
  • Verify power supply polarity before connecting the 24 VDC input.
  • Handle the EPROM programmer and memory card slots with care to prevent electrostatic discharge (ESD) damage to sensitive internal components.

FAQs

What is the IC655PER500?

It is a compact Operator Interface Unit (OIU) used to interface with the Series Five Programmable Logic Controller (PLC) system.

What are the main functions of IC655PER500?

It allows users to monitor critical I/O or register references, diagnose system faults, and display pre-programmed messages under the control of user logic programs.

Where can it be installed?

It is designed for integration within the Series Five PLC system and can be mounted in 19-inch racks.

How is it powered?

The unit operates on a 24 VDC power supply. Ensure the power source is stable and properly grounded according to local electrical codes.
