Description

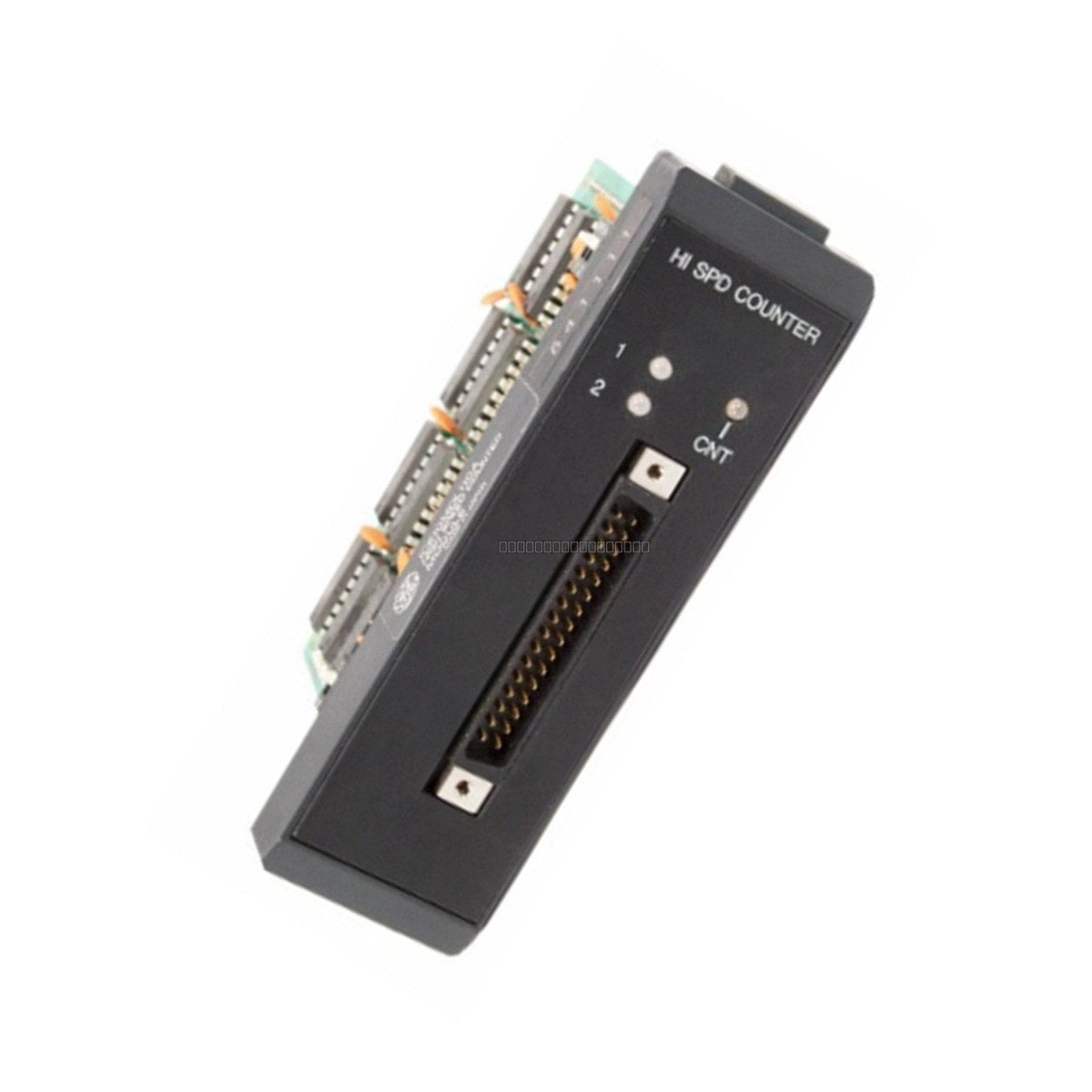

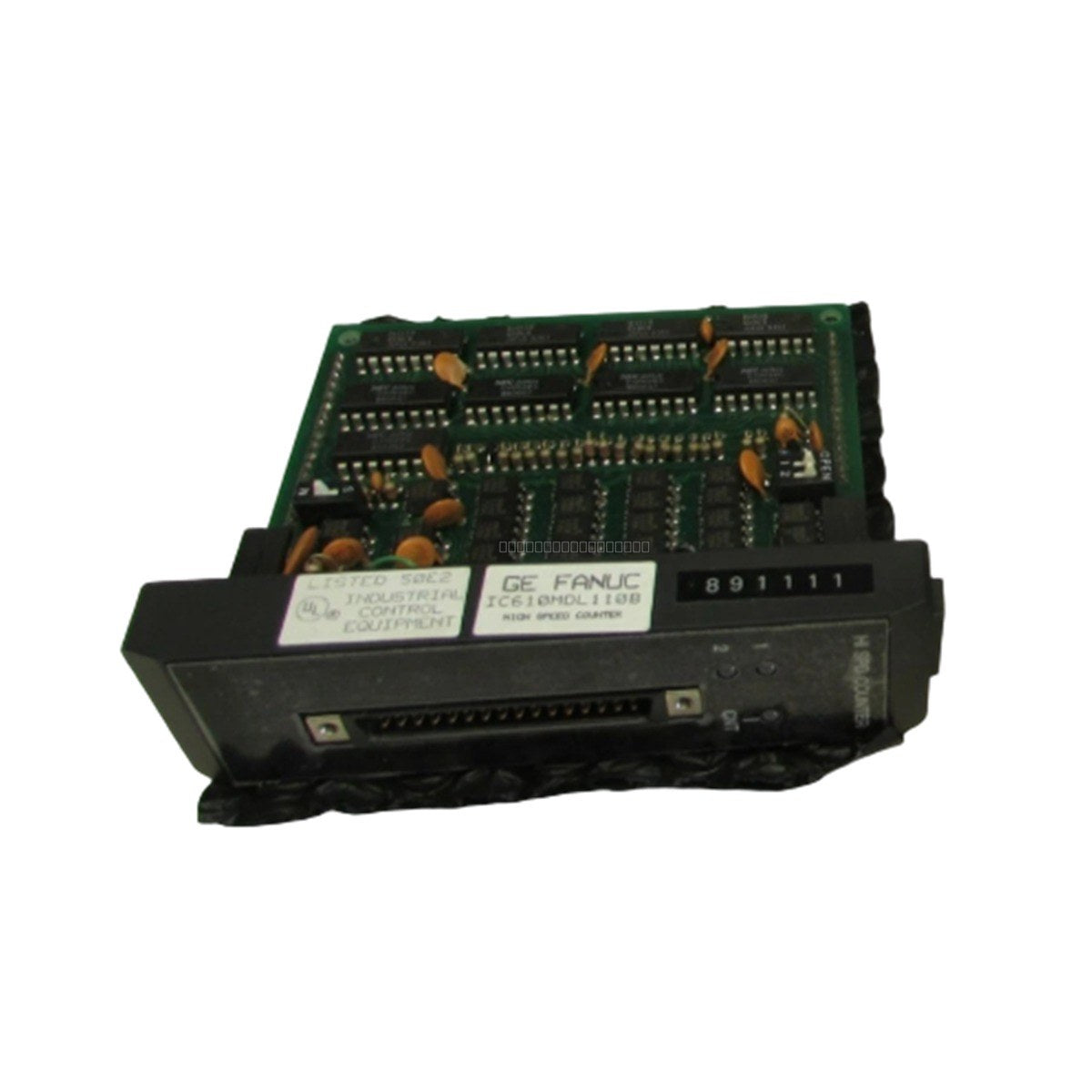

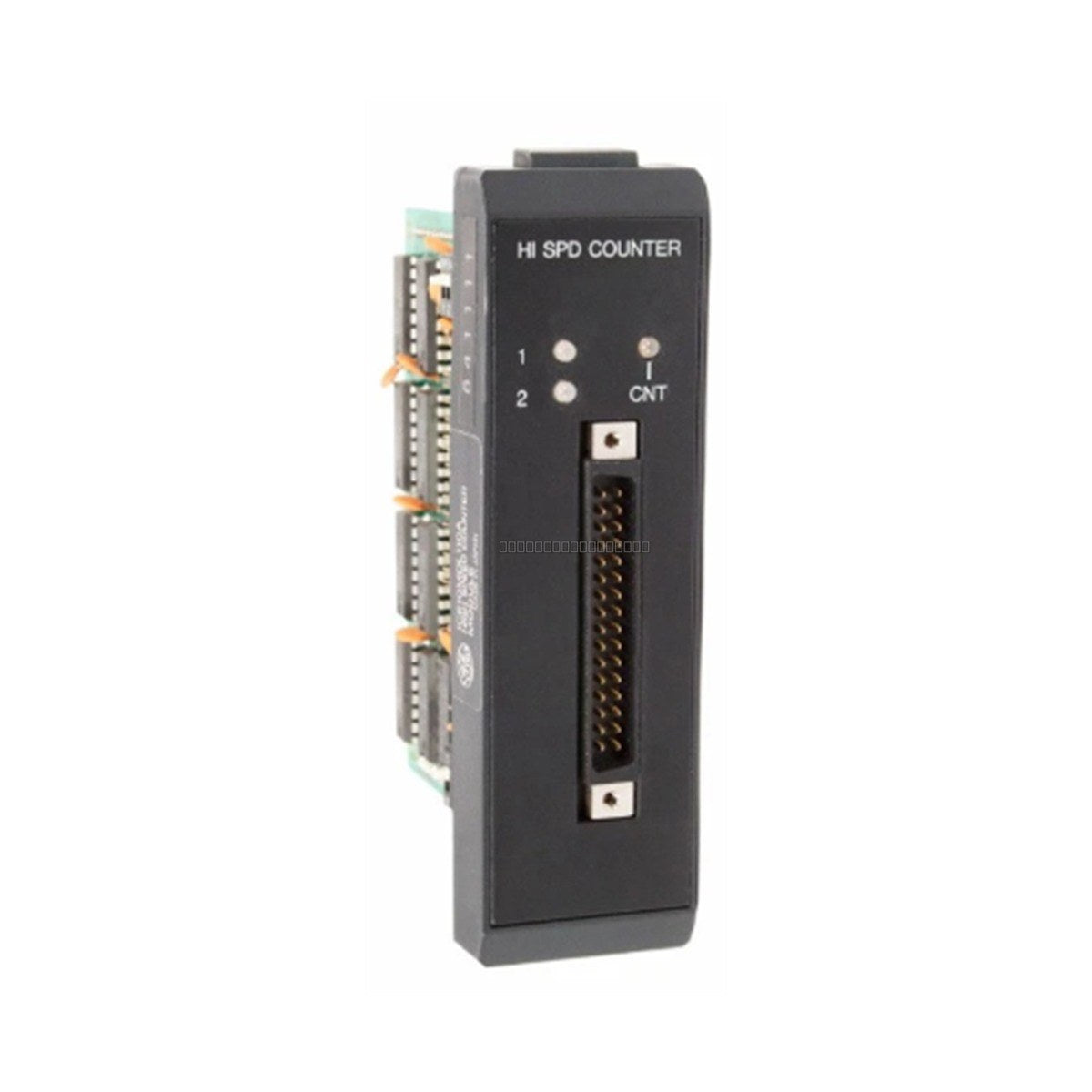

The IC610MDL110 is a high-speed hardware counter module engineered by GE Fanuc for the legacy Series One programmable controller product line. Operating on an external 12 VDC supply voltage, this specialized unit tracks 7 individual input counts from high-frequency field devices. It is deployed in precise positioning and rate measurement applications across automated material handling, thermal power generation systems, and metal mining processing lines. By handling fast pulse inputs with an ultra-responsive processing speed, the module removes high-frequency calculation overhead from the main processor, preventing data drops and reducing logic cycle jitter.

Features

• Supports bi-directional incremental encoders and 4-digit BCD (Binary Coded Decimal) counter formats.
• High-speed execution reaction time of less than 100 microseconds.
• Supports count incrementing, decrementing, and high-priority reset or marker routines.
• Designed for integration with high-velocity machine operations to maintain process stability.
• Rugged 32-pin edge connector interface for reliable signal transmission.

Applications

This module is designed for industrial environments requiring high-speed pulse counting, including:

• Automated material handling and conveyor systems.
• Thermal power generation monitoring.
• Metal mining and processing lines.
• Precision positioning and rate measurement tasks.

Technical Specifications

Installation Guidelines

• Slot Allocation: The module must be installed in one of the first four I/O slots immediately adjacent to the CPU to minimize signal propagation lag.
• Handling: Ensure the system power is disconnected before inserting or removing the module to prevent electrical damage.
• Environment: Install in an area with adequate natural convection cooling; avoid mounting near high-heat sources.
• Wiring: Use the appropriate 32-pin edge connector and ensure all field wiring is properly shielded to maintain signal integrity in high-vibration environments.
• Grounding: Follow standard industrial grounding practices for Series One backplanes to minimize EMI interference.

FAQ

What is the primary function of the IC610MDL110?

The IC610MDL110 is a high-speed counter module designed to offload high-frequency pulse counting tasks from the Series One CPU, allowing for precise tracking of encoders and BCD inputs without causing logic cycle delays.

Does this module require external power?

Yes, the module requires an external 12 VDC supply to operate the counting circuitry, while the internal logic is powered by the 9 VDC backplane supply.

Are there specific slot requirements for this module?

Yes, due to timing requirements on the parallel backplane, this module must be placed in one of the first four slots adjacent to the CPU.
