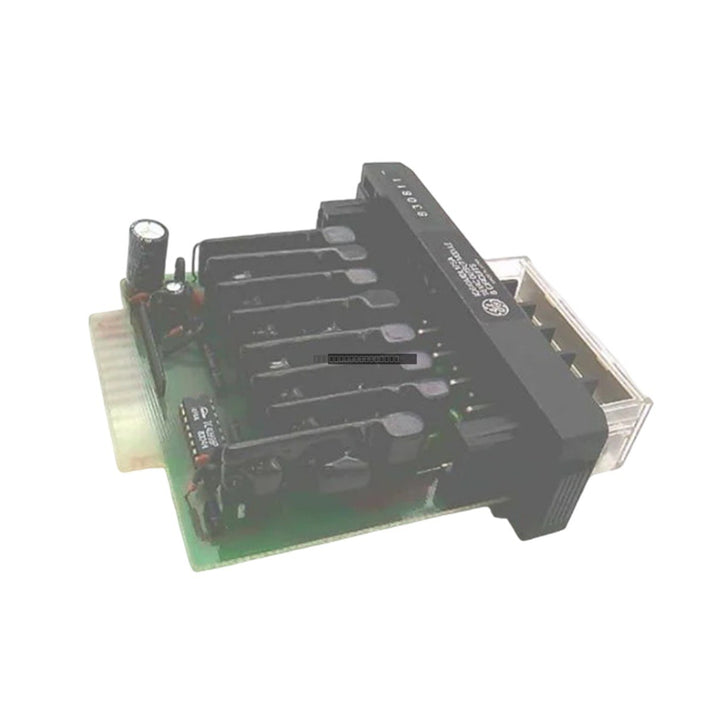

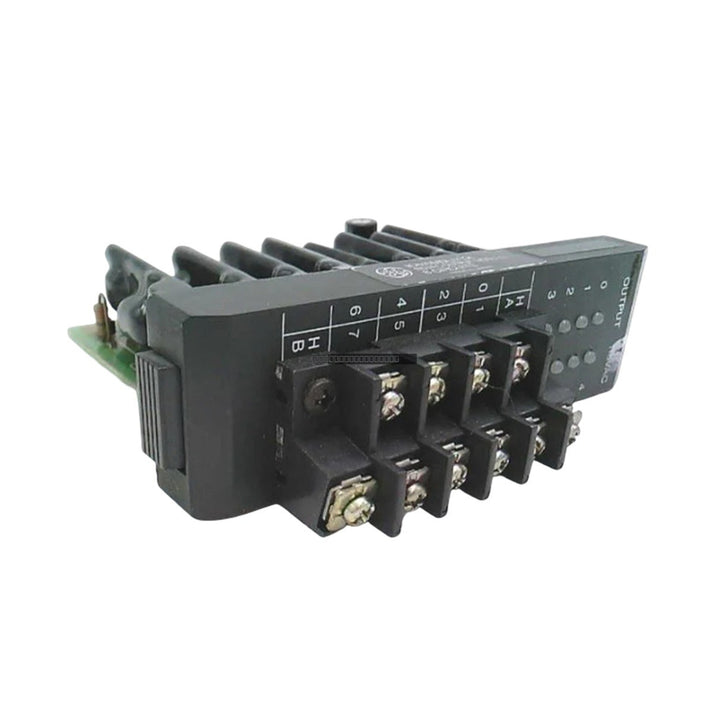

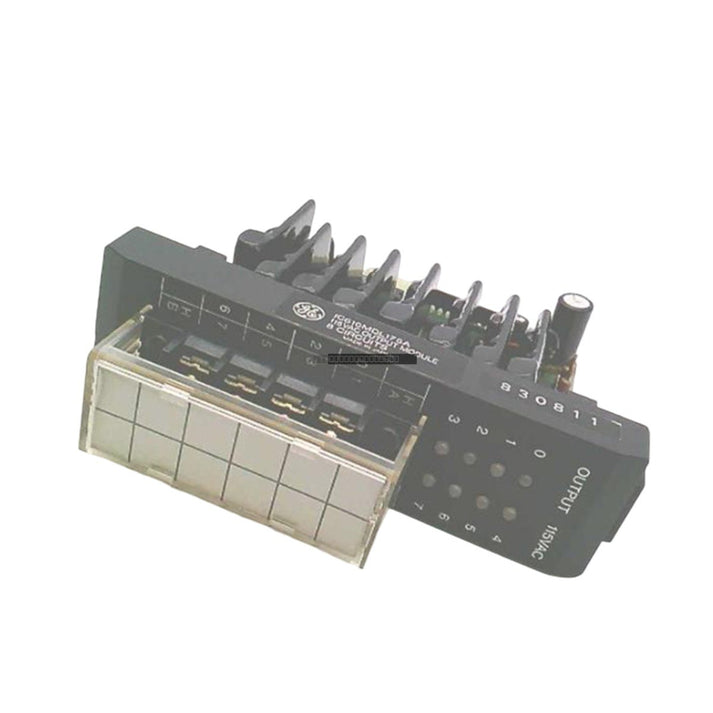

GE Fanuc IC610MDL180 Series One 8-Point Relay Output Module

GE Fanuc IC610MDL180 Series One 8-Point Relay Output Module

Description

The GE Fanuc IC610MDL180 is a robust 8-point relay output module engineered for the Series One PLC platform. This module is designed to provide reliable switching for field devices in...

16 people are viewing this right now

Availability: Low stock: 3 left

SKU: IC610MDL180
Vendor: GE FANUC
Category: Relay Output Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The GE Fanuc IC610MDL180 is a robust 8-point relay output module engineered for the Series One PLC platform. This module is designed to provide reliable switching for field devices in industrial automation applications, including discrete manufacturing and process control. By utilizing independent relay contacts, the IC610MDL180 allows for flexible integration into various control architectures, ensuring operational stability and reliable signal execution under diverse load conditions.

Features

  • 8 independent relay output channels for versatile field device control.
  • Wide operating voltage range supporting 4 to 265 VAC.
  • Consistent 5 ms switching delay for both turn-on and turn-off cycles.
  • Low leakage current of 1 mA to prevent false triggering of sensitive inputs.
  • Designed for high-reliability performance in demanding industrial environments.

Applications

This module is suitable for interfacing PLC control logic with external field equipment such as contactors, solenoids, and indicators. Its relay-based output architecture makes it ideal for applications requiring galvanic isolation between the PLC backplane and the field-side load.

Technical Specifications

Model IC610MDL180
Product Line Series One
Output Points 8
Output Voltage Range 4 to 265 VAC
Line Frequency 47 to 63 Hz
Peak Inrush Current 5 A
Max Leakage Current 1 mA
Min Recommended Load 5 mA
Switching Delay 5 ms
Internal Power Consumption 45 mA

Installation Guidelines

  • Ensure the PLC power is disconnected before installing or removing the module from the rack.
  • Verify that the field wiring is properly secured to the terminal blocks to prevent intermittent connections.
  • Maintain adequate spacing within the enclosure to allow for proper heat dissipation.
  • Observe all local electrical codes regarding wire gauge and grounding requirements for relay output circuits.
  • Avoid routing high-voltage field wiring in the same conduit as low-voltage signal cables to minimize electromagnetic interference.

FAQ

What is the primary function of the IC610MDL180?
The IC610MDL180 is a relay output module for the Series One PLC, used to switch external field devices using 8 independent relay contacts.

Can this module handle high inrush currents?
Yes, the module is rated to support a peak inrush current of up to 5 A, provided it remains within the specified operational parameters.

Is there a minimum load requirement for this module?
Yes, to ensure reliable relay contact operation, it is recommended that the connected load be at least 5 mA.
