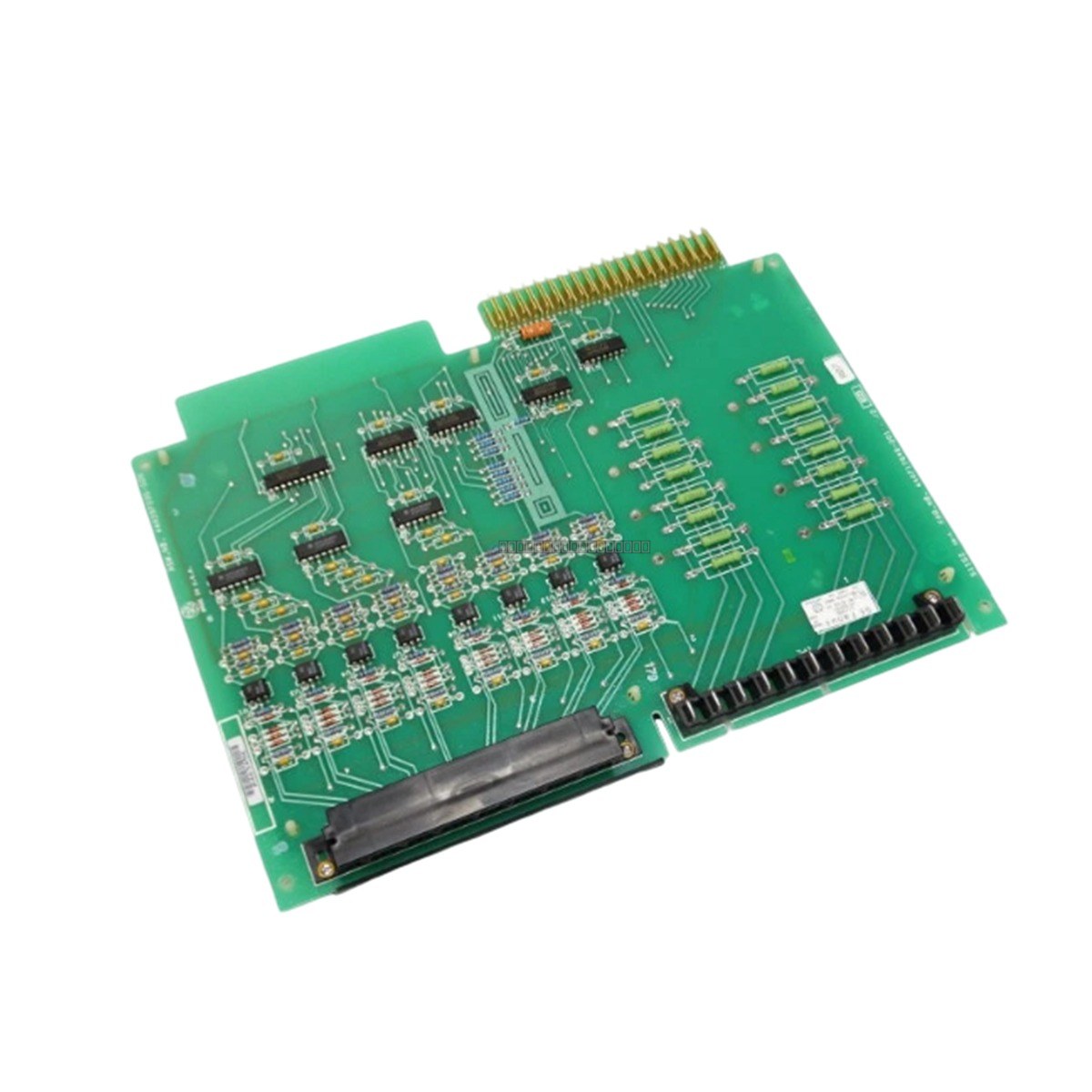

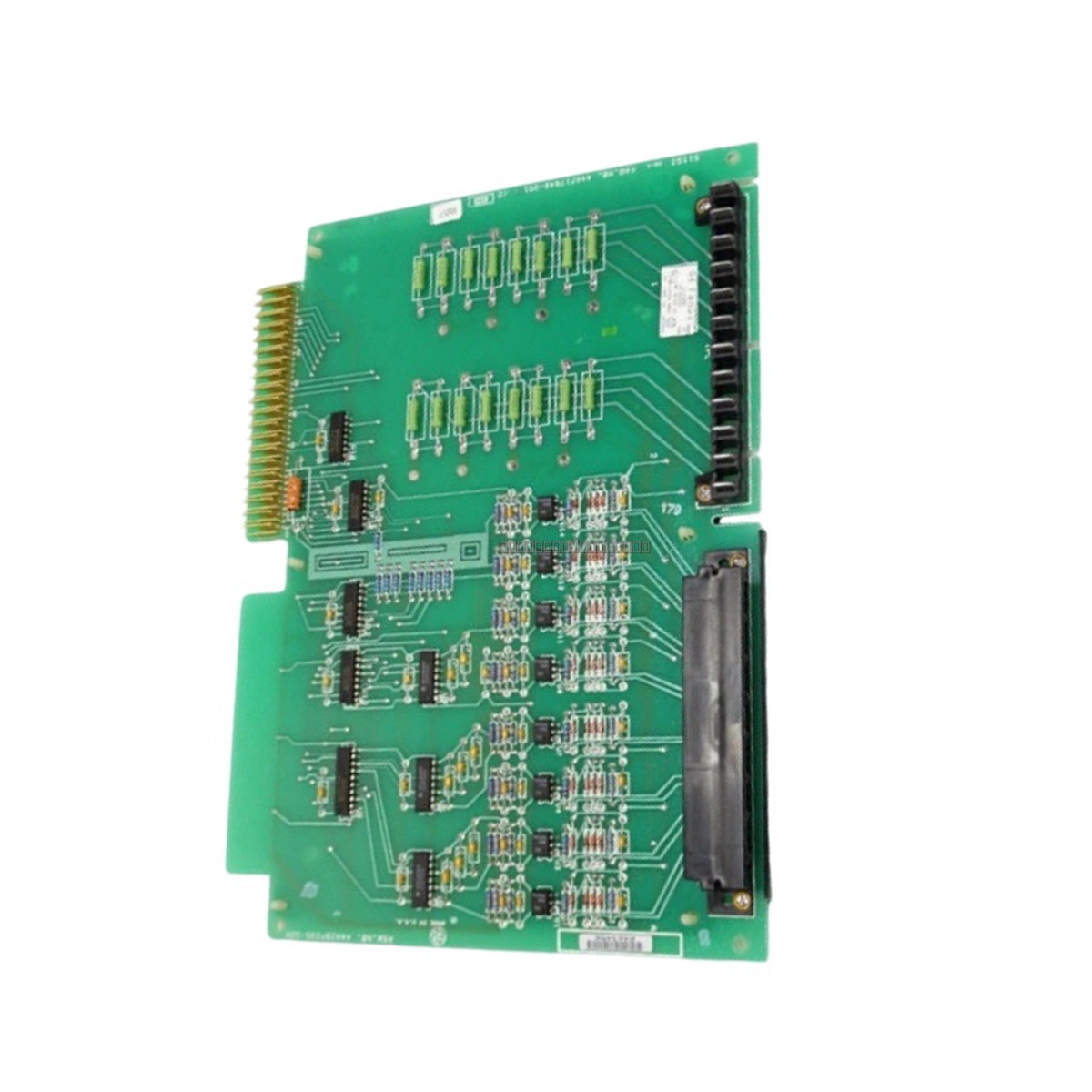

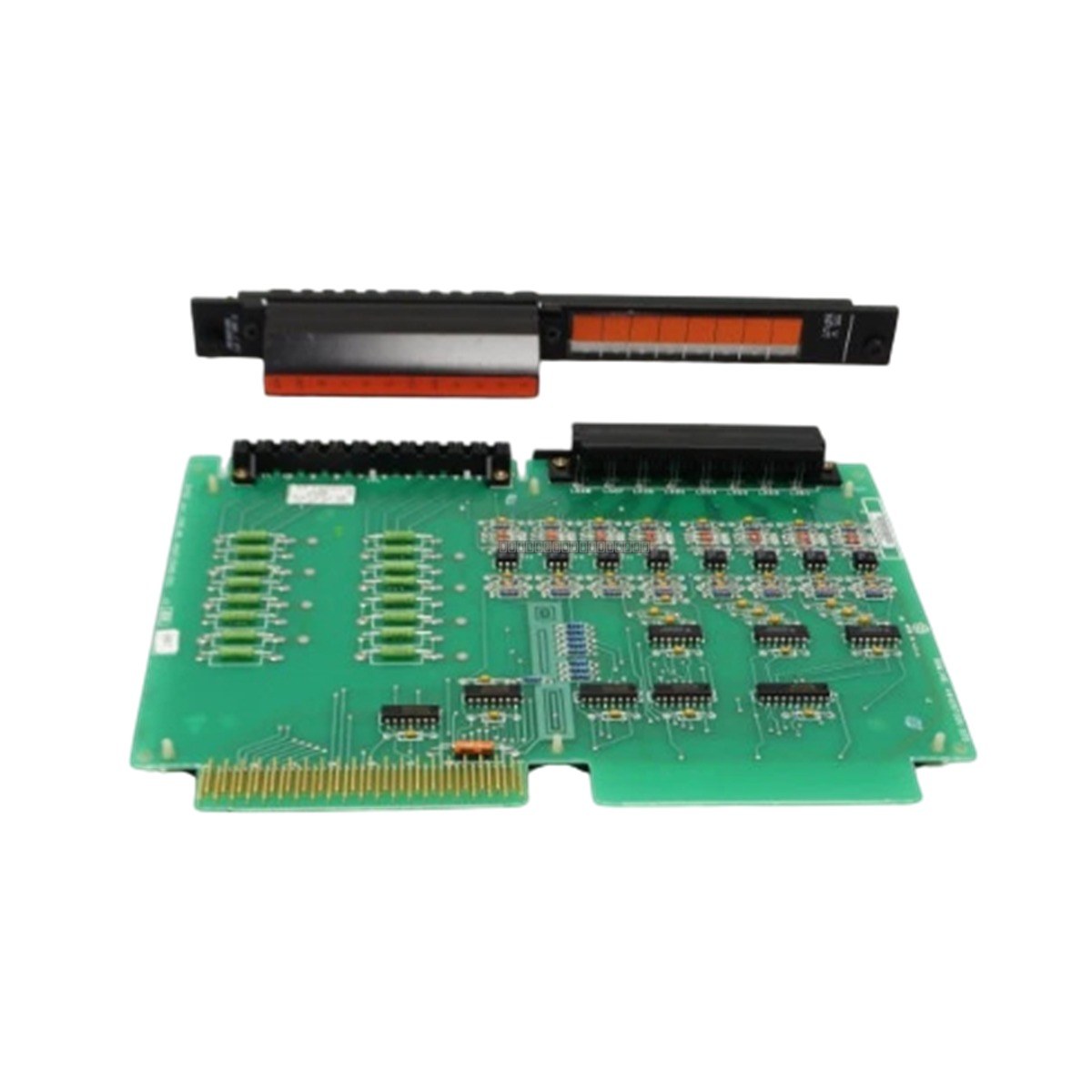

General Electric IC600BF804 Series Six Input Module

General Electric IC600BF804 Series Six Input Module

The GE Fanuc IC600BF804 is a high-performance input module designed for the Series Six programmable controller system. This module provides 8 discrete input channels, organized into two isolated groups of...

21 people are viewing this right now

Availability: Low stock: 4 left

SKU: IC600BF804
Vendor: General Electric
Category: Digital Input Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

The GE Fanuc IC600BF804 is a high-performance input module designed for the Series Six programmable controller system. This module provides 8 discrete input channels, organized into two isolated groups of 4 inputs each, allowing for flexible integration with various industrial field devices.

Features

  • 8-point discrete input capacity.
  • Configured in two independent groups of 4 inputs, each with a shared neutral circuit (N1 and N2).
  • Compatible with standard industrial input devices including limit switches, relays, cam switches, and toggle switches.
  • Designed for 115 Volts AC/DC input signal levels.
  • Internal logic power supplied at 5 Volts DC.

Technical Specifications

Model IC600BF804
Series Series Six
Input Voltage 115 Volts AC/DC
Number of Inputs 8 (2 groups of 4)
Maximum Input Current 104 mA
Off to On Delay 10-20 ms
On to Off Delay 20-50 ms
Operating Temperature 0 to 60 degC (32 to 140 degF)
Storage Temperature -20 to 80 degC (-4 to 176 degF)
Humidity Range 5-90% (non-condensing)

Installation Guidelines

  • Ensure the Series Six rack is powered down before inserting or removing the module to prevent electrical damage.
  • Verify that input voltage levels match the module specifications (115V AC/DC) before wiring.
  • Use appropriate shielded cabling for input signals to minimize electromagnetic interference (EMI) in industrial environments.
  • Ensure the module is fully seated in the rack slot and that the faceplate is secured to maintain proper grounding and thermal airflow.
  • Handle with care to prevent electrostatic discharge (ESD) damage to the internal circuitry.

FAQ

What type of devices can be connected to the IC600BF804?
This module is compatible with standard 115V AC/DC field devices such as limit switches, relays, toggle switches, and cam switches.

How are the inputs organized on this module?
The 8 inputs are divided into two groups of 4, with each group utilizing a shared neutral circuit (N1 for the first group, N2 for the second).
