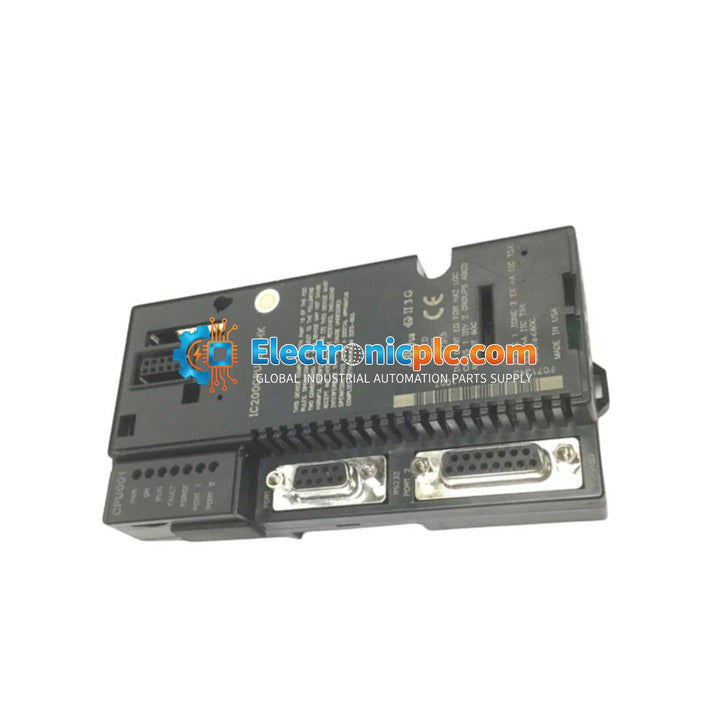

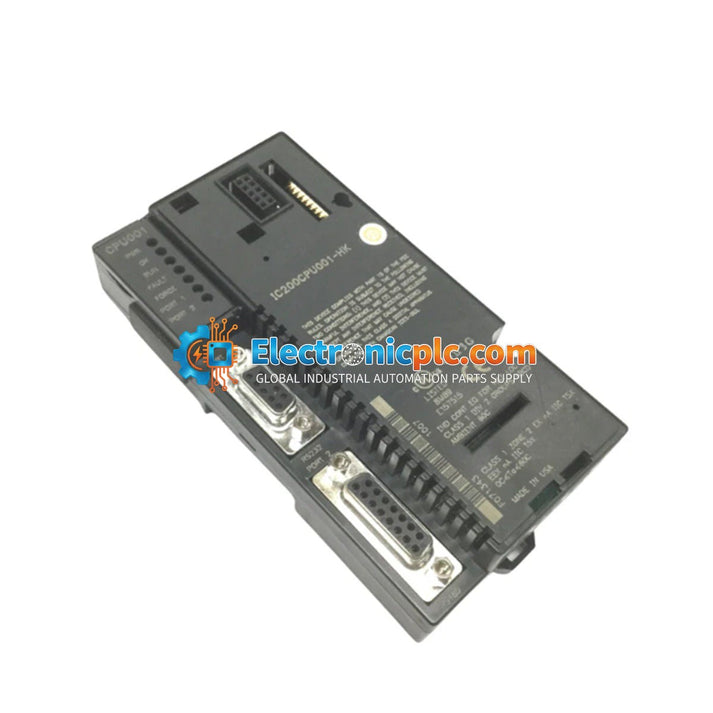

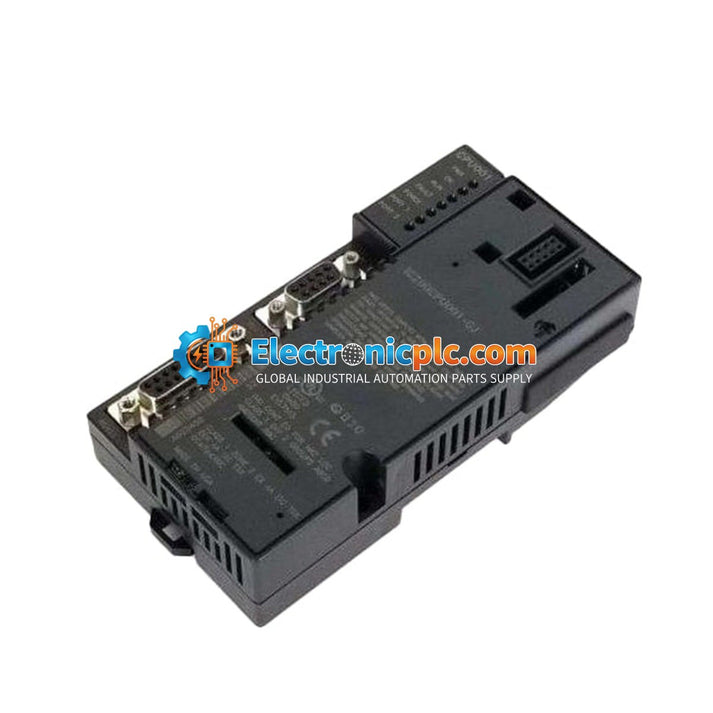

General Electric IC200CPU001 VersaMax CPU Module

General Electric IC200CPU001 VersaMax CPU Module

Description

The General Electric IC200CPU001 is a high-performance Central Processing Unit (CPU) module designed for the VersaMax PLC system. This configurable CPU provides robust control capabilities for industrial automation applications, supporting...

29 people are viewing this right now

Availability: Low stock: 6 left

SKU: IC200CPU001
Vendor: General Electric
Category: CPU Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The General Electric IC200CPU001 is a high-performance Central Processing Unit (CPU) module designed for the VersaMax PLC system. This configurable CPU provides robust control capabilities for industrial automation applications, supporting both floating-point math and standard logic execution. It features integrated memory storage using both RAM and Flash, ensuring reliable program retention and operational flexibility.

Features

  • Processing Speed: Executes boolean logic at 1.8 ms per 1K of instructions.
  • Memory: Includes 34K bytes of configurable memory for programs, registers, and I/O analog words, with a total of 384K bytes of system memory.
  • Communication Ports: Equipped with one RS232 port and one RS485 port for versatile connectivity.
  • Protocol Support: Supports SNP Slave, Modbus RTU Slave, and Serial I/O protocols.
  • Real-Time Clock: Features a battery-backed Real-Time Clock (RTC) with an accuracy of 100 ppm (+/- 9 seconds per day).
  • Programming: Compatible with Ladder Diagram and Instruction List programming languages.

Applications

The IC200CPU001 is suitable for a wide range of industrial control tasks, including machine control, process monitoring, and distributed I/O management within the VersaMax platform.

Technical Specifications

Model IC200CPU001
Memory Type System Flash, Battery-backed RAM
Configurable Memory 34K Bytes
Scan Rate 1.8 ms / 1K logic
Backplane Current 140 mA @ 5V, 100 mA @ 3.3V
Discrete I/O Capacity 2048 Inputs / 2048 Outputs
Serial Ports 1x RS232, 1x RS485

Installation Guidelines

  • Handling: Ensure proper ESD precautions are taken when handling the module to prevent damage to internal circuitry.
  • Mounting: The module is designed for standard VersaMax backplane installation. Ensure it is fully seated and locked into the rack before applying power.
  • Power: Verify that the backplane power supply is within the specified voltage range before installation.
  • Wiring: Use shielded cables for serial communication to minimize EMI interference. Ensure proper grounding of the control cabinet.
  • Maintenance: Power down the system before removing or inserting the module to avoid electrical faults.

FAQ

What programming software is required for this CPU? The IC200CPU001 is programmed using GE's VersaPro or Machine Edition software, supporting Ladder Diagram and Instruction List languages.

Does this module support floating-point math? Yes, the IC200CPU001 supports floating-point data and calculations, making it suitable for applications requiring complex mathematical operations.
