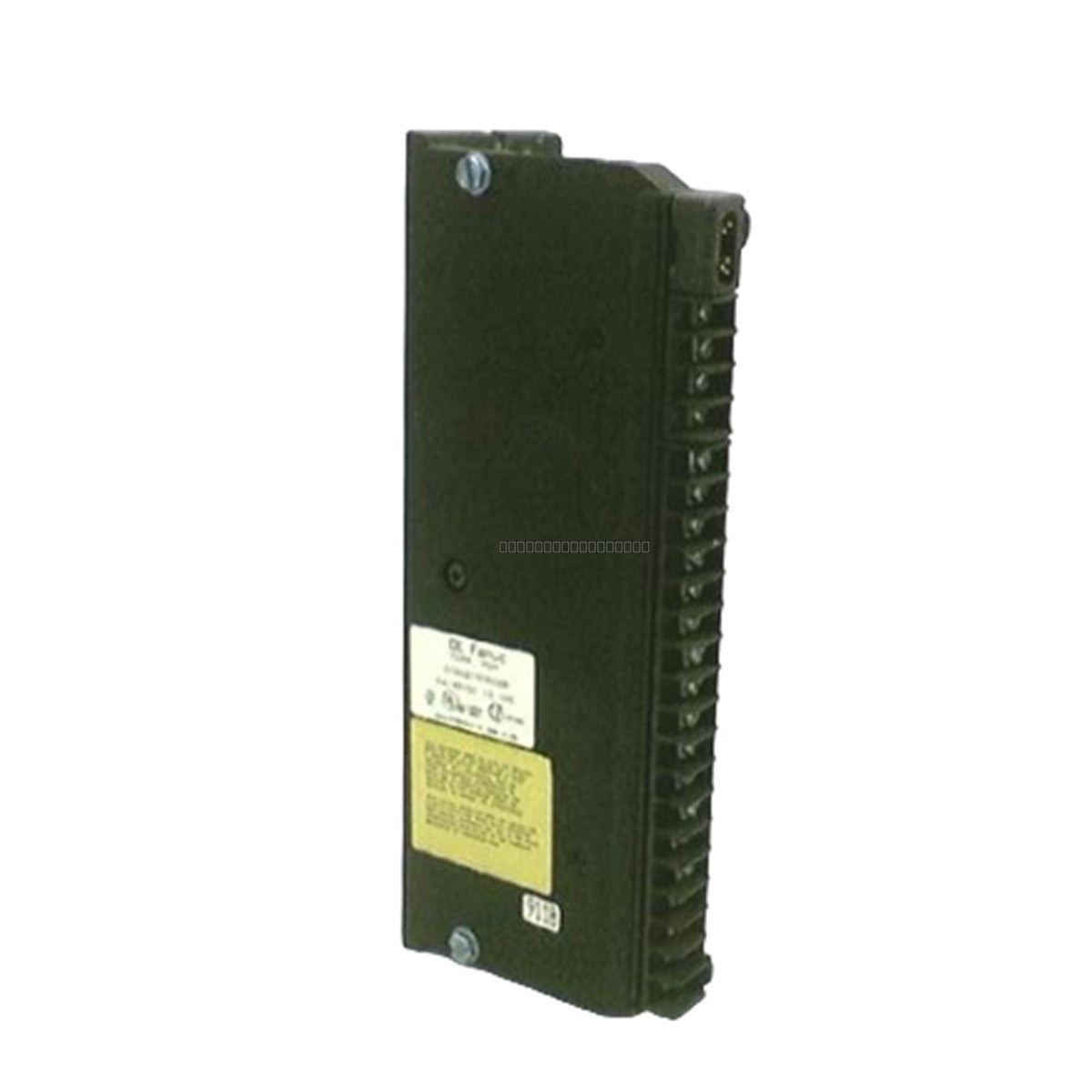

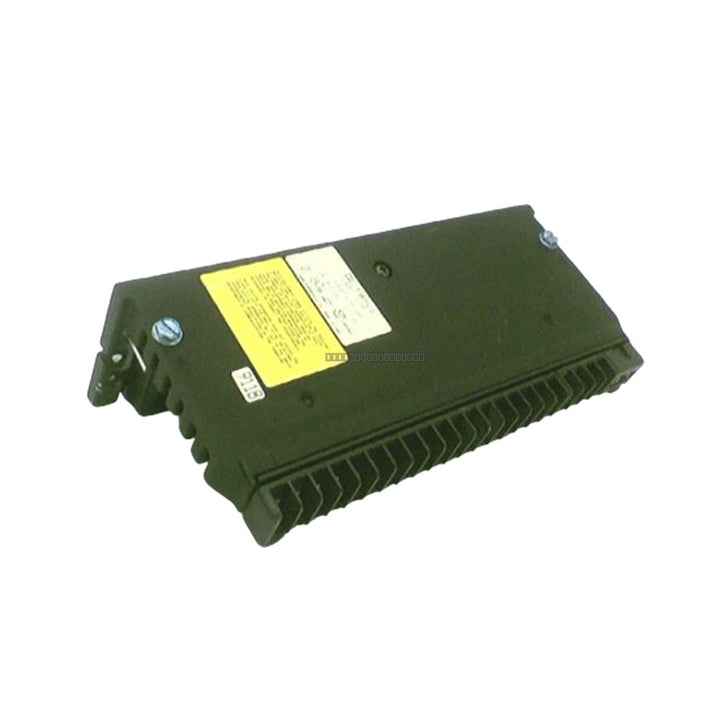

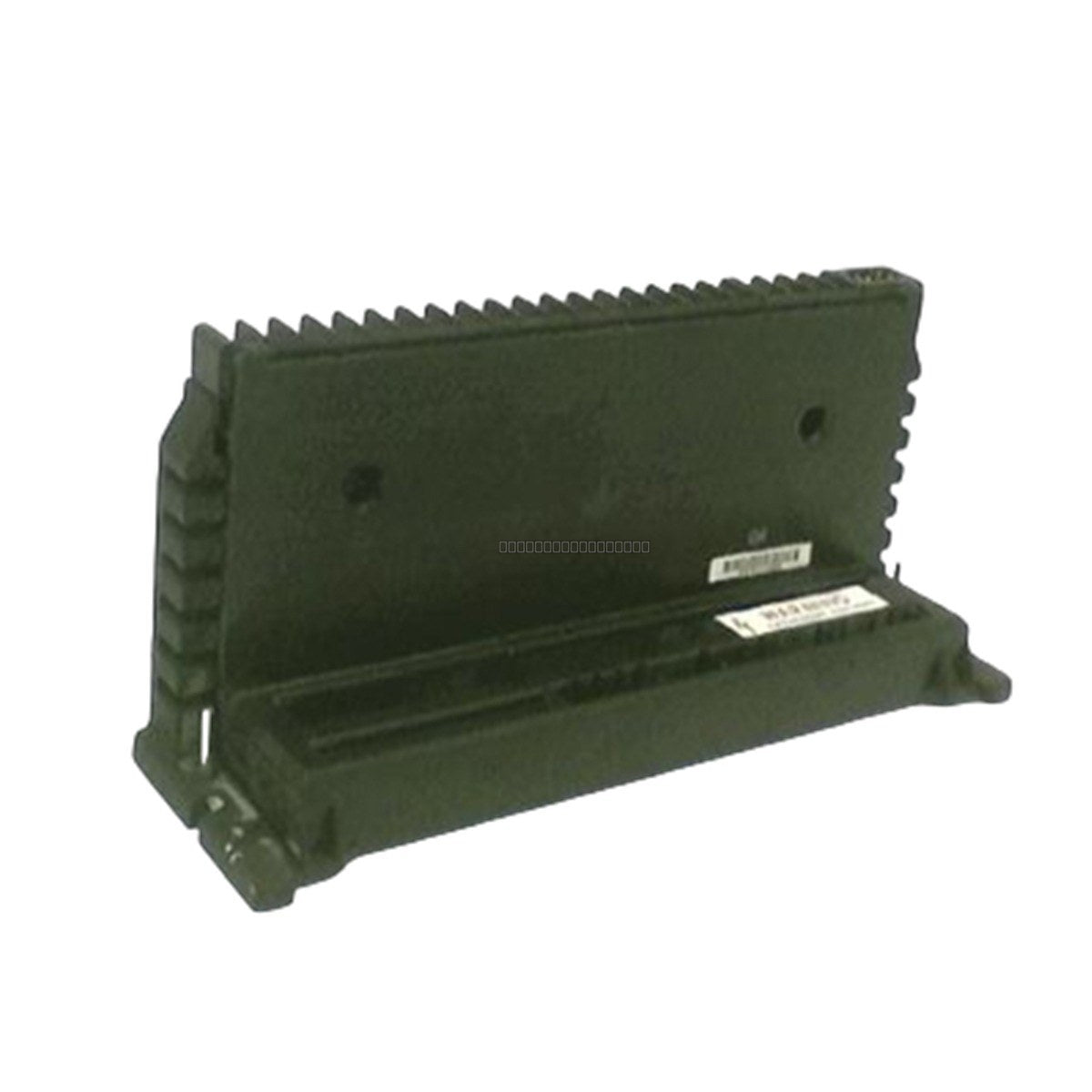

General Electric IC660TSD020 Genius Block I/O Terminal Assembly

General Electric IC660TSD020 Genius Block I/O Terminal Assembly

The General Electric IC660TSD020 is a terminal assembly designed for use within the Genius I/O system. This component provides the necessary physical interface for field wiring, supporting the integration of...

23 people are viewing this right now

Availability: Low stock: 7 left

SKU: IC660TSD020
Vendor: General Electric
Category: Terminal Assembly
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

The General Electric IC660TSD020 is a terminal assembly designed for use within the Genius I/O system. This component provides the necessary physical interface for field wiring, supporting the integration of 3-wire solid-state sensors into the Genius I/O network architecture.

Features

  • Designed for the Genius I/O series product family.
  • Supports 3-wire solid-state sensor configurations.
  • Robust terminal assembly for reliable field signal termination.
  • Operating temperature range of 0 to 60 degC.
  • Handles inrush currents up to 10 Amps.

Technical Specifications

Product Model IC660TSD020
Manufacturer General Electric
Product Type Terminal Assembly
Operating Voltage 18 to 56 Volts DC
Inrush Current 10 Amps
Operating Temperature 0 to 60 degC
Tariff Code 8537101190

Installation Guidelines

  • Ensure the system power is disconnected before installing or removing the terminal assembly to prevent electrical shock or equipment damage.
  • Verify that the operating voltage of the field devices is within the 18 to 56 VDC range specified for this module.
  • Maintain proper cable routing practices to minimize electromagnetic interference (EMI) within the control cabinet.
  • Ensure the module is securely mounted and that all terminal connections are tightened to the appropriate torque to prevent intermittent signals.
  • Provide adequate ventilation in the control enclosure to maintain ambient temperatures within the 0 to 60 degC operating range.

FAQ

What is the primary function of the IC660TSD020?

The IC660TSD020 acts as a terminal assembly for the Genius I/O block system, facilitating the connection of field sensors and devices to the control network.

Is this module compatible with 3-wire sensors?

Yes, this terminal assembly is specifically designed to support 3-wire solid-state sensors.

What is the operating voltage range for this unit?

The unit is designed to operate within a voltage range of 18 to 56 Volts DC.
