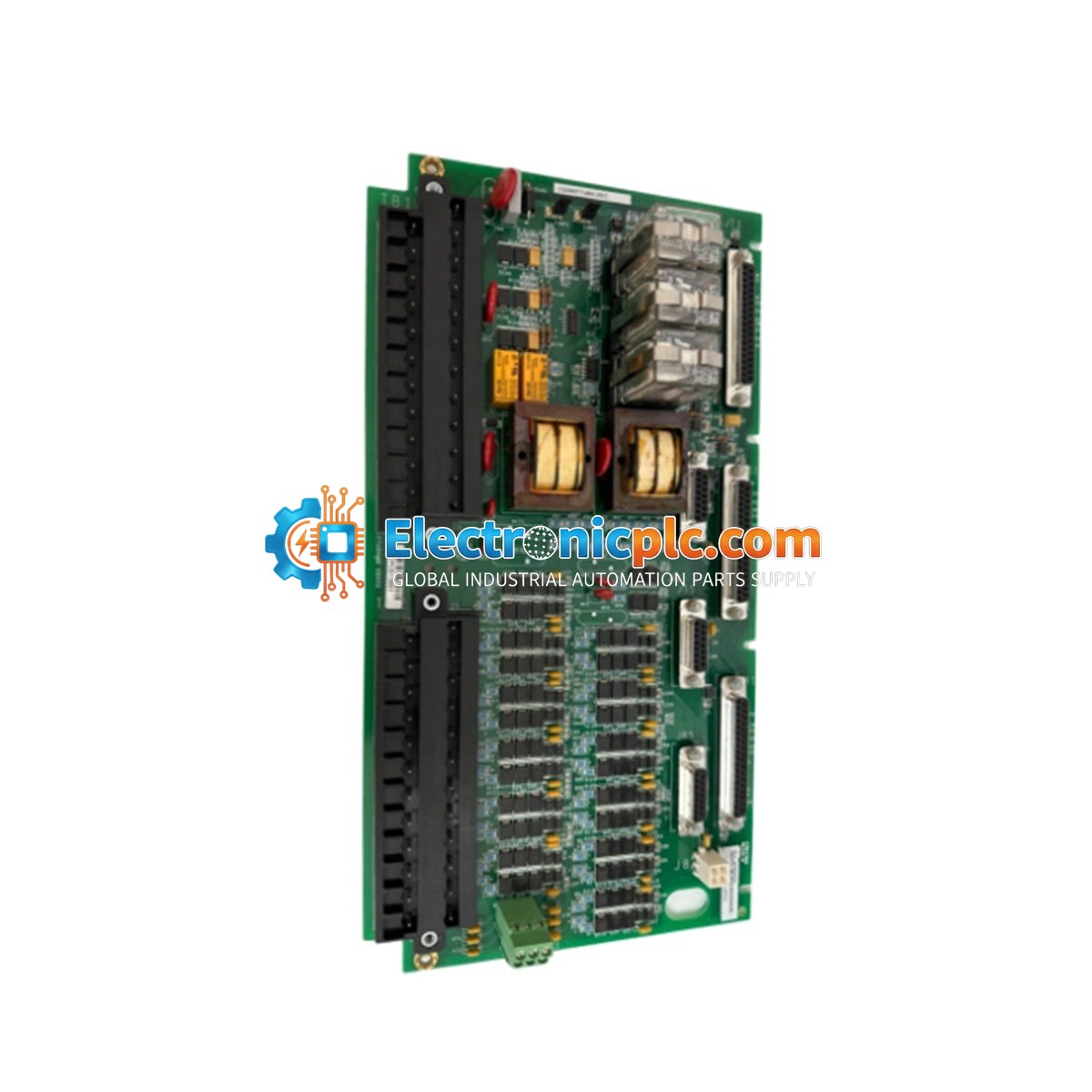

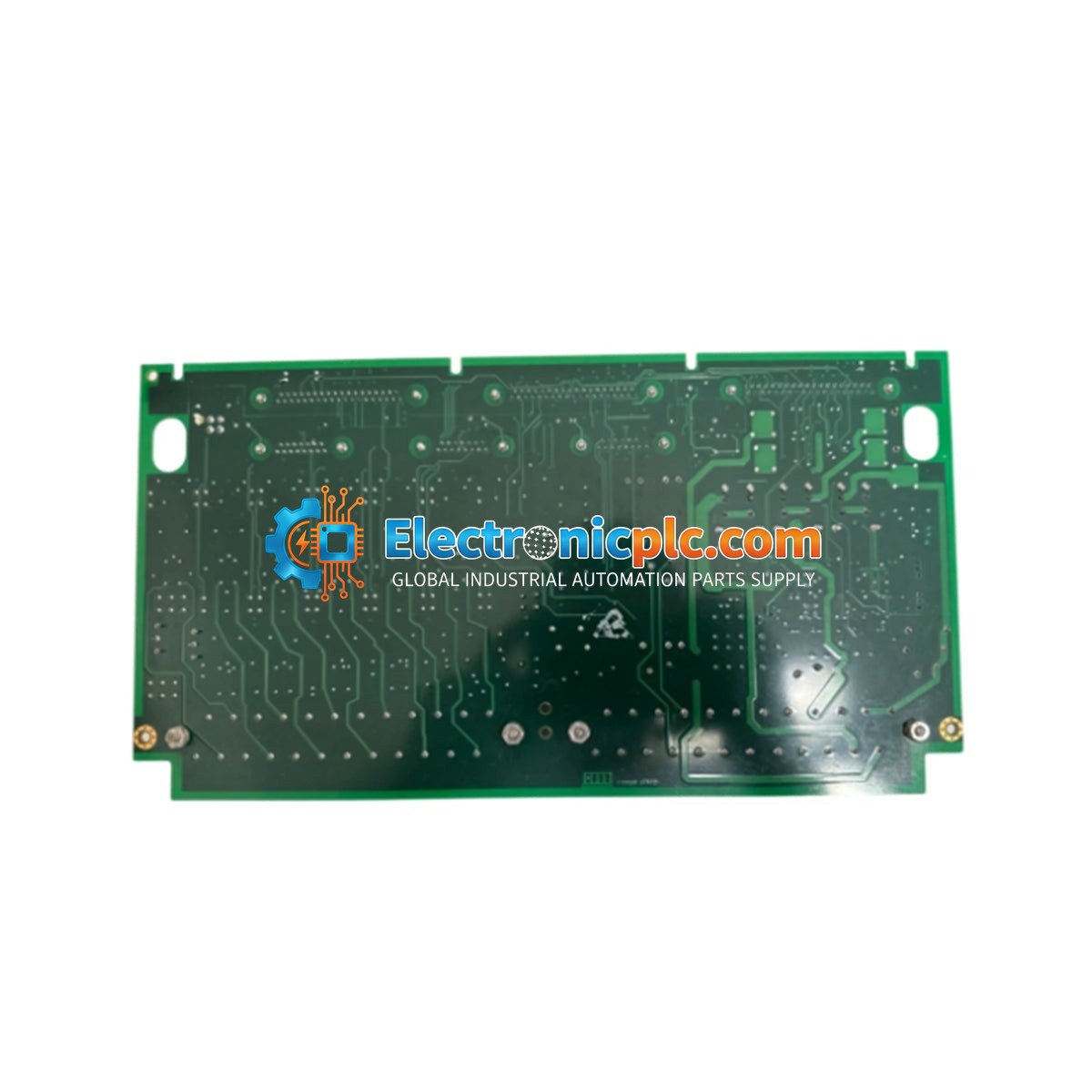

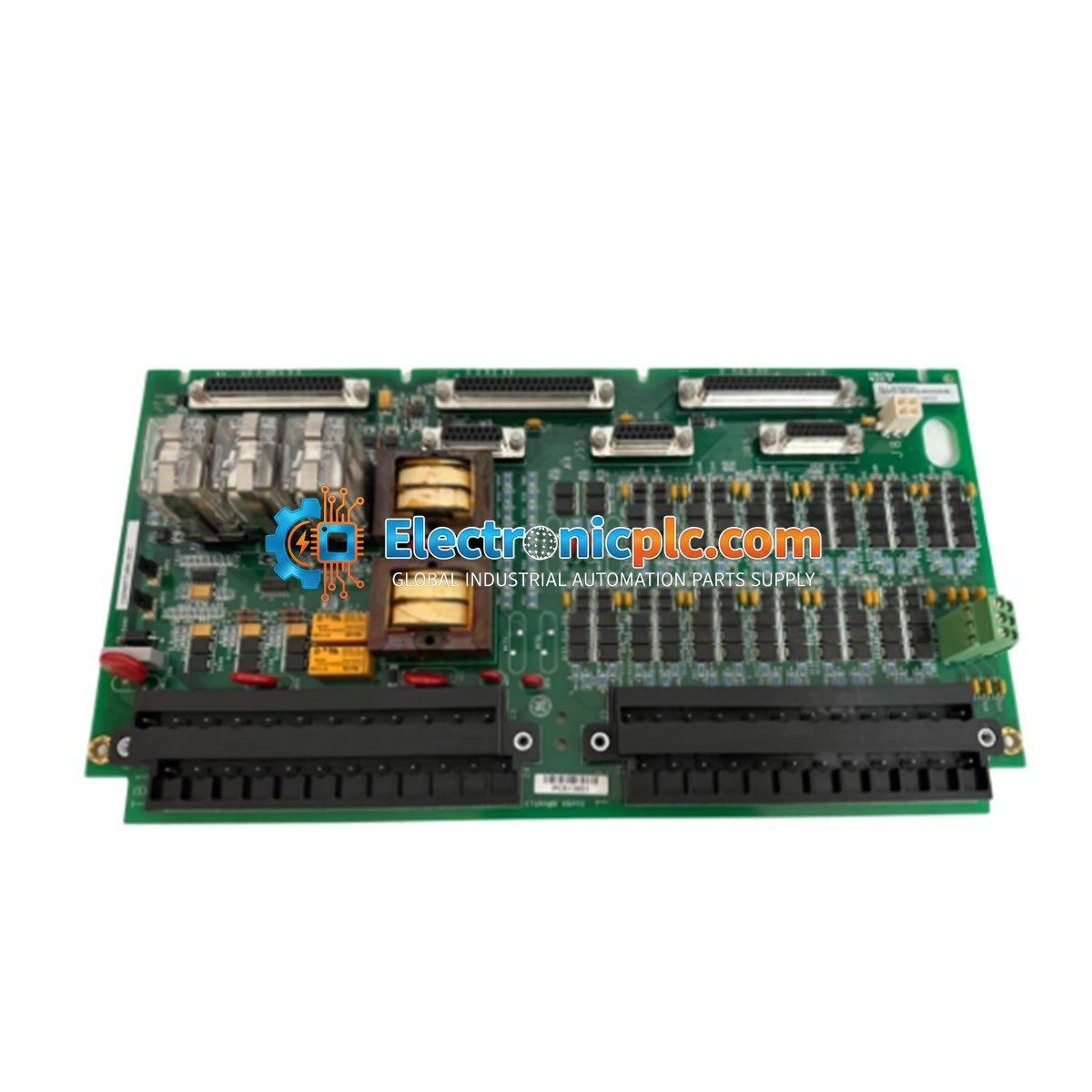

General Electric IS200TTURH1B Mark VIe Turbine Termination Board

General Electric IS200TTURH1B Mark VIe Turbine Termination Board

Description

The General Electric IS200TTURH1B is a termination board designed for use within the Mark VIe control system, specifically engineered for turbine control applications. This printed circuit board serves as a...

20 people are viewing this right now

Availability: Low stock: 4 left

SKU: IS200TTURH1B
Vendor: General Electric
Category: Termination Board
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The General Electric IS200TTURH1B is a termination board designed for use within the Mark VIe control system, specifically engineered for turbine control applications. This printed circuit board serves as a critical interface component, facilitating the connection between field wiring and the control system I/O modules. As a component of the Mark VIe series, it ensures reliable signal processing and distribution for turbine-related monitoring and control functions.

Features

  • Designed for integration with Mark VIe turbine control systems.
  • Provides robust termination points for field-level turbine instrumentation.
  • Supports high-frequency MPU (Magnetic Pickup) pulse inputs.
  • Engineered for high-reliability industrial environments.

Applications

This termination board is utilized in power generation and industrial turbine management systems. It is primarily used to interface with speed sensors, shaft voltage monitoring equipment, and other critical turbine instrumentation requiring precise signal acquisition and termination within the Mark VIe architecture.

Technical Specifications

Product Model IS200TTURH1B
Manufacturer General Electric
Function Turbine Termination Board
Number of Inputs 12
MPU Pulse Rate Range 2 Hz to 20 kHz
Shaft Voltage 5 V dc
Power Supply Voltage 125 V dc
Rated Input 200 to 230 V AC
Tariff Code 8537101190

Installation Guidelines

  • Ensure all power is disconnected from the rack and associated field wiring before attempting installation or removal of the board.
  • Handle the PCB using proper ESD (Electrostatic Discharge) mitigation techniques to prevent damage to sensitive electronic components.
  • Verify that the board is correctly seated in the designated slot within the Mark VIe cabinet and that all terminal connections are tightened to the specified torque.
  • Route signal cables away from high-voltage power lines and sources of electromagnetic interference (EMI) to maintain signal integrity.
  • Ensure adequate ventilation within the control cabinet to maintain operating temperatures within the manufacturer's specified limits.

FAQ

Is the IS200TTURH1B still being manufactured?

No, this model has been discontinued by the manufacturer. We provide high-quality replacement units to support legacy Mark VIe systems.

What is the primary function of this board?

The IS200TTURH1B acts as a termination interface, allowing field sensors and turbine devices to connect to the Mark VIe control system I/O, specifically handling MPU inputs and shaft voltage monitoring.
