GE Mark V DS200FSAAG1A Field Supply Amplifier

GE Mark V DS200FSAAG1A Field Supply Amplifier

Description

The GE Mark V DS200FSAAG1A is a specialized Field Supply Amplifier board designed for the GE Speedtronic Mark V control system. This module is engineered to provide precise excitation...

18 people are viewing this right now

Availability: Low stock: 8 left

SKU: DS200FSAAG1A
Vendor: GE FANUC
Category: Field Supply Amplifier
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

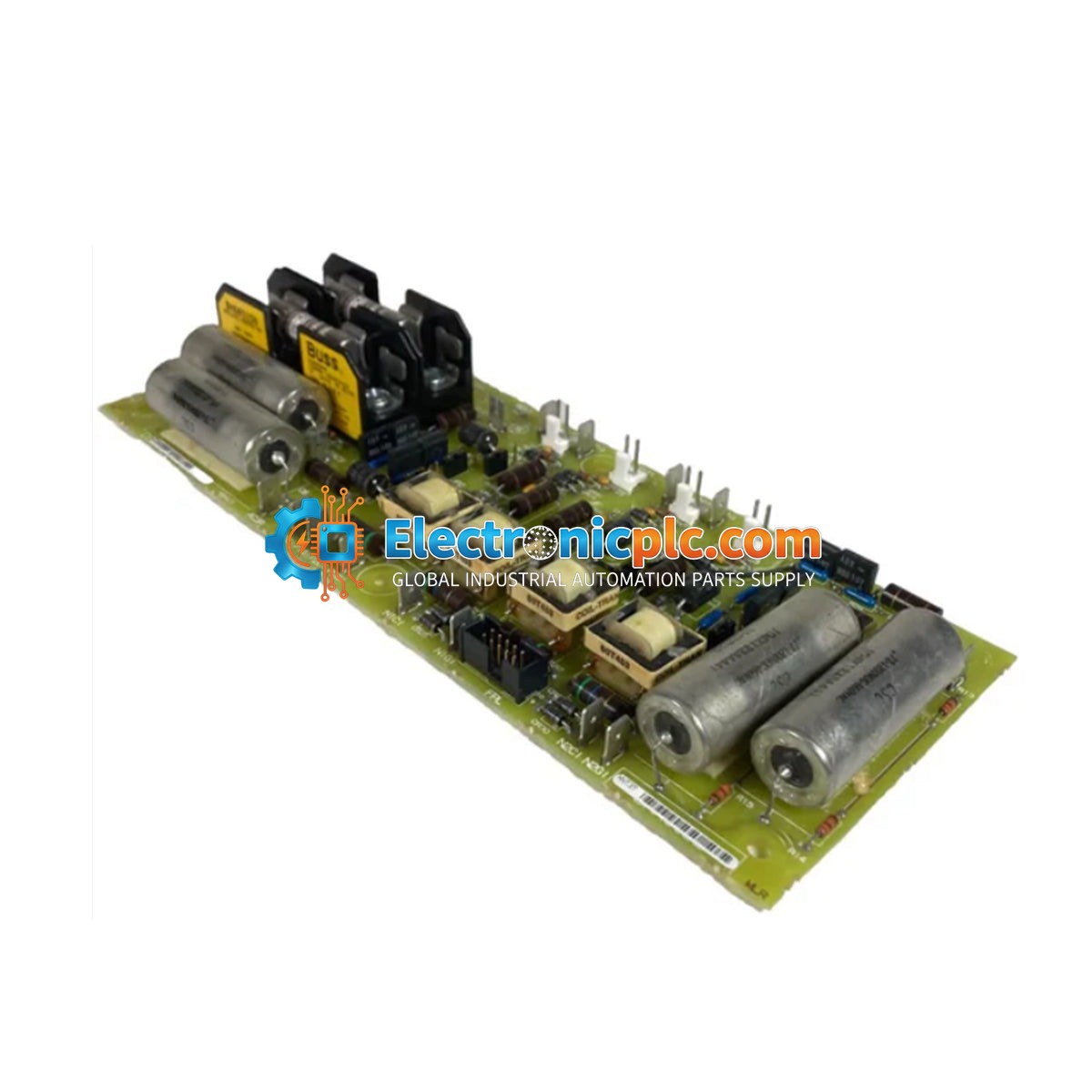

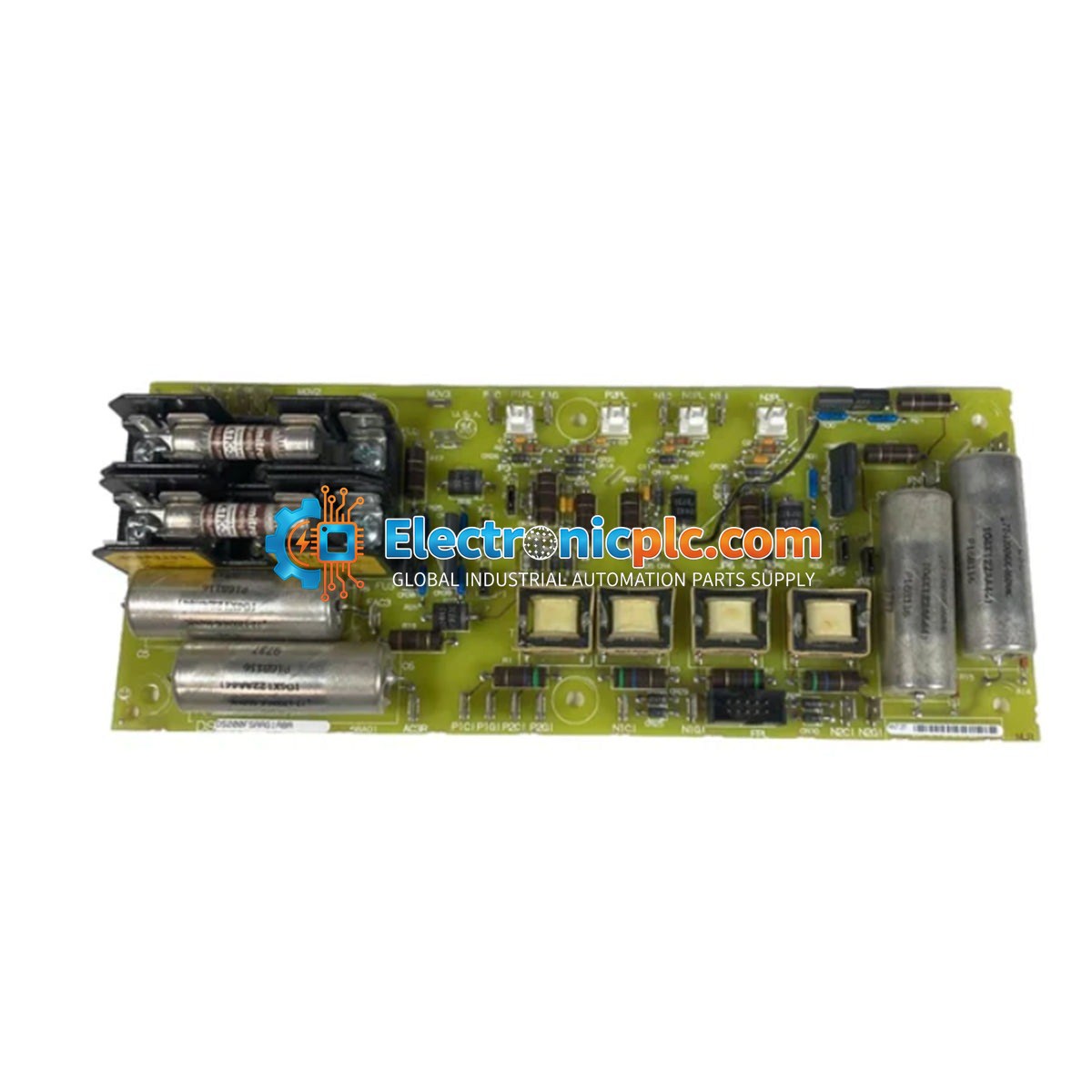

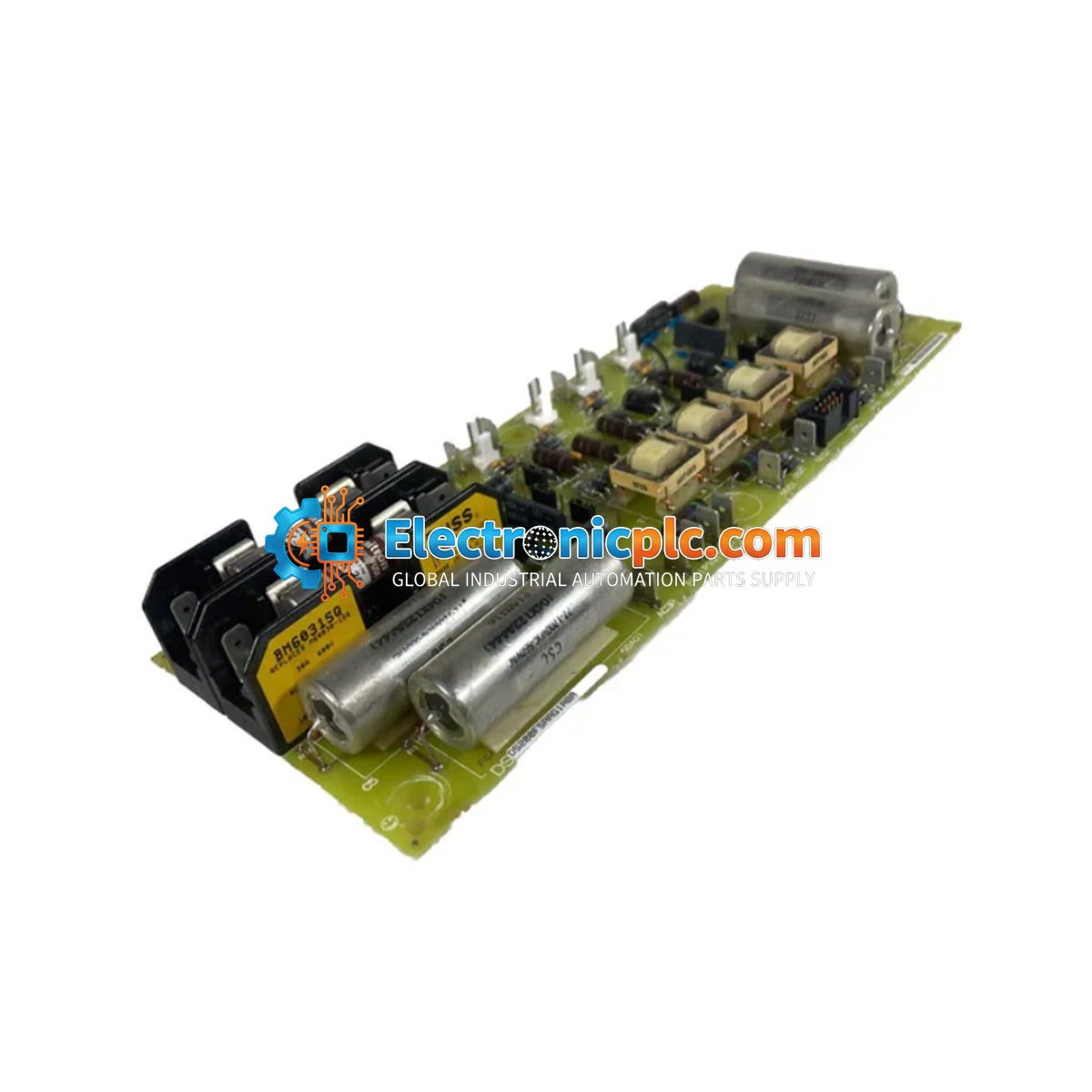

The GE Mark V DS200FSAAG1A is a specialized Field Supply Amplifier board designed for the GE Speedtronic Mark V control system. This module is engineered to provide precise excitation current control for motor drives and turbine generators in demanding industrial environments, including power plants and mining operations. It facilitates high-speed signal amplification for stable magnetic field regulation and interfaces with host drive components via a dedicated 10-pin connector.

Features

  • High-Capacity Fusing: Integrated with two 30 Amp fuses for primary circuit overcurrent protection, allowing for rapid inspection and maintenance.
  • Energy Management: Equipped with four high-voltage electrolytic capacitors to manage energy storage and release, ensuring a consistent field supply.
  • Hardware Configuration: Features five onboard jumper sets for manual configuration; critical for matching settings during board replacement.
  • Diagnostic Support: Includes multiple onboard test points to facilitate efficient troubleshooting and system verification.
  • Robust Mounting: Designed for secure installation using a standoff-and-screw system, providing vibration resistance in heavy-duty applications.

Applications

This amplifier is primarily used within GE Mark V Speedtronic control systems to regulate excitation current for turbine generators and large-scale industrial motor drives. It is a critical component for maintaining stable magnetic fields in power generation and heavy industrial drive systems.

Technical Specifications

Model DS200FSAAG1A
Brand General Electric (GE)
Series Mark V
Function Field Supply Amplifier
Connector Type 10-pin primary interface
Fusing 2 x 30 Amp high-voltage fuses
Hardware Config 5 Configurable jumpers
Operating Temp 0 to 60 deg C

Installation Guidelines

  • Power Down: Always ensure the system is fully de-energized and capacitors are discharged before attempting to remove or install the board.
  • Jumper Configuration: Before commissioning, ensure all five jumper settings match the configuration of the original board to maintain system performance.
  • Mounting: Secure the board using the four corner mounting holes and appropriate standoffs to ensure proper grounding and vibration resistance.
  • Handling: Observe standard ESD (Electrostatic Discharge) precautions when handling the board to prevent damage to sensitive electronic components.

FAQ

How do I ensure the replacement board is configured correctly?

Technicians must manually set the five onboard jumpers to match the exact positions of the existing board being replaced to ensure identical performance characteristics.

What is the primary function of the capacitors on this board?

The four large electrolytic capacitors are responsible for the storage and controlled release of high-voltage energy, which is necessary to maintain a consistent field supply during operation.
