GE Fanuc QPJ2D100S2P QuickPanel Jr. Touch Screen HMI

GE Fanuc QPJ2D100S2P QuickPanel Jr. Touch Screen HMI

Description

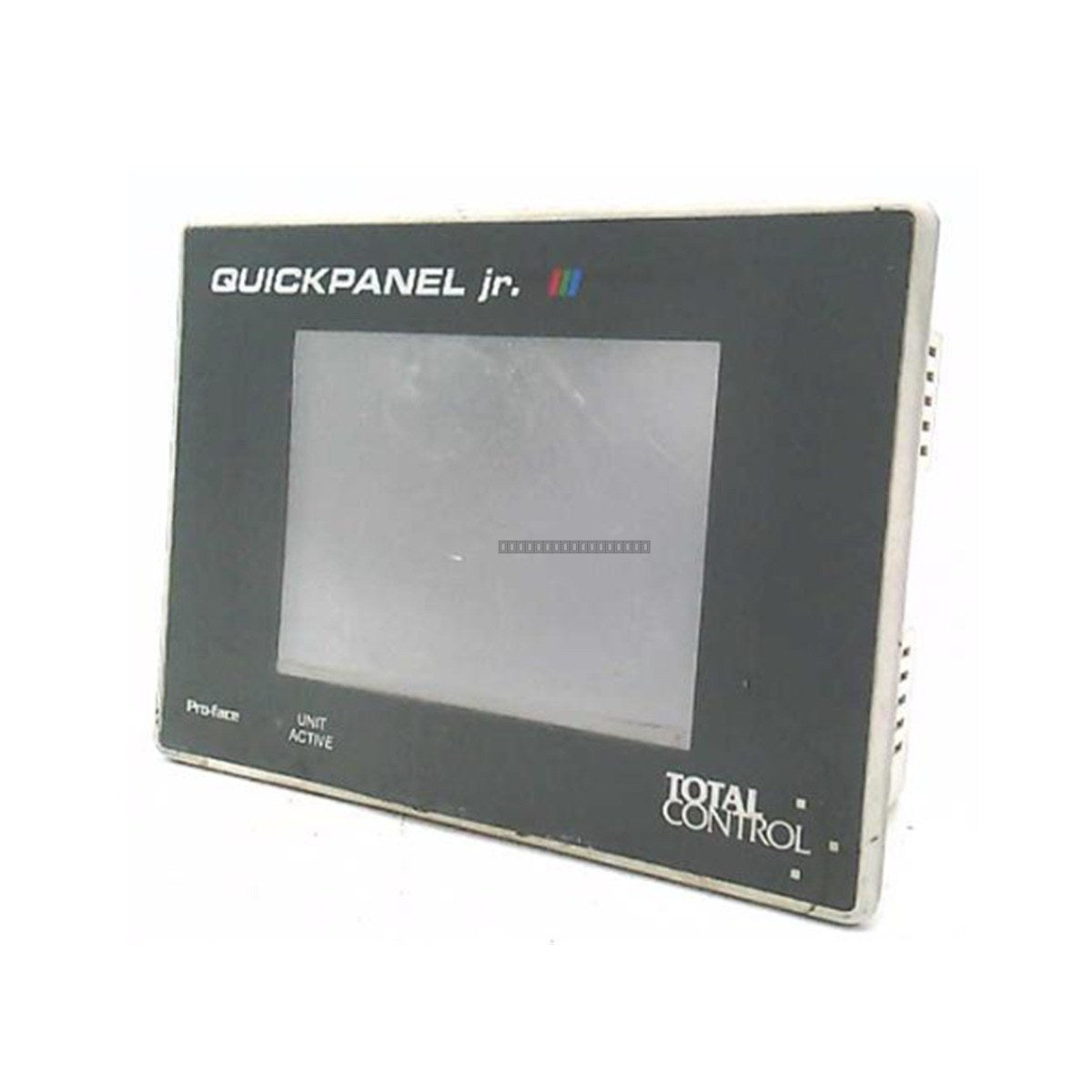

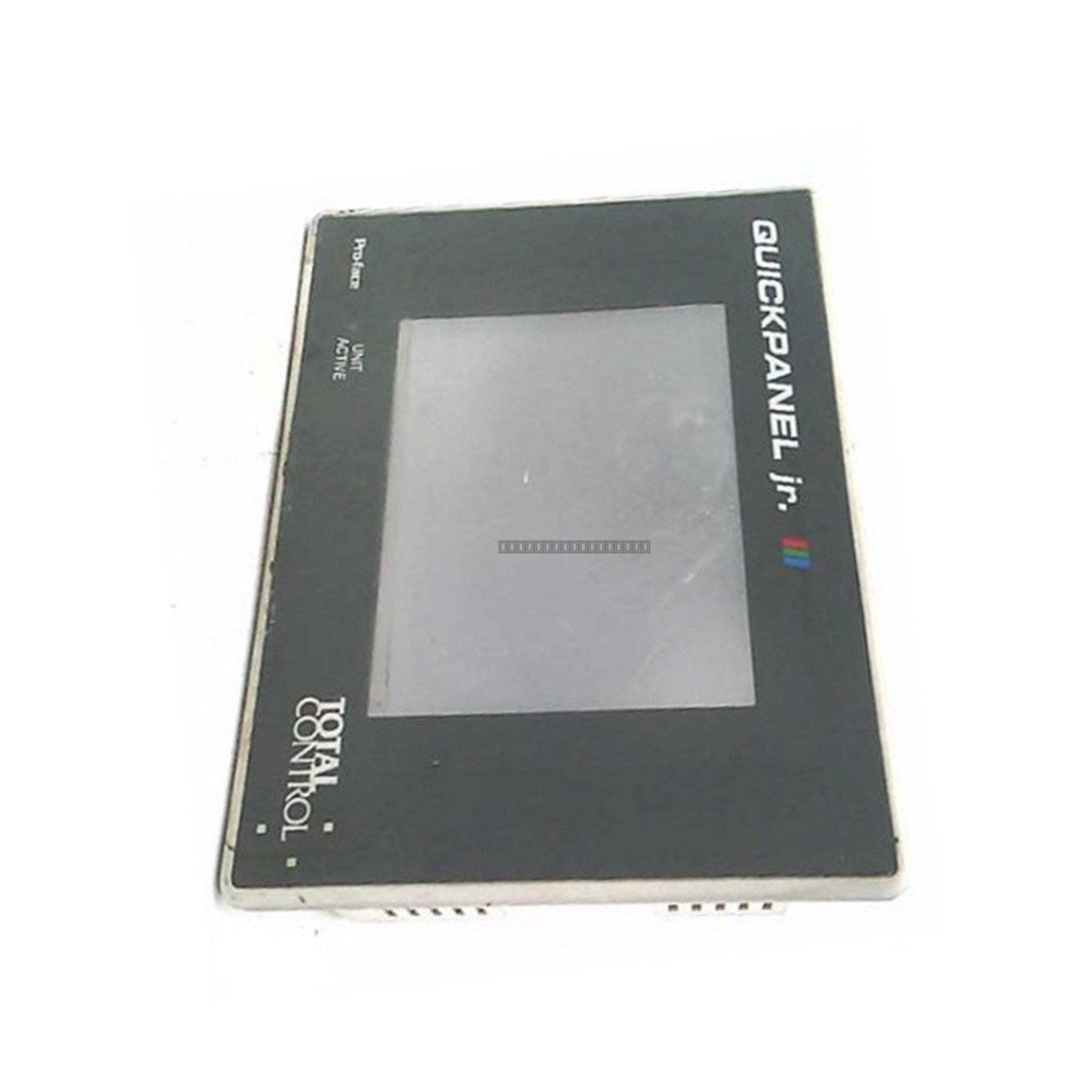

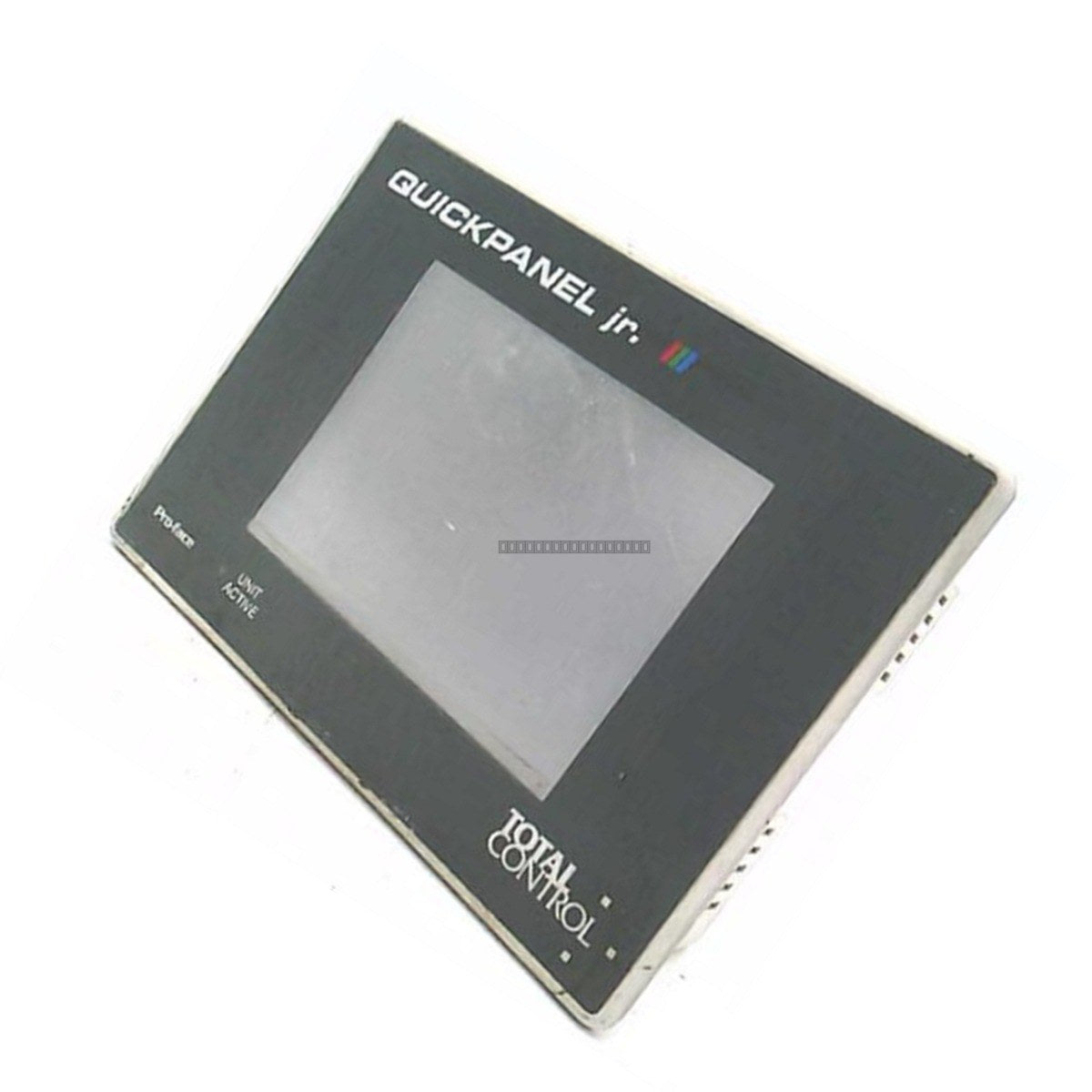

The GE Fanuc QPJ2D100S2P is a 4.7-inch STN color touch screen interface designed for the QuickPanel Jr. series. This Human-Machine Interface (HMI) provides reliable visual feedback and control for industrial...

17 people are viewing this right now

Availability: Low stock: 8 left

SKU: QPJ2D100S2P
Vendor: GE FANUC
Category: HMI Touch Screen
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The GE Fanuc QPJ2D100S2P is a 4.7-inch STN color touch screen interface designed for the QuickPanel Jr. series. This Human-Machine Interface (HMI) provides reliable visual feedback and control for industrial automation environments, including automotive assembly, packaging, and material handling systems. The unit features a responsive 240 x 320 pixel resolution and a color palette of 16 hues, enabling clear status monitoring and efficient operator interaction.

Features

  • 4.7-inch STN color LCD display with 240 x 320 resolution.
  • Supports 8 solid and 8 flashing colors for intuitive alarm and status indication.
  • NEMA 4X/12 and IP65-rated enclosure for protection against dust and liquid ingress.
  • Designed for natural air convection cooling, ensuring stable operation in demanding environments.
  • High electrical immunity with tolerance for power interruptions up to 20 milliseconds.
  • Compatible with QuickDesigner Version 3.7 for streamlined application development and protocol management.

Applications

This HMI is suitable for a wide range of industrial control applications, including:

  • Automotive assembly lines
  • Food and beverage packaging machinery
  • Automated material handling systems
  • Diagnostic monitoring and process control interfaces

Technical Specifications

Model QPJ2D100S2P
Brand GE Fanuc
Series QuickPanel Jr.
Display Type 4.7-inch STN Color LCD
Resolution 240 x 320 pixels
Input Voltage 24 VDC (20.4 to 27.6 VDC)
Power Consumption 12 W
Operating Temperature 0 to 45 degC
Ingress Protection IP65 / NEMA 4X/12
Cooling Natural Air Convection

Installation Guidelines

  • Ensure the panel cutout is prepared according to manufacturer specifications to maintain the integrity of the NEMA 4X/12 seal.
  • Verify that the power supply is within the 20.4 to 27.6 VDC range before connection.
  • Maintain adequate clearance around the unit to allow for natural air convection cooling.
  • Use shielded communication cables to minimize electromagnetic interference (EMI) in high-noise industrial environments.
  • Always disconnect power before installing or removing the module to prevent electrical damage.
  • Handle the touch screen surface with care to avoid scratching or pressure damage.

FAQ

What software is required to program this HMI?
The QPJ2D100S2P is compatible with QuickDesigner Version 3.7 for application development and configuration.

What is the ingress protection rating of this unit?
The unit is rated IP65 and NEMA 4X/12, making it suitable for washdown environments and areas with airborne particulates.

Does this unit require external cooling?
No, the unit is designed for natural air convection cooling and does not require external fans, provided it is installed with sufficient clearance.
