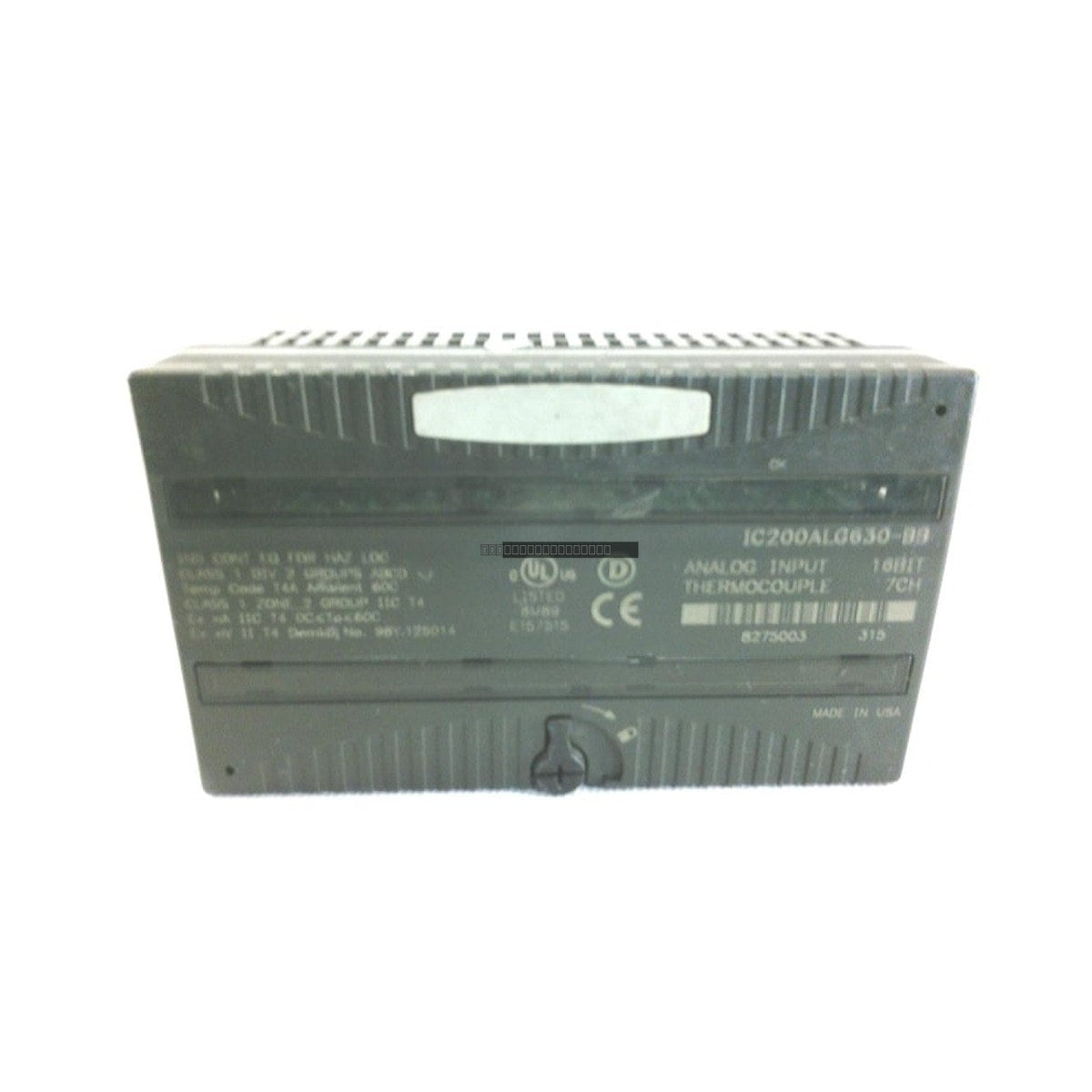

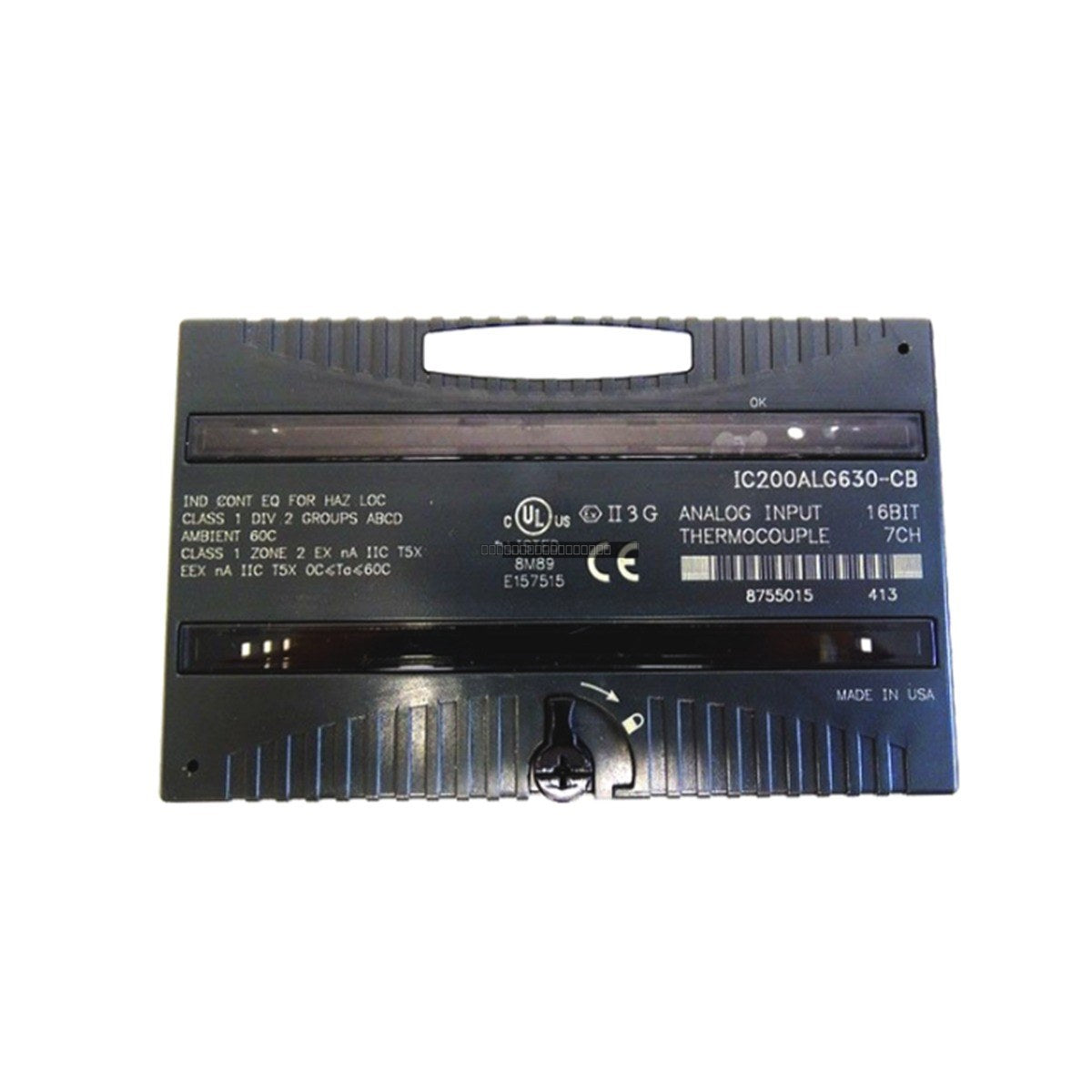

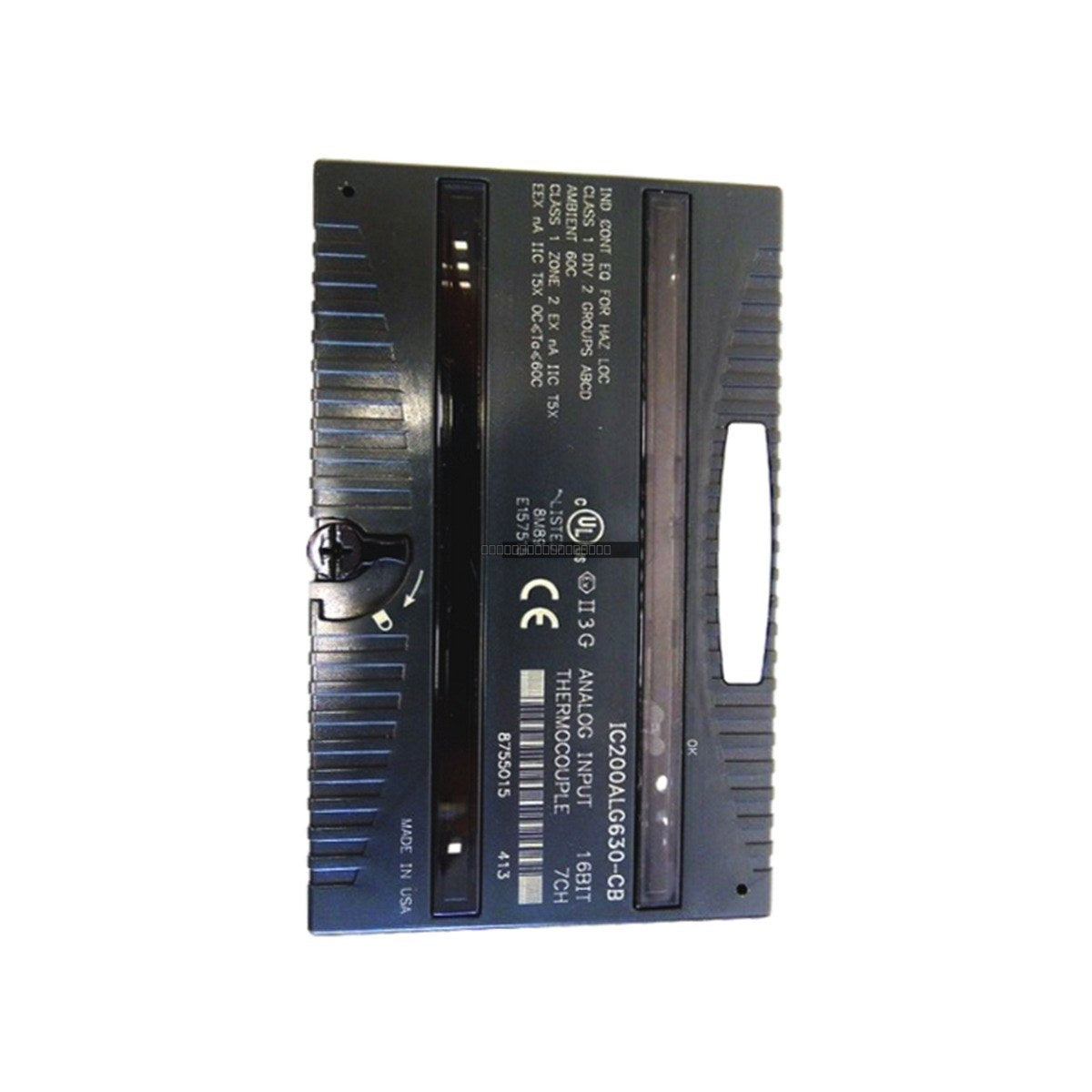

General Electric IC200ALG630 VersaMax Thermocouple Input Module

General Electric IC200ALG630 VersaMax Thermocouple Input Module

Description

The General Electric IC200ALG630 is a high-performance analog input module designed for the VersaMax I/O system. This module is specifically engineered to interface with thermocouple sensors, providing accurate temperature data...

15 people are viewing this right now

Availability: Low stock: 7 left

SKU: IC200ALG630
Vendor: General Electric
Category: Analog Input Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The General Electric IC200ALG630 is a high-performance analog input module designed for the VersaMax I/O system. This module is specifically engineered to interface with thermocouple sensors, providing accurate temperature data acquisition for industrial control applications. It supports multiple thermocouple types and offers high-resolution conversion to ensure precise monitoring in demanding environments.

Features

  • Supports thermocouple types J, K, T, S, and R.
  • 16-bit resolution (15 bits plus sign) for high-precision data capture.
  • Seven isolated input channels for versatile sensor connectivity.
  • Excellent noise immunity with 60dB normal mode rejection and 120dB common mode rejection.
  • Configurable input spans ranging from 19.5mV to 625mV.
  • Robust electrical isolation between channels and logic circuitry.

Technical Specifications

Product Model IC200ALG630
Manufacturer General Electric
Module Type Thermocouple Input Module
Input Channels 7
Converter Resolution 15 bits + sign
Thermocouple Types J, K, T, S, R
Normal Mode Rejection 60dB at 50/60 Hz
Common Mode Rejection 120dB at 50/60 Hz
Conformity Error +/- 0.3 degC / +/- 0.5 degF
Isolation (Input to Logic) 250VAC continuous

Installation Guidelines

  • Ensure the VersaMax rack power is disconnected before installing or removing the module.
  • Mount the module onto a compatible VersaMax I/O carrier.
  • Use shielded thermocouple extension wire to minimize electromagnetic interference (EMI).
  • Ensure proper grounding of the cable shields at the control panel to maintain signal integrity.
  • Verify that the thermocouple polarity matches the module terminal assignments to prevent measurement errors.
  • Maintain adequate clearance around the module for proper ventilation and heat dissipation.

FAQ

What thermocouple types are supported by the IC200ALG630?
This module supports J, K, T, S, and R type thermocouples.

How many channels does this module provide?
The IC200ALG630 features 7 input channels.

What is the resolution of the analog-to-digital converter?
The module utilizes a 15-bit plus sign converter, providing 16-bit resolution for temperature inputs.
