GE Fanuc 531X133PRUALG1 EX2000 Process Interface Board

GE Fanuc 531X133PRUALG1 EX2000 Process Interface Board

Description

The 531X133PRUALG1 is a high-precision Process Interface Board engineered for the General Electric EX2000 series and compatible drive control systems. This PCB functions as a critical signal processing hub, responsible...

27 people are viewing this right now

Availability: In stock

SKU: 531X133PRUALG1
Vendor: GE FANUC
Category: Process Interface Board
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

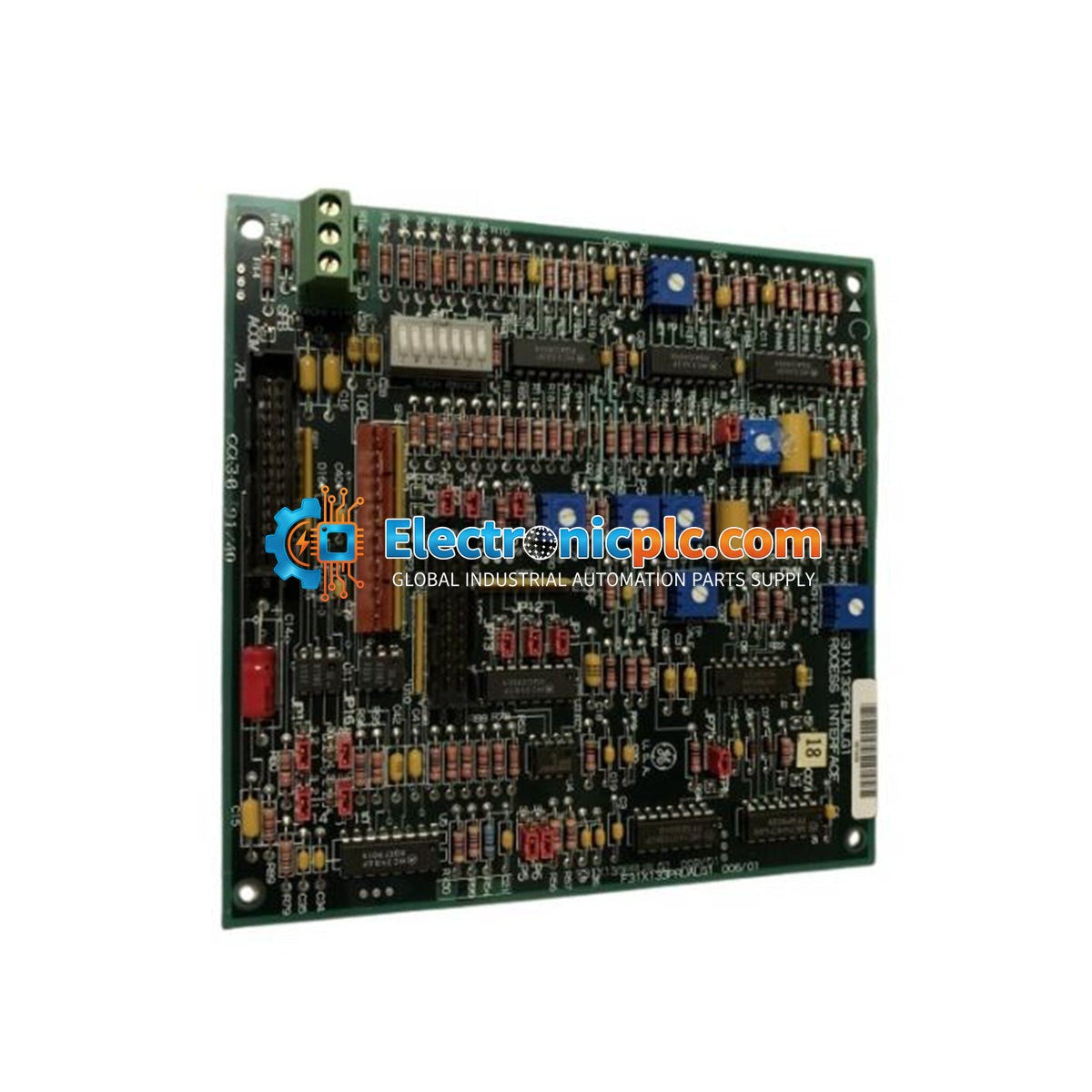

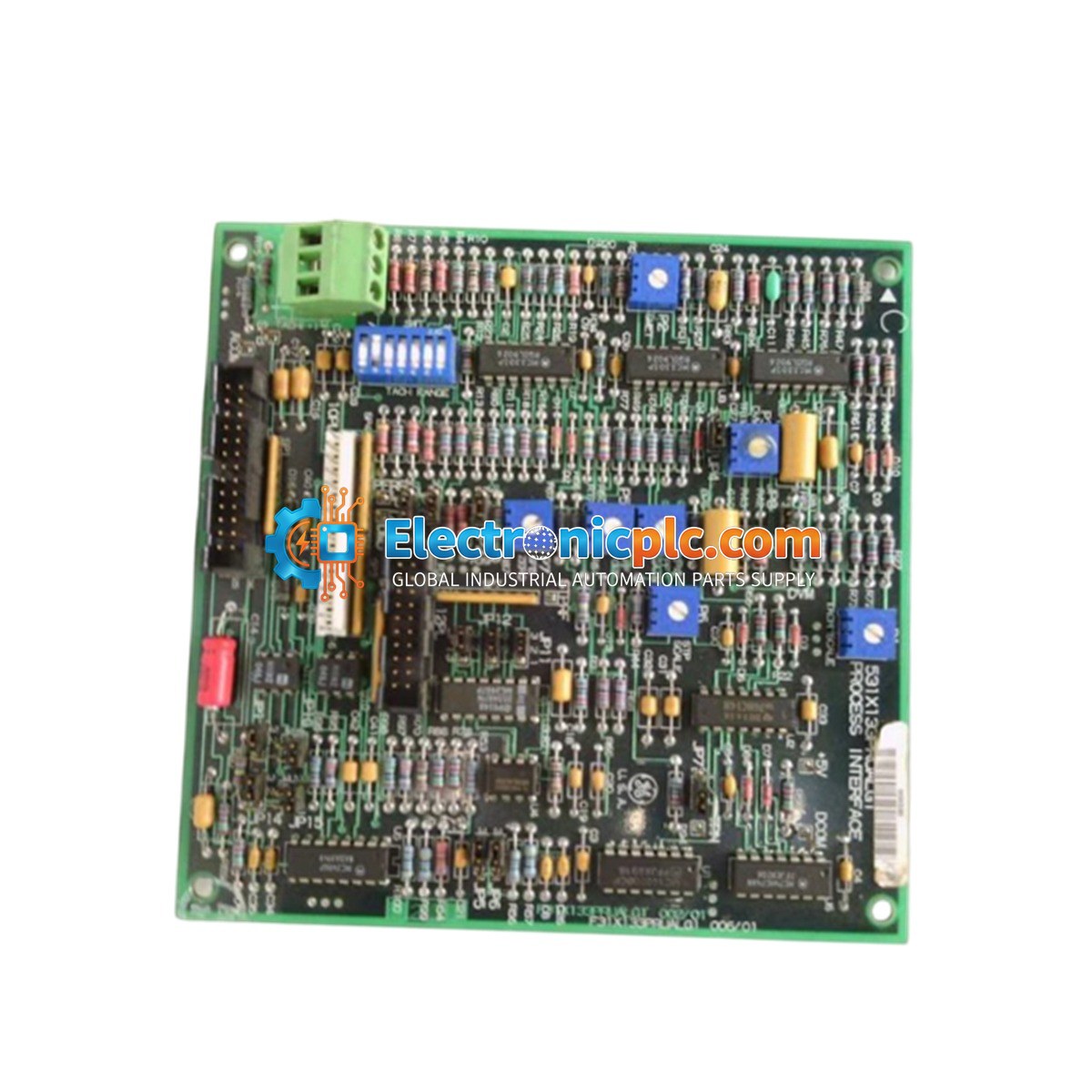

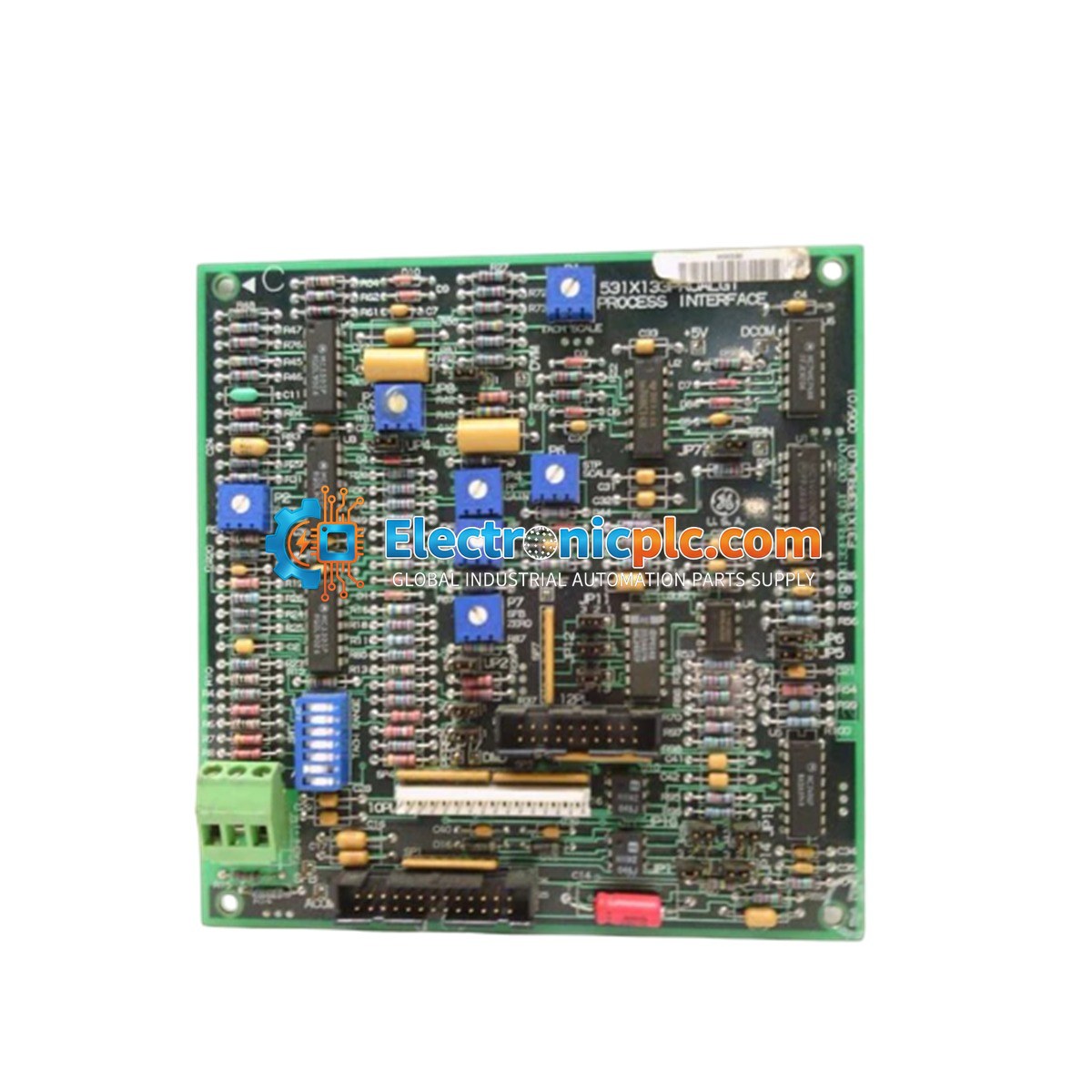

The 531X133PRUALG1 is a high-precision Process Interface Board engineered for the General Electric EX2000 series and compatible drive control systems. This PCB functions as a critical signal processing hub, responsible for the filtering, amplification, isolation, and conversion of raw input signals into actionable data for the drive control architecture. It is widely utilized in heavy-duty industrial sectors, including power generation, mining, and oil and gas refining, to ensure high-fidelity signal transmission and system stability.

Features

  • Signal Processing: Integrated high-stability analog line receivers and inverters optimized for drive system synchronization.
  • Connectivity: Equipped with two vertical male pin cable connectors, one 3-position terminal strip for field wiring, and an additional surface-mounted header.
  • User Configuration: Features a 7-toggle switch block designated for "Tach range" adjustment, allowing for precise rotational speed feedback calibration.
  • Diagnostics: Includes multiple test points (TP) distributed across the board for real-time voltage monitoring and waveform analysis.
  • Maintenance: Components are clearly marked with reference designators to facilitate identification and troubleshooting.

Applications

This interface board is primarily used within GE EX2000 drive systems to manage analog signal conditioning and feedback loops. It is essential for applications requiring accurate speed control, motor synchronization, and reliable process signal interfacing in demanding industrial environments.

Technical Specifications

Model 531X133PRUALG1
Brand General Electric (GE)
Series EX2000
Product Type Process Interface Board
Mounting Type Panel mount (corner holes)
Connector Type 2 x Male Vertical Pin; 1 x 3-position Terminal Strip
Configuration 7-toggle "Tach range" switch
Operating Temperature 0 to 60 deg Celsius
Storage Temperature -40 to 85 deg Celsius

Installation Guidelines

  • Handling: This module contains sensitive electronic components. Always use proper ESD (Electrostatic Discharge) protection when handling the board.
  • Mounting: Use the pre-drilled corner holes to securely fasten the board to the control panel. Ensure the mounting surface is clean and free of conductive debris.
  • Wiring: Ensure all power to the drive system is disconnected before installing or removing the board. Follow the system wiring diagram for the 3-position terminal strip connections.
  • Configuration: Verify the "Tach range" toggle switch settings against your specific drive application requirements before commissioning.
  • Environment: Maintain the operating temperature within the specified 0 to 60 deg Celsius range to prevent thermal degradation of components.

FAQ

What is the primary function of the 531X133PRUALG1?

The 531X133PRUALG1 acts as a signal processing hub for the EX2000 drive series, handling the conversion, isolation, and amplification of analog signals to ensure accurate feedback and control.

Can I adjust the tachometer settings on this board?

Yes, the board features a 7-toggle switch block specifically labeled for "Tach range" adjustments, which allows users to calibrate rotational speed feedback for their specific application.

How should this board be mounted?

The board is designed for panel mounting and includes pre-drilled holes in each corner for secure installation within the drive cabinet.
