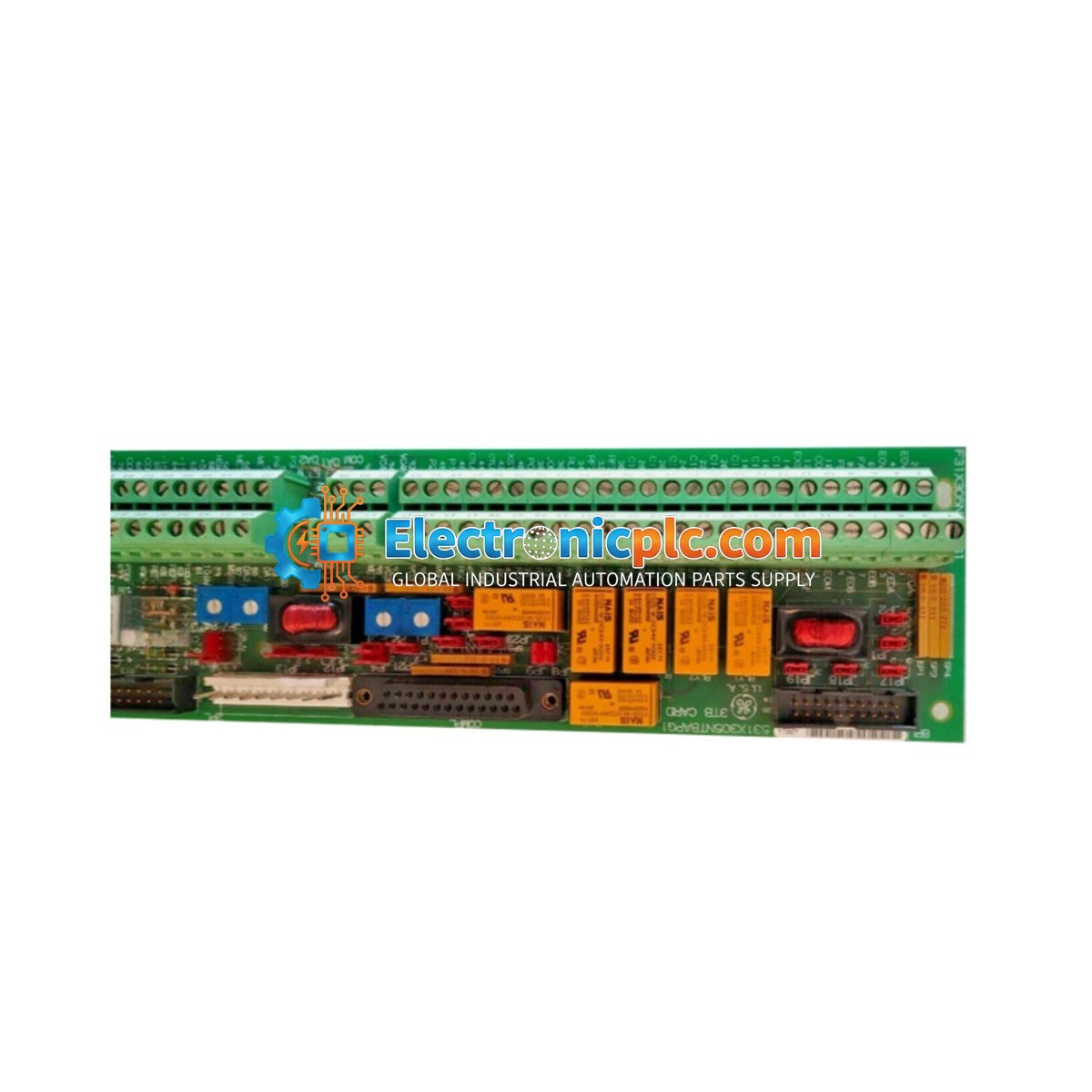

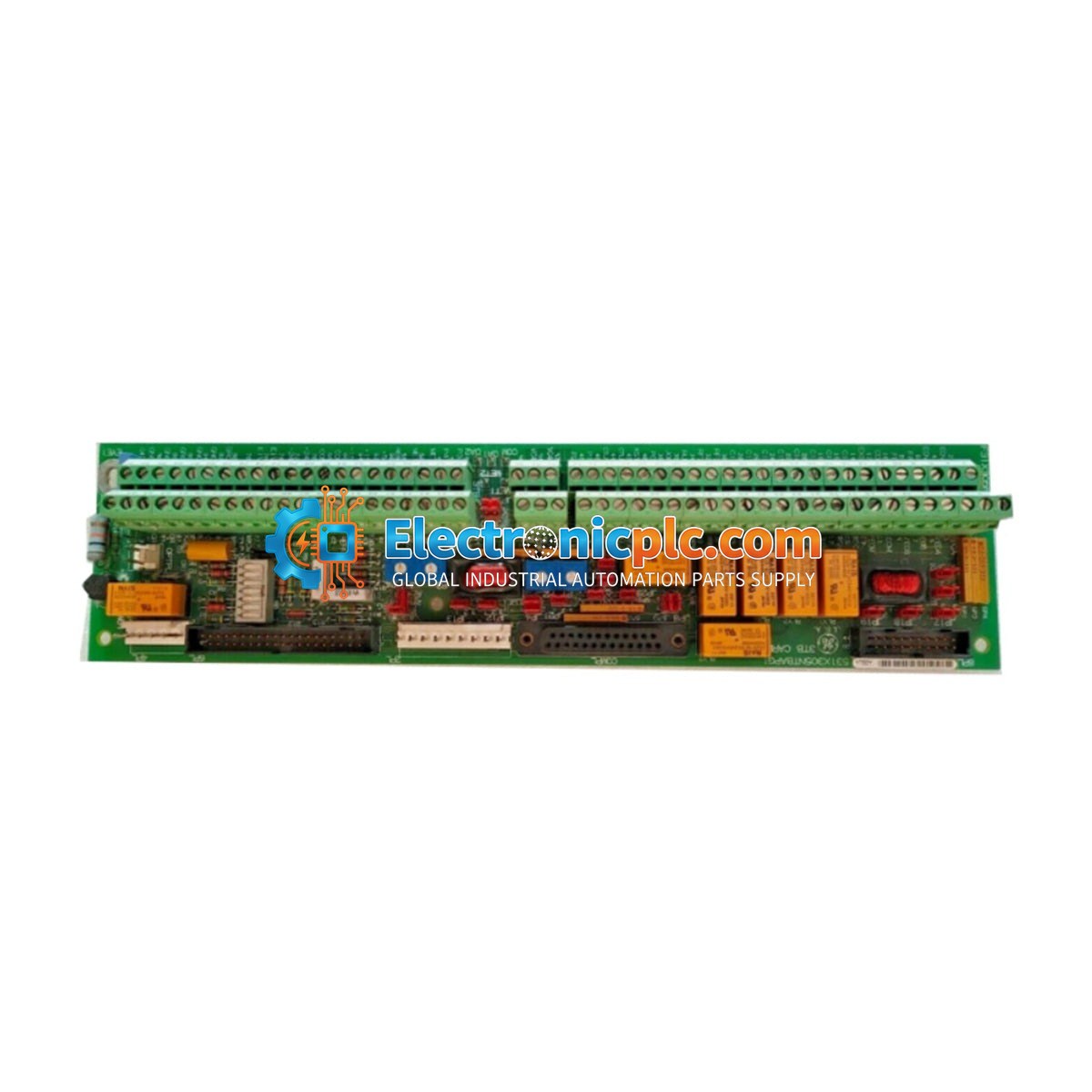

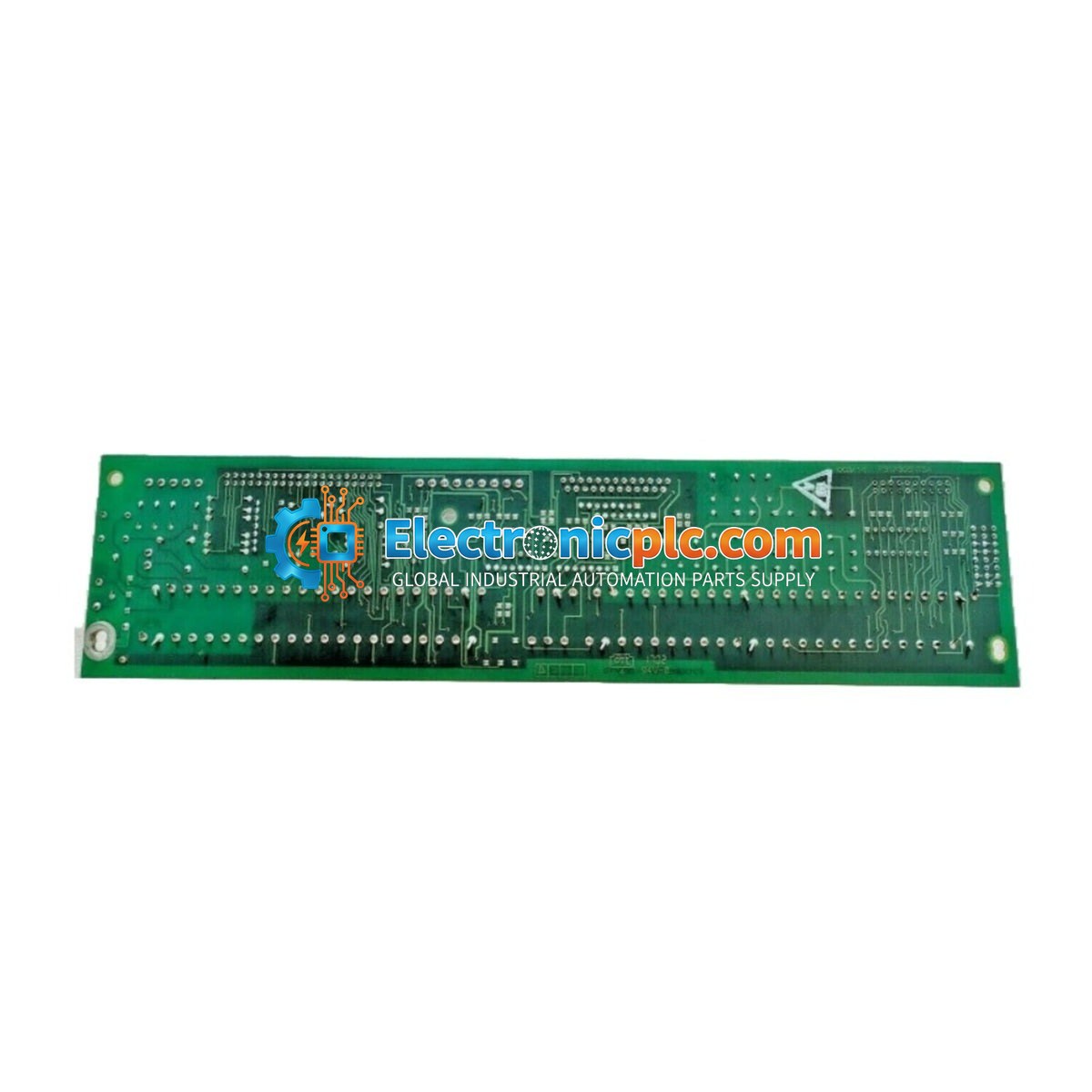

General Electric 531X305NTBAPG1 NTB/3TB Terminal Board

General Electric 531X305NTBAPG1 NTB/3TB Terminal Board

Description

The General Electric 531X305NTBAPG1 is a specialized NTB/3TB Terminal Board assembly designed for use within the Mark VIe and ACDC2000 drive control systems. This PC board assembly serves as a...

29 people are viewing this right now

Availability: Low stock: 9 left

SKU: 531X305NTBAPG1
Vendor: General Electric
Category: Terminal Board
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The General Electric 531X305NTBAPG1 is a specialized NTB/3TB Terminal Board assembly designed for use within the Mark VIe and ACDC2000 drive control systems. This PC board assembly serves as a critical interface component, facilitating secure and organized wiring connections for drive control signals and power distribution. It is engineered to maintain signal integrity and robust connectivity in demanding industrial drive environments.

Features

  • Designed for integration with ACDC2000 and Mark VIe control architectures.
  • High-density configuration featuring 120 terminal points.
  • Robust isolation barriers providing 250 V AC protection between terminal groups.
  • Supports voltage ratings up to 300 V AC/DC.
  • Current handling capacity of 5 A per terminal.

Technical Specifications

Product Model 531X305NTBAPG1
Manufacturer General Electric
Board Type NTB/3TB Terminal Board
Terminal Capacity 120 Terminals
Voltage Rating 300 V AC/DC (max)
Current Rating 5 A per terminal
Isolation Barriers 250 V AC between groups
Isolation Resistance >100 MΩ at 500 V DC
Dielectric Strength 1500 V AC
Tariff Code 8537101190

Installation Guidelines

  • Ensure the control system is powered down completely before installing or removing the terminal board assembly.
  • Handle the PCB assembly by the edges to prevent electrostatic discharge (ESD) damage to sensitive components.
  • Verify that all field wiring is properly secured to the 120 terminals to prevent intermittent connections or signal noise.
  • Ensure that the board is correctly seated in its mounting position to maintain proper grounding and mechanical stability.
  • Route signal cables away from high-voltage power lines to minimize electromagnetic interference (EMI).
  • Regularly inspect terminal connections for signs of oxidation or loosening due to thermal cycling in the drive cabinet.

FAQ

What system is the 531X305NTBAPG1 compatible with?

This terminal board is primarily used within the General Electric ACDC2000 drive systems and is compatible with Mark VIe series control architectures.

What is the maximum current rating for the terminals?

Each individual terminal on the 531X305NTBAPG1 is rated for a maximum current of 5 A.

Does this board provide electrical isolation?

Yes, the board includes isolation barriers rated for 250 V AC between terminal groups to ensure safe signal separation.
