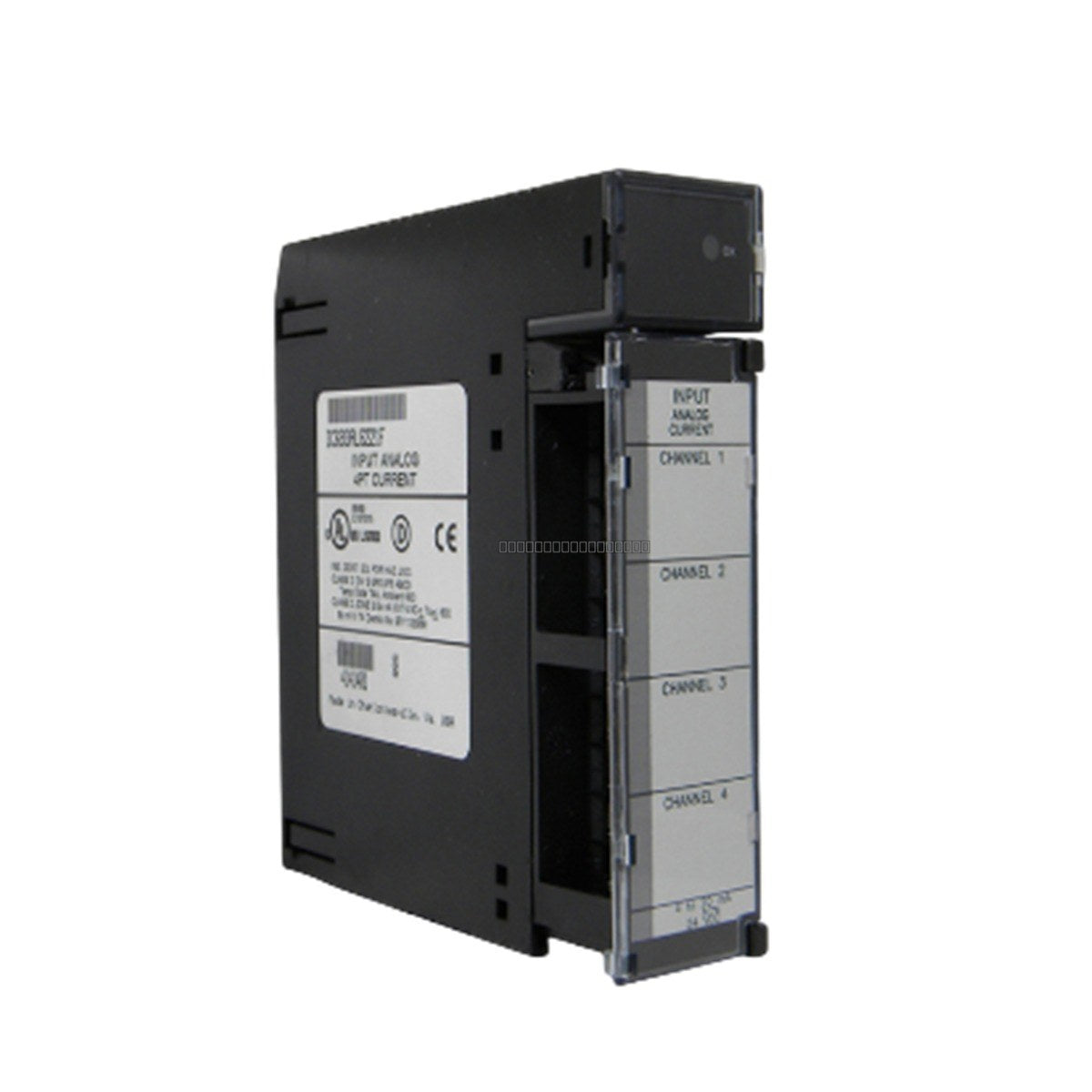

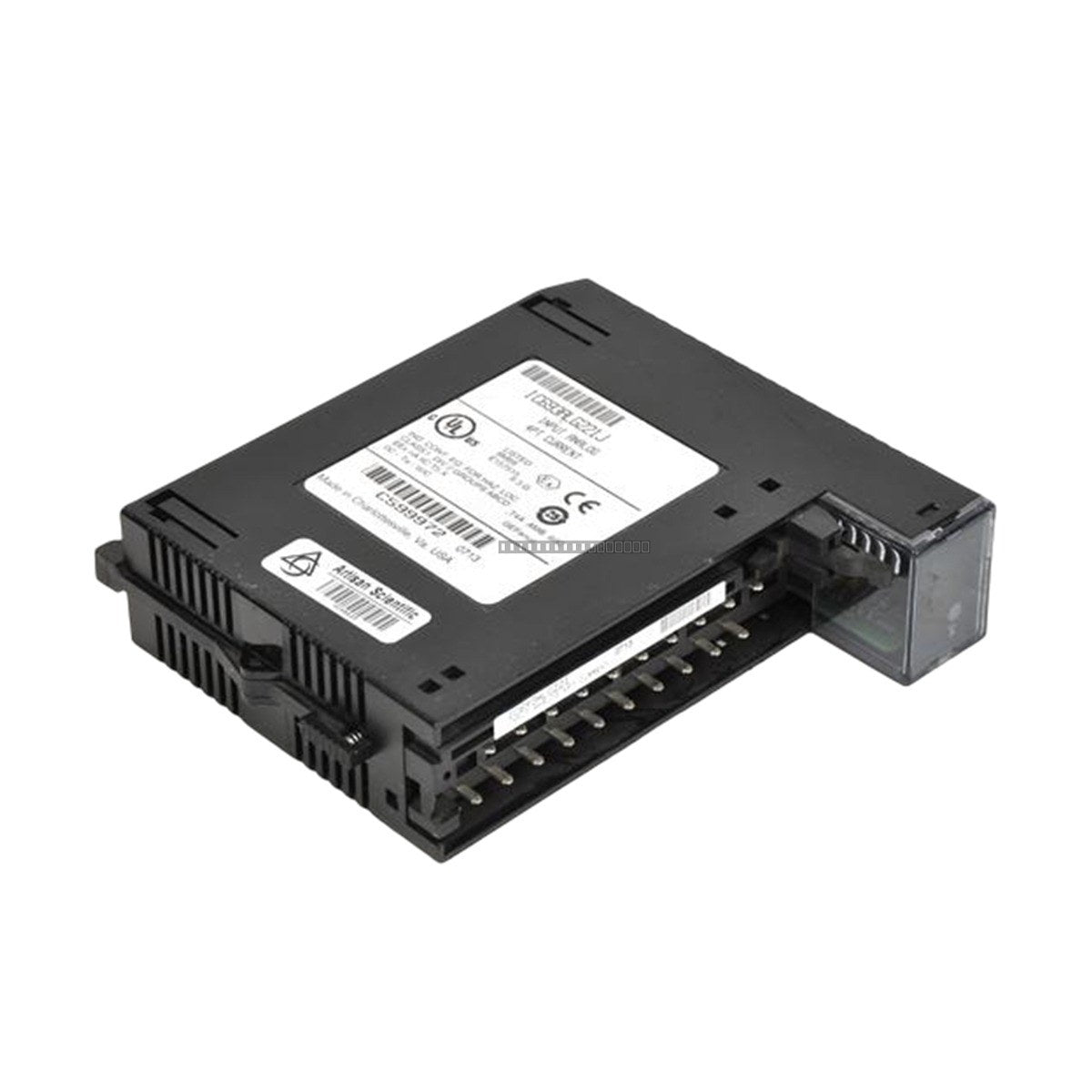

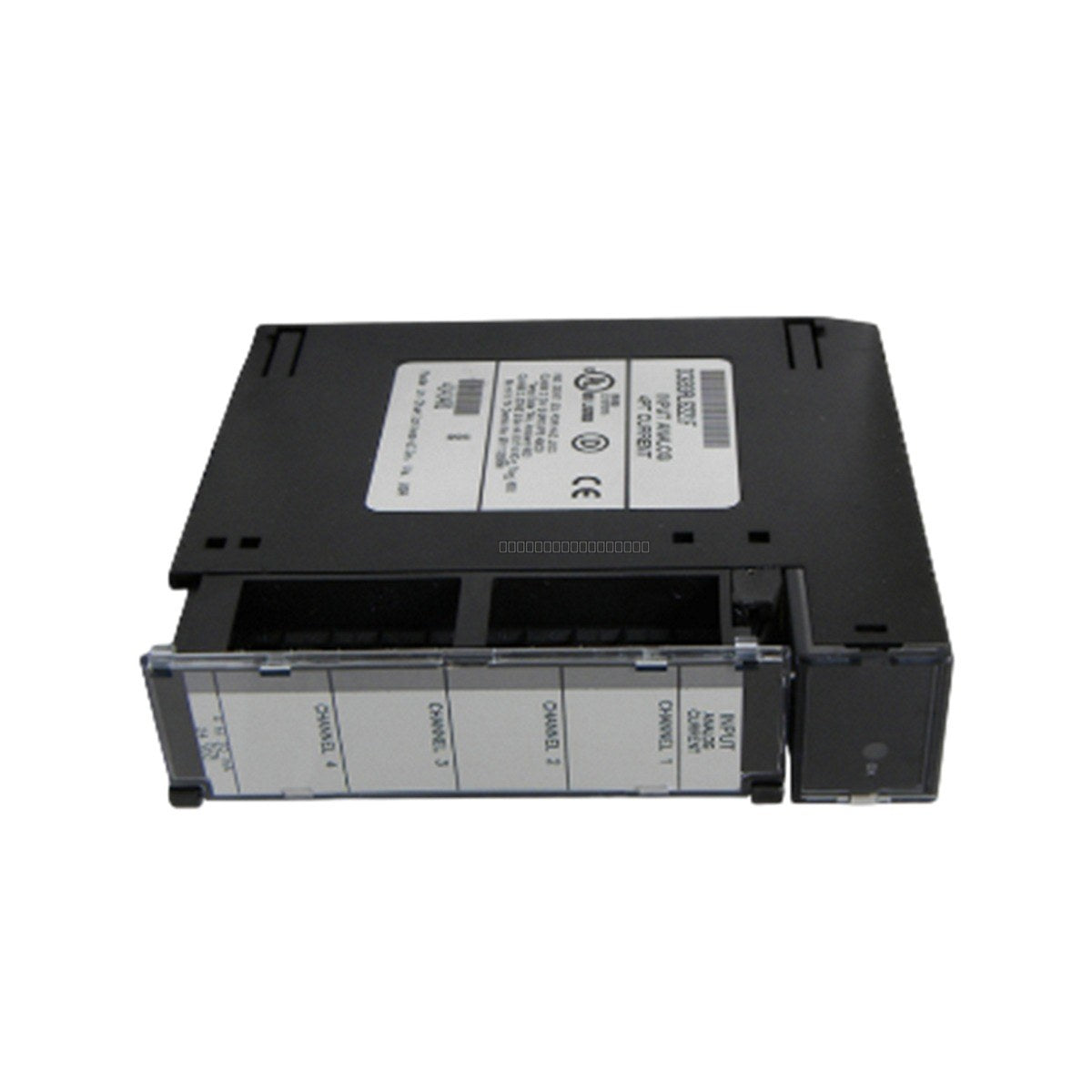

General Electric IC693ALG221E Series 90-30 Analog Input Module

General Electric IC693ALG221E Series 90-30 Analog Input Module

The General Electric IC693ALG221E is a 4-channel analog input module designed for the Series 90-30 PLC platform. This module provides high-precision signal processing for industrial control applications, supporting standard current...

21 people are viewing this right now

Availability: Low stock: 2 left

SKU: IC693ALG221E
Vendor: General Electric
Category: Analog Input Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

The General Electric IC693ALG221E is a 4-channel analog input module designed for the Series 90-30 PLC platform. This module provides high-precision signal processing for industrial control applications, supporting standard current loop inputs with a rapid update rate.

Features

  • 4 isolated input channels
  • Supports 4-20 mA and 0-20 mA input ranges
  • High accuracy of 0.1% of full scale
  • Fast update rate of 2 ms for all channels
  • 1500 Volts RMS isolation between field and logic circuitry
  • Integrated input filter response of 325 Hz

Technical Specifications

Model IC693ALG221E
Number of Channels 4
Input Ranges 4-20 mA, 0-20 mA
Accuracy 0.1% full scale
Update Rate 2 ms (all channels)
Input Impedance 250 ohms
Input Filter 325 Hz
Isolation 1500 V RMS (field to logic)
Power Consumption 25 mA at 5 VDC, 100 mA at 24 VDC

Installation Guidelines

  • Ensure the PLC rack is powered down before inserting or removing the module to prevent electrical damage or system faults.
  • The module is designed for standard Series 90-30 backplane mounting; ensure it is fully seated and secured with the integrated locking mechanism.
  • Use shielded twisted-pair cabling for analog signals to minimize electromagnetic interference (EMI).
  • Maintain proper grounding practices for the cable shields at the signal source or the module end, depending on system requirements, to avoid ground loops.
  • Ensure the operating environment is free from excessive dust, moisture, and corrosive gases to maintain module longevity.

FAQ

What is the primary function of the IC693ALG221E module?

This module is an analog input device used to convert 4-20 mA or 0-20 mA current signals from field instruments into digital data for processing by the GE Series 90-30 PLC CPU.

Does this module require external power?

The module consumes 25 mA from the 5 VDC backplane and 100 mA from the 24 VDC isolated supply. Ensure your power supply configuration supports these requirements.
