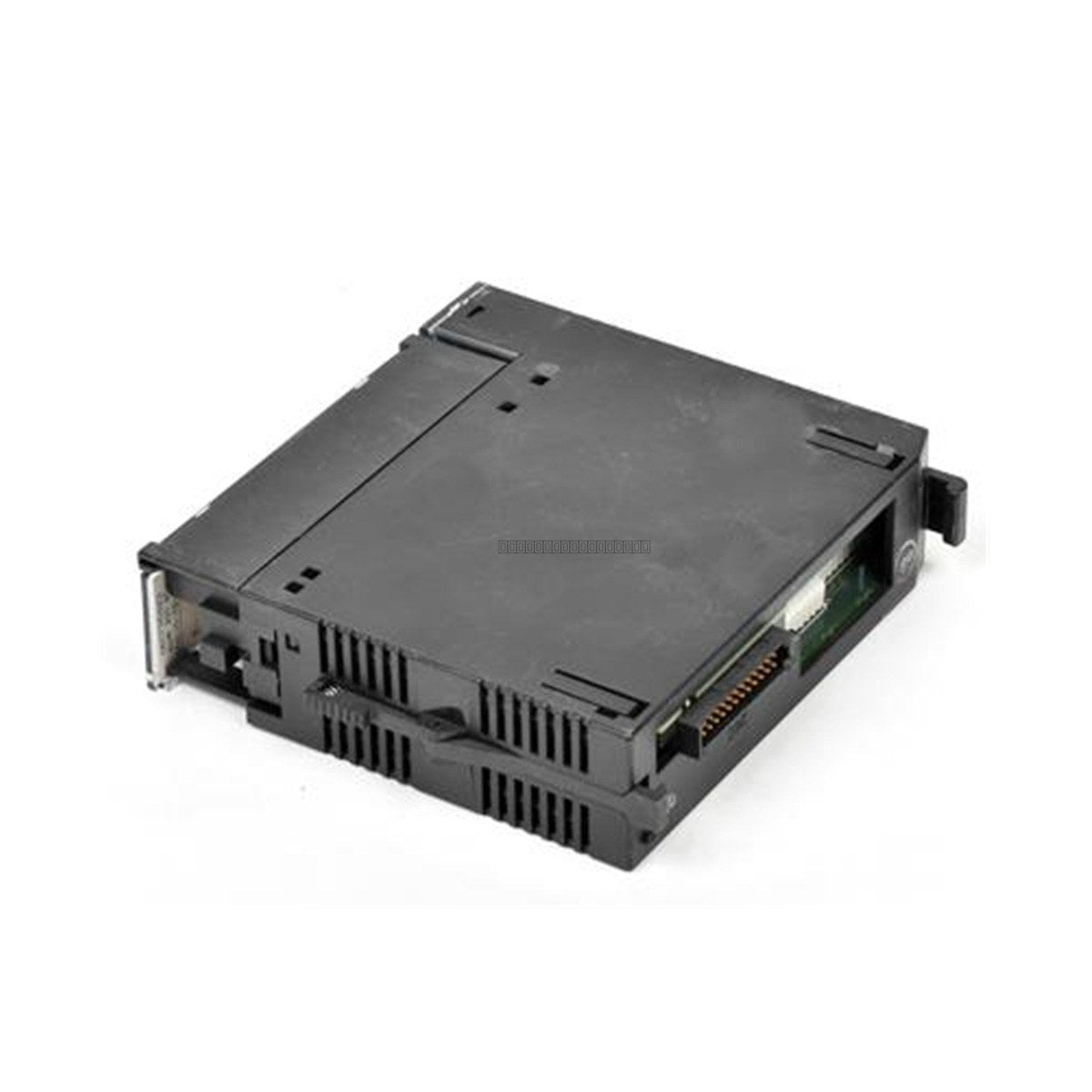

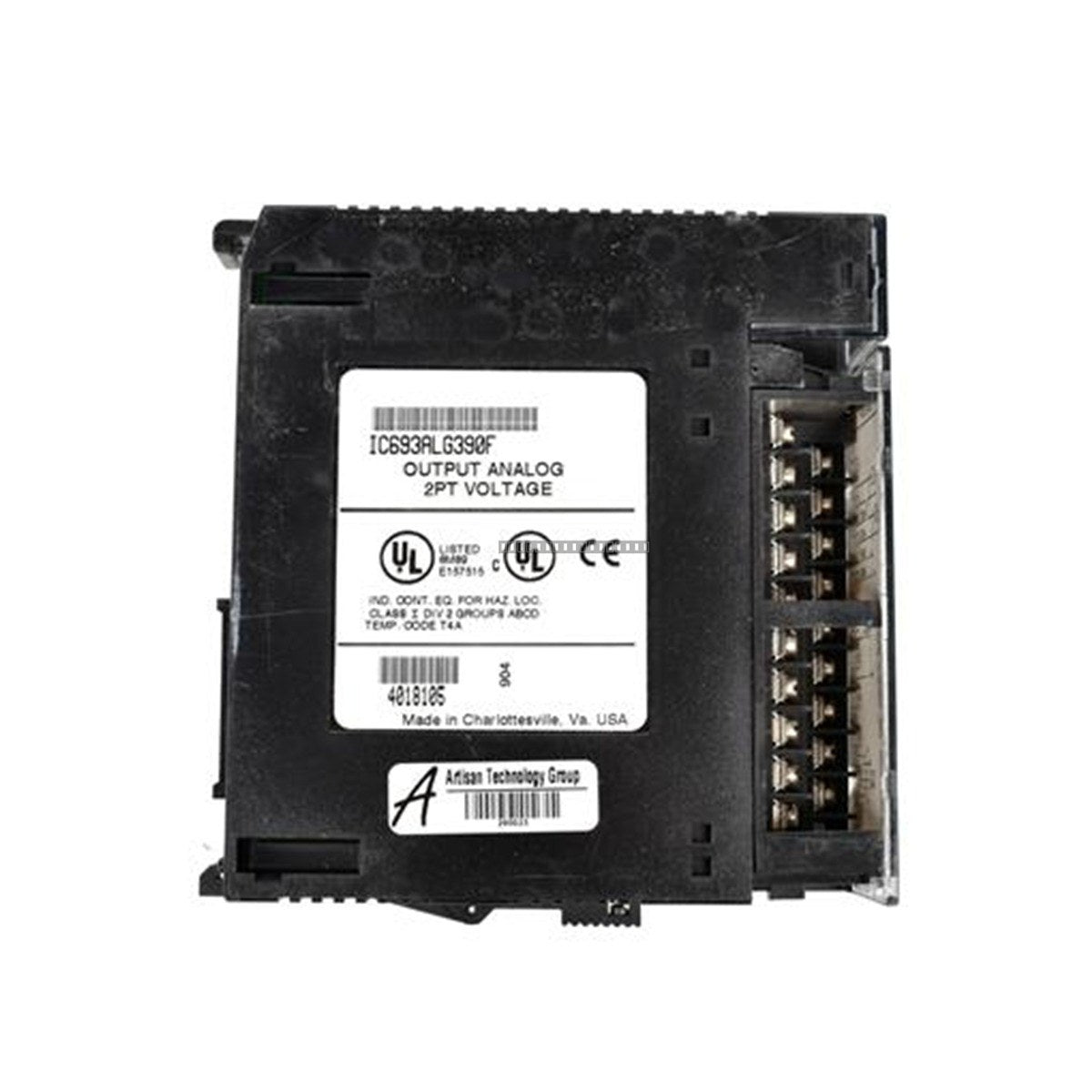

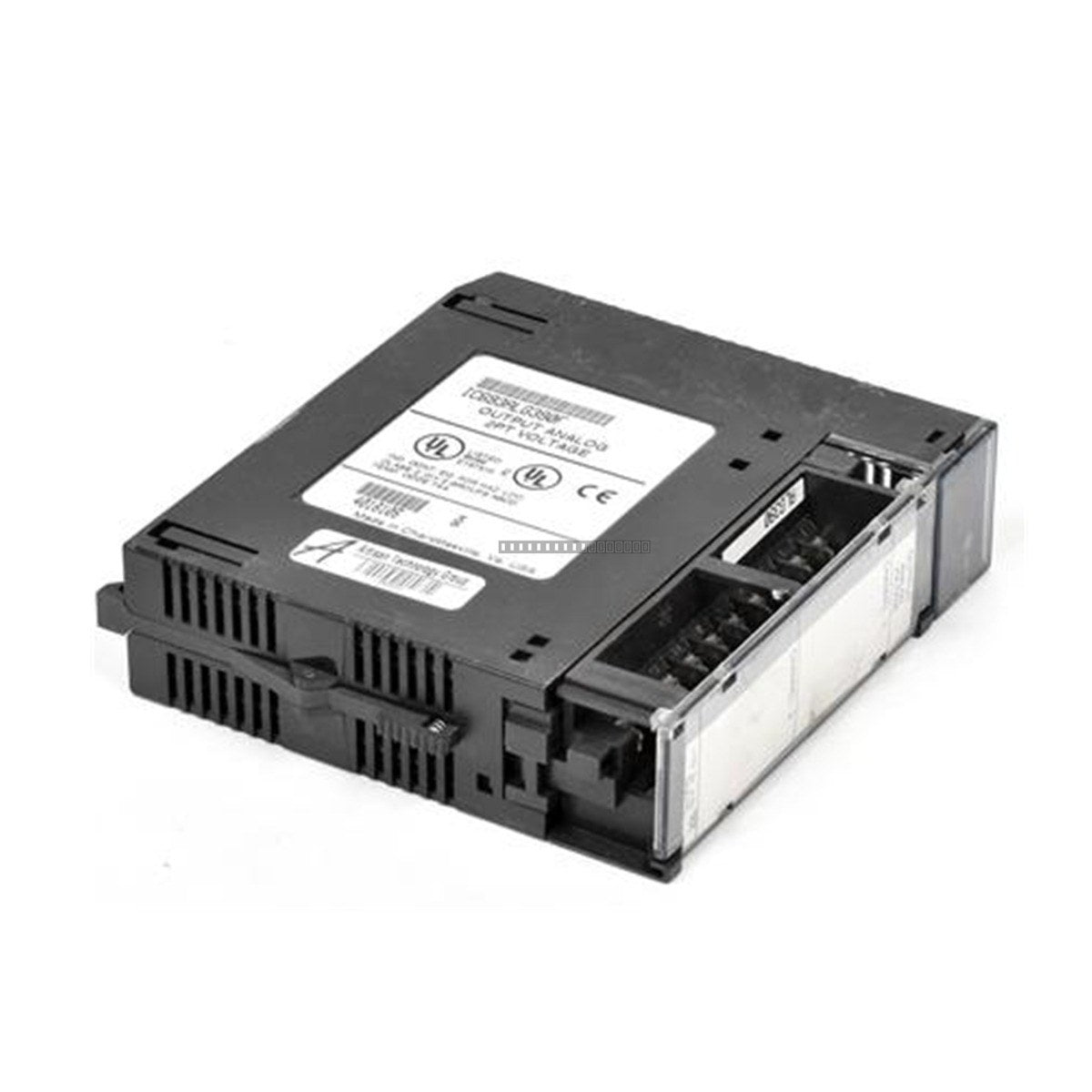

General Electric IC693ALG390G Series 90-30 Analog Voltage Output Module

General Electric IC693ALG390G Series 90-30 Analog Voltage Output Module

The General Electric IC693ALG390G is a high-performance analog voltage output module designed for the Series 90-30 PLC platform. This module provides two independent output channels capable of delivering a voltage...

17 people are viewing this right now

Availability: Low stock: 9 left

SKU: IC693ALG390G
Vendor: General Electric
Category: Analog Output Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

The General Electric IC693ALG390G is a high-performance analog voltage output module designed for the Series 90-30 PLC platform. This module provides two independent output channels capable of delivering a voltage range of -10 to +10 VDC, making it suitable for precision control applications requiring bipolar analog signaling.

Features

  • Two isolated analog output channels.
  • Voltage output range of -10 to +10 VDC.
  • Fast update rate of 5 ms for all channels.
  • High resolution of 2.5 mV.
  • 1500 Volts RMS isolation between the field and logic sides to ensure system integrity.
  • Factory calibrated for consistent performance.

Technical Specifications

Model Number IC693ALG390G
Channels 2
Output Range -10 to +10 VDC
Resolution 2.5 mV
Accuracy +/- 5 mV at 25 degC
Update Rate 5 ms (all channels)
External Supply Voltage 18 to 30 VDC
Internal Power Consumption 32 mA at 5 VDC; 120 mA at 24 VDC (User Supplied)
Isolation 1500 V RMS (Field to Logic)
Operating Temperature 0 to 60 degC

Installation Guidelines

  • Ensure the PLC rack power is disconnected before installing or removing the module.
  • The module must be seated firmly into the Series 90-30 backplane slot to ensure proper bus connection.
  • Use shielded twisted-pair cabling for analog signal connections to minimize electromagnetic interference (EMI).
  • Maintain proper grounding practices for the 24 VDC external power supply to prevent ground loops.
  • Ensure adequate ventilation in the control cabinet to maintain operating temperatures within the specified 0 to 60 degC range.

FAQ

What is the primary function of the IC693ALG390G?

This module converts digital data from the Series 90-30 PLC processor into analog voltage signals (-10 to +10 VDC) for controlling external field devices such as actuators, valves, or variable frequency drives.

Does this module require an external power supply?

Yes, the module requires an external 18 to 30 VDC power supply to drive the analog outputs, drawing approximately 120 mA during operation.
